IslandPath Analysis: Actinobacillus succinogenes 130Z

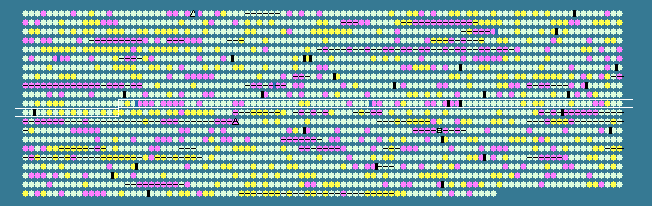

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.47 STD DEV: 4.33
Actinobacillus succinogenes 130Z, complete genome - 1..2319663
2079 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1017	 45.36	0	1124691..1125089	-	132	152978705	-	Asuc_1033	-	MerR family transcriptional regulator
1018	 49.08	0	1125160..1127928	+	922	152978706	-	Asuc_1034	-	copper-translocating P-type ATPase
1019	 42.84	0	1128051..1129985	+	644	152978707	-	Asuc_1035	-	ABC transporter ATPase component
1020	 32.99	-2	1136293..1137174	-	293	152978708	-	Asuc_1036	-	formyltetrahydrofolate deformylase
1021	 36.36	-2	1137210..1137605	-	131	152978709	-	Asuc_1037	-	histone family protein nucleoid-structuring protein H-NS
1022	 41.34	0	1137709..1139319	+	536	152978710	-	Asuc_1038	-	Na+ antiporter NhaC
1023	 44.27	0	1139564..1141282	+	572	152978711	-	Asuc_1039	-	acetolactate synthase 3 catalytic subunit
1024	 41.67	0	1141293..1141784	+	163	152978712	-	Asuc_1040	-	acetolactate synthase 3 regulatory subunit
1025	 35.71	-2	1141844..1143397	+	517	152978713	-	Asuc_1041	-	sulfatase
1026	 41.67	0	1143451..1143714	-	87	152978714	-	Asuc_1042	-	glutaredoxin 1
1027	 39.59	-1	1144173..1144715	+	180	152978715	-	Asuc_1043	-	hypothetical protein
1028	 45.84	0	1144766..1147843	-	1025	152978716	-	Asuc_1044	-	FAD linked oxidase domain-containing protein
1029	 43.14	0	1148292..1149362	+	356	152978717	-	Asuc_1045	-	OmpA domain-containing protein
1030	 40.21	-1	1149465..1150046	+	193	152978718	-	Asuc_1046	-	LemA family protein
1031	 42.69	0	1150099..1150536	+	145	152978719	-	Asuc_1047	-	hypothetical protein
1032	 46.12	0	1150529..1151326	+	265	152978720	-	Asuc_1048	-	hypothetical protein
1033	 44.34	0	1151409..1151735	+	108	152978721	-	Asuc_1049	-	glutaredoxin-like protein
1034	 43.23	0	1151866..1152825	-	319	152978722	-	Asuc_1050	-	preprotein translocase subunit SecF
1035	 47.60	0	1152841..1154691	-	616	152978723	-	Asuc_1051	-	preprotein translocase subunit SecD
1036	 37.33	-1	1154716..1155015	-	99	152978724	-	Asuc_1052	-	preprotein translocase subunit YajC
1037	 40.64	-1	1155159..1155377	-	72	152978725	-	Asuc_1053	-	SirA family protein
1038	 46.02	0	1155380..1155781	-	133	152978726	-	Asuc_1054	-	hypothetical protein
1039	 46.02	0	1155907..1156434	-	175	152978727	-	Asuc_1055	-	hemerythrin HHE cation binding domain-containing protein
1040	 48.42	0	1156545..1157684	-	379	152978728	-	Asuc_1056	-	queuine tRNA-ribosyltransferase
1041	 48.03	0	1157852..1158994	-	380	152978729	-	Asuc_1057	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1042	 48.42	0	1159120..1159563	+	147	152978730	-	Asuc_1058	-	DNA polymerase III subunit chi
1043	 45.54	0	1159564..1159989	+	141	152978731	-	Asuc_1059	-	GCN5-related N-acetyltransferase
1044	 46.33	0	1160206..1163052	+	948	152978732	-	Asuc_1060	-	valyl-tRNA synthetase
1045	 48.87	0	1163123..1164358	-	411	152978733	-	Asuc_1061	-	allantoate amidohydrolase
1046	 46.95	0	1164473..1165177	+	234	152978734	-	Asuc_1062	-	peptidase E
1047	 49.57	0	1165189..1166481	+	430	152978735	-	Asuc_1063	-	anaerobic c4-dicarboxylate antiporter
1048	 50.20	+1	1166685..1167953	+	422	152978736	-	Asuc_1064	-	amidohydrolase
1049	 48.55	0	1168182..1169666	+	494	152978737	-	Asuc_1065	-	aldehyde dehydrogenase
1050	 46.21	0	1169827..1171806	-	659	152978738	-	Asuc_1066	-	exoribonuclease II
1051	 48.80	0	1171901..1172689	-	262	152978739	-	Asuc_1067	-	short-chain dehydrogenase/reductase SDR
1052	 46.17	0	1172851..1173621	-	256	152978740	-	Asuc_1068	-	hypothetical protein
1053	 48.65	0	1173667..1174554	-	295	152978741	-	Asuc_1069	-	HflC protein
1054	 48.92	0	1174554..1175753	-	399	152978742	-	Asuc_1070	-	HflK protein
1055	 39.97	-1	1175941..1176708	+	255	152978743	-	Asuc_1071	-	hypothetical protein
1056	 43.26	0	1176777..1177421	-	214	152978744	-	Asuc_1072	-	hypothetical protein
1057	 43.08	0	1177492..1178496	-	334	152978745	-	Asuc_1073	-	fructose-1,6-bisphosphatase
1058	 43.40	0	1178752..1180122	+	456	152978746	-	Asuc_1074	-	UDP-N-acetylmuramate
1059	 37.91	-1	1185840..1187042	-	400	152978747	-	Asuc_1075	-	polynucleotide adenylyltransferase region
1060	 39.05	-1	1187095..1187706	-	203	152978748	-	Asuc_1076	-	SH3 type 3 domain-containing protein
1061	 44.68	0	1187770..1189038	-	422	152978749	-	Asuc_1077	-	phosphate transporter
1062	 43.76	0	1189053..1189733	-	226	152978750	-	Asuc_1078	-	hypothetical protein
1063	 41.88	0	1189888..1190964	+	358	152978751	-	Asuc_1079	-	adenylate cyclase
1064	 49.78	0	1190930..1192309	+	459	152978752	-	Asuc_1080	-	DNA repair protein RadA
1065	 45.20	0	1192412..1195066	-	884	152978753	-	Asuc_1081	-	hypothetical protein
1066	 42.16	0	1195044..1196300	-	418	152978754	-	Asuc_1082	-	PqiA family integral membrane protein
1067	 44.54	0	1196485..1197153	+	222	152978755	-	Asuc_1083	-	putative solute/DNA competence effector
1068	 41.43	0	1197255..1199330	+	691	152978756	-	Asuc_1084	-	carboxy-terminal protease
1069	 40.81	-1	1199395..1200879	+	494	152978757	-	Asuc_1085	-	hypothetical protein
1070	 44.56	0	1200994..1201554	+	186	152978758	-	Asuc_1086	-	hypothetical protein
1071	 41.23	0	1201609..1202241	+	210	152978759	-	Asuc_1087	-	beta-lactamase domain-containing protein
1072	 41.21	0	1203093..1204361	+	422	152978760	-	Asuc_1088	-	hypothetical protein
1073	 41.56	0	1204406..1206484	-	692	152978761	-	Asuc_1089	-	excinuclease ABC subunit B
1074	 42.78	0	1207172..1208134	+	320	152978762	-	Asuc_1090	-	CaCA family Na(+)/Ca(+) antiporter
1075	 47.09	0	1208253..1209386	-	377	152978763	-	Asuc_1091	-	chaperone protein DnaJ
1076	 45.34	0	1209632..1211539	-	635	152978764	-	Asuc_1092	-	chaperone protein DnaK
1077	 43.51	0	1211875..1212798	-	307	152978765	-	Asuc_1093	-	hypothetical protein
1078	 47.11	0	1212823..1214550	-	575	152978766	-	Asuc_1094	-	arginyl-tRNA synthetase
1079	 46.80	0	1214657..1215532	-	291	152978767	-	Asuc_1095	-	acyl-CoA thioesterase II
1080	 47.65	0	1215779..1217503	-	574	152978768	-	Asuc_1096	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1081	 47.53	0	1217609..1219369	-	586	152978769	-	Asuc_1097	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1082	 45.22	0	1219456..1219800	-	114	152978770	-	Asuc_1098	-	hypothetical protein
1083	 45.00	0	1219956..1220435	+	159	152978771	-	Asuc_1099	-	leucine-responsive transcriptional regulator
1084	 49.89	+1	1220437..1223268	+	943	152978772	-	Asuc_1100	-	cell divisionFtsK/SpoIIIE
1085	 45.14	0	1223326..1223952	+	208	152978773	-	Asuc_1101	-	outer-membrane lipoprotein carrier protein
1086	 50.52	+1	1224019..1225362	+	447	152978774	-	Asuc_1102	-	recombination factor protein RarA
1087	 49.01	0	1225388..1226554	+	388	152978775	-	Asuc_1103	-	N-acetylglucosamine-6-phosphate deacetylase
1088	 46.59	0	1226716..1228005	+	429	152978776	-	Asuc_1104	-	seryl-tRNA synthetase
1089	 45.72	0	1228020..1229036	+	338	152978777	-	Asuc_1105	-	auxin efflux carrier
1090	 47.71	0	1229086..1229892	-	268	152978778	-	Asuc_1106	-	aldose 1-epimerase
1091	 46.16	0	1229978..1231903	+	641	152978779	-	Asuc_1107	-	helicase c2
1092	 51.05	+1	1231908..1232624	+	238	152978780	-	Asuc_1108	-	peptidase M22 glycoprotease
1093	 45.30	0	1232675..1233301	+	208	152978781	-	Asuc_1109	-	Slp family outer membrane lipoprotein
1094	 44.35	0	1233336..1235024	+	562	152978782	-	Asuc_1110	-	long-chain-fatty-acid--CoA ligase
1095	 45.49	0	1235109..1236260	+	383	152978783	-	Asuc_1111	-	ribonuclease D
1096	 40.17	-1	1236253..1236852	+	199	152978784	-	Asuc_1112	-	hypothetical protein
1097	 41.19	0	1236849..1237166	+	105	152978785	-	Asuc_1113	-	hypothetical protein
1098	 50.22	+1	1237190..1237651	+	153	152978786	-	Asuc_1114	-	17 kDa surface antigen
1099	 46.48	0	1237755..1239374	+	539	152978787	-	Asuc_1115	-	4-phytase
1100	 44.72	0	1239478..1240785	+	435	152978788	-	Asuc_1116	-	glutamyl-tRNA reductase
1101	 44.72	0	1240876..1241604	+	242	152978789	-	Asuc_1117	-	dithiobiotin synthetase
1102	 44.57	0	1241641..1242192	-	183	152978790	-	Asuc_1118	-	hypothetical protein
1103	 44.74	0	1242806..1243261	+	151	152978791	-	Asuc_1119	-	hypothetical protein
1104	 48.70	0	1243288..1244823	+	511	152978792	-	Asuc_1120	-	transcription elongation factor NusA
1105	 49.05	0	1244836..1247349	+	837	152978793	-	Asuc_1121	-	translation initiation factor IF-2
1106	 46.41	0	1247472..1247861	+	129	152978794	-	Asuc_1122	-	ribosome-binding factor A
1107	 50.64	+1	1247861..1248796	+	311	152978795	-	Asuc_1123	-	tRNA pseudouridine synthase B
1108	 45.10	0	1248810..1249718	+	302	152978796	-	Asuc_1124	-	hypothetical protein
1109	 51.01	+1	1249751..1251034	-	427	152978797	-	Asuc_1125	-	tRNA(Ile)-lysidine synthetase
1110	 48.90	0	1251192..1252052	-	286	152978798	-	Asuc_1126	-	pyridoxal kinase
1111	 49.69	0	1252153..1253106	-	317	152978799	-	Asuc_1127	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1112	 45.73	0	1253318..1253938	-	206	152978800	-	Asuc_1128	-	hypothetical protein
1113	 48.42	0	1254249..1255262	+	337	152978801	-	Asuc_1129	-	thiamine ABC transporter, periplasmic binding protein
1114	 49.94	+1	1255262..1256881	+	539	152978802	-	Asuc_1130	-	thiamine transporter membrane protein
1115	 48.42	0	1256874..1257536	+	220	152978803	-	Asuc_1131	-	ABC transporter ATP-binding protein
1116	 50.05	+1	1257539..1258555	+	338	152978804	-	Asuc_1132	-	biotin synthase
45.47	MEAN

4.33	STD DEV
