IslandPath Analysis: Acidovorax sp. JS42

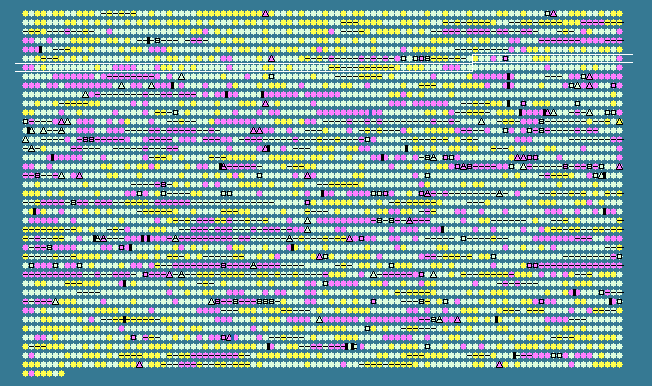

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.47 STD DEV: 4.71
Acidovorax sp. JS42, complete genome - 1..4448856
4007 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
576	 71.41	+1	616302..617672	+	456	121593012	-	Ajs_0585	-	TolC family type I secretion outer membrane protein
577	 66.85	0	617710..618792	+	360	121593013	-	Ajs_0586	-	glycosyl transferase, group 1
578	 66.76	0	618857..619957	+	366	121593014	-	Ajs_0587	-	glycosyl transferase family protein
579	 60.61	-1	620027..620917	+	296	121593015	-	Ajs_0588	-	acetylglutamate kinase
580	 68.37	0	621110..621754	+	214	121593016	slmA	Ajs_0589	-	nucleoid occlusion protein
581	 57.70	-1	622021..623001	-	326	121593017	-	Ajs_0590	-	transposase, IS4 family protein
582	 66.22	0	623150..623815	+	221	121593018	-	Ajs_0591	-	TetR family transcriptional regulator
583	 65.72	0	623880..625676	+	598	121593019	-	Ajs_0592	-	acyl-CoA dehydrogenase domain-containing protein
584	 65.29	0	625729..626163	+	144	121593020	-	Ajs_0593	-	hypothetical protein
585	 67.29	0	626264..628666	+	800	121593021	-	Ajs_0594	-	3-hydroxyacyl-CoA dehydrogenase
586	 70.18	0	628688..629884	+	398	121593022	-	Ajs_0595	-	acetyl-CoA acetyltransferase
587	 72.69	+1	629965..630861	+	298	121593023	-	Ajs_0596	-	putative hydrolase
588	 70.23	0	630887..631729	+	280	121593024	-	Ajs_0597	-	hypothetical protein
589	 68.21	0	631747..632523	+	258	121593025	-	Ajs_0598	-	enoyl-CoA hydratase
590	 67.70	0	632703..633185	+	160	121593026	-	Ajs_0599	-	hypothetical protein
591	 67.03	0	633373..633927	+	184	121593027	-	Ajs_0600	-	hypothetical protein
592	 65.74	0	633980..634411	-	143	121593028	-	Ajs_0601	-	thioesterase superfamily protein
593	 67.11	0	634454..636265	+	603	121593029	-	Ajs_0602	-	ABC transporter related
594	 68.25	0	636320..636634	+	104	121593030	-	Ajs_0603	-	MazG nucleotide pyrophosphohydrolase
595	 64.83	0	636748..637779	-	343	121593031	-	Ajs_0604	-	TRAP dicarboxylate transporter, DctP subunit
596	 67.82	0	637813..639111	-	432	121593032	-	Ajs_0605	-	TRAP dicarboxylate transporter, DctM subunit
597	 67.01	0	639108..639698	-	196	121593033	-	Ajs_0606	-	tripartite ATP-independent periplasmic transporter DctQ
598	 67.31	0	639927..640865	+	312	121593034	-	Ajs_0607	-	LysR family transcriptional regulator
599	 63.75	0	641047..641937	+	296	121593035	-	Ajs_0608	-	extracellular solute-binding protein
600	 60.78	-1	642060..642959	+	299	121593036	-	Ajs_0609	-	extracellular solute-binding protein
601	 62.68	0	643080..643832	+	250	121593037	-	Ajs_0610	-	polar amino acid ABC transporter, inner membrane subunit
602	 62.35	0	643834..644505	+	223	121593038	-	Ajs_0611	-	polar amino acid ABC transporter, inner membrane subunit
603	 63.55	0	644528..645265	+	245	121593039	-	Ajs_0612	-	ABC transporter related
604	 70.11	0	645541..646527	-	328	121593040	-	Ajs_0613	-	ornithine cyclodeaminase
605	 69.44	0	646706..647137	+	143	121593041	-	Ajs_0614	-	AsnC family transcriptional regulator
606	 65.45	0	647163..647819	-	218	121593042	-	Ajs_0615	-	cytochrome c, class I
607	 65.35	0	647916..648752	-	278	121593043	-	Ajs_0616	-	HAD family hydrolase
608	 65.31	0	648770..650395	-	541	121593044	prfC	Ajs_0617	-	peptide chain release factor 3
609	 64.99	0	650682..652112	+	476	121593045	-	Ajs_0618	-	S-adenosyl-L-homocysteine hydrolase
610	 68.27	0	652225..653223	+	332	121593046	-	Ajs_0619	-	ribosomal RNA methyltransferase RrmJ/FtsJ
611	 68.57	0	653220..654059	+	279	121593047	-	Ajs_0620	-	5,10-methylenetetrahydrofolate reductase
612	 67.40	0	654070..654753	+	227	121593048	-	Ajs_0621	-	hypothetical protein
613	 71.40	+1	654962..655489	+	175	121593049	-	Ajs_0622	-	rare lipoprotein A
614	 66.89	0	655534..656424	-	296	121593050	-	Ajs_0623	-	hypothetical protein
615	 68.13	0	656544..658526	+	660	121593051	-	Ajs_0624	-	protein kinase
616	 60.61	-1	658680..659108	+	142	121593052	rplM	Ajs_0625	-	50S ribosomal protein L13
617	 59.80	-1	659119..659511	+	130	121593053	-	Ajs_0626	-	ribosomal protein S9
618	 61.90	0	660423..660821	+	132	121593054	-	Ajs_0628	-	hypothetical protein
619	 57.87	-1	660882..661256	+	124	121593055	-	Ajs_0629	-	iron-sulfur cluster insertion protein ErpA
620	 68.81	0	661319..662440	-	373	121593056	anmK	Ajs_0630	-	anhydro-N-acetylmuramic acid kinase
621	 68.13	0	662453..663817	-	454	121593057	-	Ajs_0631	-	peptidase M23B
622	 64.48	0	664011..665243	+	410	121593058	-	Ajs_0632	-	tyrosyl-tRNA synthetase
623	 62.45	0	665314..665835	-	173	121593059	-	Ajs_0633	-	hemerythrin-like metal-binding protein
624	 70.52	0	665988..666998	-	336	121593060	-	Ajs_0634	-	LysR family transcriptional regulator
625	 70.02	0	667145..667591	+	148	121593061	-	Ajs_0635	-	hypothetical protein
626	 69.67	0	667783..669213	+	476	121593062	-	Ajs_0636	-	glucosamine-1-phosphate N-acetyltransferase / UDP-N-acetylglucosamine pyrophosphorylase
627	 71.85	+1	669218..669988	+	256	121593063	-	Ajs_0637	-	histidine kinase
628	 69.88	0	670023..670364	-	113	121593064	-	Ajs_0638	-	MerR family transcriptional regulator
629	 71.59	+1	670367..671362	-	331	121593065	-	Ajs_0639	-	heat shock protein DnaJ domain-containing protein
630	 65.65	0	671488..671979	-	163	121593066	-	Ajs_0640	-	AsnC family transcriptional regulator
631	 68.13	0	672116..674026	+	636	121593067	-	Ajs_0641	-	D-fructose-6-phosphate amidotransferase
632	 64.15	0	674181..674816	-	211	121593068	-	Ajs_0642	-	NmrA family protein
633	 63.68	0	674932..675834	+	300	121593069	-	Ajs_0643	-	LysR family transcriptional regulator
634	 65.44	0	676689..677750	+	353	121593070	-	Ajs_0645	-	alcohol dehydrogenase
635	 61.48	-1	677747..678016	-	89	121593071	-	Ajs_0646	-	translation initiation factor IF-1
636	 65.41	0	678520..681933	+	1137	121593072	-	Ajs_0647	-	multi-sensor hybrid histidine kinase
637	 63.79	0	681977..682810	+	277	121593073	-	Ajs_0648	-	MCP methyltransferase, CheR-type
638	 69.17	0	682807..683406	+	199	121593074	-	Ajs_0649	-	CheB methylesterase
639	 68.15	0	683403..684551	+	382	121593075	-	Ajs_0650	-	response regulator receiver sensor signal transduction histidine kinase
640	 67.63	0	684604..685020	-	138	121593076	-	Ajs_0651	-	response regulator receiver protein
641	 71.19	+1	685135..685797	-	220	121593077	-	Ajs_0652	-	DNA-N1-methyladenine dioxygenase
642	 70.86	0	685981..687555	+	524	121593078	-	Ajs_0653	-	AMP-dependent synthetase and ligase
643	 67.12	0	687627..688289	+	220	121593079	-	Ajs_0654	-	DSBA oxidoreductase
644	 69.82	0	688358..688864	-	168	121593080	-	Ajs_0655	-	CreA family protein
645	 70.96	0	688861..691446	-	861	121593081	-	Ajs_0656	-	cyanophycin synthetase
646	 68.77	0	691541..693724	-	727	121593082	-	Ajs_0657	-	cyanophycin synthetase
647	 67.78	0	694036..696288	+	750	121593083	-	Ajs_0658	-	ABC transporter related
648	 68.05	0	696305..696811	+	168	121593084	-	Ajs_0659	-	hypothetical protein
649	 66.21	0	697007..697447	+	146	121593085	-	Ajs_0660	-	hypothetical protein
650	 69.84	0	697548..697925	-	125	121593086	-	Ajs_0661	-	signal transduction protein
651	 69.75	0	697957..698898	-	313	121593087	-	Ajs_0662	-	5-nucleotidase
652	 72.03	+1	698895..700124	-	409	121593088	-	Ajs_0663	-	general secretion pathway protein F
653	 72.29	+1	700186..701217	-	343	121593089	-	Ajs_0664	-	luciferase family protein
654	 67.81	0	701414..701938	+	174	121593090	-	Ajs_0665	-	hypothetical protein
655	 69.26	0	702069..703457	-	462	121593091	-	Ajs_0666	-	general secretory pathway protein E
656	 68.93	0	703470..705815	-	781	121593092	-	Ajs_0667	-	general secretion pathway protein D
657	 75.65	+1	705820..706632	-	270	121593093	-	Ajs_0668	-	putative general secretory pathway N transmembrane protein
658	 76.56	+2	706649..707194	-	181	121593094	-	Ajs_0669	-	hypothetical protein
659	 75.37	+1	707191..708420	-	409	121593095	-	Ajs_0670	-	general secretion pathway L
660	 71.29	+1	708480..709625	-	381	121593096	-	Ajs_0671	-	general secretion pathway protein K
661	 73.83	+1	709622..710305	-	227	121593097	-	Ajs_0672	-	hypothetical protein
662	 72.52	+1	710475..710867	-	130	121593098	-	Ajs_0673	-	general secretion pathway protein I
663	 72.86	+1	710864..711412	-	182	121593099	-	Ajs_0674	-	general secretion pathway protein H
664	 69.17	0	711446..711925	-	159	121593100	-	Ajs_0675	-	general secretion pathway protein G
665	 76.22	+2	711949..712398	+	149	121593101	-	Ajs_0676	-	hypothetical protein
666	 72.55	+1	712455..713066	-	203	121593102	-	Ajs_0677	-	phosphoglycerate mutase
667	 71.09	0	713063..713875	-	270	121593103	-	Ajs_0678	-	cobalamin-5'-phosphate synthase
668	 67.05	0	713942..715504	-	520	121593104	-	Ajs_0679	-	threonine dehydratase
669	 68.00	0	715828..716277	+	149	121593105	-	Ajs_0680	-	OsmC family protein
670	 68.77	0	716294..716911	-	205	121593106	-	Ajs_0681	-	putative ubiquinone biosynthesis protein
671	 56.47	-2	717222..718310	+	362	121593107	-	Ajs_0682	-	porin
672	 59.64	-1	718543..719667	+	374	121593108	-	Ajs_0683	-	porin
673	 62.93	0	721449..723029	+	526	121593109	-	Ajs_0685	-	extracellular solute-binding protein
674	 65.24	0	723177..724160	+	327	121593110	-	Ajs_0686	-	binding-protein-dependent transport systems inner membrane component
675	 69.11	0	724162..725388	+	408	121593111	-	Ajs_0687	-	amidohydrolase
66.47	MEAN

4.71	STD DEV
