IslandPath Analysis: Acidovorax sp. JS42

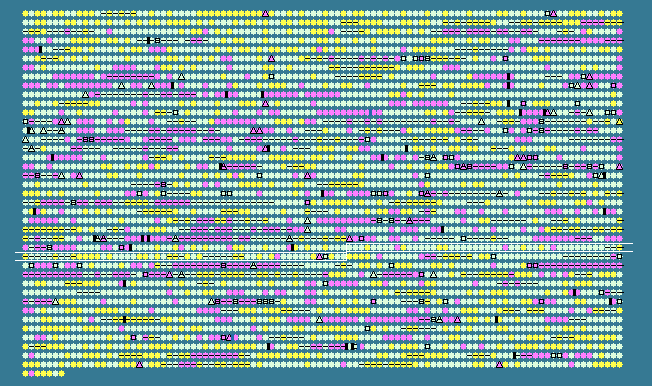

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.47 STD DEV: 4.71
Acidovorax sp. JS42, complete genome - 1..4448856
4007 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2655	 63.38	0	2933287..2933712	+	141	121595091	-	Ajs_2770	-	4-hydroxybenzoyl-CoA thioesterase
2656	 66.10	0	2933709..2934410	+	233	121595092	-	Ajs_2771	-	MotA/TolQ/ExbB proton channel
2657	 64.55	0	2934590..2935015	+	141	121595093	-	Ajs_2772	-	biopolymer transport protein ExbD/TolR
2658	 70.88	0	2935037..2936008	+	323	121595094	-	Ajs_2773	-	TonB family protein
2659	 68.62	0	2936131..2937462	-	443	121595095	-	Ajs_2774	-	general substrate transporter
2660	 64.57	0	2937774..2938823	+	349	121595096	-	Ajs_2775	-	ubiquinol oxidase, subunit II
2661	 63.11	0	2938951..2940891	+	646	121595097	-	Ajs_2776	-	cytochrome-c oxidase
2662	 64.47	0	2940884..2941519	+	211	121595098	-	Ajs_2777	-	cytochrome c oxidase, subunit III
2663	 61.77	0	2941520..2941948	+	142	121595099	-	Ajs_2778	-	cytochrome C oxidase subunit IV
2664	 70.86	0	2941960..2942769	+	269	121595100	-	Ajs_2779	-	Surfeit locus 1 family protein
2665	 67.56	0	2942766..2944106	+	446	121595101	-	Ajs_2780	-	integral membrane sensor signal transduction histidine kinase
2666	 66.48	0	2944096..2944629	+	177	121595102	-	Ajs_2781	-	two component Fis family transcriptional regulator
2667	 64.57	0	2944741..2945169	+	142	121595103	-	Ajs_2782	-	glutathione S-transferase-like protein
2668	 66.09	0	2945705..2947081	+	458	121595104	-	Ajs_2783	-	peptidase U32
2669	 68.92	0	2947137..2948114	+	325	121595105	-	Ajs_2784	-	hypothetical protein
2670	 74.54	+1	2948122..2948553	-	143	121595106	-	Ajs_2785	-	hypothetical protein
2671	 72.06	+1	2948659..2949474	+	271	121595107	-	Ajs_2786	-	XRE family transcriptional regulator
2672	 64.89	0	2949694..2952285	-	863	121595108	-	Ajs_2787	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
2673	 67.95	0	2952400..2953020	-	206	121595109	-	Ajs_2788	-	hypothetical protein
2674	 68.25	0	2953080..2954090	-	336	121595110	-	Ajs_2789	-	HpcH/HpaI aldolase
2675	 65.38	0	2954087..2954863	-	258	121595111	-	Ajs_2790	-	trans-aconitate 2-methyltransferase
2676	 63.53	0	2954876..2955928	-	350	121595112	-	Ajs_2791	-	malate dehydrogenase
2677	 65.96	0	2955998..2956852	+	284	121595113	-	Ajs_2792	-	GntR family transcriptional regulator
2678	 63.91	0	2956992..2957426	+	144	121595114	-	Ajs_2793	-	succinate dehydrogenase subunit C
2679	 66.12	0	2957470..2957835	+	121	121595115	-	Ajs_2794	-	succinate dehydrogenase subunit D
2680	 65.01	0	2957858..2959663	+	601	121595116	-	Ajs_2795	-	succinate dehydrogenase subunit A
2681	 62.41	0	2959694..2960398	+	234	121595117	-	Ajs_2796	-	succinate dehydrogenase subunit B
2682	 63.37	0	2960404..2960676	+	90	121595118	-	Ajs_2797	-	hypothetical protein
2683	 64.07	0	2960719..2962029	+	436	121595119	gltA	Ajs_2798	-	type II citrate synthase
2684	 71.54	+1	2962344..2962610	+	88	121595120	-	Ajs_2799	-	hypothetical protein
2685	 66.40	0	2962646..2963761	+	371	121595121	-	Ajs_2800	-	alcohol dehydrogenase
2686	 69.49	0	2963868..2964752	+	294	121595122	-	Ajs_2801	-	carboxylesterase
2687	 70.33	0	2964943..2965242	-	99	121595123	-	Ajs_2802	-	antibiotic biosynthesis monooxygenase
2688	 68.65	0	2965298..2966506	-	402	121595124	-	Ajs_2803	-	radical SAM domain-containing protein
2689	 61.58	-1	2966520..2967521	-	333	121595125	-	Ajs_2804	-	hypothetical protein
2690	 64.22	0	2967830..2968237	+	135	121595126	-	Ajs_2805	-	GreA/GreB family elongation factor
2691	 69.07	0	2968291..2969454	-	387	121595127	-	Ajs_2806	-	acyltransferase 3
2692	 66.25	0	2969641..2970597	-	318	121595128	-	Ajs_2807	-	2-nitropropane dioxygenase, NPD
2693	 66.33	0	2970676..2972466	-	596	121595129	-	Ajs_2808	-	acyl-CoA dehydrogenase domain-containing protein
2694	 68.60	0	2972548..2973480	-	310	121595130	-	Ajs_2809	-	electron transfer flavoprotein, alpha subunit
2695	 64.13	0	2973502..2974251	-	249	121595131	-	Ajs_2810	-	electron transfer flavoprotein beta-subunit
2696	 66.90	0	2974413..2975696	-	427	121595132	-	Ajs_2811	-	MscS mechanosensitive ion channel
2697	 67.77	0	2975716..2976534	-	272	121595133	-	Ajs_2812	-	enoyl-CoA hydratase
2698	 66.46	0	2976583..2977542	-	319	121595134	-	Ajs_2813	-	histone deacetylase superfamily protein
2699	 69.16	0	2977581..2978501	+	306	121595135	-	Ajs_2814	-	ATPase
2700	 73.39	+1	2978506..2979531	+	341	121595136	-	Ajs_2815	-	hypothetical protein
2701	 72.47	+1	2979631..2981697	+	688	121595137	-	Ajs_2816	-	transglutaminase domain-containing protein
2702	 66.85	0	2981694..2982767	+	357	121595138	-	Ajs_2817	-	lytic murein transglycosylase B
2703	 69.62	0	2982781..2983695	-	304	121595139	-	Ajs_2818	-	LysR family transcriptional regulator
2704	 67.77	0	2983809..2984891	+	360	121595140	-	Ajs_2819	-	hypothetical protein
2705	 68.11	0	2984892..2986205	-	437	121595141	-	Ajs_2820	-	putative transporter signal peptide protein
2706	 71.73	+1	2986258..2987067	-	269	121595142	-	Ajs_2821	-	putative lipoprotein
2707	 68.93	0	2987279..2987719	+	146	121595143	-	Ajs_2822	-	CS protein
2708	 68.82	0	2987975..2989183	-	402	121595144	-	Ajs_2823	-	hypothetical protein
2709	 70.95	0	2989180..2989950	-	256	121595145	-	Ajs_2824	-	ABC transporter related
2710	 73.30	+1	2989947..2991347	-	466	121595146	-	Ajs_2825	-	Fis family transcriptional regulator
2711	 75.07	+1	2991419..2992846	-	475	121595147	-	Ajs_2826	-	RND efflux system outer membrane lipoprotein
2712	 73.14	+1	2993005..2994456	+	483	121595148	-	Ajs_2827	-	aldehyde dehydrogenase
2713	 72.01	+1	2994526..2995629	-	367	121595149	-	Ajs_2828	-	O-sialoglycoprotein endopeptidase
2714	 68.79	0	2995653..2996831	-	392	121595150	-	Ajs_2829	-	extracellular ligand-binding receptor
2715	 71.98	+1	2996974..2997594	+	206	121595151	-	Ajs_2830	-	response regulator receiver/ANTAR domain-containing protein
2716	 67.39	0	2997926..2999170	+	414	121595152	-	Ajs_2831	-	twin-arginine translocation pathway signal
2717	 68.58	0	2999205..3000146	+	313	121595153	-	Ajs_2832	-	nitrate ABC transporter, inner membrane subunit
2718	 69.78	0	3000143..3000946	+	267	121595154	-	Ajs_2833	-	nitrate ABC transporter, ATPase subunits C and D
2719	 65.30	0	3001123..3001560	-	145	121595155	-	Ajs_2834	-	signal-transduction protein
2720	 74.14	+1	3001740..3002408	-	222	121595156	-	Ajs_2835	-	hypothetical protein
2721	 72.41	+1	3002785..3004125	+	446	121595157	-	Ajs_2836	-	RND family efflux transporter MFP subunit
2722	 67.30	0	3004144..3007311	+	1055	121595158	-	Ajs_2837	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
2723	 73.16	+1	3007308..3008894	+	528	121595159	-	Ajs_2838	-	RND efflux system outer membrane lipoprotein
2724	 68.37	0	3009383..3011848	+	821	121595160	-	Ajs_2839	-	assimilatory nitrite reductase (NAD(P)H) large subunit precursor
2725	 71.79	+1	3011925..3012314	+	129	121595161	-	Ajs_2840	-	assimilatory nitrite reductase (NAD(P)H) small subunit
2726	 72.93	+1	3012685..3015543	+	952	121595162	-	Ajs_2841	-	assimilatory nitrate reductase (NADH) alpha subunit apoprotein
2727	 69.25	0	3015637..3016566	+	309	121595163	-	Ajs_2842	-	hypothetical protein
2728	 71.11	0	3016563..3017372	+	269	121595164	-	Ajs_2843	-	uroporphyrinogen-III C-methyltransferase
2729	 66.87	0	3017377..3017877	-	166	121595165	-	Ajs_2844	-	thioesterase superfamily protein
2730	 71.21	+1	3018071..3019237	+	388	121595166	-	Ajs_2845	-	extracellular ligand-binding receptor
2731	 69.00	0	3019308..3020549	+	413	121595167	-	Ajs_2846	-	hypothetical protein
2732	 69.57	0	3020652..3021857	+	401	121595168	-	Ajs_2847	-	NnrS family protein
2733	 65.00	0	3021928..3022227	+	99	121595169	-	Ajs_2848	-	hypothetical protein
2734	 67.92	0	3022295..3022852	-	185	121595170	-	Ajs_2849	-	hypothetical protein
2735	 66.46	0	3022849..3023328	-	159	121595171	-	Ajs_2850	-	NifU family SUF system FeS assembly protein
2736	 70.54	0	3023325..3024590	-	421	121595172	-	Ajs_2851	-	aminotransferase, class V
2737	 72.60	+1	3024583..3025830	-	415	121595173	-	Ajs_2852	-	SufBD protein
2738	 68.74	0	3025835..3026605	-	256	121595174	-	Ajs_2853	-	FeS assembly ATPase SufC
2739	 65.93	0	3026686..3028179	-	497	121595175	-	Ajs_2854	-	cysteine desulfurase activator complex subunit SufB
2740	 74.44	+1	3028332..3029129	-	265	121595176	-	Ajs_2855	-	ArsR family transcriptional regulator
2741	 69.49	0	3029160..3029513	+	117	121595177	-	Ajs_2856	-	NIPSNAP family protein
2742	 71.60	+1	3029510..3029914	+	134	121595178	-	Ajs_2857	-	antibiotic biosynthesis monooxygenase
2743	 60.09	-1	3030044..3030256	+	70	121595179	rpsU	Ajs_2858	-	30S ribosomal protein S21
2744	 65.15	0	3030354..3030815	+	153	121595180	-	Ajs_2859	-	GatB/Yqey domain-containing protein
2745	 67.21	0	3031155..3032249	+	364	121595181	-	Ajs_2860	-	tartrate dehydrogenase
2746	 66.30	0	3032454..3032726	+	90	121595182	-	Ajs_2861	-	hypothetical protein
2747	 69.36	0	3032723..3033724	+	333	121595183	-	Ajs_2862	-	cation diffusion facilitator family transporter
2748	 69.30	0	3033736..3034380	+	214	121595184	-	Ajs_2863	-	hypothetical protein
2749	 72.45	+1	3034406..3034837	+	143	121595185	-	Ajs_2864	-	glutathione-dependent formaldehyde-activating, GFA
2750	 61.39	-1	3035182..3036261	+	359	121595186	-	Ajs_2865	-	integrase catalytic subunit
2751	 63.27	0	3036370..3037458	+	362	121595187	-	Ajs_2866	-	transposase, IS4 family protein
2752	 70.32	0	3037716..3038591	+	291	121595188	-	Ajs_2867	-	glutamate racemase
2753	 68.02	0	3038659..3039174	-	171	121595189	-	Ajs_2868	-	hypothetical protein
2754	 69.09	0	3039239..3040228	-	329	121595190	-	Ajs_2869	-	hypothetical protein
66.47	MEAN

4.71	STD DEV
