IslandPathversion 1.0

IslandPath Analysis: Acidovorax sp. JS42

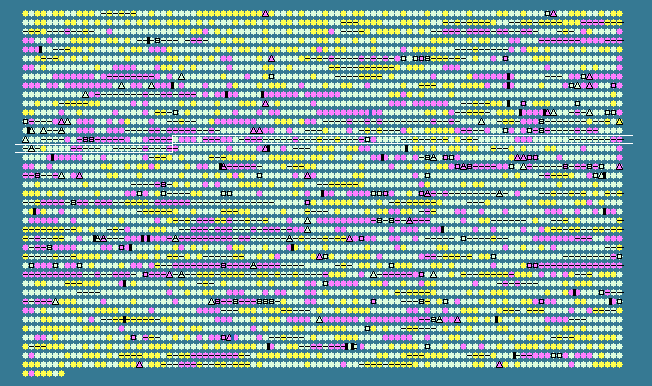

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.47 STD DEV: 4.71
Acidovorax sp. JS42, complete genome - 1..4448856
4007 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1426	 63.24	0	1531538..1531945	-	135	121593862	-	Ajs_1474	-	MerR family transcriptional regulator
1427	 61.02	-1	1531988..1532359	+	123	121593863	-	Ajs_1475	-	putative mercuric transport protein
1428	 60.35	-1	1532372..1532656	+	94	121593864	-	Ajs_1476	-	mercuric transport protein periplasmic component
1429	 56.41	-2	1533181..1533336	+	51	121593865	-	Ajs_1478	-	hypothetical protein
1430	 63.53	0	1533369..1534613	+	414	121593866	-	Ajs_1479	-	membrane protein-like protein
1431	 59.04	-1	1534671..1534919	+	82	121593867	-	Ajs_1480	-	hypothetical protein
1432	 59.84	-1	1534916..1536190	+	424	121593868	-	Ajs_1481	-	outer membrane efflux protein
1433	 60.41	-1	1536187..1537800	+	537	121593869	-	Ajs_1482	-	RND family efflux transporter MFP subunit
1434	 59.07	-1	1537816..1540947	+	1043	121593870	-	Ajs_1483	-	CzcA family heavy metal efflux protein
1435	 54.69	-2	1541727..1542035	-	102	121593871	-	Ajs_1485	-	flagellar hook-basal body complex subunit FliE
1436	 63.82	0	1542464..1543726	+	420	121593872	-	Ajs_1486	-	hypothetical protein
1437	 64.91	0	1543726..1544067	+	113	121593873	-	Ajs_1487	-	hypothetical protein
1438	 53.57	-2	1545501..1545752	+	83	121593874	-	Ajs_1490	-	hypothetical protein
1439	 60.00	-1	1545867..1546181	+	104	121593875	-	Ajs_1491	-	hypothetical protein
1440	 61.49	-1	1546198..1546506	+	102	121593876	-	Ajs_1492	-	heavy metal transport/detoxification protein
1441	 64.62	0	1546523..1547206	+	227	121593877	-	Ajs_1493	-	hypothetical protein
1442	 63.75	0	1547678..1548946	+	422	121593878	-	Ajs_1494	-	cyclopropane-fatty-acyl-phospholipid synthase
1443	 63.78	0	1549187..1551094	+	635	121593879	-	Ajs_1495	-	FtsH-2 peptidase
1444	 69.22	0	1551569..1553995	+	808	121593880	-	Ajs_1497	-	D-xylulose 5-phosphate/D-fructose 6-phosphate phosphoketolase
1445	 67.22	0	1554548..1556170	-	540	121593881	-	Ajs_1499	-	hypothetical protein
1446	 62.17	0	1556335..1556979	-	214	121593882	-	Ajs_1500	-	hypothetical protein
1447	 66.50	0	1558602..1559198	-	198	121593883	-	Ajs_1504	-	hypothetical protein
1448	 69.24	0	1559208..1560371	-	387	121593884	-	Ajs_1505	-	peptidase S1 and S6, chymotrypsin/Hap
1449	 66.56	0	1560368..1561267	-	299	121593885	-	Ajs_1506	-	phosphoribosylpyrophosphate synthetase
1450	 70.12	0	1561264..1562799	-	511	121593886	-	Ajs_1507	-	thymidine phosphorylase
1451	 67.33	0	1562796..1564154	-	452	121593887	-	Ajs_1508	-	beta-lactamase domain-containing protein
1452	 65.86	0	1564180..1564677	-	165	121593888	-	Ajs_1509	-	hypothetical protein
1453	 70.88	0	1564680..1565558	-	292	121593889	-	Ajs_1510	-	hypothetical protein
1454	 64.55	0	1565555..1566169	-	204	121593890	-	Ajs_1511	-	LemA family protein
1455	 66.82	0	1566172..1567497	-	441	121593891	-	Ajs_1512	-	major facilitator superfamily transporter
1456	 65.97	0	1567547..1570000	-	817	121593892	-	Ajs_1513	-	heavy metal translocating P-type ATPase
1457	 61.70	-1	1570022..1570867	-	281	121593893	-	Ajs_1514	-	hypothetical protein
1458	 63.27	0	1572859..1573947	-	362	121593894	-	Ajs_1519	-	transposase, IS4 family protein
1459	 61.31	-1	1574583..1574918	+	111	121593895	-	Ajs_1521	-	hypothetical protein
1460	 63.64	0	1575551..1577734	-	727	121593896	-	Ajs_1523	-	TonB-dependent siderophore receptor
1461	 64.29	0	1578073..1580844	-	923	121593897	-	Ajs_1524	-	TraG domain-containing protein
1462	 63.08	0	1580866..1582314	-	482	121593898	-	Ajs_1525	-	TraH family protein
1463	 68.38	0	1582324..1583199	-	291	121593899	-	Ajs_1526	-	hypothetical protein
1464	 66.67	0	1583210..1583605	-	131	121593900	-	Ajs_1527	-	hypothetical protein
1465	 67.62	0	1583596..1586013	-	805	121593901	-	Ajs_1528	-	conjugal transfer mating pair stabilization protein TraN
1466	 72.78	+1	1586023..1586775	-	250	121593902	-	Ajs_1529	-	hypothetical protein
1467	 67.93	0	1586762..1587787	-	341	121593903	-	Ajs_1530	-	TraU family protein
1468	 67.61	0	1587784..1588422	-	212	121593904	-	Ajs_1531	-	membrane lipoprotein lipid attachment site
1469	 72.40	+1	1588419..1588802	-	127	121593905	-	Ajs_1532	-	hypothetical protein
1470	 67.01	0	1588814..1589398	-	194	121593906	-	Ajs_1533	-	hypothetical protein
1471	 71.43	+1	1589395..1589751	-	118	121593907	-	Ajs_1534	-	hypothetical protein
1472	 65.20	0	1589748..1592330	-	860	121593908	-	Ajs_1535	-	hypothetical protein
1473	 70.25	0	1592338..1592979	-	213	121593909	-	Ajs_1536	-	hypothetical protein
1474	 68.43	0	1592976..1593824	-	282	121593910	-	Ajs_1537	-	periplasmic thiol:disulfide interchange protein
1475	 70.26	0	1593808..1595226	-	472	121593911	-	Ajs_1538	-	TraB pilus assembly family protein
1476	 69.94	0	1595223..1596230	-	335	121593912	-	Ajs_1539	-	hypothetical protein
1477	 66.49	0	1596217..1596783	-	188	121593913	-	Ajs_1540	-	plasmid-like conjugative transfer protein TraE
1478	 67.67	0	1596798..1597097	-	99	121593914	-	Ajs_1541	-	TraL family protein
1479	 67.49	0	1597129..1597491	-	120	121593915	-	Ajs_1542	-	hypothetical protein
1480	 69.27	0	1597589..1598011	-	140	121593916	-	Ajs_1543	-	hypothetical protein
1481	 66.10	0	1598008..1598535	-	175	121593917	-	Ajs_1544	-	lytic transglycosylase, catalytic
1482	 65.26	0	1598677..1599174	-	165	121593918	-	Ajs_1545	-	hypothetical protein
1483	 60.19	-1	1599378..1599686	-	102	121593919	-	Ajs_1546	-	hypothetical protein
1484	 61.17	-1	1599827..1600099	+	90	121593920	-	Ajs_1547	-	helix-turn-helix domain-containing protein
1485	 61.86	0	1600115..1600738	-	207	121593921	-	Ajs_1548	-	hypothetical protein
1486	 66.19	0	1600735..1602636	-	633	121593922	-	Ajs_1549	-	hypothetical protein
1487	 66.28	0	1602638..1604431	-	597	121593923	-	Ajs_1550	-	FHA domain-containing protein
1488	 65.31	0	1604485..1605147	-	220	121593924	-	Ajs_1551	-	hypothetical protein
1489	 66.03	0	1605148..1605462	-	104	121593925	-	Ajs_1552	-	hypothetical protein
1490	 63.76	0	1605739..1606461	+	240	121593926	-	Ajs_1553	-	putative phage repressor
1491	 65.63	0	1606545..1607609	-	354	121593927	-	Ajs_1554	-	hypothetical protein
1492	 64.03	0	1607621..1607923	+	100	121593928	-	Ajs_1555	-	hypothetical protein
1493	 67.06	0	1607893..1608897	-	334	121593929	-	Ajs_1556	-	phage P4 alpha zinc-binding domain-containing protein
1494	 65.32	0	1608884..1610521	-	545	121593930	-	Ajs_1557	-	ATP-binding region, ATPase-like protein
1495	 68.14	0	1610588..1610926	-	112	121593931	-	Ajs_1558	-	hypothetical protein
1496	 64.86	0	1610923..1611144	-	73	121593932	-	Ajs_1559	-	hypothetical protein
1497	 65.29	0	1611178..1611759	-	193	121593933	-	Ajs_1560	-	hypothetical protein
1498	 64.89	0	1612250..1613035	+	261	121593934	-	Ajs_1561	-	hypothetical protein
1499	 62.92	0	1613465..1613704	+	79	121593935	-	Ajs_1562	-	phage transcriptional regulator, AlpA
1500	 57.00	-2	1613932..1615059	-	375	121593936	-	Ajs_1563	-	hypothetical protein
1501	 63.51	0	1615232..1616500	-	422	121593937	-	Ajs_1564	-	hypothetical protein
1502	 64.78	0	1616506..1617459	-	317	121593938	-	Ajs_1565	-	phage integrase family protein
1503	 66.43	0	1617751..1619034	+	427	121593939	-	Ajs_1566	-	hypothetical protein
1504	 70.49	0	1619046..1620326	+	426	121593940	-	Ajs_1567	-	metallophosphoesterase
1505	 64.60	0	1620424..1622751	-	775	121593941	-	Ajs_1568	-	hypothetical protein
1506	 66.56	0	1622792..1623757	-	321	121593942	-	Ajs_1569	-	hypothetical protein
1507	 66.42	0	1623754..1624155	-	133	121593943	-	Ajs_1570	-	hypothetical protein
1508	 67.19	0	1624371..1626839	+	822	121593944	-	Ajs_1571	-	putative ATPase involved in DNA repair
1509	 61.17	-1	1626891..1627199	-	102	121593945	-	Ajs_1572	-	hypothetical protein
1510	 61.03	-1	1627741..1627953	+	70	121593946	-	Ajs_1573	-	hypothetical protein
1511	 68.81	0	1628033..1628545	-	170	121593947	-	Ajs_1574	-	hypothetical protein
1512	 67.53	0	1628672..1628902	+	76	121593948	-	Ajs_1575	-	hypothetical protein
1513	 68.59	0	1628873..1629391	-	172	121593949	-	Ajs_1576	-	hypothetical protein
1514	 65.06	0	1629842..1630963	-	373	121593950	-	Ajs_1577	-	hypothetical protein
1515	 68.59	0	1631235..1636163	-	1642	121593951	-	Ajs_1578	-	helicase domain-containing protein
1516	 63.40	0	1636599..1636904	-	101	121593952	-	Ajs_1579	-	hypothetical protein
1517	 65.48	0	1637058..1637729	-	223	121593953	-	Ajs_1580	-	hypothetical protein
1518	 65.94	0	1637835..1638521	-	228	121593954	-	Ajs_1581	-	hypothetical protein
1519	 68.00	0	1638930..1639604	+	224	121593955	-	Ajs_1582	-	hypothetical protein
1520	 65.90	0	1639601..1640248	+	215	121593956	-	Ajs_1583	-	hypothetical protein
1521	 61.24	-1	1640335..1641957	+	540	121593957	-	Ajs_1584	-	putative EA59 gene protein, phage lambda
1522	 63.00	0	1641959..1642804	+	281	121593958	-	Ajs_1585	-	putative EA31 gene protein, phage lambda
1523	 65.20	0	1643095..1643709	+	204	121593959	-	Ajs_1586	-	hypothetical protein
1524	 65.27	0	1644072..1644572	+	166	121593960	-	Ajs_1587	-	DNA binding domain-containing protein
1525	 62.76	0	1644569..1645183	+	204	121593961	-	Ajs_1588	-	hypothetical protein
66.47	MEAN

4.71	STD DEV
