IslandPath Analysis: Actinobacillus pleuropneumoniae L20

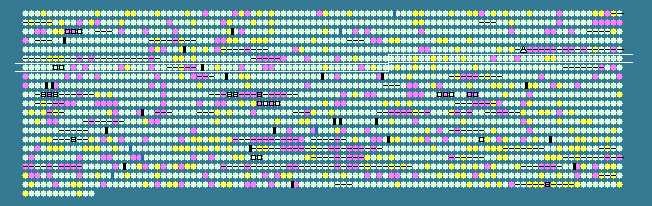

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
562	 39.12	0	640596..642149	-	517	126208050	-	APL_0568	-	hypothetical protein
563	 43.98	0	642261..642974	+	237	126208051	pyrH	APL_0569	-	uridylate kinase
564	 39.43	0	643158..643715	+	185	126208052	frr	APL_0570	-	ribosome recycling factor
565	 39.04	0	643793..645193	-	466	126208053	gntR	APL_0571	-	HTH-type transcriptional regulator
566	 46.40	+1	645280..646167	+	295	126208054	pdxS	APL_0572	-	pyridoxine biosynthesis protein
567	 43.92	0	646167..646742	+	191	126208055	pdxT	APL_0573	-	glutamine amidotransferase subunit PdxT
568	 42.46	0	646816..647385	-	189	126208056	-	APL_0574	-	tRNA-specific adenosine deaminase
569	 47.53	+1	647423..649282	-	619	126208057	deaD	APL_0575	-	cold-shock DEAD box protein A-like protein
570	 40.98	0	649504..650445	-	313	126208058	nlpI	APL_0576	-	lipoprotein NlpI
571	 45.76	+1	650506..652653	-	715	126208059	pnp	APL_0577	-	polynucleotide phosphorylase/polyadenylase
572	 44.95	0	652954..655200	+	748	126208060	parC	APL_0578	-	DNA topoisomerase IV subunit A
573	 43.69	0	655340..656671	+	443	126208061	mukF	APL_0579	-	condesin subunit F
574	 45.94	+1	656751..657464	+	237	126208062	mukE	APL_0580	-	condesin subunit E
575	 44.33	0	657485..661975	+	1496	126208063	mukB	APL_0581	-	cell division protein MukB
576	 42.18	0	662052..663227	+	391	126208064	sotB	APL_0582	-	sugar efflux transporter
577	 40.34	0	663279..665018	-	579	126208065	-	APL_0583	-	hypothetical protein
578	 38.74	0	665021..665242	-	73	126208066	-	APL_0584	-	hypothetical protein
579	 38.34	0	665452..666030	+	192	126208067	-	APL_0585	-	hypothetical protein
580	 43.86	0	666063..667268	+	401	126208068	-	APL_0586	-	putative RND efflux membrane fusion protein
581	 43.21	0	667281..670400	+	1039	126208069	acrB	APL_0587	-	acriflavine resistance protein
582	 43.67	0	670619..671992	+	457	126208070	glmU	APL_0588	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
583	 38.05	-1	672091..672408	-	105	126208071	-	APL_0589	-	hypothetical protein
584	 39.61	0	672412..673032	-	206	126208072	-	APL_0590	-	hypothetical protein
585	 42.19	0	673326..674984	+	552	126208073	pgm	APL_0591	-	phosphoglucomutase/phosphomannomutase
586	 43.45	0	675066..676637	-	523	126208074	guaA	APL_0592	-	bifunctional GMP synthase/glutamine amidotransferase protein
587	 44.81	0	677056..678519	-	487	126208075	guaB	APL_0593	-	inositol-5-monophosphate dehydrogenase
588	 45.93	+1	678772..679398	+	208	126208076	rrmJ	APL_0594	-	23S rRNA methyltransferase J
589	 45.35	0	679502..681424	+	640	126208077	ftsH	APL_0595	-	cell division protease FtsH-like protein
590	 40.66	0	681662..682876	+	404	126208078	tyrP-A	APL_0596	-	tyrosine-specific transport protein 1
591	 43.43	0	682972..684189	+	405	126208079	tyrP-B	APL_0597	-	tyrosine-specific transport protein 2
592	 41.44	0	684296..686848	+	850	126208080	glnD	APL_0598	-	PII uridylyl-transferase
593	 40.35	0	686881..687279	-	132	126208081	-	APL_0599	-	hypothetical protein
594	 41.72	0	687584..688012	+	142	126208082	rplM	APL_0600	-	50S ribosomal protein L13
595	 44.19	0	688029..688424	+	131	126208083	rpsI	APL_0601	-	30S ribosomal protein S9
596	 40.74	0	688546..689328	+	260	126208084	-	APL_0602	-	hypothetical protein
597	 41.39	0	689328..689873	+	181	126208085	-	APL_0603	-	hypothetical protein
598	 41.34	0	689899..690822	+	307	126208086	fieF	APL_0604	-	cation-efflux pump FieF
599	 42.67	0	690803..691573	+	256	126208087	-	APL_0605	-	hypothetical protein
600	 42.53	0	691672..692997	+	441	126208088	-	APL_0606	-	symporter protein
601	 42.08	0	693099..693761	-	220	126208089	nfnB	APL_0607	-	putative NAD(P)H nitroreductase
602	 41.84	0	694038..695024	+	328	126208090	pheS	APL_0608	-	phenylalanyl-tRNA synthetase subunit alpha
603	 43.55	0	695123..697510	+	795	126208091	pheT	APL_0609	-	phenylalanyl-tRNA synthetase subunit beta
604	 42.42	0	697528..697824	+	98	126208092	ihfA	APL_0610	-	integration host factor, alpha chain
605	 43.43	0	697885..698409	+	174	126208093	-	APL_0611	-	putative lipoprotein
606	 38.57	0	698682..699464	-	260	126208094	-	APL_0612	-	putative transposase
607	 40.78	0	699506..700015	-	169	126208095	-	APL_0613	-	transposase
608	 40.42	0	700088..700807	-	239	126208096	bioD	APL_0614	-	dithiobiotin synthetase
609	 35.52	-1	700861..702051	-	396	126208097	mlc	APL_0615	-	putative transcriptional repressor of carbohydrate metabolism
610	 40.50	0	702230..703345	+	371	126208098	rnd	APL_0616	-	ribonuclease D
611	 37.68	-1	703430..703912	+	160	126208099	lrp	APL_0617	-	leucine-responsive transcriptional regulator
612	 44.34	0	703924..706794	+	956	126208100	ftsK	APL_0618	-	DNA translocase FtsK
613	 45.02	0	706979..707842	+	287	126208101	-	APL_0619	-	hypothetical protein
614	 44.88	0	707965..709038	+	357	126208102	aroG	APL_0620	-	phospho-2-dehydro-3-deoxyheptonate aldolase
615	 43.00	0	709142..709834	+	230	126208103	-	APL_0621	-	putative M22-like peptidase
616	 40.21	0	710274..710855	-	193	126208104	tdk	APL_0622	-	thymidine kinase
617	 32.88	-2	710915..711133	-	72	126208105	-	APL_0623	-	hypothetical protein
618	 46.55	+1	711318..712316	+	332	126208106	glpX	APL_0624	-	fructose 1,6-bisphosphatase II
619	 41.86	0	712379..713152	-	257	126208107	-	APL_0625	-	hypothetical protein
620	 40.20	0	713244..715166	-	640	126208108	macB	APL_0626	-	putative macrolide-specific ABC-type efflux carrier
621	 40.45	0	715311..716195	-	294	126208109	-	APL_0627	-	two-component sensor protein
622	 35.76	-1	716424..716711	-	95	126208110	-	APL_0628	-	hypothetical protein
623	 38.96	0	716776..717504	-	242	126208111	cpxR	APL_0629	-	transcriptional regulatory protein CpxR
624	 40.67	0	717629..718228	-	199	126208112	mazG	APL_0630	-	pyrophosphatase
625	 42.73	0	718567..719460	+	297	126208113	accD	APL_0631	-	acetyl-CoA carboxylase subunit beta
626	 41.53	0	719517..720821	+	434	126208114	folC	APL_0632	-	folylpolyglutamate synthase/dihydrofolate synthase
627	 45.40	0	721030..722595	+	521	126208115	hsdM3	APL_0633	-	putative type I modification enzyme
628	 34.86	-1	722739..723980	+	413	126208116	hsdS3	APL_0634	-	putative type I restriction system specificity protein
629	 28.48	-2	724156..724608	+	150	126208117	-	APL_0635	-	hypothetical protein
630	 44.76	0	724743..727883	+	1046	126208118	hsdR3	APL_0636	-	putative type I site-specific restriction-modification system, restriction subunit
631	 40.26	0	728268..728729	+	153	126208119	-	APL_0637	-	hypothetical protein
632	 43.45	0	728746..730227	+	493	126208120	nusA	APL_0638	-	transcription elongation factor NusA
633	 46.20	+1	730249..732774	+	841	126208121	infB	APL_0639	-	translation initiation factor IF-2
634	 40.62	0	732946..733329	+	127	126208122	rbfA	APL_0640	-	ribosome-binding factor A
635	 42.92	0	733330..734247	+	305	126208123	truB	APL_0641	-	tRNA pseudouridine synthase B
636	 43.62	0	734293..735381	+	362	126208124	mltB	APL_0642	-	membrane-bound lytic murein transglycosylase B
637	 35.48	-1	735510..735695	+	61	126208125	-	APL_0643	-	hypothetical protein
638	 44.93	0	735814..737952	-	712	126208126	pta	APL_0644	-	phosphate acetyltransferase
639	 42.60	0	738008..739216	-	402	126208127	ackA	APL_0645	-	acetate kinase
640	 42.64	0	739513..741489	+	658	126208128	cpdB	APL_0646	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
641	 36.03	-1	742439..743515	-	358	126208129	ompP2	APL_0649	-	Outer membrane protein P2 precursor (OMP P2)
642	 36.02	-1	743985..744506	+	173	126208130	-	APL_0650	-	hypothetical protein
643	 40.09	0	744538..745425	-	295	126208131	galU	APL_0651	-	UTP--glucose-1-phosphate uridylyltransferase
644	 42.02	0	745538..746896	-	452	126208132	manB	APL_0652	-	phosphomannomutase
645	 38.46	0	746931..747125	-	64	126208133	csrA	APL_0653	-	carbon storage regulator CsrA
646	 42.67	0	747203..749827	-	874	126208134	alaS	APL_0654	-	alanyl-tRNA synthetase
647	 40.61	0	750053..750478	-	141	126208135	uspA	APL_0655	-	universal stress protein A-like protein
648	 40.62	0	750742..751509	+	255	126208136	hlyX	APL_0656	-	fumarate/nitrate reduction transcriptional regulator
649	 40.53	0	751608..752024	-	138	126208137	sspB	APL_0657	-	ClpXP protease specificity-enhancing factor
650	 40.16	0	752024..752668	-	214	126208138	sspA	APL_0658	-	stringent starvation protein A-like protein
651	 46.06	+1	752887..753381	+	164	126208139	purE	APL_0659	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
652	 42.86	0	753391..754356	+	321	126208140	ansB	APL_0660	-	L-asparaginase
653	 43.89	0	754466..755554	+	362	126208141	purK	APL_0661	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
654	 43.78	0	755686..756882	+	398	126208142	aspC	APL_0662	-	aromatic amino acid aminotransferase
655	 43.20	0	757061..758347	-	428	126208143	pepP	APL_0663	-	Xaa-Pro aminopeptidase
656	 38.81	0	758756..759979	-	407	126208144	-	APL_0664	-	hypothetical protein
657	 37.95	-1	760115..760504	-	129	126208145	-	APL_0665	-	hypothetical protein
658	 40.23	0	760505..760765	-	86	126208146	-	APL_0666	-	hypothetical protein
659	 45.94	+1	760899..762920	-	673	126208147	uvrB	APL_0667	-	excinuclease ABC subunit B
660	 40.84	0	763097..763909	+	270	126208148	-	APL_0668	-	hypothetical protein
661	 43.83	0	763924..765114	+	396	126208149	-	APL_0669	-	putative iron dependent peroxidase
41.85	MEAN

3.64	STD DEV
