IslandPath Analysis: Actinobacillus pleuropneumoniae L20

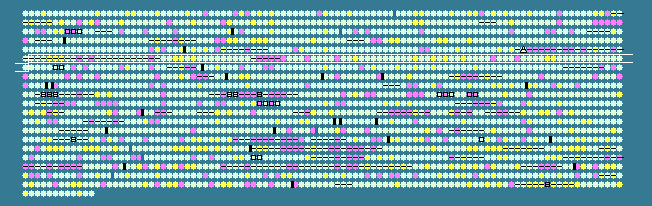

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
502	 41.67	0	574385..574756	+	123	126207990	-	APL_0506	-	hypothetical protein
503	 45.00	0	575285..575704	+	139	126207991	-	APL_0507	-	hypothetical protein
504	 43.34	0	575707..577824	+	705	126207992	-	APL_0508	-	bacteriophage tail assembly protein
505	 47.01	+1	578045..579565	+	506	126207993	-	APL_0509	-	bacteriophage capsid protein
506	 45.43	0	579501..581525	+	674	126207994	-	APL_0510	-	putative Clp-like protease
507	 46.91	+1	581599..581922	+	107	126207995	-	APL_0511	-	hypothetical protein
508	 45.21	0	581915..582217	+	100	126207996	-	APL_0512	-	hypothetical protein
509	 42.05	0	582220..582747	+	175	126207997	-	APL_0513	-	putative phage tail component
510	 34.78	-1	582744..583157	+	137	126207998	-	APL_0514	-	hypothetical protein
511	 41.86	0	583157..583813	+	218	126207999	-	APL_0515	-	hypothetical protein
512	 35.62	-1	583872..584264	+	130	126208000	-	APL_0516	-	hypothetical protein
513	 38.77	0	584288..584563	+	91	126208001	-	APL_0517	-	hypothetical protein
514	 42.34	0	584929..588360	+	1143	126208002	-	APL_0518	-	hypothetical protein
515	 42.26	0	588612..588947	+	111	126208003	-	APL_0519	-	phage minor tail protein
516	 42.01	0	589800..590663	+	287	126208004	-	APL_0520	-	hypothetical protein
517	 44.58	0	590784..591521	+	245	126208005	-	APL_0521	-	phage-related minor tail protein L
518	 39.67	0	591682..592296	+	204	126208006	-	APL_0522	-	phage-related tail assembly protein K
519	 40.80	0	592320..592841	+	173	126208007	-	APL_0523	-	putative phage tail assembly protein
520	 43.77	0	593159..598756	+	1865	126208008	-	APL_0524	-	phage tail protein
521	 39.18	0	598815..599156	+	113	126208009	-	APL_0525	-	hypothetical protein
522	 37.23	-1	600117..600758	+	213	126208010	-	APL_0526	-	hypothetical protein
523	 42.25	0	600881..601744	+	287	126208011	-	APL_0527	-	ABC transporter permease
524	 44.38	0	601844..603292	+	482	126208012	-	APL_0528	-	putative transporter
525	 44.53	0	604407..605156	+	249	126208013	-	APL_0531	-	putative ABC transporter permease protein
526	 45.39	0	605200..605481	+	93	126208014	-	APL_0532	-	molybdopterin/thiamine biosynthesis dinucleotide-utilizing protein
527	 45.93	+1	605569..605949	+	126	126208015	thiF	APL_0533	-	molybdopterin/thiamine biosynthesis dinucleotide-utilizing protein
528	 43.28	0	605980..606180	+	66	126208016	thiS	APL_0534	-	thiamine biosynthesis protein ThiS
529	 49.88	+2	606616..607026	+	136	126208017	thiG	APL_0535	-	thiazole biosynthesis protein ThiG
530	 43.54	0	607036..608181	+	381	126208018	thiH	APL_0536	-	thiazole biosynthesis protein ThiH
531	 44.55	0	608236..608859	+	207	126208019	-	APL_0537	-	putative transcriptional activator
532	 41.59	0	608882..609826	+	314	126208020	-	APL_0538	-	putative ABC transporter substrate-binding protein
533	 43.79	0	609992..610450	+	152	126208021	thiD	APL_0539	-	phosphomethylpyrimidine kinase
534	 44.20	0	610464..610877	+	137	126208022	thiE	APL_0540	-	thiamine monophosphate synthase
535	 44.83	0	611049..612848	+	599	126208023	lepA	APL_0541	-	GTP-binding protein LepA
536	 41.15	0	612953..613912	+	319	126208024	lepB	APL_0542	-	Signal peptidase I
537	 41.07	0	614009..614680	+	223	126208025	rnc	APL_0543	-	ribonuclease III
538	 41.64	0	614750..615664	+	304	126208026	era	APL_0544	-	GTP-binding protein Era
539	 41.91	0	615674..616396	+	240	126208027	recO	APL_0545	-	DNA repair protein RecO
540	 33.33	-2	616487..618049	-	520	126208028	tadG	APL_0546	-	tight adherence protein G
541	 37.52	-1	618073..618669	-	198	126208029	tadF	APL_0547	-	tight adherence protein F
542	 37.65	-1	618641..619126	-	161	126208030	tadE	APL_0548	-	tight adherence protein E
543	 36.52	-1	619129..619881	-	250	126208031	tadD	APL_0549	-	tight adherence protein D
544	 36.29	-1	619871..620716	-	281	126208032	tadC	APL_0550	-	tight adherence protein C
545	 39.64	0	620716..621603	-	295	126208033	tadB	APL_0551	-	tight adherence protein B
546	 42.18	0	621603..622880	-	425	126208034	tadA	APL_0552	-	tight adherence protein A
547	 39.01	0	622889..624016	-	375	126208035	tadZ	APL_0553	-	flp operon protein D
548	 34.33	-2	624179..624682	-	167	126208036	rcpB	APL_0554	-	rough colony protein B
549	 39.24	0	624679..626067	-	462	126208037	rcpA	APL_0555	-	rough colony protein A
550	 39.19	0	626057..626875	-	272	126208038	rcpC	APL_0556	-	flp operon protein C
551	 40.33	0	626904..627332	-	142	126208039	tadV	APL_0557	-	flp operon protein B
552	 39.58	0	627377..627568	-	63	126208040	flp2	APL_0558	-	minor fimbrial protein
553	 33.33	-2	627628..627858	-	76	126208041	flp1	APL_0559	-	fimbrial protein Flp precursor
554	 43.24	0	628451..629671	+	406	126208042	rhlB	APL_0560	-	ATP-dependent RNA helicase RhlB
555	 40.90	0	629789..630211	+	140	126208043	-	APL_0561	-	hypothetical protein
556	 45.93	+1	630262..631746	+	494	126208044	-	APL_0562	-	hypothetical protein
557	 41.28	0	631946..632977	+	343	126208045	afuA_2	APL_0563	-	Fe3+ ABC transporter, iron-binding protein
558	 44.08	0	633109..635109	+	666	126208046	afuB_2	APL_0564	-	ferric transport system permease protein
559	 45.14	0	635398..638538	+	1046	126208047	cirA	APL_0565	-	ABC transporter ATP-binding protein
560	 41.84	0	638803..639519	+	238	126208048	rpsB	APL_0566	-	30S ribosomal protein S2
561	 43.54	0	639615..640466	+	283	126208049	tsf	APL_0567	-	elongation factor Ts
562	 39.12	0	640596..642149	-	517	126208050	-	APL_0568	-	hypothetical protein
563	 43.98	0	642261..642974	+	237	126208051	pyrH	APL_0569	-	uridylate kinase
564	 39.43	0	643158..643715	+	185	126208052	frr	APL_0570	-	ribosome recycling factor
565	 39.04	0	643793..645193	-	466	126208053	gntR	APL_0571	-	HTH-type transcriptional regulator
566	 46.40	+1	645280..646167	+	295	126208054	pdxS	APL_0572	-	pyridoxine biosynthesis protein
567	 43.92	0	646167..646742	+	191	126208055	pdxT	APL_0573	-	glutamine amidotransferase subunit PdxT
568	 42.46	0	646816..647385	-	189	126208056	-	APL_0574	-	tRNA-specific adenosine deaminase
569	 47.53	+1	647423..649282	-	619	126208057	deaD	APL_0575	-	cold-shock DEAD box protein A-like protein
570	 40.98	0	649504..650445	-	313	126208058	nlpI	APL_0576	-	lipoprotein NlpI
571	 45.76	+1	650506..652653	-	715	126208059	pnp	APL_0577	-	polynucleotide phosphorylase/polyadenylase
572	 44.95	0	652954..655200	+	748	126208060	parC	APL_0578	-	DNA topoisomerase IV subunit A
573	 43.69	0	655340..656671	+	443	126208061	mukF	APL_0579	-	condesin subunit F
574	 45.94	+1	656751..657464	+	237	126208062	mukE	APL_0580	-	condesin subunit E
575	 44.33	0	657485..661975	+	1496	126208063	mukB	APL_0581	-	cell division protein MukB
576	 42.18	0	662052..663227	+	391	126208064	sotB	APL_0582	-	sugar efflux transporter
577	 40.34	0	663279..665018	-	579	126208065	-	APL_0583	-	hypothetical protein
578	 38.74	0	665021..665242	-	73	126208066	-	APL_0584	-	hypothetical protein
579	 38.34	0	665452..666030	+	192	126208067	-	APL_0585	-	hypothetical protein
580	 43.86	0	666063..667268	+	401	126208068	-	APL_0586	-	putative RND efflux membrane fusion protein
581	 43.21	0	667281..670400	+	1039	126208069	acrB	APL_0587	-	acriflavine resistance protein
582	 43.67	0	670619..671992	+	457	126208070	glmU	APL_0588	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
583	 38.05	-1	672091..672408	-	105	126208071	-	APL_0589	-	hypothetical protein
584	 39.61	0	672412..673032	-	206	126208072	-	APL_0590	-	hypothetical protein
585	 42.19	0	673326..674984	+	552	126208073	pgm	APL_0591	-	phosphoglucomutase/phosphomannomutase
586	 43.45	0	675066..676637	-	523	126208074	guaA	APL_0592	-	bifunctional GMP synthase/glutamine amidotransferase protein
587	 44.81	0	677056..678519	-	487	126208075	guaB	APL_0593	-	inositol-5-monophosphate dehydrogenase
588	 45.93	+1	678772..679398	+	208	126208076	rrmJ	APL_0594	-	23S rRNA methyltransferase J
589	 45.35	0	679502..681424	+	640	126208077	ftsH	APL_0595	-	cell division protease FtsH-like protein
590	 40.66	0	681662..682876	+	404	126208078	tyrP-A	APL_0596	-	tyrosine-specific transport protein 1
591	 43.43	0	682972..684189	+	405	126208079	tyrP-B	APL_0597	-	tyrosine-specific transport protein 2
592	 41.44	0	684296..686848	+	850	126208080	glnD	APL_0598	-	PII uridylyl-transferase
593	 40.35	0	686881..687279	-	132	126208081	-	APL_0599	-	hypothetical protein
594	 41.72	0	687584..688012	+	142	126208082	rplM	APL_0600	-	50S ribosomal protein L13
595	 44.19	0	688029..688424	+	131	126208083	rpsI	APL_0601	-	30S ribosomal protein S9
596	 40.74	0	688546..689328	+	260	126208084	-	APL_0602	-	hypothetical protein
597	 41.39	0	689328..689873	+	181	126208085	-	APL_0603	-	hypothetical protein
598	 41.34	0	689899..690822	+	307	126208086	fieF	APL_0604	-	cation-efflux pump FieF
599	 42.67	0	690803..691573	+	256	126208087	-	APL_0605	-	hypothetical protein
600	 42.53	0	691672..692997	+	441	126208088	-	APL_0606	-	symporter protein
601	 42.08	0	693099..693761	-	220	126208089	nfnB	APL_0607	-	putative NAD(P)H nitroreductase
41.85	MEAN

3.64	STD DEV
