IslandPathversion 1.0

IslandPath Analysis: Actinobacillus pleuropneumoniae L20

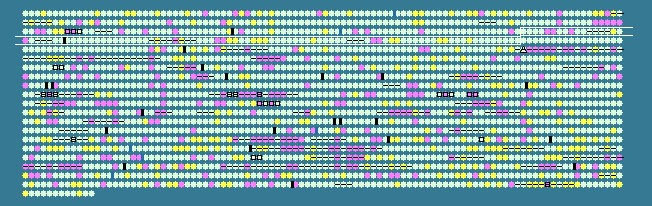

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
284	 45.20	0	313779..314663	+	294	126207772	ruvB	APL_0284	-	Holliday junction DNA helicase B
285	 40.99	0	314720..315424	-	234	126207773	ubiG	APL_0285	-	3-demethylubiquinone-9 3-methyltransferase
286	 44.82	0	315604..318294	+	896	126207774	gyrA	APL_0286	-	DNA gyrase subunit A
287	 41.74	0	319940..320260	+	106	126207775	-	APL_0289	-	hypothetical protein
288	 31.14	-2	320427..321521	+	364	126207776	-	APL_0290	-	putative Type I restriction enzyme EcoR124II specificity protein
289	 36.87	-1	322648..325785	+	1045	126207777	-	APL_0293	-	putative type I site-specific restriction-modification system, R (restriction) subunit
290	 42.03	0	325804..327747	+	647	126207778	uupA	APL_0294	-	ABC transporter ATPase component
291	 42.61	0	327747..328511	+	254	126207779	-	APL_0295	-	hypothetical protein
292	 34.23	-2	328590..328922	-	110	126207780	-	APL_0296	-	hypothetical protein
293	 41.91	0	329378..330928	+	516	126207781	cydA	APL_0297	-	cytochrome oxidase subunit 1
294	 40.99	0	330942..332078	+	378	126207782	cydB	APL_0298	-	cytochrome oxidase subunit 2
295	 38.97	0	332646..333035	+	129	126207783	-	APL_0299	-	hypothetical protein
296	 39.79	0	333070..333750	+	226	126207784	tolQ	APL_0300	-	colicin transport protein TolQ
297	 39.91	0	333829..334269	+	146	126207785	tolR	APL_0301	-	colicin uptake protein TolR
298	 43.21	0	334285..335580	+	431	126207786	tolA	APL_0302	-	cell envelope integrity inner membrane protein TolA
299	 46.21	+1	335598..336878	+	426	126207787	tolB	APL_0303	-	translocation protein TolB precursor
300	 43.74	0	336904..337374	+	156	126207788	palA	APL_0304	-	outer membrane protein precursor PalA
301	 38.29	0	337552..338358	+	268	126207789	-	APL_0305	-	hypothetical protein
302	 43.32	0	338438..339298	+	286	126207790	djlA	APL_0306	-	DNA-J like membrane chaperone protein
303	 44.55	0	339383..340345	+	320	126207791	dusC	APL_0307	-	tRNA-dihydrouridine synthase C
304	 40.21	0	340397..341443	+	348	126207792	-	APL_0308	-	hypothetical protein
305	 43.56	0	341631..343547	-	638	126207793	yheS	APL_0309	-	putative ABC transporter ATP-binding protein YheS
306	 45.33	0	344138..345379	+	413	126207794	moeA	APL_0310	-	molybdopterin biosynthesis protein MoeA
307	 42.70	0	345389..346135	+	248	126207795	moeB	APL_0311	-	molybdopterin biosynthesis protein MoeB
308	 43.12	0	346529..347857	-	442	126207796	rumA	APL_0312	-	23S rRNA 5-methyluridine methyltransferase
309	 43.29	0	347915..349240	+	441	126207797	-	APL_0313	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
310	 43.26	0	349416..352325	+	969	126207798	hepA	APL_0314	-	ATP-dependent helicase HepA
311	 43.42	0	352395..353108	+	237	126207799	rluA	APL_0315	-	ribosomal large subunit pseudouridine synthase A
312	 41.71	0	353304..353852	-	182	126207800	ampD	APL_0316	-	N-acetyl-anhydromuranmyl-L-alanine amidase
313	 44.37	0	353973..354815	+	280	126207801	yhiR	APL_0317	-	hypothetical protein
314	 42.21	0	354902..355543	+	213	126207802	pyrE	APL_0318	-	orotate phosphoribosyltransferase
315	 43.16	0	355682..356770	+	362	126207803	-	APL_0319	-	hypothetical protein
316	 44.75	0	356847..358037	-	396	126207804	metC	APL_0320	-	cystathionine beta-lyase
317	 42.59	0	358114..358653	-	179	126207805	dsbB	APL_0321	-	disulfide bond formation protein B
318	 40.92	0	358750..360291	-	513	126207806	nhaB	APL_0322	-	sodium/proton antiporter
319	 39.37	0	360456..361184	+	242	126207807	fadR	APL_0323	-	fatty acid metabolism regulator
320	 41.46	0	361193..362263	+	356	126207808	phoH	APL_0324	-	PhoH-like protein
321	 42.64	0	362302..363279	-	325	126207809	-	APL_0325	-	hypothetical protein
322	 44.81	0	363351..364256	-	301	126207810	prfB	APL_0326	-	peptide chain release factor 2
323	 46.30	+1	364716..365633	+	305	126207811	selD	APL_0327	-	selenide, water dikinase
324	 40.79	0	365638..366093	+	151	126207812	mutT	APL_0328	-	MutT/NUDIX family NTP pyrophosphohydrolase
325	 44.17	0	366103..367302	+	399	126207813	-	APL_0329	-	2-octaprenyl-6-methoxyphenol hydroxylase
326	 35.22	-1	367332..367808	-	158	126207814	-	APL_0330	-	hypothetical protein
327	 46.17	+1	367865..368542	-	225	126207815	hlp	APL_0331	-	putative lipoprotein
328	 40.00	0	368623..369102	-	159	126207816	hlpB	APL_0332	-	lipoprotein HlpB
329	 43.54	0	369238..370383	-	381	126207817	visC	APL_0333	-	putative monooxygenase family protein
330	 42.04	0	370507..371367	-	286	126207818	-	APL_0334	-	hypothetical protein
331	 42.30	0	371386..371898	-	170	126207819	ptsN	APL_0335	-	PTS system, nitrogen regulatory IIA-like protein
332	 44.77	0	371948..372673	-	241	126207820	yhgB	APL_0336	-	putative ABC transporter ATP-binding protein
333	 37.30	-1	372683..373186	-	167	126207821	-	APL_0337	-	hypothetical protein
334	 37.86	-1	373211..373807	-	198	126207822	-	APL_0338	-	hypothetical protein
335	 46.59	+1	373967..376606	-	879	126207823	pepC	APL_0339	-	phosphoenolpyruvate carboxylase
336	 47.26	+1	376821..377660	-	279	126207824	-	APL_0340	-	hypothetical protein
337	 41.11	0	377657..378106	-	149	126207825	-	APL_0341	-	hypothetical protein
338	 42.07	0	378173..378733	-	186	126207826	-	APL_0342	-	hypothetical protein
339	 45.97	+1	378909..380570	-	553	126207827	fruA	APL_0343	-	PTS system fructose-specific EIIBC component
340	 47.78	+1	380652..381599	-	315	126207828	fruK	APL_0344	-	1-phosphofructokinase
341	 45.53	+1	381614..383122	-	502	126207829	fruB	APL_0345	-	bifunctional fructose-specific PTS IIA/HPr protein
342	 43.23	0	383383..385716	+	777	126207830	glgB	APL_0346	-	glycogen branching enzyme
343	 42.45	0	385723..387708	+	661	126207831	glgX	APL_0347	-	glycogen operon protein GlgX
344	 43.20	0	387724..389040	+	438	126207832	glgC	APL_0348	-	glucose-1-phosphate adenylyltransferase
345	 43.28	0	389143..390579	+	478	126207833	glgA	APL_0349	-	glycogen synthase
346	 43.59	0	390609..393113	+	834	126207834	glgP	APL_0350	-	glycogen phosphorylase
347	 44.12	0	393225..393641	-	138	126207835	ndk	APL_0351	-	nucleoside diphosphate kinase
348	 41.07	0	393700..395727	-	675	126207836	metG	APL_0352	-	methionyl-tRNA synthetase
349	 46.00	+1	395906..396868	+	320	126207837	menC	APL_0353	-	O-succinylbenzoate synthase
350	 42.71	0	397182..397874	+	230	126207838	rsuA	APL_0354	-	ribosomal small subunit pseudouridine synthase A
351	 43.61	0	397874..399070	+	398	126207839	proP	APL_0355	-	bicyclomycin/multidrug efflux system
352	 43.93	0	399116..399502	-	128	126207840	-	APL_0356	-	hypothetical protein
353	 45.09	0	399573..400142	-	189	126207841	-	APL_0357	-	hypothetical protein
354	 39.26	0	400200..401042	+	280	126207842	nfo	APL_0358	-	endonuclease IV
355	 44.89	0	401163..401759	+	198	126207843	nlpC	APL_0359	-	putative lipoprotein
356	 38.38	0	401808..402263	-	151	126207844	impA	APL_0360	-	hypothetical protein
357	 40.83	0	402489..402875	-	128	126207845	grcA	APL_0361	-	autonomous glycyl radical cofactor GrcA
358	 41.15	0	403081..403758	+	225	126207846	ung	APL_0362	-	uracil-DNA glycosylase
359	 28.06	-2	403856..404728	-	290	126207847	-	APL_0363	-	hypothetical protein
360	 36.94	-1	404823..407621	-	932	126207848	ssa1	APL_0364	-	serotype-specific antigen 1 precursor
361	 44.90	0	407842..411741	-	1299	126207849	hrpA	APL_0365	-	ATP-dependent RNA helicase HrpA
362	 46.14	+1	411911..412363	-	150	126207850	-	APL_0366	-	hypothetical protein
363	 46.23	+1	412560..413156	-	198	126207851	grpE	APL_0367	-	heat shock protein (HSP-70 cofactor)
364	 39.80	0	413401..414483	+	360	126207852	potD2	APL_0368	-	spermidine/putrescine-binding periplasmic protein 1 precursor
365	 42.53	0	414627..416018	+	463	126207853	norM	APL_0369	-	putative multidrug resistance protein NorM
366	 41.56	0	416034..419642	+	1202	126207854	recB	APL_0370	-	exodeoxyribonuclease V beta chain
367	 43.12	0	419720..421231	-	503	126207855	lnt	APL_0371	-	apolipoprotein N-acyltransferase
368	 43.62	0	421313..422206	-	297	126207856	corC	APL_0372	-	magnesium and cobalt efflux protein
369	 40.63	0	422376..422978	+	200	126207857	-	APL_0373	-	hypothetical protein
370	 47.64	+1	423214..423996	+	260	126207858	glpF	APL_0374	-	glycerol uptake facilitator protein
371	 45.77	+1	424031..425542	+	503	126207859	glpK	APL_0375	-	glycerol kinase
372	 42.47	0	425663..428071	-	802	126207860	lon	APL_0376	-	ATP-dependent protease La
373	 43.91	0	428217..429662	-	481	126207861	glpT	APL_0377	-	glycerol-3-phosphate transporter
374	 40.22	0	429865..430953	-	362	126207862	glpQ	APL_0378	-	glycerophosphodiester phosphodiesterase
375	 46.56	+1	431205..432890	+	561	126207863	glpA	APL_0379	-	sn-glycerol-3-phosphate dehydrogenase subunit A
376	 43.12	0	432880..434166	+	428	126207864	glpB	APL_0380	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
377	 40.31	0	434163..435437	+	424	126207865	glpC	APL_0381	-	sn-glycerol-3-phosphate dehydrogenase subunit C
378	 44.04	0	435609..436841	+	410	126207866	ribD	APL_0382	-	riboflavin biosynthesis protein
379	 40.59	0	436964..437611	+	215	126207867	ribE	APL_0383	-	riboflavin synthase subunit alpha
380	 41.87	0	437672..438877	+	401	126207868	ribA	APL_0384	-	riboflavin biosynthesis protein
381	 40.91	0	438988..439449	+	153	126207869	ribH	APL_0385	-	6,7-dimethyl-8-ribityllumazine synthase
382	 43.15	0	439538..440026	-	162	126207870	greB	APL_0386	-	transcription elongation factor GreB
383	 44.87	0	440036..440971	-	311	126207871	kpsF	APL_0387	-	arabinose-5-phosphate isomerase
41.85	MEAN

3.64	STD DEV
