IslandPath Analysis: Actinobacillus pleuropneumoniae L20

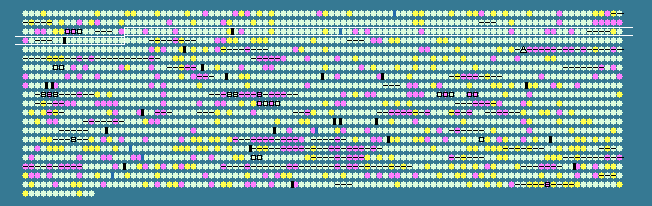

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
218	 38.96	0	239830..241179	-	449	126207706	-	APL_0218	-	hypothetical protein
219	 44.36	0	241585..243516	+	643	126207707	thrS	APL_0219	-	threonyl-tRNA synthetase
220	 41.78	0	243658..244332	+	224	126207708	-	APL_0220	-	putative lipoprotein
221	 37.36	-1	244342..244689	+	115	126207709	-	APL_0221	-	hypothetical protein
222	 38.48	0	244701..245360	+	219	126207710	-	APL_0222	-	putative lipoprotein
223	 41.88	0	245638..246117	+	159	126207711	infC	APL_0223	-	translation initiation factor IF-3
224	 39.39	0	246366..246563	+	65	126207712	rpmI	APL_0224	-	50S ribosomal protein L35
225	 41.81	0	246631..246984	+	117	126207713	rplT	APL_0225	-	50S ribosomal protein L20
226	 35.94	-1	247033..247569	+	178	126207714	-	APL_0226	-	hypothetical protein
227	 44.90	0	247602..247895	+	97	126207715	-	APL_0227	-	hypothetical protein
228	 41.90	0	247952..249247	-	431	126207716	-	APL_0228	-	hypothetical protein
229	 42.86	0	249291..249941	-	216	126207717	rluA	APL_0229	-	RNA pseudouridine synthase
230	 41.86	0	249991..250623	+	210	126207718	gpmB	APL_0230	-	phosphoglycerate mutase/fructose-2, 6-bisphosphatase
231	 44.44	0	250690..251103	-	137	126207719	-	APL_0231	-	Holliday junction resolvase-like protein
232	 43.14	0	251156..251716	-	186	126207720	-	APL_0232	-	hypothetical protein
233	 43.99	0	251716..252447	-	243	126207721	-	APL_0233	-	hypothetical protein
234	 42.47	0	252622..253212	-	196	126207722	-	APL_0234	-	putative lipoprotein
235	 46.15	+1	253341..253652	+	103	126207723	bolA	APL_0235	-	stress-induced morphogen (activity unknown)
236	 38.93	0	254045..254419	-	124	126207724	-	APL_0236	-	putative lipoprotein
237	 34.95	-1	254439..254747	-	102	126207725	-	APL_0237	-	hypothetical protein
238	 39.45	0	254850..255176	+	108	126207726	-	APL_0238	-	hypothetical protein
239	 44.85	0	255285..258002	+	905	126207727	secA	APL_0239	-	preprotein translocase subunit SecA
240	 42.93	0	258132..259319	+	395	126207728	-	APL_0240	-	TPR repeat-containing protein
241	 43.86	0	259316..259714	+	132	126207729	mutT	APL_0241	-	mutator mutT protein
242	 45.40	0	259949..260893	+	314	126207730	argC	APL_0242	-	N-acetyl-gamma-glutamyl-phosphate reductase
243	 41.64	0	260923..261777	+	284	126207731	argB	APL_0243	-	acetylglutamate kinase
244	 43.91	0	261791..262972	+	393	126207732	argD	APL_0244	-	acetylornithine aminotransferase
245	 40.88	0	263186..264895	+	569	126207733	-	APL_0245	-	transferrin binding protein-like solute binding protein
246	 40.30	0	264910..267177	+	755	126207734	-	APL_0246	-	truncated transferrin-binding protein 1 precursor
247	 44.26	0	267745..269007	-	420	126207735	rho	APL_0247	-	transcription termination factor Rho
248	 44.58	0	269205..270155	-	316	126207736	cysK	APL_0248	-	cysteine synthase
249	 44.58	0	270367..271317	-	316	126207737	thrB	APL_0249	-	homoserine kinase
250	 43.87	0	271317..273773	-	818	126207738	thrA	APL_0250	-	bifunctional aspartokinase I/homeserine dehydrogenase I
251	 45.95	+1	274183..274824	+	213	126207739	sodA	APL_0251	-	manganese superoxide dismutase
252	 44.98	0	274912..276036	-	374	126207740	alr	APL_0252	-	alanine racemase
253	 38.60	0	276157..278094	+	645	126207741	recD	APL_0253	-	exodeoxyribonuclease V alpha chain
254	 40.14	0	284242..285696	-	484	126207742	pepD	APL_0254	-	aminoacyl-histidine dipeptidase
255	 43.25	0	285869..286342	+	157	126207743	gpt	APL_0255	-	xanthine-guanine phosphoribosyltransferase
256	 38.33	0	286426..287046	+	206	126207744	gmk	APL_0256	-	guanylate kinase
257	 40.00	0	287148..288542	+	464	126207745	-	APL_0257	-	outer membrane protein
258	 36.70	-1	288590..288886	-	98	126207746	-	APL_0258	-	hypothetical protein
259	 39.08	0	288879..289313	-	144	126207747	-	APL_0259	-	oligoketide cyclase/lipid transport protein
260	 40.44	0	289361..290416	-	351	126207748	modC	APL_0260	-	molybdate transporter ATP-binding protein
261	 43.48	0	290420..291109	-	229	126207749	modB	APL_0261	-	molybdate ABC transporter permease protein
262	 40.71	0	291169..291927	-	252	126207750	modA	APL_0262	-	molybdate-binding periplasmic protein precursor
263	 42.13	0	292023..292784	-	253	126207751	-	APL_0263	-	putative ABC transport system permease
264	 39.93	0	292788..293696	-	302	126207752	-	APL_0264	-	putative ABC transporter ATP-binding protein
265	 44.07	0	293696..295762	-	688	126207753	dnaX	APL_0265	-	DNA polymerase III subunits gamma and tau
266	 41.85	0	295811..296350	-	179	126207754	apt	APL_0266	-	adenine phosphoribosyltransferase
267	 35.55	-1	296551..297183	+	210	126207755	-	APL_0267	-	hypothetical protein
268	 41.87	0	297183..297545	+	120	126207756	-	APL_0268	-	putative translation initiation inhibitor
269	 40.46	0	297556..298650	+	364	126207757	thrCA	APL_0269	-	putative threonine synthase
270	 41.46	0	298665..299156	+	163	126207758	-	APL_0270	-	hypothetical protein
271	 43.25	0	299267..300022	-	251	126207759	-	APL_0271	-	putative chelated iron transport system ATP-binding protein
272	 40.36	0	300024..300920	-	298	126207760	yfeA	APL_0272	-	iron (chelated) ABC transporter, periplasmic-binding protein
273	 40.18	0	300987..301322	-	111	126207761	-	APL_0273	-	putative dissimilatory sulfite reductase
274	 42.04	0	301375..302040	-	221	126207762	-	APL_0274	-	hypothetical protein
275	 40.76	0	302222..302773	+	183	126207763	pgsA	APL_0275	-	phosphatidylglycerophosphate synthase
276	 42.31	0	302893..304863	+	656	126207764	frpB	APL_0276	-	iron-regulated outer membrane protein B
277	 41.73	0	305016..306848	+	610	126207765	uvrC	APL_0277	-	excinuclease ABC subunit C
278	 38.78	0	306917..307669	+	250	126207766	-	APL_0278	-	putative Mg-dependent deoxyribonuclease
279	 42.25	0	307806..309824	-	672	126207767	rep	APL_0279	-	ATP-dependent DNA helicase
280	 39.70	0	310158..311273	+	371	126207768	potA	APL_0280	-	putrescine/spermidine ABC transporter ATPase protein
281	 39.33	0	311260..312126	+	288	126207769	potB	APL_0281	-	spermidine/putrescine ABC transporter membrane protein
282	 38.19	-1	312153..312893	+	246	126207770	potC	APL_0282	-	spermidine/putrescine ABC transporter membrane protein
283	 40.26	0	313035..313640	+	201	126207771	ruvA	APL_0283	-	Holliday junction DNA helicase motor protein
284	 45.20	0	313779..314663	+	294	126207772	ruvB	APL_0284	-	Holliday junction DNA helicase B
285	 40.99	0	314720..315424	-	234	126207773	ubiG	APL_0285	-	3-demethylubiquinone-9 3-methyltransferase
286	 44.82	0	315604..318294	+	896	126207774	gyrA	APL_0286	-	DNA gyrase subunit A
287	 41.74	0	319940..320260	+	106	126207775	-	APL_0289	-	hypothetical protein
288	 31.14	-2	320427..321521	+	364	126207776	-	APL_0290	-	putative Type I restriction enzyme EcoR124II specificity protein
289	 36.87	-1	322648..325785	+	1045	126207777	-	APL_0293	-	putative type I site-specific restriction-modification system, R (restriction) subunit
290	 42.03	0	325804..327747	+	647	126207778	uupA	APL_0294	-	ABC transporter ATPase component
291	 42.61	0	327747..328511	+	254	126207779	-	APL_0295	-	hypothetical protein
292	 34.23	-2	328590..328922	-	110	126207780	-	APL_0296	-	hypothetical protein
293	 41.91	0	329378..330928	+	516	126207781	cydA	APL_0297	-	cytochrome oxidase subunit 1
294	 40.99	0	330942..332078	+	378	126207782	cydB	APL_0298	-	cytochrome oxidase subunit 2
295	 38.97	0	332646..333035	+	129	126207783	-	APL_0299	-	hypothetical protein
296	 39.79	0	333070..333750	+	226	126207784	tolQ	APL_0300	-	colicin transport protein TolQ
297	 39.91	0	333829..334269	+	146	126207785	tolR	APL_0301	-	colicin uptake protein TolR
298	 43.21	0	334285..335580	+	431	126207786	tolA	APL_0302	-	cell envelope integrity inner membrane protein TolA
299	 46.21	+1	335598..336878	+	426	126207787	tolB	APL_0303	-	translocation protein TolB precursor
300	 43.74	0	336904..337374	+	156	126207788	palA	APL_0304	-	outer membrane protein precursor PalA
301	 38.29	0	337552..338358	+	268	126207789	-	APL_0305	-	hypothetical protein
302	 43.32	0	338438..339298	+	286	126207790	djlA	APL_0306	-	DNA-J like membrane chaperone protein
303	 44.55	0	339383..340345	+	320	126207791	dusC	APL_0307	-	tRNA-dihydrouridine synthase C
304	 40.21	0	340397..341443	+	348	126207792	-	APL_0308	-	hypothetical protein
305	 43.56	0	341631..343547	-	638	126207793	yheS	APL_0309	-	putative ABC transporter ATP-binding protein YheS
306	 45.33	0	344138..345379	+	413	126207794	moeA	APL_0310	-	molybdopterin biosynthesis protein MoeA
307	 42.70	0	345389..346135	+	248	126207795	moeB	APL_0311	-	molybdopterin biosynthesis protein MoeB
308	 43.12	0	346529..347857	-	442	126207796	rumA	APL_0312	-	23S rRNA 5-methyluridine methyltransferase
309	 43.29	0	347915..349240	+	441	126207797	-	APL_0313	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
310	 43.26	0	349416..352325	+	969	126207798	hepA	APL_0314	-	ATP-dependent helicase HepA
311	 43.42	0	352395..353108	+	237	126207799	rluA	APL_0315	-	ribosomal large subunit pseudouridine synthase A
312	 41.71	0	353304..353852	-	182	126207800	ampD	APL_0316	-	N-acetyl-anhydromuranmyl-L-alanine amidase
313	 44.37	0	353973..354815	+	280	126207801	yhiR	APL_0317	-	hypothetical protein
314	 42.21	0	354902..355543	+	213	126207802	pyrE	APL_0318	-	orotate phosphoribosyltransferase
315	 43.16	0	355682..356770	+	362	126207803	-	APL_0319	-	hypothetical protein
316	 44.75	0	356847..358037	-	396	126207804	metC	APL_0320	-	cystathionine beta-lyase
317	 42.59	0	358114..358653	-	179	126207805	dsbB	APL_0321	-	disulfide bond formation protein B
41.85	MEAN

3.64	STD DEV
