IslandPath Analysis: Actinobacillus pleuropneumoniae L20

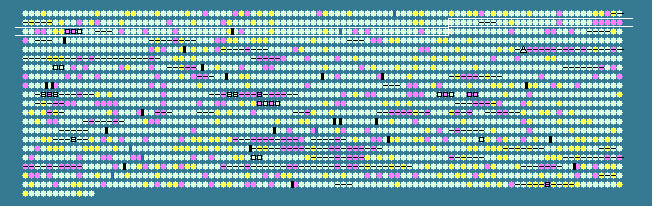

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
172	 42.11	0	189971..190927	+	318	126207660	msbB	APL_0172	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
173	 43.47	0	190987..191973	-	328	126207661	-	APL_0173	-	hypothetical protein
174	 42.13	0	192415..193380	+	321	126207662	tbpA	APL_0174	-	thiamine-binding periplasmic protein precursor
175	 43.33	0	193587..194036	+	149	126207663	dksA	APL_0175	-	DnaK suppressor protein
176	 43.25	0	194179..195711	+	510	126207664	pcnB	APL_0176	-	putative poly(A) polymerase
177	 42.46	0	195781..196251	+	156	126207665	folK	APL_0177	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
178	 42.79	0	196289..196510	-	73	126207666	-	APL_0178	-	hypothetical protein
179	 42.79	0	196507..199203	-	898	126207667	-	APL_0179	-	hypothetical protein
180	 39.35	0	199236..200000	-	254	126207668	-	APL_0180	-	hypothetical protein
181	 43.63	0	200154..200561	+	135	126207669	gloA	APL_0181	-	lactoylglutathione lyase
182	 45.81	+1	200701..201357	+	218	126207670	dnaQ	APL_0182	-	ribonuclease T
183	 41.16	0	201448..202725	-	425	126207671	-	APL_0183	-	Mn2+/Fe2+ transporter
184	 42.78	0	203301..204422	-	373	126207672	tyrA	APL_0184	-	bifunctional chorismate mutase/prephenate dehydrogenase
185	 43.97	0	204535..205596	-	353	126207673	aroF	APL_0185	-	phospho-2-dehydro-3-deoxyheptonate aldolase
186	 43.17	0	205638..206684	-	348	126207674	-	APL_0186	-	ADP-heptose:LPS heptosyltransferase I
187	 43.96	0	206772..208211	-	479	126207675	pykA	APL_0187	-	pyruvate kinase
188	 44.72	0	208343..208834	+	163	126207676	sixA	APL_0188	-	phosphohistidine phosphatase
189	 43.09	0	209057..210019	+	320	126207677	dus	APL_0189	-	tRNA-dihydrouridine synthase B
190	 36.36	-1	210047..210343	+	98	126207678	fis	APL_0190	-	DNA-binding protein Fis
191	 40.40	0	210408..211766	-	452	126207679	-	APL_0191	-	SNF family Na+-dependent transporter
192	 41.49	0	211831..212664	-	277	126207680	dam	APL_0192	-	DNA adenine methylase
193	 45.23	0	212657..213757	-	366	126207681	aroB	APL_0193	-	3-dehydroquinate synthase
194	 44.06	0	213831..214352	-	173	126207682	aroK	APL_0194	-	shikimate kinase
195	 44.24	0	214614..217181	-	855	126207683	mrcA	APL_0195	-	membrane carboxypeptidase/penicillin-binding protein
196	 34.95	-1	217320..218000	+	226	126207684	-	APL_0196	-	hypothetical protein
197	 35.88	-1	218072..218503	+	143	126207685	-	APL_0197	-	hypothetical protein
198	 28.22	-2	218506..219033	+	175	126207686	-	APL_0198	-	hypothetical protein
199	 34.57	-1	219026..219430	+	134	126207687	-	APL_0199	-	hypothetical protein
200	 38.26	0	219442..220740	+	432	126207688	hofQ	APL_0200	-	type II secretory pathway, component HofQ
201	 40.58	0	220866..221279	+	137	126207689	nusB	APL_0201	-	transcription antitermination protein NusB
202	 43.51	0	221347..222309	+	320	126207690	thiL	APL_0202	-	thiamine-monophosphate kinase
203	 36.92	-1	222322..222795	+	157	126207691	pgpA	APL_0203	-	phosphatidylglycerophosphatase A
204	 34.93	-1	222804..223430	+	208	126207692	-	APL_0204	-	putative threonine efflux protein
205	 43.45	0	223489..224526	-	345	126207693	-	APL_0205	-	rRNA methyltransferase
206	 45.76	+1	224692..225504	+	270	126207694	suhB	APL_0206	-	inositol-1-monophosphatase (IMPase)
207	 45.47	0	225625..227478	+	617	126207695	dxs	APL_0207	-	1-deoxy-D-xylulose-5-phosphate synthase
208	 37.76	-1	227524..227862	-	112	126207696	-	APL_0208	-	putative transposase-like protein
209	 36.79	-1	227895..228212	-	105	126207697	-	APL_0209	-	putative transposase-like protein
210	 40.00	0	228224..228733	-	169	126207698	-	APL_0210	-	transposase and inactivated derivatives
211	 44.55	0	228822..230087	-	421	126207699	glyA	APL_0211	-	serine hydroxymethyltransferase
212	 42.91	0	230318..231205	-	295	126207700	pnnK	APL_0212	-	inorganic polyphosphate/ATP-NAD kinase
213	 40.98	0	231296..234643	-	1115	126207701	-	APL_0213	-	hypothetical protein
214	 39.39	0	234640..235596	-	318	126207702	-	APL_0214	-	hypothetical protein
215	 38.77	0	237305..237874	-	189	126207703	-	APL_0215	-	hypothetical protein
216	 39.26	0	237877..238872	-	331	126207704	-	APL_0216	-	hypothetical protein
217	 38.02	-1	238874..239833	-	319	126207705	-	APL_0217	-	hypothetical protein
218	 38.96	0	239830..241179	-	449	126207706	-	APL_0218	-	hypothetical protein
219	 44.36	0	241585..243516	+	643	126207707	thrS	APL_0219	-	threonyl-tRNA synthetase
220	 41.78	0	243658..244332	+	224	126207708	-	APL_0220	-	putative lipoprotein
221	 37.36	-1	244342..244689	+	115	126207709	-	APL_0221	-	hypothetical protein
222	 38.48	0	244701..245360	+	219	126207710	-	APL_0222	-	putative lipoprotein
223	 41.88	0	245638..246117	+	159	126207711	infC	APL_0223	-	translation initiation factor IF-3
224	 39.39	0	246366..246563	+	65	126207712	rpmI	APL_0224	-	50S ribosomal protein L35
225	 41.81	0	246631..246984	+	117	126207713	rplT	APL_0225	-	50S ribosomal protein L20
226	 35.94	-1	247033..247569	+	178	126207714	-	APL_0226	-	hypothetical protein
227	 44.90	0	247602..247895	+	97	126207715	-	APL_0227	-	hypothetical protein
228	 41.90	0	247952..249247	-	431	126207716	-	APL_0228	-	hypothetical protein
229	 42.86	0	249291..249941	-	216	126207717	rluA	APL_0229	-	RNA pseudouridine synthase
230	 41.86	0	249991..250623	+	210	126207718	gpmB	APL_0230	-	phosphoglycerate mutase/fructose-2, 6-bisphosphatase
231	 44.44	0	250690..251103	-	137	126207719	-	APL_0231	-	Holliday junction resolvase-like protein
232	 43.14	0	251156..251716	-	186	126207720	-	APL_0232	-	hypothetical protein
233	 43.99	0	251716..252447	-	243	126207721	-	APL_0233	-	hypothetical protein
234	 42.47	0	252622..253212	-	196	126207722	-	APL_0234	-	putative lipoprotein
235	 46.15	+1	253341..253652	+	103	126207723	bolA	APL_0235	-	stress-induced morphogen (activity unknown)
236	 38.93	0	254045..254419	-	124	126207724	-	APL_0236	-	putative lipoprotein
237	 34.95	-1	254439..254747	-	102	126207725	-	APL_0237	-	hypothetical protein
238	 39.45	0	254850..255176	+	108	126207726	-	APL_0238	-	hypothetical protein
239	 44.85	0	255285..258002	+	905	126207727	secA	APL_0239	-	preprotein translocase subunit SecA
240	 42.93	0	258132..259319	+	395	126207728	-	APL_0240	-	TPR repeat-containing protein
241	 43.86	0	259316..259714	+	132	126207729	mutT	APL_0241	-	mutator mutT protein
242	 45.40	0	259949..260893	+	314	126207730	argC	APL_0242	-	N-acetyl-gamma-glutamyl-phosphate reductase
243	 41.64	0	260923..261777	+	284	126207731	argB	APL_0243	-	acetylglutamate kinase
244	 43.91	0	261791..262972	+	393	126207732	argD	APL_0244	-	acetylornithine aminotransferase
245	 40.88	0	263186..264895	+	569	126207733	-	APL_0245	-	transferrin binding protein-like solute binding protein
246	 40.30	0	264910..267177	+	755	126207734	-	APL_0246	-	truncated transferrin-binding protein 1 precursor
247	 44.26	0	267745..269007	-	420	126207735	rho	APL_0247	-	transcription termination factor Rho
248	 44.58	0	269205..270155	-	316	126207736	cysK	APL_0248	-	cysteine synthase
249	 44.58	0	270367..271317	-	316	126207737	thrB	APL_0249	-	homoserine kinase
250	 43.87	0	271317..273773	-	818	126207738	thrA	APL_0250	-	bifunctional aspartokinase I/homeserine dehydrogenase I
251	 45.95	+1	274183..274824	+	213	126207739	sodA	APL_0251	-	manganese superoxide dismutase
252	 44.98	0	274912..276036	-	374	126207740	alr	APL_0252	-	alanine racemase
253	 38.60	0	276157..278094	+	645	126207741	recD	APL_0253	-	exodeoxyribonuclease V alpha chain
254	 40.14	0	284242..285696	-	484	126207742	pepD	APL_0254	-	aminoacyl-histidine dipeptidase
255	 43.25	0	285869..286342	+	157	126207743	gpt	APL_0255	-	xanthine-guanine phosphoribosyltransferase
256	 38.33	0	286426..287046	+	206	126207744	gmk	APL_0256	-	guanylate kinase
257	 40.00	0	287148..288542	+	464	126207745	-	APL_0257	-	outer membrane protein
258	 36.70	-1	288590..288886	-	98	126207746	-	APL_0258	-	hypothetical protein
259	 39.08	0	288879..289313	-	144	126207747	-	APL_0259	-	oligoketide cyclase/lipid transport protein
260	 40.44	0	289361..290416	-	351	126207748	modC	APL_0260	-	molybdate transporter ATP-binding protein
261	 43.48	0	290420..291109	-	229	126207749	modB	APL_0261	-	molybdate ABC transporter permease protein
262	 40.71	0	291169..291927	-	252	126207750	modA	APL_0262	-	molybdate-binding periplasmic protein precursor
263	 42.13	0	292023..292784	-	253	126207751	-	APL_0263	-	putative ABC transport system permease
264	 39.93	0	292788..293696	-	302	126207752	-	APL_0264	-	putative ABC transporter ATP-binding protein
265	 44.07	0	293696..295762	-	688	126207753	dnaX	APL_0265	-	DNA polymerase III subunits gamma and tau
266	 41.85	0	295811..296350	-	179	126207754	apt	APL_0266	-	adenine phosphoribosyltransferase
267	 35.55	-1	296551..297183	+	210	126207755	-	APL_0267	-	hypothetical protein
268	 41.87	0	297183..297545	+	120	126207756	-	APL_0268	-	putative translation initiation inhibitor
269	 40.46	0	297556..298650	+	364	126207757	thrCA	APL_0269	-	putative threonine synthase
270	 41.46	0	298665..299156	+	163	126207758	-	APL_0270	-	hypothetical protein
271	 43.25	0	299267..300022	-	251	126207759	-	APL_0271	-	putative chelated iron transport system ATP-binding protein
41.85	MEAN

3.64	STD DEV
