IslandPath Analysis: Actinobacillus pleuropneumoniae L20

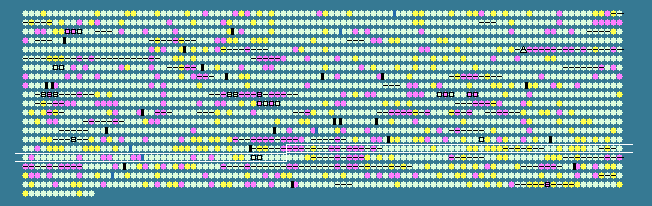

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1545	 33.33	-2	1797580..1797990	-	136	126209033	exbD	APL_1569	-	biopolymer transport ExbD protein
1546	 31.84	-2	1797990..1798658	-	222	126209034	exbB	APL_1570	-	biopolymer transport ExbB protein
1547	 37.79	-1	1798680..1799420	-	246	126209035	tonB1	APL_1571	-	periplasmic protein
1548	 39.76	0	1799696..1799944	-	82	126209036	-	APL_1572	-	hypothetical protein
1549	 49.29	+2	1800111..1800818	-	235	126209037	-	APL_1573	-	2,3-diketo-L-gulonate reductase
1550	 40.33	0	1801340..1801882	+	180	126209038	-	APL_1574	-	hypothetical protein
1551	 41.98	0	1801954..1802508	-	184	126209039	-	APL_1575	-	hypothetical protein
1552	 34.83	-1	1802526..1803461	-	311	126209040	kpsF	APL_1576	-	arabinose-5-phosphate isomerase
1553	 36.50	-1	1803473..1804231	-	252	126209041	kdsB	APL_1577	-	3-deoxy-manno-octulosonate cytidylyltransferase
1554	 41.70	0	1804277..1805137	-	286	126209042	kdsA	APL_1578	-	2-dehydro-3-deoxyphosphooctonate aldolase
1555	 28.11	-2	1805186..1806334	-	382	126209043	cps5C	APL_1579	-	region 2 capsular polysaccharide biosynthesis protein
1556	 27.01	-2	1806349..1807929	-	526	126209044	cps5B	APL_1580	-	region 2 capsular polysaccharide biosynthesis protein
1557	 29.61	-2	1807932..1808897	-	321	126209045	-	APL_1581	-	putative glycosyltransferase
1558	 44.05	0	1809226..1810410	+	394	126209046	cpxD	APL_1582	-	capsule polysaccharide export protein
1559	 38.26	0	1810436..1811593	+	385	126209047	cpxC	APL_1583	-	capsule polysaccharide export inner-membrane protein
1560	 39.22	0	1811593..1812390	+	265	126209048	cpxB	APL_1584	-	capsule polysaccharide export inner-membrane protein
1561	 38.56	0	1812387..1813037	+	216	126209049	cpxA	APL_1585	-	ATP-binding protein
1562	 43.58	0	1813385..1814857	-	490	126209050	modF	APL_1586	-	putative molybdenum transport ATP-binding protein ModF
1563	 44.58	0	1814950..1815900	-	316	126209051	fmt	APL_1587	-	methionyl-tRNA formyltransferase
1564	 43.85	0	1816063..1817013	-	316	126209052	-	APL_1588	-	TRAP transporter solute receptor
1565	 43.07	0	1817075..1817803	+	242	126209053	-	APL_1589	-	hypothetical protein
1566	 43.41	0	1817884..1819362	+	492	126209054	trkH	APL_1590	-	Trk system potassium uptake protein TrkH
1567	 41.86	0	1819377..1819904	+	175	126209055	-	APL_1591	-	hypothetical protein
1568	 41.03	0	1820008..1820397	+	129	126209056	mscL	APL_1592	-	large-conductance mechanosensitive channel
1569	 46.42	+1	1820527..1821519	-	330	126209057	lipA	APL_1593	-	lipoyl synthase
1570	 41.86	0	1821631..1822287	-	218	126209058	lipB	APL_1594	-	lipoyltransferase
1571	 40.67	0	1822319..1822618	-	99	126209059	-	APL_1595	-	hypothetical protein
1572	 42.66	0	1822752..1823930	-	392	126209060	dacA	APL_1596	-	D-alanyl-D-alanine carboxypeptidase fraction A
1573	 42.02	0	1824026..1824589	-	187	126209061	-	APL_1597	-	rare lipoprotein A RlpA-like protein
1574	 44.00	0	1824764..1825888	-	374	126209062	mrdB	APL_1598	-	rod shape-determining protein
1575	 45.77	+1	1825881..1827842	-	653	126209063	mrdA	APL_1599	-	penicillin-binding protein 2
1576	 48.93	+1	1827924..1828391	-	155	126209064	-	APL_1600	-	SPOUT methyltransferase superfamily protein
1577	 43.17	0	1828414..1828728	-	104	126209065	-	APL_1601	-	hypothetical protein
1578	 46.13	+1	1828954..1831548	-	864	126209066	mutS	APL_1602	-	DNA mismatch repair protein
1579	 45.87	+1	1831714..1832463	-	249	126209067	-	APL_1603	-	putative amino-acid ABC transporter ATP-binding protein
1580	 46.64	+1	1832485..1833168	-	227	126209068	-	APL_1604	-	amino acid ABC transporter permease
1581	 45.65	+1	1833350..1834648	-	432	126209069	-	APL_1605	-	hypothetical protein
1582	 43.23	0	1834920..1835414	+	164	126209070	-	APL_1606	-	regulator of cell morphogenesis and NO signaling
1583	 46.67	+1	1835493..1835822	-	109	126209071	-	APL_1607	-	putative drug resistance protein
1584	 41.24	0	1835910..1836200	-	96	126209072	-	APL_1608	-	hypothetical protein
1585	 48.48	+1	1836354..1836914	-	186	126209073	-	APL_1609	-	hypothetical protein
1586	 42.52	0	1837087..1837380	-	97	126209074	-	APL_1610	-	hypothetical protein
1587	 43.91	0	1837396..1838208	-	270	126209075	ureD	APL_1611	-	urease accessory protein UreD
1588	 45.13	0	1838377..1839012	-	211	126209076	ureG	APL_1612	-	urease accessory protein UreG
1589	 45.32	0	1839033..1839716	-	227	126209077	ureF	APL_1613	-	urease accessory protein UreF
1590	 45.42	0	1839728..1840306	-	192	126209078	ureE	APL_1614	-	urease accessory protein UreE
1591	 43.37	0	1840422..1841039	-	205	126209079	gst	APL_1615	-	putative glutathione S-transferase
1592	 48.81	+1	1841163..1842881	-	572	126209080	ureC	APL_1616	-	urease subunit alpha
1593	 46.41	+1	1842892..1843197	-	101	126209081	ureB	APL_1617	-	urease subunit beta
1594	 46.53	+1	1843387..1843689	-	100	126209082	ureA	APL_1618	-	urease subunit gamma
1595	 42.89	0	1843761..1844576	-	271	126209083	utp	APL_1619	-	urea transport protein ApUT
1596	 40.48	0	1844688..1845317	-	209	126209084	cbiO	APL_1620	-	ABC transporter ATP-binding protein
1597	 40.61	0	1845340..1845957	-	205	126209085	cbiQ	APL_1621	-	putative ABC transport permease protein CbiQ
1598	 46.14	+1	1845964..1846572	-	202	126209086	cbiM	APL_1622	-	cobalt transport protein CbiM
1599	 42.86	0	1846573..1847055	-	160	126209087	cbiL	APL_1623	-	putative cytoplasmic membrane protein CbiL
1600	 39.74	0	1847055..1847741	-	228	126209088	cbiK	APL_1624	-	putative periplasmic binding protein CbiK
1601	 45.11	0	1848084..1848839	+	251	126209089	apuR	APL_1625	-	putative LysR-type transcriptional regulator
1602	 35.71	-1	1848918..1849379	-	153	126209090	-	APL_1626	-	hypothetical protein
1603	 44.37	0	1849607..1851472	-	621	126209091	-	APL_1627	-	hypothetical protein
1604	 39.43	0	1851533..1852057	-	174	126209092	mtlR	APL_1628	-	mannitol repressor protein
1605	 41.49	0	1852057..1853196	-	379	126209093	mtlD	APL_1629	-	mannitol-1-phosphate 5-dehydrogenase
1606	 43.28	0	1853283..1855172	-	629	126209094	mtlA	APL_1630	-	PTS system mannitol-specific EIICBA component
1607	 42.99	0	1855480..1857312	-	610	126209095	glmS	APL_1631	-	D-fructose-6-phosphate amidotransferase
1608	 41.90	0	1857436..1858194	-	252	126209096	-	APL_1632	-	sugar metabolism transcriptional regulator
1609	 45.27	0	1858332..1858532	-	66	126209097	-	APL_1633	-	hypothetical protein
1610	 36.35	-1	1858631..1859623	-	330	126209098	-	APL_1634	-	putative glycosyltransferase
1611	 39.77	0	1859672..1861534	-	620	126209099	-	APL_1635	-	putative adhesin processing HmwC-like protein
1612	 44.14	0	1861550..1862881	-	443	126209100	-	APL_1636	-	hypothetical protein
1613	 43.35	0	1863055..1863753	-	232	126209101	mtn	APL_1637	-	MTA/SAH nucleosidase
1614	 37.01	-1	1863753..1864460	-	235	126209102	dsbA_2	APL_1638	-	thiol disulfide oxidoreductase
1615	 37.84	-1	1864527..1864748	-	73	126209103	slyX	APL_1639	-	hypothetical protein
1616	 40.30	0	1864839..1865570	+	243	126209104	fkpA	APL_1640	-	putative FKBP-type peptidyl-prolyl cis-trans isomerase
1617	 39.39	0	1865682..1866341	+	219	126209105	-	APL_1641	-	hypothetical protein
1618	 41.27	0	1866341..1866718	+	125	126209106	tusD	APL_1642	-	hypothetical protein
1619	 36.02	-1	1866721..1867092	+	123	126209107	-	APL_1643	-	hypothetical protein
1620	 34.81	-1	1867105..1867374	+	89	126209108	-	APL_1644	-	hypothetical protein
1621	 39.05	0	1873346..1873765	-	139	126209109	atpC	APL_1645	-	F0F1 ATP synthase subunit epsilon
1622	 43.01	0	1873805..1875178	-	457	126209110	atpD	APL_1646	-	F0F1 ATP synthase subunit beta
1623	 39.68	0	1875192..1876058	-	288	126209111	atpG	APL_1647	-	F0F1 ATP synthase subunit gamma
1624	 43.32	0	1876081..1877622	-	513	126209112	atpA	APL_1648	-	F0F1 ATP synthase subunit alpha
1625	 39.33	0	1877635..1878168	-	177	126209113	atpH	APL_1649	-	F0F1 ATP synthase subunit delta
1626	 40.98	0	1878182..1878652	-	156	126209114	atpF	APL_1650	-	F0F1 ATP synthase subunit B
1627	 38.43	0	1878712..1878966	-	84	126209115	atpE	APL_1651	-	F0F1 ATP synthase subunit C
1628	 39.04	0	1879085..1879873	-	262	126209116	atpB	APL_1652	-	F0F1 ATP synthase subunit A
1629	 30.99	-2	1879898..1880281	-	127	126209117	-	APL_1653	-	F0F1 ATP synthase subunit I
1630	 40.13	0	1880642..1881259	-	205	126209118	gidB	APL_1654	-	glucose-inhibited division protein B
1631	 44.90	0	1881359..1883251	-	630	126209119	gidA	APL_1655	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1632	 38.25	0	1883701..1884513	+	270	126209120	-	APL_1656	-	hypothetical protein
1633	 41.89	0	1884563..1885345	-	260	126209121	-	APL_1657	-	putative amino-acid ABC transporter-binding protein
1634	 44.03	0	1885558..1886034	-	158	126209122	-	APL_1658	-	hypothetical protein
1635	 38.89	0	1886037..1886414	-	125	126209123	-	APL_1659	-	hypothetical protein
1636	 45.53	+1	1886502..1887329	-	275	126209124	-	APL_1660	-	mannose permease IID component
1637	 45.53	+1	1887340..1888134	-	264	126209125	-	APL_1661	-	mannose permease IIC component
1638	 44.27	0	1888149..1889117	-	322	126209126	-	APL_1662	-	PTS system mannose-specific EIIAB component
1639	 38.87	0	1889293..1890105	-	270	126209127	-	APL_1663	-	transposase-like protein
1640	 40.39	0	1890117..1890626	-	169	126209128	-	APL_1664	-	transposase
1641	 44.30	0	1890708..1892057	-	449	126209129	gntP_1	APL_1665	-	gluconate permease
1642	 39.15	0	1892235..1892750	+	171	126209130	gntK	APL_1666	-	thermosensitive gluconokinase
1643	 43.14	0	1892822..1893820	-	332	126209131	gntR	APL_1667	-	HTH-type transcriptional regulator
1644	 44.95	0	1893943..1894932	+	329	126209132	rbsR	APL_1668	-	ribose operon repressor
41.85	MEAN

3.64	STD DEV
