IslandPath Analysis: Actinobacillus pleuropneumoniae L20

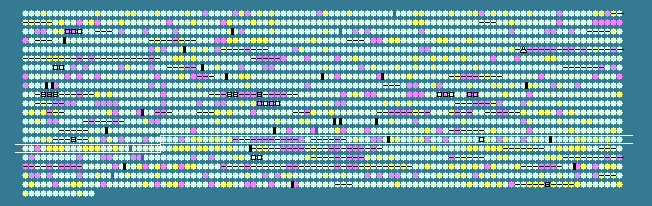

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1424	 42.98	0	1660069..1661115	+	348	126208912	fbpC	APL_1448	-	ferric transporter ATP-binding subunit
1425	 44.76	0	1661206..1662570	-	454	126208913	mpl	APL_1449	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
1426	 42.99	0	1662693..1663697	+	334	126208914	fbp	APL_1450	-	fructose-1,6-bisphosphatase
1427	 30.39	-2	1663853..1664464	-	203	126208915	-	APL_1451	-	hypothetical protein
1428	 43.74	0	1664928..1666157	-	409	126208916	serA	APL_1452	-	D-3-phosphoglycerate dehydrogenase
1429	 47.27	+1	1666301..1666960	-	219	126208917	rpiA	APL_1453	-	ribose-5-phosphate isomerase A
1430	 45.92	+1	1667107..1668441	-	444	126208918	mrsA	APL_1454	-	phosphoglucosamine mutase
1431	 43.55	0	1668513..1670039	-	508	126208919	ilvA	APL_1455	-	threonine dehydratase
1432	 46.73	+1	1670166..1670762	-	198	126208920	slyD	APL_1456	-	FKBP-type peptidyl-prolyl cis-trans isomerase SlyD
1433	 47.02	+1	1671115..1671801	-	228	126208921	aqpZ	APL_1457	-	aquaporin Z
1434	 38.77	0	1671947..1672663	-	238	126208922	-	APL_1458	-	hypothetical protein
1435	 45.50	+1	1672705..1673460	-	251	126208923	-	APL_1459	-	hypothetical protein
1436	 35.69	-1	1673509..1674525	+	338	126208924	-	APL_1460	-	hypothetical protein
1437	 40.04	0	1674525..1675433	+	302	126208925	menA	APL_1461	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
1438	 43.57	0	1675512..1675853	-	113	126208926	-	APL_1462	-	iron-sulfur cluster insertion protein ErpA
1439	 30.56	-2	1676054..1676845	+	263	126208927	-	APL_1463	-	putative ABC-transporter
1440	 35.38	-1	1676845..1677576	+	243	126208928	wzm	APL_1464	-	ABC transporter integral membrane subunit
1441	 27.44	-2	1677587..1678366	+	259	126208929	-	APL_1465	-	hypothetical protein
1442	 23.95	-2	1679260..1679664	+	134	126208930	-	APL_1466	-	hypothetical protein
1443	 38.99	0	1679666..1680814	+	382	126208931	rfbD	APL_1467	-	putative UDP-galactopyranose mutase
1444	 28.60	-2	1680877..1681446	+	189	126208932	-	APL_1468	-	hypothetical protein
1445	 33.77	-2	1681443..1682366	+	307	126208933	-	APL_1469	-	glycosyl transferase family protein
1446	 29.20	-2	1682372..1683145	+	257	126208934	-	APL_1470	-	hypothetical protein
1447	 33.83	-2	1683164..1684582	+	472	126208935	-	APL_1471	-	putative sugar transferase
1448	 42.74	0	1684665..1685738	+	357	126208936	rfbB1	APL_1472	-	dTDP-glucose 4,6-dehydratase
1449	 38.43	0	1685959..1686174	+	71	126208937	rpsU	APL_1473	-	30S ribosomal protein S21
1450	 44.58	0	1686354..1688096	+	580	126208938	dnaG	APL_1474	-	DNA primase
1451	 43.60	0	1688201..1690060	+	619	126208939	rpoD	APL_1475	-	RNA polymerase sigma factor RpoD
1452	 43.07	0	1690213..1691403	-	396	126208940	tyrS	APL_1476	-	tyrosyl-tRNA synthetase
1453	 37.42	-1	1691748..1692212	-	154	126208941	-	APL_1477	-	hypothetical protein
1454	 45.04	0	1692326..1694683	-	785	126208942	vacB	APL_1478	-	ribonuclease R
1455	 43.02	0	1694751..1695266	-	171	126208943	-	APL_1479	-	thioredoxin-like protein
1456	 46.45	+1	1695266..1695898	-	210	126208944	-	APL_1480	-	DNA-binding transcriptional repressor FabR
1457	 43.18	0	1695891..1696784	-	297	126208945	oxyR	APL_1481	-	DNA-binding transcriptional regulator OxyR
1458	 43.95	0	1696909..1697643	+	244	126208946	-	APL_1482	-	hybrid peroxiredoxin HyPrx5
1459	 30.39	-2	1698048..1698659	+	203	126208947	-	APL_1483	-	hypothetical protein
1460	 36.33	-1	1698893..1699525	-	210	126208948	-	APL_1484	-	hypothetical protein
1461	 41.23	0	1699929..1700789	-	286	126208949	pdxY	APL_1485	-	pyridoxamine kinase
1462	 47.06	+1	1701093..1702046	-	317	126208950	accA	APL_1486	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1463	 45.96	+1	1702163..1703572	-	469	126208951	sufI	APL_1487	-	protein SufI precursor
1464	 45.31	0	1703581..1704315	-	244	126208952	plsC	APL_1488	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1465	 42.71	0	1704458..1704958	+	166	126208953	tpx	APL_1489	-	putative thiol peroxidase
1466	 47.68	+1	1705081..1706439	+	452	126208954	trmE	APL_1490	-	tRNA modification GTPase TrmE
1467	 45.94	+1	1706547..1707902	-	451	126208955	-	APL_1491	-	hypothetical protein
1468	 35.90	-1	1707915..1708187	-	90	126208956	-	APL_1492	-	hypothetical protein
1469	 40.87	0	1708325..1709014	-	229	126208957	-	APL_1493	-	hypothetical protein
1470	 41.40	0	1709330..1709899	+	189	126208958	ftpA	APL_1494	-	fine tangled pili major subunit
1471	 37.95	-1	1710145..1710447	+	100	126208959	-	APL_1495	-	putative transcriptional regulator
1472	 43.52	0	1710594..1711958	+	454	126208960	-	APL_1496	-	hypothetical protein
1473	 43.86	0	1712026..1714200	-	724	126208961	-	APL_1497	-	putative integral membrane protein
1474	 46.84	+1	1714282..1714740	-	152	126208962	mgsA	APL_1498	-	methylglyoxal synthase
1475	 44.11	0	1714873..1716153	+	426	126208963	thrC	APL_1499	-	threonine synthase
1476	 40.00	0	1716239..1716748	+	169	126208964	-	APL_1500	-	hypothetical protein
1477	 38.57	0	1716790..1717572	+	260	126208965	-	APL_1501	-	transposase
1478	 45.41	0	1717631..1720495	-	954	126208966	valS	APL_1502	-	valyl-tRNA synthetase
1479	 38.42	0	1721238..1721414	-	58	126208967	-	APL_1503	-	hypothetical protein
1480	 36.64	-1	1721574..1721996	-	140	126208968	-	APL_1504	-	putative acetyltransferase
1481	 46.12	+1	1721997..1722434	-	145	126208969	holC	APL_1505	-	DNA polymerase III subunit chi
1482	 42.79	0	1722708..1723151	+	147	126208970	-	APL_1506	-	hypothetical protein
1483	 42.01	0	1723353..1724654	+	433	126208971	tig	APL_1507	-	trigger factor
1484	 37.11	-1	1724787..1725236	+	149	126208972	-	APL_1508	-	putative rhodanese-related sulfurtransferase
1485	 40.72	0	1725261..1725761	+	166	126208973	secB	APL_1509	-	preprotein translocase subunit SecB
1486	 45.70	+1	1725946..1726956	+	336	126208974	gpsA	APL_1510	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1487	 41.67	0	1726968..1727783	+	271	126208975	cysE	APL_1511	-	serine acetyltransferase
1488	 45.06	0	1727979..1729163	-	394	126208976	tufB	APL_1512	-	elongation factor Tu
1489	 40.17	0	1729917..1730867	+	316	126208977	coaA	APL_1513	-	pantothenate kinase
1490	 42.36	0	1731002..1731544	+	180	126208978	dsbE	APL_1514	-	thiol:disulfide interchange protein DsbE
1491	 41.67	0	1731549..1732016	+	155	126208979	-	APL_1515	-	hypothetical protein
1492	 41.86	0	1732016..1732930	+	304	126208980	-	APL_1516	-	cytochrome c biogenesis factor-like protein
1493	 47.52	+1	1733002..1733586	+	194	126208981	mogA	APL_1517	-	molybdenum cofactor biosynthesis protein
1494	 45.43	0	1733706..1734044	+	112	126208982	glnB	APL_1518	-	nitrogen regulatory protein P-II
1495	 39.96	0	1734123..1734605	+	160	126208983	lspA	APL_1519	-	lipoprotein signal peptidase
1496	 46.35	+1	1734606..1735550	+	314	126208984	ispH	APL_1520	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1497	 41.77	0	1735550..1735798	+	82	126208985	-	APL_1521	-	hypothetical protein
1498	 47.00	+1	1735867..1736466	-	199	126208986	-	APL_1522	-	hypothetical protein
1499	 43.78	0	1736466..1738283	-	605	126208987	chuW	APL_1523	-	coproporphyrinogen III oxidase
1500	 44.17	0	1738440..1739057	-	205	126208988	gst	APL_1524	-	glutathione S-transferase
1501	 44.52	0	1739123..1740373	-	416	126208989	lysA	APL_1525	-	diaminopimelate decarboxylase
1502	 44.06	0	1740789..1741133	-	114	126208990	frdD	APL_1526	-	fumarate reductase subunit D
1503	 37.91	-1	1741146..1741538	-	130	126208991	frdC	APL_1527	-	fumarate reductase subunit C
1504	 44.76	0	1741547..1742281	-	244	126208992	frdB	APL_1528	-	fumarate reductase iron-sulfur subunit
1505	 45.44	0	1742294..1744093	-	599	126208993	frdA	APL_1529	-	fumarate reductase flavoprotein subunit
1506	 46.24	+1	1744436..1745419	+	327	126208994	poxA	APL_1530	-	lysyl-tRNA synthetase
1507	 45.58	+1	1745501..1746325	-	274	126208995	dapF	APL_1531	-	diaminopimelate epimerase
1508	 43.99	0	1746506..1747828	+	440	126208996	dcuB	APL_1532	-	anaerobic C4-dicarboxylate transporter
1509	 42.47	0	1747900..1748271	-	123	126208997	crcB	APL_1533	-	camphor resistance-like protein CrcB
1510	 38.97	0	1748274..1749338	-	354	126208998	-	APL_1534	-	putative transport system permease protein
1511	 46.22	+1	1749433..1750542	+	369	126208999	anmK	APL_1535	-	anhydro-N-acetylmuramic acid kinase
1512	 46.23	+1	1750596..1751510	+	304	126209000	murQ	APL_1536	-	N-acetylmuramic acid-6-phosphate etherase
1513	 46.15	+1	1751577..1752458	-	293	126209001	prmA	APL_1537	-	ribosomal protein L11 methyltransferase
1514	 41.03	0	1752542..1753009	-	155	126209002	-	APL_1538	-	acetyltransferase
1515	 41.76	0	1753013..1753273	-	86	126209003	-	APL_1539	-	hypothetical protein
1516	 46.82	+1	1753394..1754854	-	486	126209004	tldD	APL_1540	-	TldD-like protein
1517	 43.10	0	1754984..1756243	+	419	126209005	tilS	APL_1541	-	tRNA(Ile)-lysidine synthase
1518	 40.16	0	1756562..1757455	-	297	126209006	xerD	APL_1542	-	site-specific tyrosine recombinase XerD
1519	 42.42	0	1764006..1764731	-	241	126209007	wecG	APL_1543	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
1520	 39.25	0	1764715..1766049	-	444	126209008	-	APL_1544	-	putative entero common antigen polymerase
1521	 40.24	0	1766049..1767119	-	356	126209009	wecF	APL_1545	-	4-alpha-L-fucosyltransferase
1522	 43.36	0	1767397..1769052	+	551	126209010	hcp	APL_1546	-	hydroxylamine reductase
1523	 45.10	0	1769175..1770194	+	339	126209011	hcr	APL_1547	-	HCP oxidoreductase, NADH-dependent
41.85	MEAN

3.64	STD DEV
