IslandPath Analysis: Actinobacillus pleuropneumoniae L20

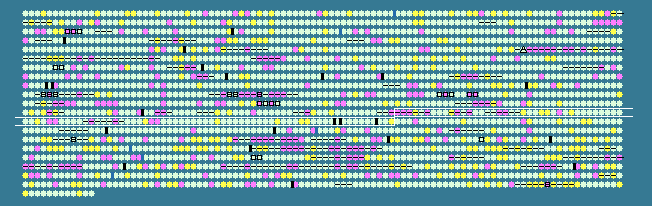

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1163	 32.48	-2	1362278..1363678	+	466	126208651	-	APL_1183	-	hypothetical protein
1164	 29.92	-2	1363681..1364178	+	165	126208652	-	APL_1184	-	hypothetical protein
1165	 31.01	-2	1364192..1364836	+	214	126208653	-	APL_1185	-	hypothetical protein
1166	 45.64	+1	1365058..1365951	-	297	126208654	-	APL_1186	-	putative transcriptional regulator
1167	 44.81	0	1366076..1366528	+	150	126208655	-	APL_1187	-	hypothetical protein
1168	 36.18	-1	1366651..1367283	-	210	126208656	-	APL_1188	-	hypothetical protein
1169	 41.61	0	1367935..1368357	+	140	126208657	-	APL_1189	-	hypothetical protein
1170	 45.33	0	1368533..1369432	-	299	126208658	-	APL_1190	-	putative transcriptional regulator LysR-like protein
1171	 45.29	0	1369523..1370584	+	353	126208659	namA	APL_1191	-	NADPH dehydrogenase
1172	 45.43	0	1370654..1371703	+	349	126208660	-	APL_1192	-	hypothetical protein
1173	 31.60	-2	1371916..1373130	-	404	126208661	-	APL_1193	-	putative type I restriction-modification system, S subunit
1174	 43.44	0	1373145..1374797	-	550	126208662	-	APL_1194	-	type I restriction-modification system, M subunit
1175	 37.91	-1	1374794..1376674	-	626	126208663	-	APL_1195	-	hypothetical protein
1176	 40.86	0	1376676..1379810	-	1044	126208664	-	APL_1196	-	type I restriction enzyme, R subunit
1177	 43.71	0	1379926..1380792	-	288	126208665	-	APL_1197	-	3-hydroxyacid dehydrogenase
1178	 41.63	0	1381046..1381708	+	220	126208666	-	APL_1198	-	putative NAD(P)H nitroreductase
1179	 41.59	0	1381862..1382479	+	205	126208667	-	APL_1199	-	hypothetical protein
1180	 34.51	-2	1382582..1383007	-	141	126208668	-	APL_1200	-	putative DNA mismatch endonuclease
1181	 33.87	-2	1383014..1384675	-	553	126208669	-	APL_1201	-	hypothetical protein
1182	 38.54	0	1384691..1385785	-	364	126208670	-	APL_1202	-	modification methylase
1183	 40.07	0	1386211..1386774	+	187	126208671	-	APL_1203	-	hypothetical protein
1184	 46.74	+1	1386848..1387705	-	285	126208672	-	APL_1204	-	esterase
1185	 42.84	0	1387841..1388524	-	227	126208673	-	APL_1205	-	putative glutathione S-transferase
1186	 39.76	0	1388658..1389077	-	139	126208674	-	APL_1206	-	plasmid stability-like protein
1187	 45.74	+1	1389087..1389344	-	85	126208675	-	APL_1207	-	hypothetical protein
1188	 46.92	+1	1389494..1390612	-	372	126208676	adhC	APL_1208	-	putative alcohol dehydrogenase class 3
1189	 41.22	0	1390767..1392794	-	675	126208677	betT	APL_1209	-	putative choline-glycine betaine transporter
1190	 37.13	-1	1393091..1393801	+	236	126208678	-	APL_1210	-	hypothetical protein
1191	 40.02	0	1393801..1394637	+	278	126208679	-	APL_1211	-	hypothetical protein
1192	 45.36	0	1394716..1395663	-	315	126208680	tehA	APL_1212	-	potassium-tellurite ethidium and proflavin transporter
1193	 42.86	0	1395762..1396412	-	216	126208681	-	APL_1213	-	hypothetical protein
1194	 40.60	0	1396650..1397213	-	187	126208682	-	APL_1214	-	hypothetical protein
1195	 44.99	0	1397300..1399144	-	614	126208683	-	APL_1215	-	ABC transporter ATP-binding protein
1196	 42.94	0	1399250..1399759	-	169	126208684	luxS	APL_1216	-	S-ribosylhomocysteinase
1197	 43.79	0	1399814..1402480	-	888	126208685	-	APL_1217	-	hypothetical protein
1198	 38.44	0	1402628..1403077	-	149	126208686	fur	APL_1218	-	ferric uptake regulation protein
1199	 41.14	0	1403106..1403630	-	174	126208687	fldA	APL_1219	-	flavodoxin FldA
1200	 41.50	0	1403652..1403945	-	97	126208688	-	APL_1220	-	LexA regulated protein
1201	 43.61	0	1404145..1404621	-	158	126208689	-	APL_1221	-	hypothetical protein
1202	 44.11	0	1404705..1405706	+	333	126208690	-	APL_1222	-	aspartate-semialdehyde dehydrogenase
1203	 45.91	+1	1405767..1407062	+	431	126208691	-	APL_1223	-	putative inner membrane protein
1204	 42.17	0	1407172..1407522	+	116	126208692	-	APL_1224	-	hypothetical protein
1205	 30.80	-2	1408957..1409745	+	262	126208693	-	APL_1227	-	hypothetical protein
1206	 37.90	-1	1409885..1410103	-	72	126208694	infA	APL_1228	-	translation initiation factor IF-1
1207	 40.72	0	1410195..1410857	-	220	126208695	aphA	APL_1229	-	AphA-like protein
1208	 44.37	0	1410957..1411817	+	286	126208696	serB	APL_1230	-	phosphoserine phosphatase
1209	 42.89	0	1411876..1412367	+	163	126208697	-	APL_1231	-	nucleotide-binding protein
1210	 42.58	0	1412721..1415120	+	799	126208698	malP	APL_1232	-	maltodextrin phosphorylase
1211	 39.40	0	1415184..1417901	-	905	126208699	malT	APL_1233	-	HTH-type transcriptional regulator MalT
1212	 38.19	-1	1418016..1418900	-	294	126208700	-	APL_1234	-	maltose regulon periplasmic protein
1213	 39.61	0	1418968..1420242	-	424	126208701	lamB	APL_1235	-	maltoporin
1214	 40.53	0	1420312..1421451	-	379	126208702	malK	APL_1236	-	maltose/maltodextrin transporter ATP-binding protein
1215	 38.90	0	1421783..1422967	+	394	126208703	malE	APL_1237	-	maltose ABC transporter periplasmic protein
1216	 38.36	0	1423046..1424596	+	516	126208704	malF	APL_1238	-	maltose transporter membrane protein
1217	 42.54	0	1424647..1425537	+	296	126208705	malG	APL_1239	-	maltose transporter permease
1218	 41.01	0	1425628..1427646	+	672	126208706	malQ	APL_1240	-	4-alpha-glucanotransferase
1219	 42.34	0	1427864..1429450	+	528	126208707	-	APL_1241	-	hypothetical protein
1220	 42.26	0	1429516..1430310	+	264	126208708	-	APL_1242	-	putative deoxyribonuclease
1221	 45.66	+1	1430369..1431739	-	456	126208709	gor	APL_1243	-	glutathione reductase
1222	 30.56	-2	1432223..1432834	+	203	126208710	-	APL_1244	-	hypothetical protein
1223	 36.61	-1	1432923..1433441	-	172	126208711	-	APL_1245	-	hypothetical protein
1224	 44.91	0	1433543..1434181	-	212	126208712	-	APL_1246	-	hypothetical protein
1225	 42.18	0	1434344..1434637	-	97	126208713	-	APL_1247	-	hypothetical protein
1226	 44.39	0	1434637..1435296	-	219	126208714	-	APL_1248	-	AzlC family protein
1227	 42.70	0	1435370..1436170	-	266	126208715	sapF	APL_1249	-	peptide transport system ATP-binding protein SapF
1228	 44.01	0	1436286..1437362	-	358	126208716	fba	APL_1250	-	fructose-bisphosphate aldolase
1229	 45.32	0	1437463..1438638	-	391	126208717	pgk	APL_1251	-	phosphoglycerate kinase
1230	 42.12	0	1438796..1440184	-	462	126208718	-	APL_1252	-	hypothetical protein
1231	 45.25	0	1440415..1441689	-	424	126208719	-	APL_1253	-	putative sodium/sulphate transporter
1232	 42.74	0	1441994..1443385	-	463	126208720	-	APL_1254	-	hypothetical protein
1233	 45.56	+1	1443581..1445494	-	637	126208721	parE	APL_1255	-	DNA topoisomerase IV subunit B
1234	 39.91	0	1445572..1446864	-	430	126208722	phoR	APL_1256	-	phosphate regulon sensor protein PhoR
1235	 39.56	0	1446864..1447505	-	213	126208723	phoB	APL_1257	-	phosphate regulon transcriptional regulatory protein PhoB
1236	 39.62	0	1447685..1448464	-	259	126208724	pstB	APL_1258	-	phosphate import ATP-binding protein PstB
1237	 44.84	0	1448473..1449324	-	283	126208725	pstA	APL_1259	-	phosphate transport system permease protein PstA
1238	 42.45	0	1449324..1450277	-	317	126208726	pstC	APL_1260	-	phosphate transport system permease protein PstC
1239	 42.82	0	1450428..1451471	-	347	126208727	pstS	APL_1261	-	phosphate-binding periplasmic protein precursor
1240	 39.02	0	1451604..1451990	-	128	126208728	-	APL_1262	-	MerR family transcriptional regulator
1241	 39.74	0	1452076..1452528	+	150	126208729	-	APL_1263	-	hypothetical protein
1242	 44.78	0	1452546..1452746	+	66	126208730	-	APL_1264	-	putative cation transport ATPase
1243	 47.61	+1	1452985..1455135	+	716	126208731	copA	APL_1265	-	copper-transporting P-type ATPase
1244	 44.40	0	1455233..1456054	-	273	126208732	-	APL_1266	-	putative dehydrogenase
1245	 44.97	0	1456082..1456657	-	191	126208733	-	APL_1267	-	hypothetical protein
1246	 43.40	0	1456773..1458629	+	618	126208734	sppA	APL_1268	-	protease 4
1247	 46.48	+1	1458764..1459531	+	255	126208735	-	APL_1269	-	putative ribonuclease
1248	 46.14	+1	1459562..1460053	+	163	126208736	sprT	APL_1270	-	hypothetical protein
1249	 44.13	0	1460158..1461444	+	428	126208737	ndh	APL_1271	-	NADH dehydrogenase
1250	 45.04	0	1461636..1463975	-	779	126208738	-	APL_1272	-	transcriptional accessory protein
1251	 39.89	0	1464050..1464598	-	182	126208739	-	APL_1273	-	putative fimbrial biogenesis and twitching motility protein PilF-like protein
1252	 42.72	0	1464652..1465833	-	393	126208740	-	APL_1274	-	hypothetical protein
1253	 43.82	0	1466737..1468176	+	479	126208741	gltX	APL_1275	-	glutamyl-tRNA synthetase
1254	 41.67	0	1468514..1468765	+	83	126208742	-	APL_1276	-	antitoxin YefM
1255	 41.07	0	1469179..1469346	-	55	126208743	-	APL_1277	-	hypothetical protein
1256	 43.83	0	1469348..1470328	-	326	126208744	lpxK	APL_1278	-	tetraacyldisaccharide 4'-kinase
1257	 43.41	0	1470422..1471681	-	419	126208745	clpX	APL_1279	-	ATP-dependent protease ATP-binding subunit
1258	 43.99	0	1471681..1472271	-	196	126208746	clpP	APL_1280	-	ATP-dependent Clp protease proteolytic subunit
1259	 39.69	0	1472393..1472785	+	130	126208747	-	APL_1281	-	hypothetical protein
1260	 44.19	0	1473144..1473917	-	257	126208748	dnaQ	APL_1282	-	DNA polymerase III subunit epsilon
1261	 45.30	0	1474004..1475674	-	556	126208749	-	APL_1283	-	putative ABC transporter ATP-binding protein
1262	 48.67	+1	1475839..1476177	+	112	126208750	-	APL_1284	-	putative DNA-binding protein
41.85	MEAN

3.64	STD DEV
