IslandPathversion 1.0

IslandPath Analysis: Actinobacillus pleuropneumoniae L20

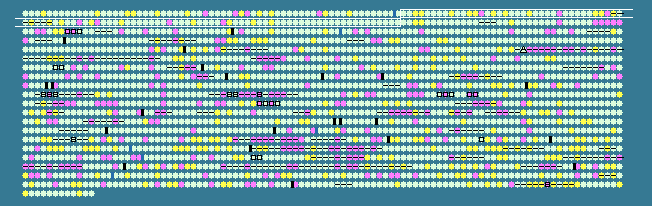

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 41.85 STD DEV: 3.64
Actinobacillus pleuropneumoniae L20, complete genome - 1..2274482
2012 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
64	 39.89	0	76770..78371	+	533	126207552	dppA	APL_0064	-	periplasmic dipeptide transport protein
65	 41.29	0	78499..79503	+	334	126207553	dppB	APL_0065	-	dipeptide transport system permease protein DppB
66	 45.45	0	79581..80471	+	296	126207554	dppC	APL_0066	-	dipeptide transport system permease protein DppC
67	 46.61	+1	80482..81468	+	328	126207555	dppD	APL_0067	-	dipeptide transporter ATP-binding subunit
68	 44.75	0	81481..82470	+	329	126207556	dppF	APL_0068	-	dipeptide transporter ATP-binding subunit
69	 38.69	0	82543..82953	-	136	126207557	psiE	APL_0069	-	phosphate-starvation-inducible protein PsiE
70	 40.44	0	83031..83663	-	210	126207558	-	APL_0070	-	hypothetical protein
71	 44.06	0	83718..84062	-	114	126207559	-	APL_0071	-	hypothetical protein
72	 46.24	+1	84149..85186	-	345	126207560	ilvE	APL_0072	-	branched-chain amino acid aminotransferase
73	 41.59	0	85329..85655	-	108	126207561	ydhD	APL_0073	-	monothiol glutaredoxin-like protein
74	 44.59	0	85727..86392	-	221	126207562	recR	APL_0074	-	recombination protein RecR
75	 46.97	+1	86403..86732	-	109	126207563	ybaB	APL_0075	-	uncharacterized protein YbaB
76	 47.87	+1	86901..87767	-	288	126207564	tonB2	APL_0076	-	protein TonB2
77	 37.69	-1	87777..88166	-	129	126207565	exbD2	APL_0077	-	biopolymer transport protein ExbD2
78	 39.29	0	88211..88663	-	150	126207566	exbB2	APL_0078	-	biopolymer transport protein ExbB2
79	 45.57	+1	88851..89177	+	108	126207567	glpE	APL_0079	-	thiosulfate sulfurtransferase GlpE
80	 39.36	0	89221..90066	+	281	126207568	-	APL_0080	-	putative thioredoxin-like protein
81	 48.28	+1	90141..90548	-	135	126207569	dhaM	APL_0081	-	PTS-dependent dihydroxyacetone kinase, phosphotransferase subunit DhaM
82	 44.66	0	90557..91183	-	208	126207570	dhaL	APL_0082	-	dihydroxyacetone kinase ADP-binding subunit
83	 45.19	0	91185..92255	-	356	126207571	dhaK	APL_0083	-	dihydroxyacetone kinase subunit DhaK
84	 44.65	0	92425..93378	+	317	126207572	trxB	APL_0084	-	thioredoxin reductase
85	 46.35	+1	93486..94238	+	250	126207573	kdsB	APL_0085	-	3-deoxy-manno-octulosonate cytidylyltransferase
86	 41.08	0	94362..94787	+	141	126207574	-	APL_0086	-	hypothetical protein
87	 43.71	0	94861..95631	-	256	126207575	nudC	APL_0087	-	NADH pyrophosphatase
88	 40.95	0	95649..96344	-	231	126207576	rluE	APL_0088	-	ribosomal large subunit pseudouridine synthase E
89	 42.86	0	96348..97166	-	272	126207577	rhaT	APL_0089	-	hypothetical protein
90	 37.85	-1	97196..97660	-	154	126207578	-	APL_0090	-	hypothetical protein
91	 41.59	0	97683..99014	-	443	126207579	pepQ	APL_0091	-	proline dipeptidase
92	 42.50	0	99038..99277	+	79	126207580	sirA	APL_0092	-	sulfurtransferase
93	 41.50	0	99327..99767	-	146	126207581	-	APL_0093	-	hypothetical protein
94	 41.87	0	99769..100389	-	206	126207582	engB	APL_0094	-	GTPase EngB
95	 43.17	0	100684..101100	-	138	126207583	-	APL_0095	-	hypothetical protein
96	 48.13	+1	101138..101968	-	276	126207584	-	APL_0096	-	zinc transporter family protein ZIP
97	 47.33	+1	102119..103954	-	611	126207585	ilvD	APL_0097	-	dihydroxy-acid dehydratase
98	 38.36	0	104072..104290	-	72	126207586	ilvM	APL_0098	-	acetolactate synthase 2 regulatory subunit
99	 45.93	+1	104311..105810	-	499	126207587	ilvG	APL_0099	-	acetolactate synthase isozyme II large subunit (AHAS-II)
100	 42.04	0	106390..107871	+	493	126207588	nrfA	APL_0100	-	cytochrome c nitrite reductase
101	 43.98	0	107892..108539	+	215	126207589	nrfB	APL_0101	-	cytochrome c-type protein NrfB
102	 46.17	+1	108539..109216	+	225	126207590	nrfC	APL_0102	-	nitrate reductase
103	 41.49	0	109216..110184	+	322	126207591	nrfD	APL_0103	-	nitrite reductase transmembrane protein
104	 43.65	0	110472..119936	+	3154	126207592	-	APL_0104	-	autotransporter adhesin
105	 46.10	+1	120177..121406	-	409	126207593	uraA	APL_0105	-	putative uracil permease
106	 45.31	0	121566..125171	-	1201	126207594	putA	APL_0106	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
107	 45.35	0	125274..126788	-	504	126207595	putP	APL_0107	-	sodium/proline symporter
108	 45.17	0	127363..128148	-	261	126207596	iclR	APL_0108	-	putative HTH-type transcriptional regulator
109	 40.45	0	128145..128720	-	191	126207597	-	APL_0109	-	hypothetical protein
110	 38.32	0	128991..129311	-	106	126207598	-	APL_0110	-	hypothetical protein
111	 42.75	0	129389..129940	+	183	126207599	-	APL_0111	-	hypothetical protein
112	 46.67	+1	130046..131110	+	354	126207600	hemE	APL_0112	-	uroporphyrinogen decarboxylase
113	 37.39	-1	131234..131824	+	196	126207601	-	APL_0113	-	hypothetical protein
114	 42.86	0	131960..132232	+	90	126207602	hupA	APL_0114	-	DNA-binding protein HU
115	 42.37	0	132285..133136	-	283	126207603	thyA	APL_0115	-	thymidylate synthase
116	 38.46	0	133224..133808	+	194	126207604	-	APL_0116	-	hypothetical protein
117	 45.60	+1	133904..134914	+	336	126207605	bioB	APL_0117	-	biotin synthase
118	 39.05	0	134978..135187	-	69	126207606	cspC	APL_0118	-	cold shock-like protein CspC
119	 41.35	0	135550..136098	+	182	126207607	proQ	APL_0119	-	putative solute/DNA competence effector
120	 40.54	0	136190..138202	+	670	126207608	prc	APL_0120	-	carboxy-terminal protease
121	 40.74	0	138299..139864	+	521	126207609	-	APL_0121	-	hypothetical protein
122	 43.96	0	140036..140590	+	184	126207610	-	APL_0122	-	hypothetical protein
123	 39.68	0	140608..141237	+	209	126207611	-	APL_0123	-	glyoxalase II family protein
124	 38.40	0	141240..141989	-	249	126207612	-	APL_0124	-	hypothetical protein
125	 35.73	-1	141986..142360	-	124	126207613	-	APL_0125	-	hypothetical protein
126	 40.71	0	142362..142727	-	121	126207614	-	APL_0126	-	HIT-like protein
127	 40.43	0	142799..143629	-	276	126207615	yfeD	APL_0127	-	putative iron transport system membrane protein
128	 42.69	0	143622..144476	-	284	126207616	yfeC	APL_0128	-	putative iron transport system membrane protein
129	 47.31	+1	144477..145070	-	197	126207617	rnhB	APL_0129	-	ribonuclease HII
130	 41.84	0	145093..146127	-	344	126207618	engC	APL_0130	-	ribosome-associated GTPase
131	 42.20	0	146637..147527	+	296	126207619	gcvA	APL_0131	-	DNA-binding transcriptional activator GcvA
132	 42.29	0	147527..148207	+	226	126207620	-	APL_0132	-	nucleotidase
133	 42.68	0	148207..149190	+	327	126207621	cysB	APL_0133	-	transcriptional regulator CysB
134	 36.12	-1	149191..149835	+	214	126207622	-	APL_0134	-	hypothetical protein
135	 45.52	+1	149916..150965	-	349	126207623	ansB	APL_0135	-	L-asparaginase II
136	 44.75	0	151269..152906	+	545	126207624	pyrG	APL_0136	-	CTP synthetase
137	 41.03	0	153009..153515	+	168	126207625	-	APL_0137	-	hypothetical protein
138	 41.63	0	153561..154163	-	200	126207626	leuD	APL_0138	-	isopropylmalate isomerase small subunit
139	 47.59	+1	154174..155583	-	469	126207627	leuC	APL_0139	-	isopropylmalate isomerase large subunit
140	 39.78	0	155925..157040	+	371	126207628	-	APL_0140	-	hypothetical protein
141	 44.81	0	157168..158430	+	420	126207629	-	APL_0141	-	hypothetical protein
142	 46.83	+1	158441..159574	+	377	126207630	glxK	APL_0142	-	glycerate kinase
143	 43.96	0	159593..159865	+	90	126207631	-	APL_0143	-	putative acylphosphatase
144	 42.18	0	159936..161495	-	519	126207632	-	APL_0144	-	ATP-dependent endonuclease
145	 44.42	0	161499..162878	-	459	126207633	-	APL_0145	-	hypothetical protein
146	 44.99	0	162938..163915	-	325	126207634	dusA	APL_0146	-	tRNA-dihydrouridine synthase A
147	 38.45	0	164268..165245	+	325	126207635	-	APL_0147	-	ribonucleoside-diphosphate reductase beta chain
148	 41.02	0	165232..166896	+	554	126207636	rnr1	APL_0148	-	ribonucleotide-diphosphate reductase subunit alpha
149	 44.00	0	167032..167631	-	199	126207637	-	APL_0149	-	putative DNA uptake protein
150	 44.67	0	168086..169435	+	449	126207638	nqrA	APL_0150	-	Na(+)-translocating NADH-quinone reductase subunit A
151	 43.96	0	169440..170672	+	410	126207639	nqrB	APL_0151	-	Na(+)-translocating NADH-quinone reductase subunit B
152	 41.60	0	170675..171448	+	257	126207640	nqrC	APL_0152	-	Na(+)-translocating NADH-quinone reductase subunit C
153	 41.83	0	171448..172071	+	207	126207641	nqrD	APL_0153	-	Na(+)-translocating NADH-quinone reductase subunit D
154	 40.03	0	172073..172669	+	198	126207642	nqrE	APL_0154	-	Na(+)-translocating NADH-quinone reductase subunit E
155	 41.46	0	172680..173909	+	409	126207643	nqrF	APL_0155	-	Na(+)-translocating NADH-quinone reductase subunit F
156	 39.83	0	174116..175147	+	343	126207644	apbE	APL_0156	-	thiamine biosynthesis lipoprotein ApbE precursor
157	 40.65	0	175160..175405	+	81	126207645	-	APL_0157	-	hypothetical protein
158	 42.82	0	175634..176803	+	389	126207646	trmU	APL_0158	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
159	 41.47	0	176876..178030	-	384	126207647	hcaT	APL_0159	-	putative 3-phenylpropionic acid transporter
160	 45.01	0	178027..178857	-	276	126207648	proC	APL_0160	-	pyrroline-5-carboxylate reductase
161	 39.71	0	179020..179928	+	302	126207649	rdgC	APL_0161	-	recombination associated protein
162	 45.05	0	179938..180543	+	201	126207650	-	APL_0162	-	putative phosphatase
163	 41.61	0	180719..182578	-	619	126207651	-	APL_0163	-	anaerobic ribonucleoside triphosphate reductase
41.85	MEAN

3.64	STD DEV
