IslandPath Analysis: Acidiphilium cryptum JF-5

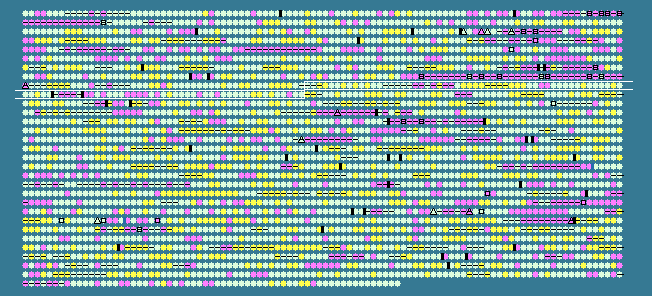

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
848	 67.99	0	947091..947924	-	277	148259869	-	Acry_0858	-	hypothetical protein
849	 67.86	0	948009..950438	+	809	148259870	-	Acry_0859	-	diguanylate cyclase/phosphodiesterase
850	 73.46	+1	950490..950960	+	156	148259871	-	Acry_0860	-	GatB/Yqey domain-containing protein
851	 73.99	+1	950957..952786	+	609	148259872	-	Acry_0861	-	DNA primase
852	 66.04	0	952829..954745	+	638	148259873	-	Acry_0862	-	RNA polymerase sigma factor RpoD
853	 71.17	0	954755..955354	+	199	148259874	-	Acry_0863	-	GCN5-related N-acetyltransferase
854	 75.85	+1	955392..956066	+	224	148259875	-	Acry_0864	-	pseudouridine synthase
855	 69.87	0	956019..957392	-	457	148259876	-	Acry_0865	-	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
856	 75.81	+1	957395..958105	-	236	148259877	-	Acry_0866	-	HAD family hydrolase
857	 70.22	0	958169..959686	-	505	148259878	-	Acry_0867	-	glycosyl transferase family protein
858	 72.64	0	960451..960885	+	144	148259879	-	Acry_0868	-	hypothetical protein
859	 68.70	0	961321..962010	-	229	148259880	-	Acry_0869	-	electron transport protein SCO1/SenC
860	 66.33	0	962007..963470	-	487	148259881	gatB	Acry_0870	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
861	 69.57	0	963467..964948	-	493	148259882	gatA	Acry_0871	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
862	 66.32	0	964945..965232	-	95	148259883	-	Acry_0872	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
863	 71.07	0	965279..965755	+	158	148259884	-	Acry_0873	-	Holliday junction resolvase YqgF
864	 69.95	0	965950..966864	+	304	148259885	-	Acry_0874	-	hypothetical protein
865	 70.76	0	966965..967501	+	178	148259886	-	Acry_0875	-	glycoside hydrolase family protein
866	 53.33	-2	967693..968277	+	194	148259887	-	Acry_0876	-	hypothetical protein
867	 48.99	-2	968938..969480	+	180	148259888	-	Acry_0877	-	hypothetical protein
868	 70.79	0	970200..970466	+	88	148259889	-	Acry_0878	-	hypothetical protein
869	 48.65	-2	970564..971007	+	147	148259890	-	Acry_0879	-	hypothetical protein
870	 75.80	+1	971120..971896	+	258	148259891	-	Acry_0880	-	hypothetical protein
871	 64.33	0	971897..973954	-	685	148259892	-	Acry_0881	-	phosphoesterase
872	 63.16	0	974045..974443	-	132	148259893	-	Acry_0882	-	lytic transglycosylase, catalytic
873	 66.67	0	974524..974961	+	145	148259894	-	Acry_0883	-	general secretion pathway protein G
874	 77.32	+1	974969..975766	-	265	148259895	-	Acry_0884	-	hypothetical protein
875	 71.95	0	975769..978039	-	756	148259896	-	Acry_0885	-	general secretion pathway protein D
876	 76.64	+1	978063..978413	-	116	148259897	-	Acry_0886	-	hypothetical protein
877	 74.74	+1	978569..979150	-	193	148259898	-	Acry_0887	-	hypothetical protein
878	 75.02	+1	979155..980207	-	350	148259899	-	Acry_0888	-	fimbrial assembly family protein
879	 77.05	+1	980257..980853	-	198	148259900	-	Acry_0889	-	hypothetical protein
880	 76.42	+1	980850..981218	-	122	148259901	-	Acry_0890	-	hypothetical protein
881	 76.92	+1	981202..981669	-	155	148259902	-	Acry_0891	-	hypothetical protein
882	 73.87	+1	981653..982873	-	406	148259903	-	Acry_0892	-	type II secretion system protein
883	 73.78	+1	982886..984559	-	557	148259904	-	Acry_0893	-	type II secretion system protein E
884	 74.70	+1	984629..985387	+	252	148259905	-	Acry_0894	-	peptidase A24A domain-containing protein
885	 65.01	0	985507..988347	+	946	148259906	-	Acry_0895	-	hypothetical protein
886	 66.84	0	988630..990957	-	775	148259907	-	Acry_0896	-	TonB-dependent receptor
887	 57.21	-2	991181..991402	-	73	148259908	-	Acry_0897	-	hypothetical protein
888	 63.04	-1	991399..991977	-	192	148259909	-	Acry_0898	-	hypothetical protein
889	 68.65	0	992345..993907	-	520	148259910	guaA	Acry_0899	-	bifunctional GMP synthase/glutamine amidotransferase protein
890	 67.42	0	993980..994645	-	221	148259911	-	Acry_0900	-	carboxymethylenebutenolidase
891	 67.88	0	994648..995142	-	164	148259912	-	Acry_0901	-	NUDIX hydrolase
892	 70.12	0	995139..996122	-	327	148259913	-	Acry_0902	-	protein of unknown function DUF610, YibQ
893	 65.50	0	996109..997482	-	457	148259914	-	Acry_0903	-	carboxyl-terminal protease
894	 74.05	+1	997555..998733	-	392	148259915	-	Acry_0904	-	peptidase M23B
895	 69.63	0	998733..1000250	-	505	148259916	-	Acry_0905	-	phosphoglyceromutase
896	 66.93	0	1000347..1001120	+	257	148259917	-	Acry_0906	-	TatD family hydrolase
897	 69.03	0	1001117..1001920	+	267	148259918	-	Acry_0907	-	beta-lactamase domain-containing protein
898	 69.73	0	1001917..1003122	+	401	148259919	-	Acry_0908	-	peptidase M29, aminopeptidase II
899	 72.35	0	1003139..1004335	-	398	148259920	-	Acry_0909	-	threonine dehydratase
900	 65.19	0	1004340..1004813	-	157	148259921	-	Acry_0910	-	transcription elongation factor GreA
901	 68.48	0	1004895..1008140	-	1081	148259922	carB	Acry_0911	-	carbamoyl phosphate synthase large subunit
902	 68.53	0	1008143..1009486	-	447	148259923	-	Acry_0912	-	carbamoyl phosphate synthase small subunit
903	 74.03	+1	1009622..1012270	+	882	148259924	-	Acry_0913	-	DNA mismatch repair protein
904	 70.07	0	1012272..1015088	+	938	148259925	-	Acry_0914	-	PII uridylyl-transferase
905	 68.69	0	1015253..1017229	+	658	148259926	-	Acry_0915	-	outer membrane autotransporter
906	 67.80	0	1017496..1018818	+	440	148259927	tig	Acry_0916	-	trigger factor
907	 63.52	0	1018970..1019605	+	211	148259928	-	Acry_0917	-	ATP-dependent Clp protease, proteolytic subunit ClpP
908	 62.37	-1	1019750..1021006	+	418	148259929	clpX	Acry_0918	-	ATP-dependent protease ATP-binding subunit
909	 63.06	-1	1021142..1023583	+	813	148259930	-	Acry_0919	-	ATP-dependent protease La
910	 64.77	0	1023777..1024040	+	87	148259931	-	Acry_0920	-	histone family protein DNA-binding protein
911	 56.01	-2	1024776..1025141	+	121	148259932	-	Acry_0921	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 3
912	 63.81	0	1025217..1025777	+	186	148259933	-	Acry_0922	-	NADH dehydrogenase subunit B
913	 65.42	0	1025770..1026411	+	213	148259934	-	Acry_0923	-	NADH (or F420H2) dehydrogenase, subunit C
914	 61.59	-1	1026408..1027628	+	406	148259935	-	Acry_0924	-	NADH dehydrogenase subunit D
915	 67.48	0	1027632..1028243	+	203	148259936	-	Acry_0925	-	NADH-quinone oxidoreductase, E subunit
916	 65.28	0	1028245..1029540	+	431	148259937	-	Acry_0926	-	NADH dehydrogenase I subunit F
917	 67.44	0	1029608..1031668	+	686	148259938	-	Acry_0927	-	NADH dehydrogenase subunit G
918	 62.44	-1	1031674..1032690	+	338	148259939	-	Acry_0928	-	NADH dehydrogenase (quinone)
919	 62.80	-1	1032703..1033194	+	163	148259940	-	Acry_0929	-	NADH dehydrogenase subunit I
920	 63.90	0	1033201..1033851	+	216	148259941	-	Acry_0930	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 6
921	 61.22	-1	1033848..1034159	+	103	148259942	-	Acry_0931	-	NADH-ubiquinone oxidoreductase, chain 4L
922	 65.94	0	1034166..1036094	+	642	148259943	-	Acry_0932	-	proton-translocating NADH-quinone oxidoreductase, chain L
923	 64.62	0	1036108..1037625	+	505	148259944	-	Acry_0933	-	proton-translocating NADH-quinone oxidoreductase, chain M
924	 64.72	0	1037634..1039070	+	478	148259945	-	Acry_0934	-	proton-translocating NADH-quinone oxidoreductase, chain N
925	 72.15	0	1039067..1039795	+	242	148259946	-	Acry_0935	-	biotin--acetyl-CoA-carboxylase ligase
926	 67.67	0	1039817..1040617	+	266	148259947	-	Acry_0936	-	pantothenate kinase
927	 68.43	0	1040652..1042298	+	548	148259948	-	Acry_0937	-	beta-lactamase domain-containing protein
928	 66.21	0	1042550..1043644	+	364	148259949	-	Acry_0938	-	acyltransferase 3
929	 66.21	0	1043678..1044991	+	437	148259950	-	Acry_0939	-	prolyl-tRNA synthetase
930	 64.66	0	1044991..1046238	+	415	148259951	-	Acry_0940	-	LolC/E family lipoprotein releasing system, transmembrane protein
931	 65.34	0	1046231..1046908	+	225	148259952	-	Acry_0941	-	ABC transporter related
932	 68.80	0	1046931..1047869	+	312	148259953	-	Acry_0942	-	alpha/beta hydrolase domain-containing protein
933	 62.21	-1	1047859..1048329	+	156	148259954	-	Acry_0943	-	hypothetical protein
934	 69.77	0	1048289..1050094	-	601	148259955	-	Acry_0944	-	ABC transporter related
935	 69.03	0	1050162..1051766	+	534	148259956	-	Acry_0945	-	FAD dependent oxidoreductase
936	 68.09	0	1051867..1052637	-	256	148259957	-	Acry_0946	-	exodeoxyribonuclease III Xth
937	 71.13	0	1053066..1054208	+	380	148259958	-	Acry_0948	-	putative deoxyguanosinetriphosphate triphosphohydrolase
938	 69.85	0	1054218..1056008	+	596	148259959	-	Acry_0949	-	arginyl-tRNA synthetase
939	 73.61	+1	1056034..1056912	+	292	148259960	-	Acry_0950	-	sporulation domain-containing protein
940	 73.68	+1	1056923..1057849	+	308	148259961	-	Acry_0951	-	Beta-N-acetylhexosaminidase
941	 67.39	0	1057846..1058541	+	231	148259962	-	Acry_0952	-	peptidase M50
942	 71.82	0	1058528..1059322	+	264	148259963	-	Acry_0953	-	chromosome segregation and condensation protein ScpA
943	 71.15	0	1059315..1059872	+	185	148259964	-	Acry_0954	-	putative transcriptional regulator
944	 66.42	0	1059960..1060364	+	134	148259965	-	Acry_0955	-	hypothetical protein
945	 60.97	-1	1060374..1061180	+	268	148259966	-	Acry_0956	-	Sec-independent protein translocase, TatC subunit
946	 68.36	0	1061173..1062474	+	433	148259967	-	Acry_0957	-	seryl-tRNA synthetase
947	 65.29	0	1062557..1063426	+	289	148259968	-	Acry_0958	-	beta-lactamase domain-containing protein
68.17	MEAN

5.03	STD DEV
