IslandPath Analysis: Acidiphilium cryptum JF-5

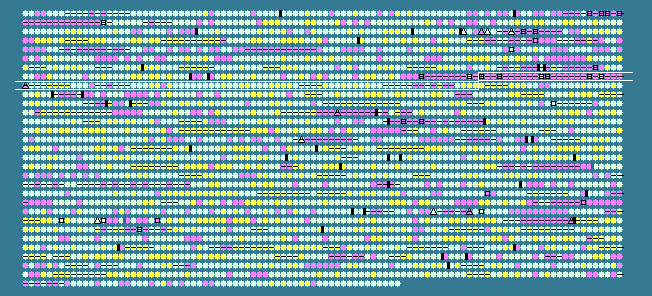

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.17   STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
777	 63.89	0	873059..873454	-	131	148259798	-	Acry_0786	-	transposase IS3/IS911 family protein
778	 62.32	-1	873540..874160	-	206	148259799	-	Acry_0787	-	hypothetical protein
779	 49.16	-2	875244..876911	-	555	148259800	-	Acry_0789	-	hypothetical protein
780	 62.45	-1	877365..878573	-	402	148259801	-	Acry_0790	-	transposase, mutator type
781	 56.41	-2	878935..879207	+	90	148259802	-	Acry_0791	-	CopG/DNA-binding domain-containing protein
782	 61.32	-1	879318..881039	+	573	148259803	-	Acry_0792	-	hypothetical protein
783	 57.78	-2	881039..882118	+	359	148259804	-	Acry_0793	-	BsuBIPstI restriction endonuclease domain-containing protein
784	 60.70	-1	882149..884092	+	647	148259805	-	Acry_0794	-	ATP-dependent OLD family endonuclease
785	 59.53	-1	884089..886008	+	639	148259806	-	Acry_0795	-	UvrD/REP helicase
786	 55.05	-2	886039..886890	+	283	148259807	-	Acry_0796	-	hypothetical protein
787	 66.51	0	886732..887985	-	417	148259808	-	Acry_0797	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
788	 62.45	-1	888350..889558	+	402	148259809	-	Acry_0798	-	transposase, mutator type
789	 56.28	-2	889555..889920	+	121	148259810	-	Acry_0799	-	hypothetical protein
790	 61.11	-1	890039..890830	+	263	148259811	-	Acry_0800	-	hypothetical protein
791	 57.74	-2	890827..891621	+	264	148259812	-	Acry_0801	-	hypothetical protein
792	 56.32	-2	891606..892523	+	305	148259813	-	Acry_0802	-	hypothetical protein
793	 63.98	0	892850..893035	-	61	148259814	-	Acry_0803	-	hypothetical protein
794	 61.25	-1	893061..893411	-	116	148259815	-	Acry_0804	-	hypothetical protein
795	 62.25	-1	893412..894635	+	407	148259816	-	Acry_0805	-	transposase, mutator type
796	 62.81	-1	894639..895442	-	267	148259817	-	Acry_0806	-	hypothetical protein
797	 66.38	0	895655..896686	+	343	148259818	-	Acry_0807	-	transposase IS116/IS110/IS902 family protein
798	 51.85	-2	897092..897928	-	278	148259819	-	Acry_0808	-	hypothetical protein
799	 60.44	-1	897955..898227	-	90	148259820	-	Acry_0809	-	hypothetical protein
800	 45.57	-2	898450..901809	-	1119	148259821	-	Acry_0810	-	hypothetical protein
801	 45.00	-2	901806..903236	-	476	148259822	-	Acry_0811	-	phage integrase family protein
802	 69.73	0	903410..903670	-	86	148259823	-	Acry_0812	-	hypothetical protein
803	 70.76	0	903673..904332	-	219	148259824	-	Acry_0813	-	glutathione S-transferase domain-containing protein
804	 71.12	0	904342..905352	-	336	148259825	-	Acry_0814	-	alpha/beta hydrolase domain-containing protein
805	 73.33	+1	905429..905668	+	79	148259826	-	Acry_0815	-	hypothetical protein
806	 75.51	+1	905717..906553	+	278	148259827	-	Acry_0816	-	dihydropteroate synthase
807	 72.28	0	906629..907999	+	456	148259828	-	Acry_0817	-	phosphoglucosamine mutase
808	 75.21	+1	908008..908826	+	272	148259829	-	Acry_0818	-	phosphomethylpyrimidine kinase
809	 65.25	0	908866..909288	+	140	148259830	-	Acry_0819	-	OsmC family protein
810	 68.40	0	909425..910636	+	403	148259831	-	Acry_0820	-	response regulator receiver protein
811	 69.48	0	910889..911956	+	355	148259832	-	Acry_0821	-	inositol phosphatase/fructose-1,6-bisphosphatase
812	 62.90	-1	911953..912828	+	291	148259833	-	Acry_0822	-	phosphoribulokinase
813	 67.22	0	912877..913956	+	359	148259834	-	Acry_0823	-	fructose-bisphosphate aldolase, class II
814	 65.05	0	913983..915464	+	493	148259835	rbcL	Acry_0824	-	ribulose bisophosphate carboxylase
815	 61.07	-1	915477..915905	+	142	148259836	-	Acry_0825	-	ribulose-bisphosphate carboxylase
816	 65.69	0	915917..916837	+	306	148259837	-	Acry_0826	-	ATPase central domain-containing protein
817	 70.21	0	916824..917501	+	225	148259838	-	Acry_0827	-	ribulose-phosphate 3-epimerase
818	 68.85	0	917514..918797	-	427	148259839	-	Acry_0828	-	cytosine deaminase
819	 66.20	0	918794..919432	-	212	148259840	-	Acry_0829	-	pyridoxamine 5'-phosphate oxidase
820	 67.62	0	919484..920320	+	278	148259841	-	Acry_0830	-	short-chain dehydrogenase/reductase SDR
821	 67.49	0	920367..920609	-	80	148259842	-	Acry_0831	-	hypothetical protein
822	 73.20	+1	920606..921370	-	254	148259843	-	Acry_0832	-	binding-protein-dependent transport systems inner membrane component
823	 73.68	+1	921367..922107	-	246	148259844	-	Acry_0833	-	ABC transporter related
824	 63.80	0	922109..923119	-	336	148259845	-	Acry_0834	-	ABC-type nitrate/sulfonate/bicarbonate transport systems periplasmic components-like protein
825	 71.73	0	923192..923527	+	111	148259846	-	Acry_0835	-	hypothetical protein
826	 65.09	0	923585..924409	-	274	148259847	-	Acry_0836	-	formate/nitrite transporter
827	 67.10	0	924651..924881	-	76	148259848	-	Acry_0837	-	hypothetical protein
828	 69.81	0	924871..925698	-	275	148259849	-	Acry_0838	-	formate dehydrogenase family accessory protein FdhD
829	 67.05	0	925695..928535	-	946	148259850	-	Acry_0839	-	formate dehydrogenase, alpha subunit
830	 68.73	0	928548..930098	-	516	148259851	-	Acry_0840	-	NADH dehydrogenase (quinone)
831	 70.25	0	930098..930571	-	157	148259852	-	Acry_0841	-	NADH dehydrogenase (ubiquinone), 24 kDa subunit
832	 69.44	0	930712..931611	-	299	148259853	-	Acry_0842	-	LysR family transcriptional regulator
833	 70.48	0	931608..932681	-	357	148259854	-	Acry_0843	-	alcohol dehydrogenase
834	 73.74	+1	932765..934078	-	437	148259855	-	Acry_0844	-	FolC bifunctional protein
835	 69.31	0	934075..934944	-	289	148259856	-	Acry_0845	-	acetyl-CoA carboxylase, carboxyl transferase, beta subunit
836	 71.16	0	934955..935488	-	177	148259857	-	Acry_0846	-	hypothetical protein
837	 72.87	0	935511..936251	-	246	148259858	-	Acry_0847	-	peptidase C26
838	 72.02	0	936273..937487	-	404	148259859	-	Acry_0848	-	Bcr/CflA subfamily drug resistance transporter
839	 70.77	0	937607..937996	-	129	148259860	-	Acry_0849	-	hypothetical protein
840	 68.44	0	937993..938892	-	299	148259861	-	Acry_0850	-	branched-chain amino acid aminotransferase
841	 71.10	0	939100..939618	+	172	148259862	-	Acry_0851	-	MarR family transcriptional regulator
842	 74.57	+1	939615..940310	+	231	148259863	-	Acry_0852	-	two component transcriptional regulator
843	 71.95	0	940307..941632	+	441	148259864	-	Acry_0853	-	integral membrane sensor signal transduction histidine kinase
844	 72.73	0	941866..943350	+	494	148259865	-	Acry_0854	-	glycosyl transferase, group 1
845	 78.39	+2	943307..944014	-	235	148259866	-	Acry_0855	-	hypothetical protein
846	 70.50	0	944300..945811	+	503	148259867	-	Acry_0856	-	DEAD/DEAH box helicase domain-containing protein
847	 66.01	0	945808..947034	+	408	148259868	-	Acry_0857	-	acyl-CoA dehydrogenase domain-containing protein
848	 67.99	0	947091..947924	-	277	148259869	-	Acry_0858	-	hypothetical protein
849	 67.86	0	948009..950438	+	809	148259870	-	Acry_0859	-	diguanylate cyclase/phosphodiesterase
850	 73.46	+1	950490..950960	+	156	148259871	-	Acry_0860	-	GatB/Yqey domain-containing protein
851	 73.99	+1	950957..952786	+	609	148259872	-	Acry_0861	-	DNA primase
852	 66.04	0	952829..954745	+	638	148259873	-	Acry_0862	-	RNA polymerase sigma factor RpoD
853	 71.17	0	954755..955354	+	199	148259874	-	Acry_0863	-	GCN5-related N-acetyltransferase
854	 75.85	+1	955392..956066	+	224	148259875	-	Acry_0864	-	pseudouridine synthase
855	 69.87	0	956019..957392	-	457	148259876	-	Acry_0865	-	Alpha,alpha-trehalose-phosphate synthase (UDP-forming)
856	 75.81	+1	957395..958105	-	236	148259877	-	Acry_0866	-	HAD family hydrolase
857	 70.22	0	958169..959686	-	505	148259878	-	Acry_0867	-	glycosyl transferase family protein
858	 72.64	0	960451..960885	+	144	148259879	-	Acry_0868	-	hypothetical protein
859	 68.70	0	961321..962010	-	229	148259880	-	Acry_0869	-	electron transport protein SCO1/SenC
860	 66.33	0	962007..963470	-	487	148259881	gatB	Acry_0870	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
861	 69.57	0	963467..964948	-	493	148259882	gatA	Acry_0871	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
862	 66.32	0	964945..965232	-	95	148259883	-	Acry_0872	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
863	 71.07	0	965279..965755	+	158	148259884	-	Acry_0873	-	Holliday junction resolvase YqgF
864	 69.95	0	965950..966864	+	304	148259885	-	Acry_0874	-	hypothetical protein
865	 70.76	0	966965..967501	+	178	148259886	-	Acry_0875	-	glycoside hydrolase family protein
866	 53.33	-2	967693..968277	+	194	148259887	-	Acry_0876	-	hypothetical protein
867	 48.99	-2	968938..969480	+	180	148259888	-	Acry_0877	-	hypothetical protein
868	 70.79	0	970200..970466	+	88	148259889	-	Acry_0878	-	hypothetical protein
869	 48.65	-2	970564..971007	+	147	148259890	-	Acry_0879	-	hypothetical protein
870	 75.80	+1	971120..971896	+	258	148259891	-	Acry_0880	-	hypothetical protein
871	 64.33	0	971897..973954	-	685	148259892	-	Acry_0881	-	phosphoesterase
872	 63.16	0	974045..974443	-	132	148259893	-	Acry_0882	-	lytic transglycosylase, catalytic
873	 66.67	0	974524..974961	+	145	148259894	-	Acry_0883	-	general secretion pathway protein G
874	 77.32	+1	974969..975766	-	265	148259895	-	Acry_0884	-	hypothetical protein
875	 71.95	0	975769..978039	-	756	148259896	-	Acry_0885	-	general secretion pathway protein D
876	 76.64	+1	978063..978413	-	116	148259897	-	Acry_0886	-	hypothetical protein
68.17	MEAN

5.03	STD DEV
