IslandPath Analysis: Acidiphilium cryptum JF-5

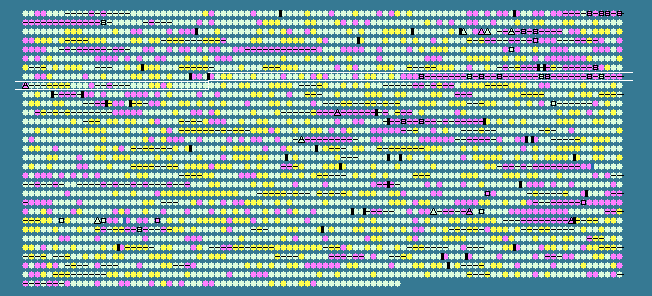

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
732	 63.95	0	829992..830873	+	293	148259753	-	Acry_0741	-	ABC-2 type transporter
733	 66.67	0	830877..831686	+	269	148259754	-	Acry_0742	-	ABC transporter related
734	 74.96	+1	831744..834047	-	767	148259755	-	Acry_0743	-	hypothetical protein
735	 73.96	+1	834047..835363	-	438	148259756	-	Acry_0744	-	diaminopimelate decarboxylase
736	 69.49	0	835485..836900	-	471	148259757	-	Acry_0745	-	argininosuccinate lyase
737	 68.16	0	836929..837531	+	200	148259758	-	Acry_0746	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
738	 66.99	0	837607..838836	+	409	148259759	-	Acry_0747	-	argininosuccinate synthase
739	 73.08	0	838849..839238	+	129	148259760	-	Acry_0748	-	TonB family protein
740	 70.29	0	839313..839837	+	174	148259761	-	Acry_0749	-	hypothetical protein
741	 70.13	0	839943..841298	-	451	148259762	engA	Acry_0750	-	GTP-binding protein EngA
742	 71.59	0	841295..842656	-	453	148259763	-	Acry_0751	-	Pyrrolo-quinoline quinone
743	 70.70	0	842653..843396	-	247	148259764	-	Acry_0752	-	hypothetical protein
744	 63.75	0	843413..843823	+	136	148259765	-	Acry_0753	-	hypothetical protein
745	 66.09	0	843981..845708	-	575	148259766	rpsA	Acry_0754	-	30S ribosomal protein S1
746	 66.56	0	845988..846935	+	315	148259767	-	Acry_0755	-	DNA uptake lipoprotein-like protein
747	 73.87	+1	846955..848634	+	559	148259768	-	Acry_0756	-	DNA repair protein RecN
748	 70.72	0	848631..850679	+	682	148259769	-	Acry_0757	-	DNA ligase, NAD-dependent
749	 62.11	-1	850719..851135	-	138	148259770	-	Acry_0758	-	TraR/DksA family transcriptional regulator
750	 73.18	0	851257..851655	-	132	148259771	-	Acry_0759	-	hypothetical protein
751	 63.38	0	851762..852916	+	384	148259772	flgI	Acry_0760	-	flagellar basal body P-ring protein
752	 68.12	0	852913..853326	+	137	148259773	-	Acry_0761	-	hypothetical protein
753	 70.83	0	853323..853730	+	135	148259774	-	Acry_0762	-	hypothetical protein
754	 69.72	0	853782..854795	+	337	148259775	-	Acry_0763	-	glycosyl transferase, group 1
755	 67.72	0	854832..856538	-	568	148259776	-	Acry_0764	-	PAS/PAC sensor hybrid histidine kinase
756	 64.30	0	856755..857387	-	210	148259777	-	Acry_0765	-	hypothetical protein
757	 70.61	0	857384..859309	-	641	148259778	-	Acry_0766	-	peptidase S9 prolyl oligopeptidase
758	 71.84	0	859465..860256	-	263	148259779	-	Acry_0767	-	hypothetical protein
759	 74.50	+1	860253..860852	-	199	148259780	-	Acry_0768	-	ABC transporter related
760	 70.29	0	860857..862263	-	468	148259781	-	Acry_0769	-	hypothetical protein
761	 65.62	0	862329..862616	-	95	148259782	-	Acry_0770	-	transcriptional coactivator/pterin dehydratase
762	 73.39	+1	862613..862954	-	113	148259783	-	Acry_0771	-	hypothetical protein
763	 65.11	0	863639..864151	-	170	148259784	-	Acry_0772	-	hypothetical protein
764	 60.12	-1	864167..864487	-	106	148259785	-	Acry_0773	-	hypothetical protein
765	 49.65	-2	864857..865138	+	93	148259786	-	Acry_0774	-	hypothetical protein
766	 61.87	-1	865223..865681	+	152	148259787	-	Acry_0775	-	hypothetical protein
767	 62.25	-1	865696..866919	+	407	148259788	-	Acry_0776	-	transposase, mutator type
768	 59.90	-1	866992..867198	+	68	148259789	-	Acry_0777	-	hypothetical protein
769	 62.39	-1	867272..867505	-	77	148259790	-	Acry_0778	-	hypothetical protein
770	 62.67	-1	867765..867989	-	74	148259791	-	Acry_0779	-	hypothetical protein
771	 44.66	-2	868142..868609	-	155	148259792	-	Acry_0780	-	hypothetical protein
772	 61.65	-1	868681..869697	-	338	148259793	-	Acry_0781	-	hypothetical protein
773	 62.59	-1	870032..870448	-	138	148259794	-	Acry_0782	-	hypothetical protein
774	 58.39	-1	870556..871014	-	152	148259795	-	Acry_0783	-	hypothetical protein
775	 66.43	0	870986..872647	-	553	148259796	-	Acry_0784	-	transposase IS66
776	 61.70	-1	872721..873062	-	113	148259797	-	Acry_0785	-	IS66 Orf2 family protein
777	 63.89	0	873059..873454	-	131	148259798	-	Acry_0786	-	transposase IS3/IS911 family protein
778	 62.32	-1	873540..874160	-	206	148259799	-	Acry_0787	-	hypothetical protein
779	 49.16	-2	875244..876911	-	555	148259800	-	Acry_0789	-	hypothetical protein
780	 62.45	-1	877365..878573	-	402	148259801	-	Acry_0790	-	transposase, mutator type
781	 56.41	-2	878935..879207	+	90	148259802	-	Acry_0791	-	CopG/DNA-binding domain-containing protein
782	 61.32	-1	879318..881039	+	573	148259803	-	Acry_0792	-	hypothetical protein
783	 57.78	-2	881039..882118	+	359	148259804	-	Acry_0793	-	BsuBIPstI restriction endonuclease domain-containing protein
784	 60.70	-1	882149..884092	+	647	148259805	-	Acry_0794	-	ATP-dependent OLD family endonuclease
785	 59.53	-1	884089..886008	+	639	148259806	-	Acry_0795	-	UvrD/REP helicase
786	 55.05	-2	886039..886890	+	283	148259807	-	Acry_0796	-	hypothetical protein
787	 66.51	0	886732..887985	-	417	148259808	-	Acry_0797	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
788	 62.45	-1	888350..889558	+	402	148259809	-	Acry_0798	-	transposase, mutator type
789	 56.28	-2	889555..889920	+	121	148259810	-	Acry_0799	-	hypothetical protein
790	 61.11	-1	890039..890830	+	263	148259811	-	Acry_0800	-	hypothetical protein
791	 57.74	-2	890827..891621	+	264	148259812	-	Acry_0801	-	hypothetical protein
792	 56.32	-2	891606..892523	+	305	148259813	-	Acry_0802	-	hypothetical protein
793	 63.98	0	892850..893035	-	61	148259814	-	Acry_0803	-	hypothetical protein
794	 61.25	-1	893061..893411	-	116	148259815	-	Acry_0804	-	hypothetical protein
795	 62.25	-1	893412..894635	+	407	148259816	-	Acry_0805	-	transposase, mutator type
796	 62.81	-1	894639..895442	-	267	148259817	-	Acry_0806	-	hypothetical protein
797	 66.38	0	895655..896686	+	343	148259818	-	Acry_0807	-	transposase IS116/IS110/IS902 family protein
798	 51.85	-2	897092..897928	-	278	148259819	-	Acry_0808	-	hypothetical protein
799	 60.44	-1	897955..898227	-	90	148259820	-	Acry_0809	-	hypothetical protein
800	 45.57	-2	898450..901809	-	1119	148259821	-	Acry_0810	-	hypothetical protein
801	 45.00	-2	901806..903236	-	476	148259822	-	Acry_0811	-	phage integrase family protein
802	 69.73	0	903410..903670	-	86	148259823	-	Acry_0812	-	hypothetical protein
803	 70.76	0	903673..904332	-	219	148259824	-	Acry_0813	-	glutathione S-transferase domain-containing protein
804	 71.12	0	904342..905352	-	336	148259825	-	Acry_0814	-	alpha/beta hydrolase domain-containing protein
805	 73.33	+1	905429..905668	+	79	148259826	-	Acry_0815	-	hypothetical protein
806	 75.51	+1	905717..906553	+	278	148259827	-	Acry_0816	-	dihydropteroate synthase
807	 72.28	0	906629..907999	+	456	148259828	-	Acry_0817	-	phosphoglucosamine mutase
808	 75.21	+1	908008..908826	+	272	148259829	-	Acry_0818	-	phosphomethylpyrimidine kinase
809	 65.25	0	908866..909288	+	140	148259830	-	Acry_0819	-	OsmC family protein
810	 68.40	0	909425..910636	+	403	148259831	-	Acry_0820	-	response regulator receiver protein
811	 69.48	0	910889..911956	+	355	148259832	-	Acry_0821	-	inositol phosphatase/fructose-1,6-bisphosphatase
812	 62.90	-1	911953..912828	+	291	148259833	-	Acry_0822	-	phosphoribulokinase
813	 67.22	0	912877..913956	+	359	148259834	-	Acry_0823	-	fructose-bisphosphate aldolase, class II
814	 65.05	0	913983..915464	+	493	148259835	rbcL	Acry_0824	-	ribulose bisophosphate carboxylase
815	 61.07	-1	915477..915905	+	142	148259836	-	Acry_0825	-	ribulose-bisphosphate carboxylase
816	 65.69	0	915917..916837	+	306	148259837	-	Acry_0826	-	ATPase central domain-containing protein
817	 70.21	0	916824..917501	+	225	148259838	-	Acry_0827	-	ribulose-phosphate 3-epimerase
818	 68.85	0	917514..918797	-	427	148259839	-	Acry_0828	-	cytosine deaminase
819	 66.20	0	918794..919432	-	212	148259840	-	Acry_0829	-	pyridoxamine 5'-phosphate oxidase
820	 67.62	0	919484..920320	+	278	148259841	-	Acry_0830	-	short-chain dehydrogenase/reductase SDR
821	 67.49	0	920367..920609	-	80	148259842	-	Acry_0831	-	hypothetical protein
822	 73.20	+1	920606..921370	-	254	148259843	-	Acry_0832	-	binding-protein-dependent transport systems inner membrane component
823	 73.68	+1	921367..922107	-	246	148259844	-	Acry_0833	-	ABC transporter related
824	 63.80	0	922109..923119	-	336	148259845	-	Acry_0834	-	ABC-type nitrate/sulfonate/bicarbonate transport systems periplasmic components-like protein
825	 71.73	0	923192..923527	+	111	148259846	-	Acry_0835	-	hypothetical protein
826	 65.09	0	923585..924409	-	274	148259847	-	Acry_0836	-	formate/nitrite transporter
827	 67.10	0	924651..924881	-	76	148259848	-	Acry_0837	-	hypothetical protein
828	 69.81	0	924871..925698	-	275	148259849	-	Acry_0838	-	formate dehydrogenase family accessory protein FdhD
829	 67.05	0	925695..928535	-	946	148259850	-	Acry_0839	-	formate dehydrogenase, alpha subunit
830	 68.73	0	928548..930098	-	516	148259851	-	Acry_0840	-	NADH dehydrogenase (quinone)
831	 70.25	0	930098..930571	-	157	148259852	-	Acry_0841	-	NADH dehydrogenase (ubiquinone), 24 kDa subunit
68.17	MEAN

5.03	STD DEV
