IslandPath Analysis: Acidiphilium cryptum JF-5

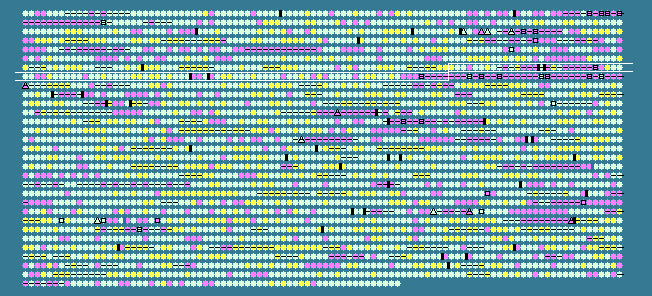

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.17   STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
672	 76.04	+1	766845..767399	+	184	148259693	-	Acry_0680	-	hypothetical protein
673	 70.06	0	767465..768910	+	481	148259694	-	Acry_0681	-	methyl-accepting chemotaxis sensory transducer
674	 71.09	0	768963..769640	+	225	148259695	aat	Acry_0682	-	leucyl/phenylalanyl-tRNA--protein transferase
675	 64.64	0	769821..770660	+	279	148259696	-	Acry_0683	-	extracellular solute-binding protein
676	 66.27	0	770738..771490	+	250	148259697	-	Acry_0684	-	polar amino acid ABC transporter, inner membrane subunit
677	 68.23	0	771487..772254	+	255	148259698	-	Acry_0685	-	ABC transporter related
678	 72.74	0	772259..773296	-	345	148259699	-	Acry_0686	-	ribokinase-like domain-containing protein
679	 68.39	0	773304..774290	-	328	148259700	-	Acry_0687	-	hypothetical protein
680	 70.83	0	774696..775199	-	167	148259701	-	Acry_0688	-	hypothetical protein
681	 64.55	0	775370..775699	+	109	148259702	-	Acry_0689	-	hypothetical protein
682	 71.18	0	775828..776757	+	309	148259703	-	Acry_0690	-	substrate-binding region of ABC-type glycine betaine transport system
683	 75.02	+1	776809..777921	-	370	148259704	-	Acry_0691	-	hypothetical protein
684	 64.65	0	778081..778278	-	65	148259705	-	Acry_0692	-	hypothetical protein
685	 46.59	-2	778414..778956	-	180	148259706	-	Acry_0693	-	hypothetical protein
686	 52.96	-2	779014..779334	+	106	148259707	-	Acry_0694	-	hypothetical protein
687	 66.67	0	779788..780099	-	103	148259708	-	Acry_0695	-	ETC complex I subunit region
688	 63.99	0	780247..780732	-	161	148259709	-	Acry_0696	-	hypothetical protein
689	 74.39	+1	780752..781825	-	357	148259710	-	Acry_0697	-	histone deacetylase superfamily protein
690	 68.06	0	781892..783472	+	526	148259711	-	Acry_0698	-	peptide chain release factor 3
691	 49.40	-2	783694..784440	+	248	148259712	-	Acry_0699	-	RecB family-like nuclease
692	 49.60	-2	784498..784749	-	83	148259713	-	Acry_0700	-	hypothetical protein
693	 50.84	-2	784756..785052	+	98	148259714	-	Acry_0701	-	hypothetical protein
694	 61.39	-1	785167..785583	-	138	148259715	-	Acry_0702	-	hypothetical protein
695	 61.26	-1	785696..786157	+	153	148259716	-	Acry_0703	-	hypothetical protein
696	 64.32	0	786201..787562	-	453	148259717	-	Acry_0704	-	transposase, IS4 family protein
697	 58.70	-1	787525..787863	-	112	148259718	-	Acry_0705	-	hypothetical protein
698	 77.32	+1	788078..788884	+	268	148259719	-	Acry_0706	-	hypothetical protein
699	 66.73	0	788881..790440	+	519	148259720	lysK	Acry_0707	-	lysyl-tRNA synthetase
700	 65.25	0	790955..792652	+	565	148259721	-	Acry_0708	-	potassium-transporting ATPase, A subunit
701	 68.29	0	792664..794700	+	678	148259722	-	Acry_0709	-	K+-transporting ATPase, B subunit
702	 69.33	0	794716..795315	+	199	148259723	-	Acry_0710	-	potassium-transporting ATPase, C subunit
703	 36.93	-2	795332..795832	+	166	148259724	-	Acry_0711	-	hypothetical protein
704	 62.59	-1	795883..796176	+	97	148259725	-	Acry_0712	-	hypothetical protein
705	 72.50	0	796432..799035	+	867	148259726	-	Acry_0713	-	osmosensitive K+ channel signal transduction histidine kinase
706	 67.67	0	799032..799727	+	231	148259727	-	Acry_0714	-	two component transcriptional regulator
707	 67.81	0	799712..800677	-	321	148259728	-	Acry_0715	-	LysR family transcriptional regulator
708	 68.27	0	800721..801470	+	249	148259729	-	Acry_0716	-	short-chain dehydrogenase/reductase SDR
709	 67.34	0	801500..802396	+	298	148259730	-	Acry_0717	-	transketolase domain-containing protein
710	 68.76	0	802396..803400	+	334	148259731	-	Acry_0718	-	transketolase, central region
711	 63.52	0	803452..804468	+	338	148259732	-	Acry_0719	-	TRAP dicarboxylate transporter, DctP subunit
712	 68.30	0	804590..806431	+	613	148259733	-	Acry_0720	-	TRAP C4-dicarboxylate transport system permease DctM subunit
713	 68.40	0	806441..807190	-	249	148259734	-	Acry_0721	-	hypothetical protein
714	 72.11	0	807187..808362	-	391	148259735	-	Acry_0722	-	major facilitator transporter
715	 70.79	0	808362..809210	-	282	148259736	-	Acry_0723	-	undecaprenyl pyrophosphate phosphatase
716	 66.00	0	809487..810530	+	347	148259737	-	Acry_0724	-	glycosyl transferase family protein
717	 68.72	0	810525..810962	-	145	148259738	-	Acry_0725	-	Fe-S metabolism associated SufE
718	 68.98	0	810959..812212	-	417	148259739	-	Acry_0726	-	tyrosyl-tRNA synthetase
719	 72.65	0	812256..813575	-	439	148259740	-	Acry_0727	-	hypothetical protein
720	 74.74	+1	813596..814672	+	358	148259741	anmK	Acry_0728	-	anhydro-N-acetylmuramic acid kinase
721	 69.66	0	814685..817360	-	891	148259742	-	Acry_0729	-	DNA topoisomerase I
722	 75.04	+1	817379..818500	-	373	148259743	-	Acry_0730	-	DNA protecting protein DprA
723	 75.06	+1	819072..820358	-	428	148259744	-	Acry_0732	-	dihydroorotase, multifunctional complex type
724	 69.76	0	820351..821286	-	311	148259745	pyrB	Acry_0733	-	aspartate carbamoyltransferase catalytic subunit
725	 72.32	0	821332..822003	-	223	148259746	-	Acry_0734	-	putative phage repressor
726	 66.67	0	822257..822487	+	76	148259747	-	Acry_0735	-	hypothetical protein
727	 69.04	0	822568..823368	+	266	148259748	-	Acry_0736	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
728	 67.57	0	823379..824602	-	407	148259749	-	Acry_0737	-	hypothetical protein
729	 60.87	-1	825168..826184	-	338	148259750	nrdF	Acry_0738	-	ribonucleotide-diphosphate reductase subunit beta
730	 64.07	0	826227..828113	-	628	148259751	-	Acry_0739	-	ribonucleotide-diphosphate reductase subunit alpha
731	 66.17	0	828392..829594	-	400	148259752	-	Acry_0740	-	aminotransferase, class I and II
732	 63.95	0	829992..830873	+	293	148259753	-	Acry_0741	-	ABC-2 type transporter
733	 66.67	0	830877..831686	+	269	148259754	-	Acry_0742	-	ABC transporter related
734	 74.96	+1	831744..834047	-	767	148259755	-	Acry_0743	-	hypothetical protein
735	 73.96	+1	834047..835363	-	438	148259756	-	Acry_0744	-	diaminopimelate decarboxylase
736	 69.49	0	835485..836900	-	471	148259757	-	Acry_0745	-	argininosuccinate lyase
737	 68.16	0	836929..837531	+	200	148259758	-	Acry_0746	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
738	 66.99	0	837607..838836	+	409	148259759	-	Acry_0747	-	argininosuccinate synthase
739	 73.08	0	838849..839238	+	129	148259760	-	Acry_0748	-	TonB family protein
740	 70.29	0	839313..839837	+	174	148259761	-	Acry_0749	-	hypothetical protein
741	 70.13	0	839943..841298	-	451	148259762	engA	Acry_0750	-	GTP-binding protein EngA
742	 71.59	0	841295..842656	-	453	148259763	-	Acry_0751	-	Pyrrolo-quinoline quinone
743	 70.70	0	842653..843396	-	247	148259764	-	Acry_0752	-	hypothetical protein
744	 63.75	0	843413..843823	+	136	148259765	-	Acry_0753	-	hypothetical protein
745	 66.09	0	843981..845708	-	575	148259766	rpsA	Acry_0754	-	30S ribosomal protein S1
746	 66.56	0	845988..846935	+	315	148259767	-	Acry_0755	-	DNA uptake lipoprotein-like protein
747	 73.87	+1	846955..848634	+	559	148259768	-	Acry_0756	-	DNA repair protein RecN
748	 70.72	0	848631..850679	+	682	148259769	-	Acry_0757	-	DNA ligase, NAD-dependent
749	 62.11	-1	850719..851135	-	138	148259770	-	Acry_0758	-	TraR/DksA family transcriptional regulator
750	 73.18	0	851257..851655	-	132	148259771	-	Acry_0759	-	hypothetical protein
751	 63.38	0	851762..852916	+	384	148259772	flgI	Acry_0760	-	flagellar basal body P-ring protein
752	 68.12	0	852913..853326	+	137	148259773	-	Acry_0761	-	hypothetical protein
753	 70.83	0	853323..853730	+	135	148259774	-	Acry_0762	-	hypothetical protein
754	 69.72	0	853782..854795	+	337	148259775	-	Acry_0763	-	glycosyl transferase, group 1
755	 67.72	0	854832..856538	-	568	148259776	-	Acry_0764	-	PAS/PAC sensor hybrid histidine kinase
756	 64.30	0	856755..857387	-	210	148259777	-	Acry_0765	-	hypothetical protein
757	 70.61	0	857384..859309	-	641	148259778	-	Acry_0766	-	peptidase S9 prolyl oligopeptidase
758	 71.84	0	859465..860256	-	263	148259779	-	Acry_0767	-	hypothetical protein
759	 74.50	+1	860253..860852	-	199	148259780	-	Acry_0768	-	ABC transporter related
760	 70.29	0	860857..862263	-	468	148259781	-	Acry_0769	-	hypothetical protein
761	 65.62	0	862329..862616	-	95	148259782	-	Acry_0770	-	transcriptional coactivator/pterin dehydratase
762	 73.39	+1	862613..862954	-	113	148259783	-	Acry_0771	-	hypothetical protein
763	 65.11	0	863639..864151	-	170	148259784	-	Acry_0772	-	hypothetical protein
764	 60.12	-1	864167..864487	-	106	148259785	-	Acry_0773	-	hypothetical protein
765	 49.65	-2	864857..865138	+	93	148259786	-	Acry_0774	-	hypothetical protein
766	 61.87	-1	865223..865681	+	152	148259787	-	Acry_0775	-	hypothetical protein
767	 62.25	-1	865696..866919	+	407	148259788	-	Acry_0776	-	transposase, mutator type
768	 59.90	-1	866992..867198	+	68	148259789	-	Acry_0777	-	hypothetical protein
769	 62.39	-1	867272..867505	-	77	148259790	-	Acry_0778	-	hypothetical protein
770	 62.67	-1	867765..867989	-	74	148259791	-	Acry_0779	-	hypothetical protein
771	 44.66	-2	868142..868609	-	155	148259792	-	Acry_0780	-	hypothetical protein
68.17	MEAN

5.03	STD DEV
