IslandPath Analysis: Acidiphilium cryptum JF-5

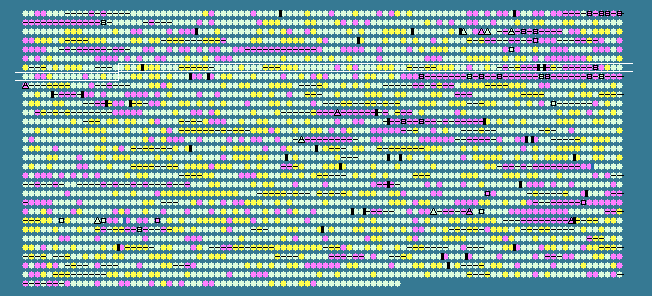

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
617	 69.85	0	703714..704811	+	365	148259638	-	Acry_0624	-	enoyl-CoA hydratase/isomerase
618	 72.67	0	704887..705786	+	299	148259639	-	Acry_0625	-	3-hydroxyisobutyrate dehydrogenase
619	 70.62	0	705828..707549	+	573	148259640	-	Acry_0626	-	AMP-dependent synthetase and ligase
620	 74.48	+1	707585..708352	+	255	148259641	-	Acry_0627	-	short-chain dehydrogenase/reductase SDR
621	 74.16	+1	708635..710383	-	582	148259642	-	Acry_0628	-	DNA mismatch repair protein MutL
622	 74.15	+1	710443..711351	+	302	148259643	-	Acry_0629	-	alpha/beta hydrolase domain-containing protein
623	 72.20	0	711311..712540	-	409	148259644	-	Acry_0630	-	major facilitator transporter
624	 70.53	0	712632..713201	-	189	148259645	-	Acry_0631	-	hypothetical protein
625	 69.29	0	713198..713731	-	177	148259646	-	Acry_0632	-	lipoprotein signal peptidase
626	 70.41	0	713728..716556	-	942	148259647	ileS	Acry_0633	-	isoleucyl-tRNA synthetase
627	 77.06	+1	717744..719003	+	419	148259648	-	Acry_0635	-	hypothetical protein
628	 77.09	+1	719000..720313	+	437	148259649	-	Acry_0636	-	hypothetical protein
629	 76.01	+1	720310..721593	+	427	148259650	-	Acry_0637	-	Ni Fe-hydrogenase III large subunit-like protein
630	 73.13	0	721586..722080	+	164	148259651	-	Acry_0638	-	NADH ubiquinone oxidoreductase, 20 kDa subunit
631	 72.33	0	722073..722672	+	199	148259652	-	Acry_0639	-	ribonuclease H
632	 64.97	0	722692..722985	-	97	148259653	-	Acry_0640	-	hypothetical protein
633	 71.43	0	723209..724993	-	594	148259654	-	Acry_0641	-	hypothetical protein
634	 71.06	0	725177..726040	-	287	148259655	-	Acry_0642	-	prephenate dehydratase
635	 71.24	0	726037..726780	-	247	148259656	-	Acry_0643	-	3-deoxy-manno-octulosonate cytidylyltransferase
636	 66.88	0	726873..728297	+	474	148259657	-	Acry_0644	-	cytochrome c, class I
637	 72.24	0	728294..729064	+	256	148259658	-	Acry_0645	-	inositol monophosphatase
638	 70.98	0	729061..729501	+	146	148259659	-	Acry_0646	-	GCN5-related N-acetyltransferase
639	 69.48	0	729508..730572	-	354	148259660	-	Acry_0647	-	tartrate dehydrogenase
640	 65.04	0	730572..731981	-	469	148259661	-	Acry_0648	-	amino acid permease-associated region
641	 72.07	0	732034..732921	-	295	148259662	-	Acry_0649	-	lipid A biosynthesis acyltransferase
642	 76.90	+1	732918..733865	-	315	148259663	-	Acry_0650	-	tetraacyldisaccharide 4'-kinase
643	 76.27	+1	733865..735103	-	412	148259664	-	Acry_0651	-	3-deoxy-D-manno-octulosonic-acid transferase domain-containing protein
644	 75.97	+1	735088..735807	-	239	148259665	-	Acry_0652	-	hypothetical protein
645	 72.17	0	735804..736748	-	314	148259666	-	Acry_0653	-	LysR family transcriptional regulator
646	 72.78	0	736906..737265	+	119	148259667	-	Acry_0654	-	hypothetical protein
647	 70.02	0	737296..737712	+	138	148259668	-	Acry_0655	-	hypothetical protein
648	 70.28	0	737807..738664	+	285	148259669	-	Acry_0656	-	rod shape-determining protein MreC
649	 70.08	0	738684..739211	+	175	148259670	-	Acry_0657	-	hypothetical protein
650	 68.91	0	739180..741099	+	639	148259671	-	Acry_0658	-	peptidoglycan glycosyltransferase
651	 65.29	0	741096..742256	+	386	148259672	-	Acry_0659	-	rod shape-determining protein RodA
652	 70.00	0	742463..743692	+	409	148259673	-	Acry_0660	-	nitric oxide dioxygenase
653	 64.60	0	743787..744755	+	322	148259674	-	Acry_0661	-	hypothetical protein
654	 68.18	0	744766..746412	+	548	148259675	-	Acry_0662	-	AMP-dependent synthetase and ligase
655	 74.80	+1	746481..750992	+	1503	148259676	-	Acry_0663	-	hypothetical protein
656	 63.41	0	751161..751775	+	204	148259677	rpsD	Acry_0664	-	30S ribosomal protein S4
657	 70.23	0	752071..752883	-	270	148259678	-	Acry_0665	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
658	 70.83	0	752922..753545	-	207	148259679	-	Acry_0666	-	carbonate dehydratase
659	 70.69	0	753873..754766	+	297	148259680	-	Acry_0667	-	helix-turn-helix domain-containing protein
660	 72.43	0	754888..757854	+	988	148259681	-	Acry_0668	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
661	 73.99	+1	757851..758669	+	272	148259682	-	Acry_0669	-	molybdopterin dehydrogenase, FAD-binding
662	 74.18	+1	758666..759184	+	172	148259683	-	Acry_0670	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
663	 70.91	0	759177..760730	+	517	148259684	-	Acry_0671	-	AMP-dependent synthetase and ligase
664	 67.92	0	760727..761524	+	265	148259685	-	Acry_0672	-	enoyl-CoA hydratase/isomerase
665	 72.81	0	761649..762332	+	227	148259686	-	Acry_0673	-	OmpA/MotB domain-containing protein
666	 70.06	0	762345..762668	+	107	148259687	-	Acry_0674	-	antibiotic biosynthesis monooxygenase
667	 66.88	0	762752..763213	+	153	148259688	-	Acry_0675	-	hypothetical protein
668	 72.92	0	763229..763804	+	191	148259689	-	Acry_0676	-	TetR family transcriptional regulator
669	 72.24	0	763844..764740	+	298	148259690	-	Acry_0677	-	LysR family transcriptional regulator
670	 75.75	+1	764754..766151	-	465	148259691	-	Acry_0678	-	GntR family transcriptional regulator
671	 71.71	0	766333..766848	+	171	148259692	-	Acry_0679	-	hypothetical protein
672	 76.04	+1	766845..767399	+	184	148259693	-	Acry_0680	-	hypothetical protein
673	 70.06	0	767465..768910	+	481	148259694	-	Acry_0681	-	methyl-accepting chemotaxis sensory transducer
674	 71.09	0	768963..769640	+	225	148259695	aat	Acry_0682	-	leucyl/phenylalanyl-tRNA--protein transferase
675	 64.64	0	769821..770660	+	279	148259696	-	Acry_0683	-	extracellular solute-binding protein
676	 66.27	0	770738..771490	+	250	148259697	-	Acry_0684	-	polar amino acid ABC transporter, inner membrane subunit
677	 68.23	0	771487..772254	+	255	148259698	-	Acry_0685	-	ABC transporter related
678	 72.74	0	772259..773296	-	345	148259699	-	Acry_0686	-	ribokinase-like domain-containing protein
679	 68.39	0	773304..774290	-	328	148259700	-	Acry_0687	-	hypothetical protein
680	 70.83	0	774696..775199	-	167	148259701	-	Acry_0688	-	hypothetical protein
681	 64.55	0	775370..775699	+	109	148259702	-	Acry_0689	-	hypothetical protein
682	 71.18	0	775828..776757	+	309	148259703	-	Acry_0690	-	substrate-binding region of ABC-type glycine betaine transport system
683	 75.02	+1	776809..777921	-	370	148259704	-	Acry_0691	-	hypothetical protein
684	 64.65	0	778081..778278	-	65	148259705	-	Acry_0692	-	hypothetical protein
685	 46.59	-2	778414..778956	-	180	148259706	-	Acry_0693	-	hypothetical protein
686	 52.96	-2	779014..779334	+	106	148259707	-	Acry_0694	-	hypothetical protein
687	 66.67	0	779788..780099	-	103	148259708	-	Acry_0695	-	ETC complex I subunit region
688	 63.99	0	780247..780732	-	161	148259709	-	Acry_0696	-	hypothetical protein
689	 74.39	+1	780752..781825	-	357	148259710	-	Acry_0697	-	histone deacetylase superfamily protein
690	 68.06	0	781892..783472	+	526	148259711	-	Acry_0698	-	peptide chain release factor 3
691	 49.40	-2	783694..784440	+	248	148259712	-	Acry_0699	-	RecB family-like nuclease
692	 49.60	-2	784498..784749	-	83	148259713	-	Acry_0700	-	hypothetical protein
693	 50.84	-2	784756..785052	+	98	148259714	-	Acry_0701	-	hypothetical protein
694	 61.39	-1	785167..785583	-	138	148259715	-	Acry_0702	-	hypothetical protein
695	 61.26	-1	785696..786157	+	153	148259716	-	Acry_0703	-	hypothetical protein
696	 64.32	0	786201..787562	-	453	148259717	-	Acry_0704	-	transposase, IS4 family protein
697	 58.70	-1	787525..787863	-	112	148259718	-	Acry_0705	-	hypothetical protein
698	 77.32	+1	788078..788884	+	268	148259719	-	Acry_0706	-	hypothetical protein
699	 66.73	0	788881..790440	+	519	148259720	lysK	Acry_0707	-	lysyl-tRNA synthetase
700	 65.25	0	790955..792652	+	565	148259721	-	Acry_0708	-	potassium-transporting ATPase, A subunit
701	 68.29	0	792664..794700	+	678	148259722	-	Acry_0709	-	K+-transporting ATPase, B subunit
702	 69.33	0	794716..795315	+	199	148259723	-	Acry_0710	-	potassium-transporting ATPase, C subunit
703	 36.93	-2	795332..795832	+	166	148259724	-	Acry_0711	-	hypothetical protein
704	 62.59	-1	795883..796176	+	97	148259725	-	Acry_0712	-	hypothetical protein
705	 72.50	0	796432..799035	+	867	148259726	-	Acry_0713	-	osmosensitive K+ channel signal transduction histidine kinase
706	 67.67	0	799032..799727	+	231	148259727	-	Acry_0714	-	two component transcriptional regulator
707	 67.81	0	799712..800677	-	321	148259728	-	Acry_0715	-	LysR family transcriptional regulator
708	 68.27	0	800721..801470	+	249	148259729	-	Acry_0716	-	short-chain dehydrogenase/reductase SDR
709	 67.34	0	801500..802396	+	298	148259730	-	Acry_0717	-	transketolase domain-containing protein
710	 68.76	0	802396..803400	+	334	148259731	-	Acry_0718	-	transketolase, central region
711	 63.52	0	803452..804468	+	338	148259732	-	Acry_0719	-	TRAP dicarboxylate transporter, DctP subunit
712	 68.30	0	804590..806431	+	613	148259733	-	Acry_0720	-	TRAP C4-dicarboxylate transport system permease DctM subunit
713	 68.40	0	806441..807190	-	249	148259734	-	Acry_0721	-	hypothetical protein
714	 72.11	0	807187..808362	-	391	148259735	-	Acry_0722	-	major facilitator transporter
715	 70.79	0	808362..809210	-	282	148259736	-	Acry_0723	-	undecaprenyl pyrophosphate phosphatase
716	 66.00	0	809487..810530	+	347	148259737	-	Acry_0724	-	glycosyl transferase family protein
68.17	MEAN

5.03	STD DEV
