IslandPath Analysis: Acidiphilium cryptum JF-5

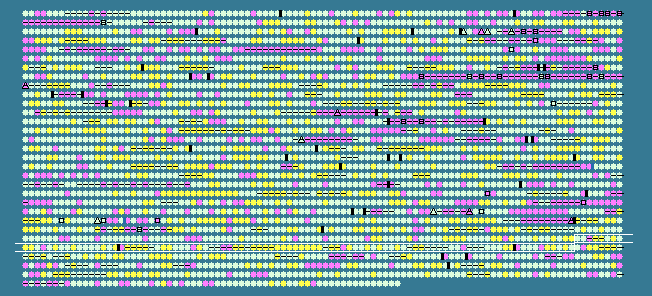

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2593	 68.62	0	2886583..2887248	-	221	148261614	-	Acry_2631	-	hypothetical protein
2594	 67.53	0	2887319..2887780	-	153	148261615	-	Acry_2632	-	heat shock protein Hsp20
2595	 61.40	-1	2887983..2888210	-	75	148261616	rpmE	Acry_2633	-	50S ribosomal protein L31
2596	 72.64	0	2888321..2888956	+	211	148261617	-	Acry_2634	-	methyltransferase type 11
2597	 74.76	+1	2888940..2889569	-	209	148261618	-	Acry_2635	-	DNA-3-methyladenine glycosylase II
2598	 71.07	0	2889580..2890170	-	196	148261619	-	Acry_2636	-	hypothetical protein
2599	 77.88	+1	2890212..2892254	-	680	148261620	-	Acry_2637	-	hypothetical protein
2600	 68.42	0	2892448..2892675	+	75	148261621	-	Acry_2638	-	hypothetical protein
2601	 72.43	0	2892747..2894324	+	525	148261622	-	Acry_2639	-	DEAD/DEAH box helicase domain-containing protein
2602	 74.32	+1	2894268..2896241	-	657	148261623	-	Acry_2640	-	Fis family GAF modulated sigma54 specific transcriptional regulator
2603	 67.43	0	2896379..2897422	+	347	148261624	-	Acry_2641	-	alcohol dehydrogenase
2604	 62.64	-1	2897483..2898499	+	338	148261625	-	Acry_2642	-	amidohydrolase 2
2605	 70.04	0	2898505..2899275	+	256	148261626	-	Acry_2643	-	hypothetical protein
2606	 74.33	+1	2899257..2900195	-	312	148261627	-	Acry_2644	-	DMSO reductase anchor subunit (DmsC)
2607	 67.88	0	2900192..2900935	-	247	148261628	-	Acry_2645	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2608	 68.73	0	2900932..2903739	-	935	148261629	-	Acry_2646	-	molybdopterin oxidoreductase Fe4S4 region
2609	 73.76	+1	2903815..2905251	-	478	148261630	-	Acry_2647	-	pyridoxal-dependent decarboxylase
2610	 67.30	0	2905350..2908499	-	1049	148261631	-	Acry_2648	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
2611	 69.93	0	2908504..2909667	-	387	148261632	-	Acry_2649	-	RND family efflux transporter MFP subunit
2612	 67.80	0	2909881..2911467	-	528	148261633	-	Acry_2650	-	D-3-phosphoglycerate dehydrogenase
2613	 69.94	0	2911471..2912661	-	396	148261634	-	Acry_2651	-	phosphoserine aminotransferase
2614	 72.58	0	2912766..2913509	-	247	148261635	-	Acry_2652	-	hemolysin A
2615	 67.57	0	2913517..2913849	-	110	148261636	-	Acry_2653	-	XRE family transcriptional regulator
2616	 77.80	+1	2914129..2915376	-	415	148261637	-	Acry_2654	-	Fmu (Sun) domain-containing protein
2617	 62.75	-1	2915602..2915907	+	101	148261638	-	Acry_2655	-	protein of unknown function YGGT
2618	 75.95	+1	2915916..2916755	+	279	148261639	-	Acry_2656	-	methylenetetrahydrofolate dehydrogenase (NADP(+))
2619	 74.98	+1	2916855..2918309	-	484	148261640	-	Acry_2657	-	lytic transglycosylase, catalytic
2620	 80.95	+2	2918402..2918737	+	111	148261641	-	Acry_2658	-	hypothetical protein
2621	 73.98	+1	2918822..2919805	+	327	148261642	-	Acry_2659	-	aldo/keto reductase
2622	 70.11	0	2919875..2920513	-	212	148261643	-	Acry_2660	-	GTP cyclohydrolase I
2623	 68.35	0	2920614..2921087	-	157	148261644	apaG	Acry_2661	-	ApaG
2624	 76.70	+1	2921173..2922846	+	557	148261645	-	Acry_2662	-	tetratricopeptide domain-containing protein
2625	 77.25	+1	2922857..2923735	+	292	148261646	-	Acry_2663	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
2626	 70.40	0	2923803..2924498	+	231	148261647	-	Acry_2664	-	phosphoribosylformylglycinamidine synthase I
2627	 70.92	0	2924495..2926678	+	727	148261648	-	Acry_2665	-	phosphoribosylformylglycinamidine synthase II
2628	 69.23	0	2926697..2926930	+	77	148261649	-	Acry_2666	-	BolA family protein
2629	 64.08	0	2926964..2927311	+	115	148261650	-	Acry_2667	-	glutaredoxin-like protein
2630	 77.00	+1	2927362..2928561	+	399	148261651	-	Acry_2668	-	hypothetical protein
2631	 70.30	0	2928567..2932061	-	1164	148261652	-	Acry_2669	-	pyruvate carboxylase
2632	 71.45	0	2932174..2933844	+	556	148261653	-	Acry_2670	-	amine oxidase
2633	 68.20	0	2933953..2934606	+	217	148261654	-	Acry_2671	-	multiple antibiotic resistance (MarC)-related protein
2634	 49.44	-2	2934850..2935470	-	206	148261655	-	Acry_2672	-	hypothetical protein
2635	 38.89	-2	2935481..2935696	+	71	148261656	-	Acry_2673	-	hypothetical protein
2636	 76.60	+1	2935866..2936570	-	234	148261657	-	Acry_2674	-	hypothetical protein
2637	 71.99	0	2936632..2937966	-	444	148261658	gltX	Acry_2675	-	glutamyl-tRNA synthetase
2638	 69.52	0	2938058..2939248	+	396	148261659	-	Acry_2676	-	major facilitator transporter
2639	 72.67	0	2939309..2939758	+	149	148261660	-	Acry_2677	-	manganese transport regulator MntR
2640	 72.81	0	2939903..2940358	+	151	148261661	-	Acry_2678	-	hypothetical protein
2641	 73.18	0	2940374..2941432	-	352	148261662	-	Acry_2679	-	hypothetical protein
2642	 74.28	+1	2941441..2941716	-	91	148261663	-	Acry_2680	-	acylphosphatase
2643	 77.07	+1	2941713..2942414	-	233	148261664	-	Acry_2681	-	ATP12 ATPase
2644	 74.44	+1	2942425..2945112	-	895	148261665	-	Acry_2682	-	AsmA family protein
2645	 73.08	0	2945176..2947077	-	633	148261666	-	Acry_2683	-	hypothetical protein
2646	 74.12	+1	2947083..2948102	-	339	148261667	-	Acry_2684	-	hypothetical protein
2647	 75.73	+1	2948221..2949180	+	319	148261668	-	Acry_2685	-	succinylglutamate desuccinylase/aspartoacylase
2648	 72.81	0	2949191..2950069	-	292	148261669	-	Acry_2686	-	CDP-alcohol phosphatidyltransferase
2649	 73.04	0	2950066..2950755	-	229	148261670	-	Acry_2687	-	phosphatidylserine decarboxylase
2650	 76.06	+1	2950816..2951901	-	361	148261671	-	Acry_2688	-	peptidoglycan-binding LysM
2651	 71.11	0	2951995..2952579	+	194	148261672	-	Acry_2689	-	hypothetical protein
2652	 75.60	+1	2952725..2953597	-	290	148261673	-	Acry_2690	-	ribonuclease G and E-like protein
2653	 73.54	+1	2953594..2954160	-	188	148261674	-	Acry_2691	-	maf protein
2654	 56.62	-2	2954174..2954392	-	72	148261675	-	Acry_2692	-	translation initiation factor IF-1
2655	 74.52	+1	2954445..2955755	-	436	148261676	-	Acry_2693	-	histidinol dehydrogenase
2656	 71.01	0	2955752..2956465	-	237	148261677	hisG	Acry_2694	-	ATP phosphoribosyltransferase catalytic subunit
2657	 71.64	0	2956513..2957457	+	314	148261678	-	Acry_2695	-	pyruvate carboxyltransferase
2658	 73.20	+1	2957468..2958646	+	392	148261679	-	Acry_2696	-	L-carnitine dehydratase/bile acid-inducible protein F
2659	 69.30	0	2958674..2959546	+	290	148261680	-	Acry_2697	-	3-hydroxyisobutyrate dehydrogenase
2660	 72.15	0	2959538..2959756	-	72	148261681	-	Acry_2698	-	hypothetical protein
2661	 69.44	0	2959852..2960790	+	312	148261682	-	Acry_2699	-	hypothetical protein
2662	 69.31	0	2960807..2961979	+	390	148261683	-	Acry_2700	-	radical SAM protein
2663	 71.89	0	2962005..2962712	+	235	148261684	-	Acry_2701	-	short-chain dehydrogenase/reductase SDR
2664	 69.31	0	2962859..2963161	+	100	148261685	rpmB	Acry_2702	-	50S ribosomal protein L28
2665	 67.46	0	2963363..2963866	+	167	148261686	-	Acry_2703	-	hypothetical protein
2666	 76.26	+1	2963863..2964675	+	270	148261687	-	Acry_2704	-	pyrroline-5-carboxylate reductase
2667	 72.16	0	2965020..2966549	+	509	148261688	-	Acry_2705	-	methyl-accepting chemotaxis sensory transducer
2668	 67.66	0	2966555..2966857	+	100	148261689	-	Acry_2706	-	hypothetical protein
2669	 65.85	0	2966854..2967219	+	121	148261690	-	Acry_2707	-	response regulator receiver protein
2670	 69.75	0	2967216..2969423	+	735	148261691	-	Acry_2708	-	CheA signal transduction histidine kinase
2671	 66.24	0	2969427..2969891	+	154	148261692	-	Acry_2709	-	putative CheW protein
2672	 67.34	0	2969888..2970784	+	298	148261693	-	Acry_2710	-	protein-glutamate O-methyltransferase
2673	 69.90	0	2970781..2971833	+	350	148261694	-	Acry_2711	-	chemotaxis-specific methylesterase
2674	 62.63	-1	2971833..2972228	+	131	148261695	-	Acry_2712	-	response regulator receiver protein
2675	 70.86	0	2972225..2972797	+	190	148261696	-	Acry_2713	-	CheD, stimulates methylation of MCP proteins
2676	 67.92	0	2972814..2973212	+	132	148261697	-	Acry_2714	-	hypothetical protein
2677	 65.33	0	2973448..2973747	+	99	148261698	-	Acry_2715	-	hypothetical protein
2678	 65.57	0	2973767..2974312	-	181	148261699	-	Acry_2716	-	hypothetical protein
2679	 71.57	0	2974512..2975348	+	278	148261700	-	Acry_2717	-	beta-lactamase domain-containing protein
2680	 66.44	0	2975412..2976302	-	296	148261701	-	Acry_2718	-	RNA polymerase factor sigma-32
2681	 71.87	0	2976587..2977585	-	332	148261702	-	Acry_2719	-	RluA family pseudouridine synthase
2682	 74.53	+1	2977636..2978004	+	122	148261703	-	Acry_2720	-	hypothetical protein
2683	 53.92	-2	2978619..2979230	+	203	148261704	-	Acry_2721	-	hypothetical protein
2684	 68.37	0	2979382..2980788	+	468	148261705	-	Acry_2722	-	tricarballylate dehydrogenase
2685	 69.71	0	2980775..2981893	+	372	148261706	-	Acry_2723	-	CitB domain-containing protein
2686	 65.06	0	2981990..2983294	+	434	148261707	-	Acry_2724	-	major facilitator transporter
2687	 56.72	-2	2983350..2983892	-	180	148261708	-	Acry_2725	-	hypothetical protein
2688	 75.04	+1	2984412..2986178	-	588	148261709	-	Acry_2726	-	amidase
2689	 73.23	+1	2986175..2989663	-	1162	148261710	-	Acry_2727	-	biotin carboxylation domain-containing protein
2690	 66.03	0	2989660..2990292	-	210	148261711	-	Acry_2728	-	hypothetical protein
2691	 72.03	0	2990300..2991082	-	260	148261712	-	Acry_2729	-	hypothetical protein
2692	 71.41	0	2991155..2991997	-	280	148261713	-	Acry_2730	-	ABC transporter related
68.17	MEAN

5.03	STD DEV
