IslandPath Analysis: Acidiphilium cryptum JF-5

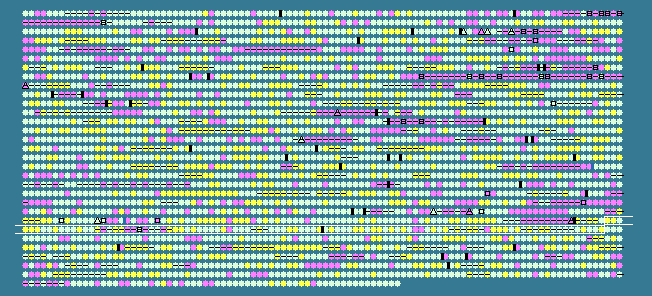

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2398	 71.70	0	2687663..2688298	+	211	148261419	-	Acry_2434	-	putative aldolase
2399	 72.71	0	2688314..2688892	-	192	148261420	-	Acry_2435	-	antibiotic biosynthesis monooxygenase
2400	 70.39	0	2688897..2689487	-	196	148261421	-	Acry_2436	-	hypothetical protein
2401	 71.92	0	2689677..2691161	+	494	148261422	-	Acry_2437	-	major facilitator transporter
2402	 72.49	0	2691437..2694856	+	1139	148261423	-	Acry_2438	-	indolepyruvate ferredoxin oxidoreductase
2403	 74.84	+1	2694857..2695921	-	354	148261424	-	Acry_2439	-	putative ammonia monooxygenase
2404	 68.00	0	2696066..2696968	-	300	148261425	-	Acry_2440	-	LysR family transcriptional regulator
2405	 69.56	0	2697018..2698055	-	345	148261426	-	Acry_2441	-	thioredoxin reductase
2406	 72.39	0	2698132..2698638	+	168	148261427	-	Acry_2442	-	AsnC family transcriptional regulator
2407	 67.82	0	2698747..2699610	+	287	148261428	-	Acry_2443	-	membrane protein-like protein
2408	 65.82	0	2699706..2702063	+	785	148261429	-	Acry_2444	-	surface antigen (D15)
2409	 68.33	0	2702068..2702847	+	259	148261430	-	Acry_2445	-	outer membrane chaperone Skp (OmpH)
2410	 73.02	0	2702853..2703938	+	361	148261431	lpxD	Acry_2446	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
2411	 66.27	0	2703980..2704477	+	165	148261432	-	Acry_2447	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
2412	 70.76	0	2704474..2705280	+	268	148261433	-	Acry_2448	-	UDP-N-acetylglucosamine acyltransferase
2413	 75.46	+1	2705305..2706168	+	287	148261434	-	Acry_2449	-	hypothetical protein
2414	 60.56	-1	2706165..2706557	+	130	148261435	-	Acry_2450	-	lactoylglutathione lyase
2415	 70.98	0	2706565..2707839	+	424	148261436	-	Acry_2451	-	hypothetical protein
2416	 79.12	+2	2707870..2708439	-	189	148261437	-	Acry_2452	-	hypothetical protein
2417	 73.78	+1	2708493..2708984	-	163	148261438	-	Acry_2453	-	hypothetical protein
2418	 29.41	-2	2709668..2710126	-	152	148261439	-	Acry_2454	-	hypothetical protein
2419	 55.99	-2	2710274..2710582	-	102	148261440	-	Acry_2455	-	hypothetical protein
2420	 66.51	0	2710629..2711882	-	417	148261441	-	Acry_2456	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
2421	 44.58	-2	2712410..2713138	-	242	148261442	-	Acry_2458	-	hypothetical protein
2422	 69.90	0	2713440..2713964	-	174	148261443	-	Acry_2459	-	ribosomal protein N-acetylase-like protein
2423	 66.79	0	2714205..2715884	-	559	148261444	-	Acry_2460	-	putative ABC transporter ATP-binding protein
2424	 63.73	0	2716074..2716685	-	203	148261445	-	Acry_2461	-	hypothetical protein
2425	 71.91	0	2716841..2717812	-	323	148261446	-	Acry_2462	-	2-dehydropantoate 2-reductase
2426	 72.91	0	2717809..2719329	-	506	148261447	-	Acry_2463	-	AMP-dependent synthetase and ligase
2427	 76.36	+1	2719436..2720560	-	374	148261448	-	Acry_2464	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2428	 67.15	0	2720577..2720783	-	68	148261449	-	Acry_2465	-	heavy metal transport/detoxification protein
2429	 75.47	+1	2720940..2723177	+	745	148261450	-	Acry_2466	-	heavy metal translocating P-type ATPase
2430	 68.28	0	2723185..2723928	-	247	148261451	-	Acry_2467	-	short-chain dehydrogenase/reductase SDR
2431	 66.02	0	2723941..2724867	-	308	148261452	-	Acry_2468	-	dihydrodipicolinate synthetase
2432	 67.37	0	2724864..2725862	-	332	148261453	-	Acry_2469	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
2433	 69.07	0	2725859..2727562	-	567	148261454	-	Acry_2470	-	dihydroxy-acid dehydratase
2434	 72.06	0	2727565..2728287	-	240	148261455	-	Acry_2471	-	hypothetical protein
2435	 63.11	-1	2728689..2729138	-	149	148261456	-	Acry_2472	-	hypothetical protein
2436	 70.56	0	2729135..2729827	-	230	148261457	-	Acry_2473	-	HAD family hydrolase
2437	 69.97	0	2729824..2730912	-	362	148261458	-	Acry_2474	-	ferrochelatase
2438	 70.66	0	2730918..2731994	-	358	148261459	-	Acry_2475	-	uroporphyrinogen decarboxylase
2439	 71.56	0	2732263..2733141	+	292	148261460	-	Acry_2476	-	hypothetical protein
2440	 73.58	+1	2733248..2733739	+	163	148261461	-	Acry_2477	-	methylated-DNA--protein-cysteine methyltransferase
2441	 71.17	0	2733759..2734736	+	325	148261462	-	Acry_2478	-	alcohol dehydrogenase
2442	 69.44	0	2734897..2735184	+	95	148261463	-	Acry_2479	-	hypothetical protein
2443	 69.13	0	2735328..2735774	+	148	148261464	-	Acry_2480	-	CHRD domain-containing protein
2444	 70.60	0	2735845..2736276	+	143	148261465	-	Acry_2481	-	dihydroneopterin aldolase
2445	 72.79	0	2736283..2737539	-	418	148261466	-	Acry_2482	-	natural resistance-associated macrophage protein
2446	 79.23	+2	2737536..2738888	-	450	148261467	-	Acry_2483	-	3-carboxy-cis,cis-muconate cycloisomerase
2447	 68.89	0	2738971..2740365	+	464	148261468	-	Acry_2484	-	permease for cytosine/purines, uracil, thiamine, allantoin
2448	 71.50	0	2741189..2741602	-	137	148261469	-	Acry_2485	-	Sel1 domain-containing protein
2449	 68.53	0	2741957..2742385	-	142	148261470	-	Acry_2486	-	hypothetical protein
2450	 71.69	0	2742894..2743331	-	145	148261471	-	Acry_2487	-	hypothetical protein
2451	 67.24	0	2743713..2744237	+	174	148261472	-	Acry_2488	-	inorganic diphosphatase
2452	 74.33	+1	2744287..2745147	-	286	148261473	-	Acry_2489	-	NAD-dependent epimerase/dehydratase
2453	 71.39	0	2745144..2745800	-	218	148261474	-	Acry_2490	-	hypothetical protein
2454	 69.40	0	2745844..2746026	-	60	148261475	-	Acry_2491	-	hypothetical protein
2455	 70.09	0	2746073..2746393	+	106	148261476	-	Acry_2492	-	hypothetical protein
2456	 75.45	+1	2746586..2747143	+	185	148261477	-	Acry_2493	-	5-formyltetrahydrofolate cyclo-ligase
2457	 72.69	0	2747165..2748310	+	381	148261478	-	Acry_2494	-	aminotransferase, class I and II
2458	 71.25	0	2749064..2750002	-	312	148261479	-	Acry_2496	-	signal recognition particle-docking protein FtsY
2459	 72.49	0	2749999..2751234	-	411	148261480	-	Acry_2497	-	MiaB-like tRNA modifying enzyme
2460	 72.42	0	2751231..2752064	-	277	148261481	-	Acry_2498	-	diaminopimelate epimerase
2461	 71.50	0	2752107..2753576	-	489	148261482	-	Acry_2499	-	amino acid permease-associated region
2462	 73.44	+1	2753573..2754295	-	240	148261483	-	Acry_2500	-	endonuclease III
2463	 68.32	0	2754348..2754893	+	181	148261484	-	Acry_2501	-	integral membrane protein-like protein
2464	 72.93	0	2754966..2756114	+	382	148261485	-	Acry_2502	-	major facilitator transporter
2465	 66.18	0	2756210..2757859	-	549	148261486	groEL	Acry_2503	-	chaperonin GroEL
2466	 64.44	0	2757904..2758218	-	104	148261487	-	Acry_2504	-	chaperonin Cpn10
2467	 63.61	0	2758436..2758762	+	108	148261488	-	Acry_2505	-	Usg family protein
2468	 68.83	0	2758882..2759712	+	276	148261489	-	Acry_2506	-	hypothetical protein
2469	 73.95	+1	2759837..2761222	+	461	148261490	-	Acry_2507	-	phage uncharacterized protein
2470	 69.50	0	2761227..2762639	+	470	148261491	-	Acry_2508	-	hypothetical protein
2471	 74.88	+1	2762636..2763061	+	141	148261492	-	Acry_2509	-	hypothetical protein
2472	 65.84	0	2763161..2764483	+	440	148261493	-	Acry_2510	-	hypothetical protein
2473	 73.46	+1	2764497..2764805	+	102	148261494	-	Acry_2511	-	hypothetical protein
2474	 69.61	0	2764807..2765214	+	135	148261495	-	Acry_2512	-	hypothetical protein
2475	 75.35	+1	2765222..2765866	+	214	148261496	-	Acry_2513	-	hypothetical protein
2476	 72.34	0	2765866..2766711	+	281	148261497	-	Acry_2514	-	hypothetical protein
2477	 69.62	0	2766863..2768419	+	518	148261498	-	Acry_2515	-	hypothetical protein
2478	 62.70	-1	2768428..2768856	+	142	148261499	-	Acry_2516	-	hypothetical protein
2479	 72.55	0	2768853..2769158	+	101	148261500	-	Acry_2517	-	hypothetical protein
2480	 75.27	+1	2769445..2770095	+	216	148261501	-	Acry_2518	-	hypothetical protein
2481	 73.65	+1	2770112..2770798	+	228	148261502	-	Acry_2519	-	hypothetical protein
2482	 68.72	0	2770795..2770989	+	64	148261503	-	Acry_2520	-	hypothetical protein
2483	 71.86	0	2770961..2771962	+	333	148261504	-	Acry_2521	-	hypothetical protein
2484	 70.86	0	2771959..2772507	+	182	148261505	-	Acry_2522	-	phage baseplate assembly protein V
2485	 73.71	+1	2772507..2772875	+	122	148261506	-	Acry_2523	-	hypothetical protein
2486	 71.11	0	2772894..2774018	+	374	148261507	-	Acry_2524	-	baseplate J family protein
2487	 72.30	0	2774022..2774696	+	224	148261508	-	Acry_2525	-	hypothetical protein
2488	 72.73	0	2774789..2776042	+	417	148261509	-	Acry_2526	-	hypothetical protein
2489	 68.63	0	2776558..2779101	+	847	148261510	-	Acry_2527	-	parallel beta-helix repeat-containing protein
2490	 71.00	0	2779129..2781021	+	630	148261511	-	Acry_2528	-	hypothetical protein
2491	 71.29	0	2781024..2783162	+	712	148261512	-	Acry_2529	-	hypothetical protein
2492	 65.82	0	2783168..2783521	+	117	148261513	-	Acry_2530	-	hypothetical protein
2493	 68.33	0	2783538..2783777	+	79	148261514	-	Acry_2531	-	hypothetical protein
2494	 72.73	0	2783765..2784160	+	131	148261515	-	Acry_2532	-	hypothetical protein
2495	 68.95	0	2784157..2784462	+	101	148261516	-	Acry_2533	-	hypothetical protein
2496	 66.71	0	2784432..2786615	-	727	148261517	-	Acry_2534	-	polyphosphate kinase
2497	 73.66	+1	2786646..2787389	-	247	148261518	-	Acry_2535	-	ATPase involved in DNA replication initiation-like protein
68.17	MEAN

5.03	STD DEV
