IslandPath Analysis: Acidiphilium cryptum JF-5

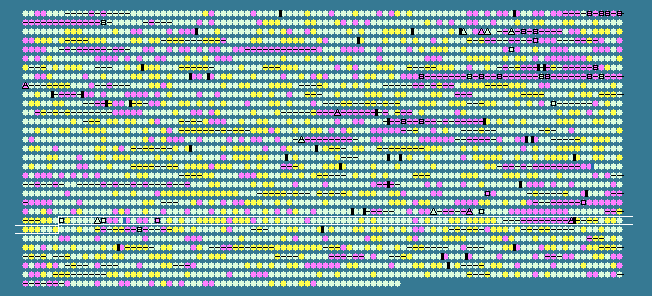

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2307	 66.51	0	2572946..2574199	+	417	148261328	-	Acry_2342	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
2308	 72.48	0	2574218..2575387	+	389	148261329	-	Acry_2343	-	deoxyribodipyrimidine photo-lyase
2309	 66.90	0	2575415..2575840	+	141	148261330	-	Acry_2344	-	hypothetical protein
2310	 68.96	0	2575833..2577008	+	391	148261331	-	Acry_2345	-	hypothetical protein
2311	 69.24	0	2577008..2578132	+	374	148261332	-	Acry_2346	-	hypothetical protein
2312	 67.90	0	2578333..2578656	+	107	148261333	-	Acry_2347	-	hypothetical protein
2313	 65.01	0	2578862..2579767	+	301	148261334	-	Acry_2348	-	phage integrase family protein
2314	 67.00	0	2579772..2580965	+	397	148261335	-	Acry_2349	-	putative transposase
2315	 60.00	-1	2581573..2582007	-	144	148261336	-	Acry_2350	-	globin
2316	 63.48	0	2582028..2583062	-	344	148261337	-	Acry_2351	-	hypothetical protein
2317	 65.19	0	2583946..2585640	+	564	148261338	-	Acry_2352	-	resolvase domain-containing protein
2318	 59.14	-1	2591485..2592441	-	318	148261339	-	Acry_2353	-	NAD-dependent epimerase/dehydratase
2319	 66.33	0	2592450..2593049	-	199	148261340	-	Acry_2354	-	phosphoheptose isomerase
2320	 62.98	-1	2593039..2593905	-	288	148261341	-	Acry_2355	-	3-hydroxybutyrate dehydrogenase
2321	 60.70	-1	2594160..2594444	+	94	148261342	-	Acry_2356	-	hypothetical protein
2322	 69.54	0	2594673..2595263	-	196	148261343	-	Acry_2357	-	SOUL heme-binding protein
2323	 62.57	-1	2595950..2596657	+	235	148261344	-	Acry_2358	-	transposase, IS4 family protein
2324	 70.27	0	2596666..2597304	-	212	148261345	-	Acry_2359	-	hypothetical protein
2325	 74.31	+1	2597423..2597893	-	156	148261346	-	Acry_2360	-	ferric uptake regulator family protein
2326	 67.70	0	2598015..2599667	+	550	148261347	-	Acry_2361	-	AMP-dependent synthetase and ligase
2327	 72.60	0	2599785..2600963	+	392	148261348	-	Acry_2362	-	major facilitator transporter
2328	 71.41	0	2600973..2601962	-	329	148261349	-	Acry_2363	-	alcohol dehydrogenase
2329	 68.90	0	2602044..2603831	-	595	148261350	aspS	Acry_2364	-	aspartyl-tRNA synthetase
2330	 72.52	0	2603916..2605094	+	392	148261351	-	Acry_2365	-	ribonuclease D
2331	 74.42	+1	2605095..2605868	-	257	148261352	-	Acry_2366	-	ABC-3 protein
2332	 76.31	+1	2605870..2606709	-	279	148261353	-	Acry_2367	-	ABC-3 protein
2333	 71.94	0	2606719..2607534	-	271	148261354	-	Acry_2368	-	ABC transporter related
2334	 72.86	0	2607531..2608451	-	306	148261355	-	Acry_2369	-	periplasmic solute binding protein
2335	 61.90	-1	2608579..2608809	+	76	148261356	-	Acry_2370	-	4-oxalocrotonate tautomerase
2336	 72.81	0	2608806..2609342	+	178	148261357	-	Acry_2371	-	hypothetical protein
2337	 74.12	+1	2609311..2610585	-	424	148261358	-	Acry_2372	-	hydroxypyruvate reductase
2338	 74.58	+1	2610693..2611526	-	277	148261359	-	Acry_2373	-	hypothetical protein
2339	 64.43	0	2611598..2611954	-	118	148261360	-	Acry_2374	-	hypothetical protein
2340	 71.01	0	2612030..2613019	-	329	148261361	-	Acry_2375	-	lysine--tRNA ligase
2341	 72.70	0	2613043..2614020	+	325	148261362	-	Acry_2376	-	lysine 2,3-aminomutase YodO family protein
2342	 64.89	0	2614033..2614482	+	149	148261363	-	Acry_2377	-	3-dehydroquinate dehydratase
2343	 72.88	0	2614479..2614961	+	160	148261364	-	Acry_2378	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
2344	 67.56	0	2614969..2616315	+	448	148261365	-	Acry_2379	-	acetyl-CoA carboxylase biotin carboxylase subunit
2345	 67.17	0	2616327..2617127	-	266	148261366	-	Acry_2380	-	hypothetical protein
2346	 65.49	0	2617229..2619601	+	790	148261367	-	Acry_2381	-	diguanylate cyclase/phosphodiesterase
2347	 67.32	0	2619699..2621990	+	763	148261368	-	Acry_2382	-	oxidoreductase alpha (molybdopterin) subunit
2348	 61.85	-1	2622107..2622832	-	241	148261369	-	Acry_2383	-	major intrinsic protein
2349	 67.13	0	2622868..2624367	-	499	148261370	-	Acry_2384	-	glycerol kinase
2350	 70.30	0	2624498..2626039	-	513	148261371	glpD	Acry_2385	-	glycerol-3-phosphate dehydrogenase
2351	 68.77	0	2626157..2626963	-	268	148261372	-	Acry_2386	-	DeoR family transcriptional regulator
2352	 70.36	0	2627258..2628775	+	505	148261373	-	Acry_2387	-	methyl-accepting chemotaxis sensory transducer
2353	 66.78	0	2628904..2629779	+	291	148261374	-	Acry_2388	-	glutathione S-transferase domain-containing protein
2354	 70.08	0	2629807..2631270	+	487	148261375	-	Acry_2389	-	aldehyde dehydrogenase
2355	 70.91	0	2631294..2632754	-	486	148261376	-	Acry_2390	-	gamma-aminobutyraldehyde dehydrogenase
2356	 65.70	0	2632735..2634285	-	516	148261377	-	Acry_2391	-	amino acid permease-associated region
2357	 74.00	+1	2634307..2635452	-	381	148261378	-	Acry_2392	-	helix-turn-helix domain-containing protein
2358	 67.00	0	2635501..2636982	+	493	148261379	-	Acry_2393	-	glutamine synthetase, catalytic region
2359	 72.56	0	2636989..2638158	+	389	148261380	-	Acry_2394	-	iron-containing alcohol dehydrogenase
2360	 65.93	0	2638307..2639386	+	359	148261381	-	Acry_2395	-	diguanylate cyclase
2361	 70.09	0	2639419..2642838	+	1139	148261382	dnaE	Acry_2396	-	DNA polymerase III subunit alpha
2362	 68.97	0	2642922..2644091	+	389	148261383	-	Acry_2397	-	acetyl-CoA acetyltransferase
2363	 70.40	0	2644156..2644905	-	249	148261384	-	Acry_2398	-	short-chain dehydrogenase/reductase SDR
2364	 71.01	0	2645032..2646021	-	329	148261385	-	Acry_2399	-	NAD-dependent epimerase/dehydratase
2365	 70.45	0	2646190..2646585	-	131	148261386	-	Acry_2400	-	cupin 2 domain-containing protein
2366	 64.11	0	2646653..2647279	-	208	148261387	-	Acry_2401	-	methyltransferase type 11
2367	 71.40	0	2647433..2648911	+	492	148261388	-	Acry_2402	-	amidase
2368	 72.24	0	2648931..2649809	-	292	148261389	-	Acry_2403	-	parB-like partition protein
2369	 67.68	0	2649806..2650597	-	263	148261390	-	Acry_2404	-	cobyrinic acid a,c-diamide synthase
2370	 67.89	0	2650587..2651240	-	217	148261391	-	Acry_2405	-	methyltransferase GidB
2371	 71.63	0	2651237..2652967	-	576	148261392	-	Acry_2406	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2372	 73.35	+1	2653003..2654304	-	433	148261393	-	Acry_2407	-	tRNA modification GTPase TrmE
2373	 72.49	0	2654301..2654489	-	62	148261394	-	Acry_2408	-	ferredoxin-like protein
2374	 71.28	0	2654574..2656805	+	743	148261395	-	Acry_2409	-	hypothetical protein
2375	 73.22	+1	2656848..2657930	+	360	148261396	-	Acry_2410	-	ATPase involved in chromosome partitioning-like protein
2376	 75.43	+1	2657935..2658402	+	155	148261397	-	Acry_2411	-	DNA polymerase III subunit chi
2377	 72.01	0	2658451..2660040	+	529	148261398	-	Acry_2412	-	TPR repeat-containing protein
2378	 73.40	+1	2660048..2661220	-	390	148261399	-	Acry_2413	-	hypothetical protein
2379	 72.04	0	2661333..2662262	+	309	148261400	-	Acry_2414	-	LysR family transcriptional regulator
2380	 69.51	0	2662311..2663399	+	362	148261401	-	Acry_2415	-	glycosyl transferase family protein
2381	 68.33	0	2663412..2663771	-	119	148261402	-	Acry_2416	-	hypothetical protein
2382	 65.80	0	2663761..2664801	-	346	148261403	-	Acry_2417	-	glycosyl transferase family protein
2383	 69.28	0	2664838..2666331	-	497	148261404	-	Acry_2418	-	membrane protein-like protein
2384	 62.31	-1	2666526..2666846	-	106	148261405	-	Acry_2419	-	hypothetical protein
2385	 51.10	-2	2668119..2668934	-	271	148261406	-	Acry_2420	-	hypothetical protein
2386	 57.08	-2	2669235..2671769	-	844	148261407	-	Acry_2421	-	hypothetical protein
2387	 53.38	-2	2671762..2673357	-	531	148261408	-	Acry_2422	-	site-specific DNA-methyltransferase (adenine-specific)
2388	 55.25	-2	2673354..2674010	-	218	148261409	-	Acry_2423	-	hypothetical protein
2389	 61.36	-1	2674385..2677156	-	923	148261410	-	Acry_2424	-	exonuclease V subunit alpha
2390	 58.02	-2	2677156..2679006	-	616	148261411	-	Acry_2425	-	Type IV secretory pathway VirD4 components-like protein
2391	 37.10	-2	2680131..2681060	-	309	148261412	-	Acry_2427	-	hypothetical protein
2392	 57.81	-2	2681060..2682256	-	398	148261413	-	Acry_2428	-	phage integrase family protein
2393	 73.18	0	2682514..2683788	-	424	148261414	-	Acry_2429	-	type III effector Hrp-dependent outer protein
2394	 70.28	0	2683785..2684558	-	257	148261415	-	Acry_2430	-	hydroxypyruvate isomerase
2395	 73.36	+1	2684586..2685497	-	303	148261416	-	Acry_2431	-	3-hydroxyisobutyrate dehydrogenase
2396	 73.22	+1	2685543..2686640	-	365	148261417	-	Acry_2432	-	alanine racemase
2397	 68.76	0	2686758..2687666	+	302	148261418	-	Acry_2433	-	6-phosphogluconate dehydrogenase, NAD-binding
2398	 71.70	0	2687663..2688298	+	211	148261419	-	Acry_2434	-	putative aldolase
2399	 72.71	0	2688314..2688892	-	192	148261420	-	Acry_2435	-	antibiotic biosynthesis monooxygenase
2400	 70.39	0	2688897..2689487	-	196	148261421	-	Acry_2436	-	hypothetical protein
2401	 71.92	0	2689677..2691161	+	494	148261422	-	Acry_2437	-	major facilitator transporter
2402	 72.49	0	2691437..2694856	+	1139	148261423	-	Acry_2438	-	indolepyruvate ferredoxin oxidoreductase
2403	 74.84	+1	2694857..2695921	-	354	148261424	-	Acry_2439	-	putative ammonia monooxygenase
2404	 68.00	0	2696066..2696968	-	300	148261425	-	Acry_2440	-	LysR family transcriptional regulator
2405	 69.56	0	2697018..2698055	-	345	148261426	-	Acry_2441	-	thioredoxin reductase
2406	 72.39	0	2698132..2698638	+	168	148261427	-	Acry_2442	-	AsnC family transcriptional regulator
68.17	MEAN

5.03	STD DEV
