IslandPath Analysis: Acidiphilium cryptum JF-5

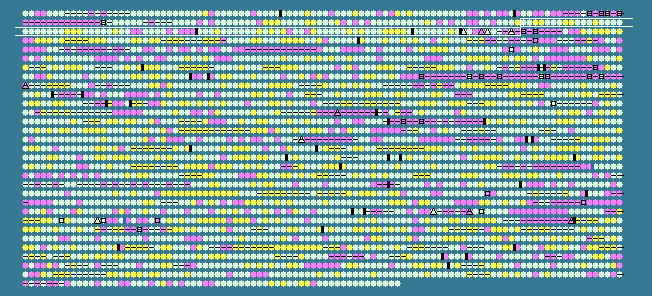

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
184	 68.90	0	210057..212342	+	761	148259205	-	Acry_0185	-	ribonucleoside-diphosphate reductase, adenosylcobalamin-dependent
185	 70.34	0	212360..213367	-	335	148259206	-	Acry_0186	-	alanine racemase
186	 72.71	0	213562..216075	+	837	148259207	-	Acry_0187	-	phosphoenolpyruvate-protein phosphotransferase
187	 73.48	+1	216072..217025	+	317	148259208	-	Acry_0188	-	1-phosphofructokinase
188	 69.62	0	217022..218716	+	564	148259209	-	Acry_0189	-	PTS system, fructose subfamily, IIC subunit
189	 68.93	0	218787..219227	+	146	148259210	-	Acry_0190	-	thioesterase superfamily protein
190	 71.35	0	219239..220156	+	305	148259211	-	Acry_0191	-	2-dehydropantoate 2-reductase
191	 74.06	+1	220129..220764	-	211	148259212	-	Acry_0192	-	hypothetical protein
192	 71.91	0	220749..222866	-	705	148259213	-	Acry_0193	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
193	 70.57	0	222874..224613	-	579	148259214	-	Acry_0194	-	radical SAM domain-containing protein
194	 71.46	0	224624..226021	-	465	148259215	-	Acry_0195	-	major facilitator transporter
195	 69.70	0	226341..227264	+	307	148259216	-	Acry_0196	-	dihydrodipicolinate synthetase
196	 72.15	0	227261..228829	+	522	148259217	-	Acry_0197	-	aldehyde dehydrogenase
197	 68.49	0	228858..229571	-	237	148259218	-	Acry_0198	-	hypothetical protein
198	 66.09	0	230055..230918	+	287	148259219	-	Acry_0199	-	peptidase M48, Ste24p
199	 65.35	0	231000..231530	-	176	148259220	-	Acry_0200	-	heat shock protein Hsp20
200	 70.85	0	231784..233073	-	429	148259221	-	Acry_0201	-	hypothetical protein
201	 66.99	0	233060..234001	-	313	148259222	-	Acry_0202	-	hypothetical protein
202	 65.31	0	234071..234883	+	270	148259223	-	Acry_0203	-	hypothetical protein
203	 69.96	0	235043..236467	+	474	148259224	-	Acry_0204	-	response regulator receiver protein
204	 69.67	0	236467..237831	+	454	148259225	-	Acry_0205	-	glycosyl transferase, group 1
205	 68.58	0	237828..239027	+	399	148259226	-	Acry_0206	-	glycosyl transferase, group 1
206	 70.59	0	239024..240832	+	602	148259227	-	Acry_0207	-	ABC transporter related
207	 67.85	0	240829..241671	+	280	148259228	-	Acry_0208	-	hypothetical protein
208	 72.30	0	241628..242284	+	218	148259229	-	Acry_0209	-	phosphoglycerate mutase
209	 71.73	0	242289..243650	+	453	148259230	-	Acry_0210	-	UDP-glucose 6-dehydrogenase
210	 72.51	0	243647..244348	-	233	148259231	-	Acry_0211	-	short-chain dehydrogenase/reductase SDR
211	 66.03	0	244450..247137	-	895	148259232	-	Acry_0212	-	aconitate hydratase
212	 69.26	0	247168..247860	+	230	148259233	-	Acry_0213	-	heme exporter protein CcmA
213	 69.88	0	247857..248510	+	217	148259234	-	Acry_0214	-	cytochrome c-type biogenesis protein CcmB
214	 69.77	0	248503..250272	-	589	148259235	-	Acry_0215	-	peptidase M24
215	 65.93	0	250436..250705	+	89	148259236	-	Acry_0216	-	hypothetical protein
216	 71.68	0	250751..251668	-	305	148259237	-	Acry_0217	-	ribosomal L11 methyltransferase
217	 68.54	0	251668..253854	-	728	148259238	-	Acry_0218	-	UvrD/REP helicase
218	 69.45	0	253851..254783	-	310	148259239	-	Acry_0219	-	5,10-methylenetetrahydrofolate reductase
219	 61.86	-1	254938..255810	+	290	148259240	-	Acry_0220	-	VacJ family lipoprotein
220	 63.80	0	255848..256474	+	208	148259241	-	Acry_0221	-	toluene tolerance family protein
221	 65.51	0	256531..257136	+	201	148259242	-	Acry_0222	-	hypothetical protein
222	 65.55	0	257162..258682	+	506	148259243	nusA	Acry_0223	-	transcription elongation factor NusA
223	 65.99	0	258675..259415	+	246	148259244	-	Acry_0224	-	hypothetical protein
224	 69.22	0	259432..262095	+	887	148259245	infB	Acry_0225	-	translation initiation factor IF-2
225	 63.36	0	262065..262487	+	140	148259246	rbfA	Acry_0226	-	ribosome-binding factor A
226	 69.35	0	262484..263452	+	322	148259247	-	Acry_0227	-	Sua5/YciO/YrdC/YwlC family protein
227	 62.57	-1	263478..266747	-	1089	148259248	-	Acry_0228	-	glycosyl transferase, group 1
228	 53.69	-2	267076..268038	-	320	148259249	-	Acry_0229	-	FkbM family methyltransferase
229	 60.49	-1	268531..268935	-	134	148259250	-	Acry_0230	-	ribose/xylose/arabinose/galactoside ABC-type transporter permease
230	 64.76	0	269405..269719	+	104	148259251	rplU	Acry_0231	-	50S ribosomal protein L21
231	 67.04	0	269735..270004	+	89	148259252	rpmA	Acry_0232	-	50S ribosomal protein L27
232	 68.07	0	270067..271065	+	332	148259253	obgE	Acry_0233	-	GTPase ObgE
233	 72.92	0	271062..272213	+	383	148259254	-	Acry_0234	-	gamma-glutamyl kinase
234	 68.56	0	272229..273335	-	368	148259255	-	Acry_0235	-	MscS mechanosensitive ion channel
235	 65.12	0	273456..273971	-	171	148259256	-	Acry_0236	-	hypothetical protein
236	 68.06	0	274069..274857	-	262	148259257	-	Acry_0237	-	arginyl-tRNA-protein transferase
237	 69.70	0	274854..275348	-	164	148259258	-	Acry_0238	-	RDD domain-containing protein
238	 65.81	0	275507..276439	+	310	148259259	-	Acry_0239	-	ribose-phosphate pyrophosphokinase
239	 67.15	0	276467..277087	+	206	148259260	-	Acry_0240	-	glutathione S-transferase domain-containing protein
240	 73.68	+1	277087..277671	+	194	148259261	-	Acry_0241	-	phosphoglycerate mutase
241	 69.67	0	277718..278881	+	387	148259262	-	Acry_0242	-	iron-containing alcohol dehydrogenase
242	 72.31	0	278928..280097	-	389	148259263	-	Acry_0243	-	amidase
243	 65.19	0	280204..281154	+	316	148259264	-	Acry_0244	-	hypothetical protein
244	 72.87	0	281151..282005	+	284	148259265	-	Acry_0245	-	methyltransferase type 11
245	 63.89	0	282357..284444	-	695	148259266	-	Acry_0246	-	translation elongation factor G
246	 71.63	0	284643..284924	-	93	148259267	-	Acry_0247	-	hypothetical protein
247	 68.47	0	284993..286264	-	423	148259268	-	Acry_0248	-	Serine-type D-Ala-D-Ala carboxypeptidase
248	 62.58	-1	286395..287153	+	252	148259269	-	Acry_0249	-	signal peptidase I
249	 72.22	0	287150..287815	+	221	148259270	-	Acry_0250	-	ribonuclease III
250	 69.37	0	287812..288699	+	295	148259271	era	Acry_0251	-	GTP-binding protein Era
251	 68.01	0	288738..289856	-	372	148259272	-	Acry_0252	-	acyl-CoA dehydrogenase domain-containing protein
252	 65.02	0	289867..291078	-	403	148259273	-	Acry_0253	-	acyl-CoA dehydrogenase domain-containing protein
253	 67.55	0	291181..292884	-	567	148259274	-	Acry_0254	-	AMP-dependent synthetase and ligase
254	 69.72	0	292881..294977	-	698	148259275	-	Acry_0255	-	3-hydroxyacyl-CoA dehydrogenase, NAD-binding
255	 75.38	+1	295076..296074	-	332	148259276	-	Acry_0256	-	ABC-type Fe3+ transport system periplasmic component-like protein
256	 70.31	0	296074..297447	-	457	148259277	-	Acry_0257	-	TPR repeat-containing protein
257	 75.23	+1	297444..299324	-	626	148259278	-	Acry_0258	-	sulfotransferase
258	 67.71	0	299456..300412	+	318	148259279	-	Acry_0259	-	rubrerythrin
259	 68.65	0	300444..301400	+	318	148259280	-	Acry_0260	-	2-nitropropane dioxygenase, NPD
260	 67.42	0	301408..302073	-	221	148259281	-	Acry_0261	-	glutathione S-transferase domain-containing protein
261	 72.46	0	302070..302897	-	275	148259282	-	Acry_0262	-	glycine cleavage T-protein, C-terminal barrel
262	 75.25	+1	302946..303842	+	298	148259283	-	Acry_0263	-	glycosyl transferase family protein
263	 73.68	+1	303839..304864	+	341	148259284	-	Acry_0264	-	phosphatidylserine decarboxylase
264	 73.37	+1	304864..306609	+	581	148259285	-	Acry_0265	-	asparagine synthase (glutamine-hydrolyzing)
265	 71.11	0	306606..307934	+	442	148259286	-	Acry_0266	-	dihydroorotase
266	 69.71	0	308584..309174	-	196	148259287	-	Acry_0267	-	MerR family transcriptional regulator
267	 65.40	0	309171..309485	-	104	148259288	-	Acry_0268	-	integration host factor, alpha subunit
268	 70.30	0	309567..310529	-	320	148259289	-	Acry_0269	-	3-oxoacyl-(acyl-carrier-protein) synthase III
269	 70.43	0	310535..311677	-	380	148259290	-	Acry_0270	-	putative glycerol-3-phosphate acyltransferase PlsX
270	 66.67	0	311765..311968	-	67	148259291	rpmF	Acry_0271	-	50S ribosomal protein L32
271	 70.17	0	312113..313225	+	370	148259292	-	Acry_0272	-	SmpA/OmlA domain-containing protein
272	 74.97	+1	313230..314819	+	529	148259293	-	Acry_0273	-	phosphatase-like protein
273	 67.48	0	314881..316359	+	492	148259294	-	Acry_0274	-	succinic semialdehyde dehydrogenase
274	 67.48	0	316607..317830	+	407	148259295	-	Acry_0275	-	phage integrase family protein
275	 64.95	0	317827..318465	+	212	148259296	-	Acry_0276	-	hypothetical protein
276	 64.26	0	318727..319059	+	110	148259297	-	Acry_0277	-	DNA binding domain-containing protein
277	 64.67	0	319056..321113	+	685	148259298	-	Acry_0278	-	phage integrase family protein
278	 66.49	0	321100..322200	+	366	148259299	-	Acry_0279	-	phage integrase family protein
279	 67.27	0	322246..322575	+	109	148259300	-	Acry_0280	-	hypothetical protein
280	 68.29	0	322577..323068	+	163	148259301	-	Acry_0281	-	GCN5-related N-acetyltransferase
281	 63.59	0	323464..324210	-	248	148259302	-	Acry_0282	-	IstB ATP binding domain-containing protein
282	 67.31	0	324228..325775	-	515	148259303	-	Acry_0283	-	integrase catalytic subunit
283	 62.96	-1	325989..326366	+	125	148259304	-	Acry_0284	-	hypothetical protein
68.17	MEAN

5.03	STD DEV
