IslandPathversion 1.0

IslandPath Analysis: Acidiphilium cryptum JF-5

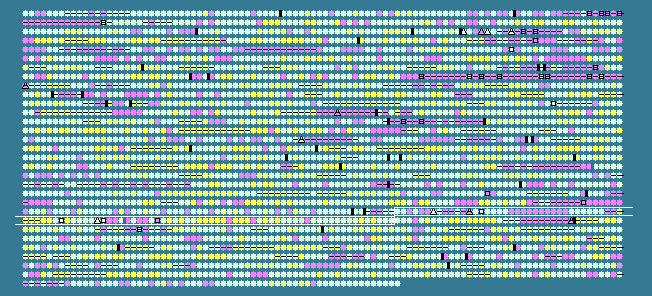

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2263	 67.32	0	2528675..2528980	-	101	148261284	-	Acry_2297	-	hypothetical protein
2264	 69.60	0	2528977..2529624	-	215	148261285	-	Acry_2298	-	hypothetical protein
2265	 64.23	0	2529636..2529881	-	81	148261286	-	Acry_2299	-	hypothetical protein
2266	 69.41	0	2530195..2530668	-	157	148261287	-	Acry_2300	-	hypothetical protein
2267	 63.54	0	2530665..2532038	-	457	148261288	-	Acry_2301	-	hypothetical protein
2268	 63.59	0	2532686..2533432	-	248	148261289	-	Acry_2302	-	IstB ATP binding domain-containing protein
2269	 67.31	0	2533450..2534997	-	515	148261290	-	Acry_2303	-	integrase catalytic subunit
2270	 66.46	0	2535115..2535591	-	158	148261291	-	Acry_2304	-	hypothetical protein
2271	 63.91	0	2535591..2536025	-	144	148261292	-	Acry_2305	-	hypothetical protein
2272	 56.33	-2	2536284..2536931	-	215	148261293	-	Acry_2306	-	hypothetical protein
2273	 65.48	0	2537128..2537379	-	83	148261294	-	Acry_2307	-	hypothetical protein
2274	 63.95	0	2537376..2537780	-	134	148261295	-	Acry_2308	-	hypothetical protein
2275	 64.64	0	2538067..2539299	-	410	148261296	-	Acry_2309	-	phage integrase family protein
2276	 66.91	0	2539799..2540605	+	268	148261297	-	Acry_2310	-	hypothetical protein
2277	 64.72	0	2540505..2541326	-	273	148261298	-	Acry_2311	-	transposase
2278	 66.92	0	2541879..2542673	-	264	148261299	-	Acry_2313	-	myo-inositol catabolism IolB domain-containing protein
2279	 68.62	0	2542705..2544543	-	612	148261300	-	Acry_2314	-	thiamine pyrophosphate enzyme, central region
2280	 66.35	0	2544540..2546450	-	636	148261301	-	Acry_2315	-	ribokinase-like domain-containing protein
2281	 66.79	0	2546519..2547322	-	267	148261302	-	Acry_2316	-	ABC transporter related
2282	 64.51	0	2547324..2548391	-	355	148261303	-	Acry_2317	-	inner-membrane translocator
2283	 63.24	0	2548472..2549434	-	320	148261304	-	Acry_2318	-	ABC-type sugar transport system periplasmic component-like protein
2284	 61.72	-1	2549599..2550387	-	262	148261305	-	Acry_2319	-	xylose isomerase domain-containing protein
2285	 62.91	-1	2550396..2551406	-	336	148261306	-	Acry_2320	-	inositol 2-dehydrogenase
2286	 60.85	-1	2551408..2552370	-	320	148261307	-	Acry_2321	-	xylose isomerase domain-containing protein
2287	 61.45	-1	2552446..2553519	+	357	148261308	-	Acry_2322	-	regulatory protein, LacI
2288	 58.00	-2	2553835..2553984	+	49	148261309	-	Acry_2323	-	hypothetical protein
2289	 63.71	0	2554047..2554859	-	270	148261310	-	Acry_2324	-	short chain dehydrogenase
2290	 63.71	0	2554856..2555767	-	303	148261311	-	Acry_2325	-	xylose isomerase domain-containing protein
2291	 64.02	0	2555881..2556825	-	314	148261312	-	Acry_2326	-	RpiR family transcriptional regulator
2292	 65.40	0	2557149..2557940	+	263	148261313	-	Acry_2327	-	HpcH/HpaI aldolase
2293	 68.69	0	2557942..2558928	+	328	148261314	-	Acry_2328	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
2294	 68.28	0	2558999..2559991	+	330	148261315	-	Acry_2329	-	inositol 2-dehydrogenase
2295	 67.29	0	2559996..2561117	+	373	148261316	-	Acry_2330	-	oxidoreductase domain-containing protein
2296	 64.85	0	2561181..2561345	-	54	148261317	-	Acry_2331	-	hypothetical protein
2297	 64.98	0	2561466..2563892	-	808	148261318	-	Acry_2332	-	hypothetical protein
2298	 63.97	0	2563912..2565471	-	519	148261319	-	Acry_2333	-	NADH dehydrogenase (quinone)
2299	 59.36	-1	2565579..2566454	+	291	148261320	-	Acry_2334	-	LysR family transcriptional regulator
2300	 75.19	+1	2566986..2567243	+	85	148261321	-	Acry_2335	-	hypothetical protein
2301	 73.43	+1	2567305..2567925	+	206	148261322	-	Acry_2336	-	RNA polymerase sigma factor
2302	 78.55	+2	2567922..2568350	+	142	148261323	-	Acry_2337	-	hypothetical protein
2303	 74.81	+1	2568347..2568886	+	179	148261324	-	Acry_2338	-	integral membrane protein-like protein
2304	 73.10	0	2569303..2570871	+	522	148261325	-	Acry_2339	-	hypothetical protein
2305	 74.55	+1	2570877..2572094	+	405	148261326	-	Acry_2340	-	hypothetical protein
2306	 70.54	0	2572154..2572798	+	214	148261327	-	Acry_2341	-	DNA photolyase domain-containing protein
2307	 66.51	0	2572946..2574199	+	417	148261328	-	Acry_2342	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
2308	 72.48	0	2574218..2575387	+	389	148261329	-	Acry_2343	-	deoxyribodipyrimidine photo-lyase
2309	 66.90	0	2575415..2575840	+	141	148261330	-	Acry_2344	-	hypothetical protein
2310	 68.96	0	2575833..2577008	+	391	148261331	-	Acry_2345	-	hypothetical protein
2311	 69.24	0	2577008..2578132	+	374	148261332	-	Acry_2346	-	hypothetical protein
2312	 67.90	0	2578333..2578656	+	107	148261333	-	Acry_2347	-	hypothetical protein
2313	 65.01	0	2578862..2579767	+	301	148261334	-	Acry_2348	-	phage integrase family protein
2314	 67.00	0	2579772..2580965	+	397	148261335	-	Acry_2349	-	putative transposase
2315	 60.00	-1	2581573..2582007	-	144	148261336	-	Acry_2350	-	globin
2316	 63.48	0	2582028..2583062	-	344	148261337	-	Acry_2351	-	hypothetical protein
2317	 65.19	0	2583946..2585640	+	564	148261338	-	Acry_2352	-	resolvase domain-containing protein
2318	 59.14	-1	2591485..2592441	-	318	148261339	-	Acry_2353	-	NAD-dependent epimerase/dehydratase
2319	 66.33	0	2592450..2593049	-	199	148261340	-	Acry_2354	-	phosphoheptose isomerase
2320	 62.98	-1	2593039..2593905	-	288	148261341	-	Acry_2355	-	3-hydroxybutyrate dehydrogenase
2321	 60.70	-1	2594160..2594444	+	94	148261342	-	Acry_2356	-	hypothetical protein
2322	 69.54	0	2594673..2595263	-	196	148261343	-	Acry_2357	-	SOUL heme-binding protein
2323	 62.57	-1	2595950..2596657	+	235	148261344	-	Acry_2358	-	transposase, IS4 family protein
2324	 70.27	0	2596666..2597304	-	212	148261345	-	Acry_2359	-	hypothetical protein
2325	 74.31	+1	2597423..2597893	-	156	148261346	-	Acry_2360	-	ferric uptake regulator family protein
2326	 67.70	0	2598015..2599667	+	550	148261347	-	Acry_2361	-	AMP-dependent synthetase and ligase
2327	 72.60	0	2599785..2600963	+	392	148261348	-	Acry_2362	-	major facilitator transporter
2328	 71.41	0	2600973..2601962	-	329	148261349	-	Acry_2363	-	alcohol dehydrogenase
2329	 68.90	0	2602044..2603831	-	595	148261350	aspS	Acry_2364	-	aspartyl-tRNA synthetase
2330	 72.52	0	2603916..2605094	+	392	148261351	-	Acry_2365	-	ribonuclease D
2331	 74.42	+1	2605095..2605868	-	257	148261352	-	Acry_2366	-	ABC-3 protein
2332	 76.31	+1	2605870..2606709	-	279	148261353	-	Acry_2367	-	ABC-3 protein
2333	 71.94	0	2606719..2607534	-	271	148261354	-	Acry_2368	-	ABC transporter related
2334	 72.86	0	2607531..2608451	-	306	148261355	-	Acry_2369	-	periplasmic solute binding protein
2335	 61.90	-1	2608579..2608809	+	76	148261356	-	Acry_2370	-	4-oxalocrotonate tautomerase
2336	 72.81	0	2608806..2609342	+	178	148261357	-	Acry_2371	-	hypothetical protein
2337	 74.12	+1	2609311..2610585	-	424	148261358	-	Acry_2372	-	hydroxypyruvate reductase
2338	 74.58	+1	2610693..2611526	-	277	148261359	-	Acry_2373	-	hypothetical protein
2339	 64.43	0	2611598..2611954	-	118	148261360	-	Acry_2374	-	hypothetical protein
2340	 71.01	0	2612030..2613019	-	329	148261361	-	Acry_2375	-	lysine--tRNA ligase
2341	 72.70	0	2613043..2614020	+	325	148261362	-	Acry_2376	-	lysine 2,3-aminomutase YodO family protein
2342	 64.89	0	2614033..2614482	+	149	148261363	-	Acry_2377	-	3-dehydroquinate dehydratase
2343	 72.88	0	2614479..2614961	+	160	148261364	-	Acry_2378	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
2344	 67.56	0	2614969..2616315	+	448	148261365	-	Acry_2379	-	acetyl-CoA carboxylase biotin carboxylase subunit
2345	 67.17	0	2616327..2617127	-	266	148261366	-	Acry_2380	-	hypothetical protein
2346	 65.49	0	2617229..2619601	+	790	148261367	-	Acry_2381	-	diguanylate cyclase/phosphodiesterase
2347	 67.32	0	2619699..2621990	+	763	148261368	-	Acry_2382	-	oxidoreductase alpha (molybdopterin) subunit
2348	 61.85	-1	2622107..2622832	-	241	148261369	-	Acry_2383	-	major intrinsic protein
2349	 67.13	0	2622868..2624367	-	499	148261370	-	Acry_2384	-	glycerol kinase
2350	 70.30	0	2624498..2626039	-	513	148261371	glpD	Acry_2385	-	glycerol-3-phosphate dehydrogenase
2351	 68.77	0	2626157..2626963	-	268	148261372	-	Acry_2386	-	DeoR family transcriptional regulator
2352	 70.36	0	2627258..2628775	+	505	148261373	-	Acry_2387	-	methyl-accepting chemotaxis sensory transducer
2353	 66.78	0	2628904..2629779	+	291	148261374	-	Acry_2388	-	glutathione S-transferase domain-containing protein
2354	 70.08	0	2629807..2631270	+	487	148261375	-	Acry_2389	-	aldehyde dehydrogenase
2355	 70.91	0	2631294..2632754	-	486	148261376	-	Acry_2390	-	gamma-aminobutyraldehyde dehydrogenase
2356	 65.70	0	2632735..2634285	-	516	148261377	-	Acry_2391	-	amino acid permease-associated region
2357	 74.00	+1	2634307..2635452	-	381	148261378	-	Acry_2392	-	helix-turn-helix domain-containing protein
2358	 67.00	0	2635501..2636982	+	493	148261379	-	Acry_2393	-	glutamine synthetase, catalytic region
2359	 72.56	0	2636989..2638158	+	389	148261380	-	Acry_2394	-	iron-containing alcohol dehydrogenase
2360	 65.93	0	2638307..2639386	+	359	148261381	-	Acry_2395	-	diguanylate cyclase
2361	 70.09	0	2639419..2642838	+	1139	148261382	dnaE	Acry_2396	-	DNA polymerase III subunit alpha
2362	 68.97	0	2642922..2644091	+	389	148261383	-	Acry_2397	-	acetyl-CoA acetyltransferase
68.17	MEAN

5.03	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
