IslandPath Analysis: Acidiphilium cryptum JF-5

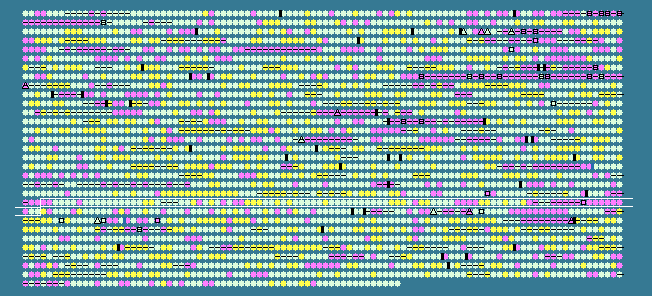

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2104	 56.43	-2	2357311..2357691	-	126	148261125	-	Acry_2134	-	flagellar basal body protein-like protein
2105	 61.68	-1	2358178..2358939	+	253	148261126	fliP	Acry_2135	-	flagellar biosynthesis protein FliP
2106	 66.52	0	2358979..2360376	-	465	148261127	-	Acry_2136	-	integral membrane sensor signal transduction histidine kinase
2107	 66.67	0	2360382..2361311	-	309	148261128	-	Acry_2137	-	patatin
2108	 67.41	0	2361529..2361663	+	44	148261129	-	Acry_2138	-	ribosomal protein L34
2109	 69.42	0	2361731..2362093	+	120	148261130	-	Acry_2139	-	ribonuclease P protein component
2110	 63.53	0	2362090..2362344	+	84	148261131	-	Acry_2140	-	hypothetical protein
2111	 66.94	0	2362337..2364142	+	601	148261132	-	Acry_2141	-	60 kDa inner membrane insertion protein
2112	 70.16	0	2364153..2364782	+	209	148261133	-	Acry_2142	-	GTPase EngB
2113	 67.46	0	2364831..2365841	+	336	148261134	-	Acry_2143	-	acetylglutamate kinase
2114	 70.50	0	2365893..2367563	-	556	148261135	-	Acry_2144	-	methyl-accepting chemotaxis sensory transducer
2115	 69.84	0	2367711..2369003	-	430	148261136	-	Acry_2145	-	hypothetical protein
2116	 67.48	0	2369211..2371922	+	903	148261137	-	Acry_2146	-	glycosyl transferase family protein
2117	 69.27	0	2371998..2373110	-	370	148261138	-	Acry_2147	-	3-isopropylmalate dehydrogenase
2118	 65.54	0	2373164..2373787	-	207	148261139	-	Acry_2148	-	3-isopropylmalate dehydratase, small subunit
2119	 69.59	0	2373784..2375184	-	466	148261140	-	Acry_2149	-	isopropylmalate isomerase large subunit
2120	 67.47	0	2375410..2375784	-	124	148261141	rplS	Acry_2150	-	50S ribosomal protein L19
2121	 72.34	0	2375812..2376516	-	234	148261142	-	Acry_2151	-	tRNA (guanine-N1)-methyltransferase
2122	 73.14	0	2376513..2377022	-	169	148261143	-	Acry_2152	-	16S rRNA processing protein RimM
2123	 69.86	0	2377038..2377382	-	114	148261144	rpsP	Acry_2153	-	30S ribosomal protein S16
2124	 68.92	0	2377538..2378911	-	457	148261145	-	Acry_2154	-	signal recognition particle protein
2125	 67.09	0	2379081..2380499	-	472	148261146	-	Acry_2155	-	NAD(P)(+) transhydrogenase (AB-specific)
2126	 67.42	0	2380513..2380908	-	131	148261147	-	Acry_2156	-	NAD/NADP transhydrogenase alpha subunit-like protein
2127	 70.78	0	2380919..2382061	-	380	148261148	-	Acry_2157	-	NAD(P) transhydrogenase subunit alpha
2128	 68.82	0	2382291..2382941	+	216	148261149	-	Acry_2158	-	ATP-dependent Clp protease proteolytic subunit
2129	 73.46	+1	2382962..2383873	-	303	148261150	-	Acry_2159	-	LysR family transcriptional regulator
2130	 64.29	0	2384032..2384577	+	181	148261151	-	Acry_2160	-	hypothetical protein
2131	 66.11	0	2384650..2385549	+	299	148261152	-	Acry_2161	-	GntR domain-containing protein
2132	 73.27	+1	2385571..2387085	-	504	148261153	-	Acry_2162	-	carboxypeptidase Taq
2133	 68.20	0	2387082..2387798	-	238	148261154	-	Acry_2163	-	hypothetical protein
2134	 62.56	-1	2387803..2388654	-	283	148261155	-	Acry_2164	-	cytochrome c oxidase, subunit III
2135	 67.92	0	2388873..2389826	-	317	148261156	-	Acry_2165	-	protoheme IX farnesyltransferase
2136	 63.04	-1	2389946..2391544	-	532	148261157	-	Acry_2166	-	cytochrome-c oxidase
2137	 63.83	0	2391578..2392528	-	316	148261158	-	Acry_2167	-	cytochrome c oxidase, subunit II
2138	 72.13	0	2392691..2393404	-	237	148261159	-	Acry_2168	-	phosphatidylethanolamine N-methyltransferase
2139	 74.05	+1	2393590..2394117	-	175	148261160	-	Acry_2169	-	GcrA cell cycle regulator
2140	 72.28	0	2394233..2394766	-	177	148261161	-	Acry_2170	-	hypothetical protein
2141	 71.48	0	2394753..2395520	-	255	148261162	-	Acry_2171	-	UBA/THIF-type NAD/FAD binding protein
2142	 66.81	0	2396626..2398038	+	470	148261163	-	Acry_2173	-	2-nitropropane dioxygenase-like protein
2143	 72.44	0	2398168..2400522	-	784	148261164	-	Acry_2174	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
2144	 70.78	0	2400519..2401004	-	161	148261165	-	Acry_2175	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
2145	 73.31	+1	2400989..2401816	-	275	148261166	-	Acry_2176	-	molybdopterin dehydrogenase, FAD-binding
2146	 67.95	0	2401884..2403209	-	441	148261167	-	Acry_2177	-	major facilitator transporter
2147	 71.06	0	2403597..2404961	-	454	148261168	-	Acry_2178	-	integral membrane sensor signal transduction histidine kinase
2148	 68.44	0	2404958..2405746	-	262	148261169	-	Acry_2179	-	two component transcriptional regulator
2149	 71.00	0	2405980..2407110	+	376	148261170	-	Acry_2180	-	Orn/DAP/Arg decarboxylase 2
2150	 66.80	0	2407144..2407896	+	250	148261171	-	Acry_2181	-	carboxymethylenebutenolidase
2151	 78.10	+1	2407899..2409122	+	407	148261172	-	Acry_2182	-	hypothetical protein
2152	 71.42	0	2409226..2412213	+	995	148261173	-	Acry_2183	-	glycosyl transferase family protein
2153	 69.44	0	2412315..2414981	-	888	148261174	-	Acry_2184	-	pyruvate phosphate dikinase
2154	 67.82	0	2414989..2417160	-	723	148261175	-	Acry_2185	-	glycine--tRNA ligase
2155	 65.56	0	2417153..2418058	-	301	148261176	glyQ	Acry_2186	-	glycyl-tRNA synthetase subunit alpha
2156	 71.11	0	2418126..2418530	+	134	148261177	-	Acry_2187	-	hypothetical protein
2157	 67.77	0	2418517..2419689	+	390	148261178	-	Acry_2188	-	acyl-CoA dehydrogenase domain-containing protein
2158	 71.16	0	2419751..2420707	+	318	148261179	-	Acry_2189	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
2159	 71.18	0	2420804..2421424	+	206	148261180	-	Acry_2190	-	hypothetical protein
2160	 66.78	0	2421470..2422333	-	287	148261181	-	Acry_2191	-	spermidine synthase
2161	 64.73	0	2422403..2422867	-	154	148261182	-	Acry_2192	-	S-adenosylmethionine decarboxylase related
2162	 72.99	0	2423034..2423792	-	252	148261183	-	Acry_2193	-	hypothetical protein
2163	 73.95	+1	2423851..2424990	+	379	148261184	-	Acry_2194	-	glycosyl transferase, group 1
2164	 76.04	+1	2424987..2425925	+	312	148261185	-	Acry_2195	-	glycosyl transferase family protein
2165	 68.49	0	2425937..2427859	+	640	148261186	-	Acry_2196	-	threonyl-tRNA synthetase
2166	 61.06	-1	2428135..2428776	+	213	148261187	-	Acry_2197	-	hypothetical protein
2167	 77.04	+1	2428944..2429531	+	195	148261188	-	Acry_2198	-	hypothetical protein
2168	 72.51	0	2429554..2430375	-	273	148261189	-	Acry_2199	-	beta-ketoadipate pathway transcription regulator
2169	 69.14	0	2430570..2431055	-	161	148261190	-	Acry_2200	-	OsmC family protein
2170	 69.52	0	2431094..2431795	-	233	148261191	-	Acry_2201	-	ABC transporter related
2171	 67.94	0	2431800..2432507	-	235	148261192	-	Acry_2202	-	ABC transporter related
2172	 66.12	0	2432497..2433405	-	302	148261193	-	Acry_2203	-	inner-membrane translocator
2173	 64.63	0	2433419..2434300	-	293	148261194	-	Acry_2204	-	inner-membrane translocator
2174	 64.12	0	2434402..2435658	-	418	148261195	-	Acry_2205	-	extracellular ligand-binding receptor
2175	 61.65	-1	2435779..2436795	-	338	148261196	-	Acry_2206	-	hypothetical protein
2176	 64.42	0	2436881..2437147	+	88	148261197	-	Acry_2207	-	hypothetical protein
2177	 73.51	+1	2437362..2439671	+	769	148261198	-	Acry_2208	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2178	 74.28	+1	2439791..2440972	+	393	148261199	-	Acry_2209	-	hypothetical protein
2179	 69.73	0	2441086..2442816	+	576	148261200	-	Acry_2210	-	dihydroxy-acid dehydratase
2180	 71.63	0	2442923..2445298	+	791	148261201	-	Acry_2211	-	carbon-monoxide dehydrogenase (acceptor)
2181	 71.91	0	2445358..2446101	-	247	148261202	-	Acry_2212	-	glycosyl transferase family protein
2182	 70.72	0	2446312..2447298	-	328	148261203	-	Acry_2213	-	monosaccharide-transporting ATPase
2183	 70.83	0	2447295..2448278	-	327	148261204	-	Acry_2214	-	monosaccharide-transporting ATPase
2184	 71.90	0	2448275..2449804	-	509	148261205	-	Acry_2215	-	ABC transporter related
2185	 61.56	-1	2449820..2450857	-	345	148261206	-	Acry_2216	-	periplasmic binding protein/LacI transcriptional regulator
2186	 62.94	-1	2451299..2451700	-	133	148261207	-	Acry_2217	-	DNA replication protein-like protein
2187	 66.17	0	2451894..2452499	-	201	148261208	-	Acry_2218	-	PadR-like family transcriptional regulator
2188	 65.46	0	2452764..2453012	-	82	148261209	-	Acry_2219	-	CopG/Arc/MetJ family transcriptional regulator
2189	 62.85	-1	2453275..2453562	+	95	148261210	-	Acry_2220	-	hypothetical protein
2190	 54.93	-2	2454391..2455080	-	229	148261211	-	Acry_2222	-	hypothetical protein
2191	 47.49	-2	2455386..2455922	-	178	148261212	-	Acry_2223	-	hypothetical protein
2192	 63.61	0	2456273..2456566	-	97	148261213	-	Acry_2225	-	hypothetical protein
2193	 56.38	-2	2456767..2457048	-	93	148261214	-	Acry_2226	-	hypothetical protein
2194	 63.85	0	2457060..2458406	+	448	148261215	-	Acry_2227	-	transposase, IS4 family protein
2195	 63.64	0	2458551..2459771	-	406	148261216	-	Acry_2228	-	peptidase dimerisation domain-containing protein
2196	 63.64	0	2459773..2460960	-	395	148261217	-	Acry_2229	-	amidohydrolase
2197	 58.60	-1	2461609..2462079	-	156	148261218	-	Acry_2230	-	hypothetical protein
2198	 62.49	-1	2462369..2463277	-	302	148261219	-	Acry_2231	-	LysR family transcriptional regulator
2199	 61.15	-1	2463377..2464138	+	253	148261220	-	Acry_2232	-	short-chain dehydrogenase/reductase SDR
2200	 56.34	-2	2464288..2464965	+	225	148261221	-	Acry_2233	-	Asp/Glu racemase
2201	 62.68	-1	2465204..2466130	+	308	148261222	-	Acry_2234	-	threonine dehydratase
2202	 70.72	0	2467182..2468168	-	328	148261223	-	Acry_2236	-	monosaccharide-transporting ATPase
2203	 70.83	0	2468165..2469148	-	327	148261224	-	Acry_2237	-	monosaccharide-transporting ATPase
68.17	MEAN

5.03	STD DEV
