IslandPathversion 1.0

IslandPath Analysis: Acidiphilium cryptum JF-5

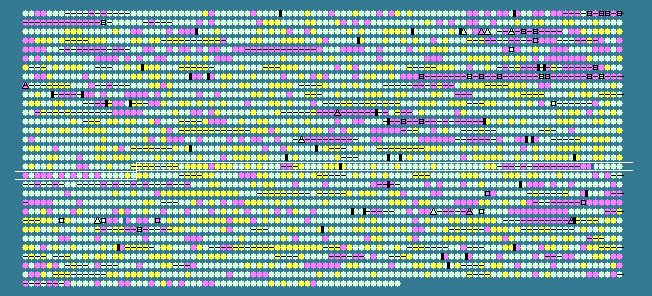

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1720	 74.76	+1	1925167..1926537	-	456	148260741	-	Acry_1745	-	N-formimino-L-glutamate deiminase
1721	 73.88	+1	1926620..1927825	+	401	148260742	-	Acry_1746	-	imidazolonepropionase
1722	 73.48	+1	1927822..1929348	+	508	148260743	-	Acry_1747	-	histidine ammonia-lyase
1723	 68.82	0	1929345..1930178	+	277	148260744	-	Acry_1748	-	N-formylglutamate amidohydrolase
1724	 70.14	0	1930184..1931854	+	556	148260745	-	Acry_1749	-	urocanate hydratase
1725	 73.99	+1	1931858..1932622	-	254	148260746	-	Acry_1750	-	GntR family transcriptional regulator
1726	 75.50	+1	1932625..1933518	-	297	148260747	-	Acry_1751	-	N-formylglutamate amidohydrolase
1727	 65.80	0	1933600..1933944	+	114	148260748	-	Acry_1752	-	hypothetical protein
1728	 73.97	+1	1933945..1934355	-	136	148260749	-	Acry_1753	-	hypothetical protein
1729	 72.08	0	1934517..1937951	-	1144	148260750	-	Acry_1754	-	transcription-repair coupling factor
1730	 72.97	0	1938191..1940362	+	723	148260751	-	Acry_1756	-	DEAD/DEAH box helicase domain-containing protein
1731	 73.33	+1	1940359..1940793	+	144	148260752	-	Acry_1757	-	NUDIX hydrolase
1732	 64.42	0	1940786..1941763	-	325	148260753	-	Acry_1758	-	putative sulfite oxidase subunit YedY
1733	 71.90	0	1941863..1942645	+	260	148260754	mazG	Acry_1759	-	nucleoside triphosphate pyrophosphohydrolase
1734	 72.54	0	1942680..1943513	-	277	148260755	-	Acry_1760	-	inositol monophosphatase
1735	 71.87	0	1943537..1944844	-	435	148260756	-	Acry_1761	-	GTP-binding protein, HSR1-related
1736	 65.91	0	1944851..1945378	-	175	148260757	-	Acry_1762	-	RNA chaperone Hfq
1737	 69.31	0	1945426..1946976	-	516	148260758	-	Acry_1763	-	hypothetical protein
1738	 72.83	0	1947117..1948154	-	345	148260759	-	Acry_1764	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1739	 67.87	0	1948159..1948491	-	110	148260760	-	Acry_1765	-	ferredoxin
1740	 75.85	+1	1948546..1949688	-	380	148260761	-	Acry_1766	-	aminotransferase, class V
1741	 70.31	0	1949675..1950442	-	255	148260762	-	Acry_1767	-	serine O-acetyltransferase
1742	 66.37	0	1950885..1951550	+	221	148260763	-	Acry_1768	-	alpha/beta fold family hydrolase-like protein
1743	 65.66	0	1951607..1952404	-	265	148260764	-	Acry_1769	-	DeoR family transcriptional regulator
1744	 60.22	-1	1952645..1953094	-	149	148260765	-	Acry_1770	-	MucR family transcriptional regulator
1745	 64.02	0	1953254..1953517	+	87	148260766	-	Acry_1771	-	SirA family protein
1746	 74.05	+1	1953486..1953932	-	148	148260767	-	Acry_1772	-	ribosomal-protein-alanine acetyltransferase
1747	 78.27	+2	1953929..1954600	-	223	148260768	-	Acry_1773	-	peptidase M22, glycoprotease
1748	 65.64	0	1954602..1955186	-	194	148260769	-	Acry_1774	-	hypothetical protein
1749	 67.74	0	1955229..1955786	-	185	148260770	-	Acry_1775	-	NifU domain-containing protein
1750	 68.44	0	1955991..1956497	+	168	148260771	-	Acry_1776	-	hypothetical protein
1751	 75.99	+1	1956507..1957214	-	235	148260772	-	Acry_1777	-	methyltransferase type 11
1752	 72.68	0	1957248..1957979	+	243	148260773	-	Acry_1778	-	hydroxyacylglutathione hydrolase
1753	 71.68	0	1958065..1959960	-	631	148260774	-	Acry_1779	-	AMP-dependent synthetase and ligase
1754	 72.25	0	1960352..1961014	+	220	148260775	-	Acry_1780	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
1755	 68.66	0	1961064..1962617	+	517	148260776	-	Acry_1781	-	TolC family type I secretion outer membrane protein
1756	 71.51	0	1962614..1963171	+	185	148260777	-	Acry_1782	-	hypothetical protein
1757	 69.84	0	1963330..1966005	+	891	148260778	valS	Acry_1783	-	valyl-tRNA synthetase
1758	 66.43	0	1966078..1966908	+	276	148260779	-	Acry_1784	-	band 7 protein
1759	 73.66	+1	1967004..1968332	-	442	148260780	-	Acry_1785	-	peptidase U62, modulator of DNA gyrase
1760	 67.61	0	1968329..1969594	-	421	148260781	-	Acry_1786	-	processing peptidase
1761	 70.58	0	1969591..1970994	-	467	148260782	-	Acry_1787	-	threonine synthase
1762	 67.27	0	1971057..1971557	-	166	148260783	-	Acry_1788	-	preprotein translocase subunit SecB
1763	 71.82	0	1971641..1972591	+	316	148260784	-	Acry_1789	-	N-acetyl-gamma-glutamyl-phosphate reductase
1764	 69.40	0	1972647..1973195	+	182	148260785	-	Acry_1790	-	2'-5' RNA ligase
1765	 68.70	0	1973308..1974834	-	508	148260786	-	Acry_1791	-	methylmalonate-semialdehyde dehydrogenase
1766	 70.16	0	1974920..1975807	+	295	148260787	-	Acry_1792	-	LysR family transcriptional regulator
1767	 67.68	0	1975868..1976359	-	163	148260788	-	Acry_1793	-	hypothetical protein
1768	 71.32	0	1976383..1977435	+	350	148260789	-	Acry_1794	-	secretion protein HlyD family protein
1769	 72.60	0	1977422..1979158	+	578	148260790	-	Acry_1795	-	ABC transporter related
1770	 69.69	0	1979155..1980279	+	374	148260791	-	Acry_1796	-	ABC-2 type transporter
1771	 68.20	0	1980285..1981391	+	368	148260792	-	Acry_1797	-	ABC-2 type transporter
1772	 68.94	0	1981545..1983218	+	557	148260793	-	Acry_1798	-	hydroxylamine reductase
1773	 69.73	0	1983295..1984305	+	336	148260794	-	Acry_1799	-	oxidoreductase FAD-binding subunit
1774	 67.11	0	1984337..1984789	+	150	148260795	-	Acry_1800	-	BadM/Rrf2 family transcriptional regulator
1775	 68.61	0	1984945..1986075	-	376	148260796	-	Acry_1801	-	cellulose biosynthesis protein CelD
1776	 66.57	0	1986113..1987153	+	346	148260797	-	Acry_1802	-	hypothetical protein
1777	 71.22	0	1987153..1988382	+	409	148260798	-	Acry_1803	-	glycosyl transferase, group 1
1778	 72.05	0	1988400..1989440	+	346	148260799	-	Acry_1804	-	hypothetical protein
1779	 72.74	0	1989437..1990555	+	372	148260800	-	Acry_1805	-	glycosyl transferase, group 1
1780	 68.33	0	1990552..1990971	+	139	148260801	-	Acry_1806	-	hypothetical protein
1781	 61.47	-1	1991304..1992266	-	320	148260802	-	Acry_1808	-	CRISPR-associated Cas1 family protein
1782	 63.46	0	1992259..1992945	-	228	148260803	-	Acry_1809	-	CRISPR-associated Cse3 family protein
1783	 65.20	0	1992942..1993691	-	249	148260804	-	Acry_1810	-	CRISPR-associated Cas5 family protein
1784	 63.43	0	1993693..1994805	-	370	148260805	-	Acry_1811	-	CRISPR-associated Cse4 family protein
1785	 65.56	0	1994805..1995344	-	179	148260806	-	Acry_1812	-	hypothetical protein
1786	 61.01	-1	1995341..1996930	-	529	148260807	-	Acry_1813	-	CRISPR-associated Cse1 family protein
1787	 63.11	-1	1997220..1999325	-	701	148260808	-	Acry_1814	-	CRISPR-associated helicase Cas3
1788	 58.58	-1	2000148..2000456	-	102	148260809	-	Acry_1815	-	hypothetical protein
1789	 62.61	-1	2000602..2002374	-	590	148260810	-	Acry_1816	-	ATPase central domain-containing protein
1790	 60.22	-1	2002595..2003308	-	237	148260811	-	Acry_1817	-	hypothetical protein
1791	 51.75	-2	2003548..2003775	+	75	148260812	-	Acry_1818	-	hypothetical protein
1792	 52.06	-2	2003885..2004370	-	161	148260813	-	Acry_1819	-	hypothetical protein
1793	 49.07	-2	2004619..2004942	-	107	148260814	-	Acry_1820	-	hypothetical protein
1794	 57.49	-2	2005182..2005508	-	108	148260815	-	Acry_1821	-	NIPSNAP family protein
1795	 64.53	0	2005755..2007485	+	576	148260816	-	Acry_1822	-	resolvase domain-containing protein
1796	 66.28	0	2013473..2016055	-	860	148260817	-	Acry_1823	-	ATPase
1797	 69.03	0	2016173..2016934	+	253	148260818	-	Acry_1824	-	MOSC domain-containing protein
1798	 67.35	0	2016985..2017569	+	194	148260819	-	Acry_1825	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1799	 67.78	0	2017577..2018116	+	179	148260820	-	Acry_1826	-	molybdopterin-guanine dinucleotide biosynthesis protein B
1800	 69.65	0	2018170..2018940	+	256	148260821	-	Acry_1827	-	hypothetical protein
1801	 60.71	-1	2018972..2019223	+	83	148260822	-	Acry_1828	-	molybdopterin converting factor, subunit 1
1802	 67.76	0	2019220..2019678	+	152	148260823	-	Acry_1829	-	molybdopterin biosynthesis MoaE protein
1803	 53.78	-2	2019963..2020715	+	250	148260824	-	Acry_1830	-	two component transcriptional regulator
1804	 59.20	-1	2020749..2021900	-	383	148260825	-	Acry_1831	-	radical SAM domain-containing protein
1805	 62.50	-1	2021940..2022923	-	327	148260826	-	Acry_1832	-	hydroxymethylbutenyl pyrophosphate reductase
1806	 67.49	0	2023304..2025247	+	647	148260827	-	Acry_1833	-	1-deoxy-D-xylulose-5-phosphate synthase
1807	 62.04	-1	2025244..2025891	+	215	148260828	-	Acry_1834	-	toluene tolerance family protein
1808	 69.26	0	2025893..2027086	+	397	148260829	-	Acry_1835	-	cell wall biosynthesis glycosyltransferase-like protein
1809	 64.28	0	2027097..2028521	+	474	148260830	-	Acry_1836	-	radical SAM domain-containing protein
1810	 68.03	0	2028543..2029346	+	267	148260831	-	Acry_1837	-	YdjC family protein
1811	 59.15	-1	2029506..2031167	+	553	148260832	-	Acry_1838	-	hypothetical protein
1812	 65.77	0	2031312..2031758	-	148	148260833	-	Acry_1839	-	hypothetical protein
1813	 61.86	-1	2031755..2032087	-	110	148260834	-	Acry_1840	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1814	 68.31	0	2032161..2032889	-	242	148260835	-	Acry_1841	-	hypothetical protein
1815	 65.00	0	2032873..2033292	-	139	148260836	-	Acry_1842	-	hypothetical protein
1816	 64.76	0	2033386..2033805	+	139	148260837	-	Acry_1843	-	BadM/Rrf2 family transcriptional regulator
1817	 70.20	0	2033926..2035650	-	574	148260838	-	Acry_1844	-	DEAD/DEAH box helicase domain-containing protein
1818	 71.99	0	2035778..2036434	-	218	148260839	-	Acry_1845	-	3-oxoacid CoA-transferase, B subunit
1819	 71.18	0	2036434..2037120	-	228	148260840	-	Acry_1846	-	3-oxoacid CoA-transferase, A subunit
68.17	MEAN

5.03	STD DEV
