IslandPath Analysis: Acidiphilium cryptum JF-5

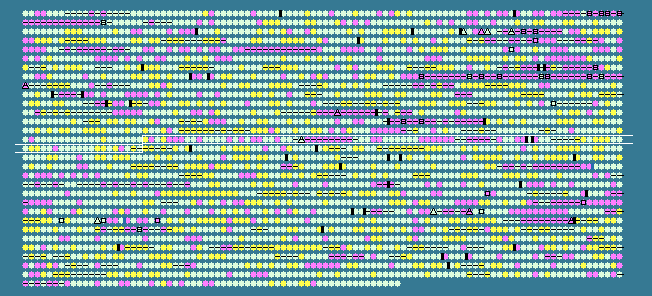

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1421	 72.86	0	1602832..1603800	-	322	148260442	-	Acry_1441	-	LysR family transcriptional regulator
1422	 63.62	0	1603866..1604324	+	152	148260443	-	Acry_1442	-	DoxX family protein
1423	 70.11	0	1604324..1605106	+	260	148260444	-	Acry_1443	-	extradiol ring-cleavage dioxygenase III subunit B
1424	 71.66	0	1605082..1606323	-	413	148260445	-	Acry_1444	-	major facilitator transporter
1425	 62.48	-1	1606353..1607882	-	509	148260446	-	Acry_1445	-	Na+/solute symporter
1426	 57.97	-2	1607894..1608100	-	68	148260447	-	Acry_1446	-	hypothetical protein
1427	 64.60	0	1608185..1608766	-	193	148260448	-	Acry_1447	-	guanylate kinase
1428	 68.32	0	1608759..1609667	-	302	148260449	-	Acry_1448	-	hypothetical protein
1429	 64.91	0	1609664..1610746	-	360	148260450	-	Acry_1449	-	DNA methylase N-4/N-6 domain-containing protein
1430	 64.46	0	1610890..1611660	+	256	148260451	-	Acry_1450	-	enoyl-CoA hydratase/isomerase
1431	 66.37	0	1612238..1613257	-	339	148260452	-	Acry_1452	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1432	 69.11	0	1613327..1613776	+	149	148260453	-	Acry_1453	-	hypothetical protein
1433	 70.69	0	1613773..1616652	+	959	148260454	-	Acry_1454	-	hypothetical protein
1434	 68.80	0	1616649..1620122	+	1157	148260455	-	Acry_1455	-	UvrD-like DNA helicase, C terminal
1435	 60.86	-1	1620180..1620506	+	108	148260456	-	Acry_1456	-	thioredoxin
1436	 65.91	0	1620512..1620910	+	132	148260457	-	Acry_1457	-	thioesterase superfamily protein
1437	 64.56	0	1620912..1622336	-	474	148260458	-	Acry_1458	-	major facilitator transporter
1438	 65.05	0	1622344..1623396	-	350	148260459	-	Acry_1459	-	aldo/keto reductase
1439	 63.24	0	1623663..1624334	+	223	148260460	-	Acry_1460	-	MotA/TolQ/ExbB proton channel
1440	 62.15	-1	1624339..1624803	+	154	148260461	-	Acry_1461	-	biopolymer transport protein ExbD/TolR
1441	 65.87	0	1624848..1626221	-	457	148260462	-	Acry_1462	-	D-lactate dehydrogenase (cytochrome)
1442	 67.04	0	1626342..1627154	+	270	148260463	-	Acry_1463	-	metallophosphoesterase
1443	 62.04	-1	1627146..1627685	-	179	148260464	-	Acry_1464	-	cytochrome B561
1444	 67.06	0	1627734..1628738	+	334	148260465	-	Acry_1465	-	hypothetical protein
1445	 66.67	0	1628671..1629342	-	223	148260466	-	Acry_1466	-	FMN-binding negative transcriptional regulator
1446	 66.73	0	1629352..1631010	-	552	148260467	-	Acry_1467	-	3-dehydroquinate synthase
1447	 65.68	0	1631038..1631952	+	304	148260468	-	Acry_1468	-	phage integrase family protein
1448	 63.12	-1	1631979..1632824	-	281	148260469	-	Acry_1469	-	cobyrinic acid a,c-diamide synthase
1449	 62.36	-1	1632814..1633695	-	293	148260470	-	Acry_1470	-	GTP-binding signal recognition particle
1450	 59.06	-1	1633696..1635771	-	691	148260471	flhA	Acry_1471	-	flagellar biosynthesis protein FlhA
1451	 57.96	-2	1635771..1637126	-	451	148260472	-	Acry_1472	-	two component, sigma54 specific, Fis family transcriptional regulator
1452	 58.90	-1	1637133..1637531	-	132	148260473	-	Acry_1473	-	flagellar motor switch protein FliN
1453	 58.85	-1	1637497..1638507	-	336	148260474	fliG	Acry_1474	-	flagellar motor switch protein G
1454	 59.63	-1	1638504..1640066	-	520	148260475	-	Acry_1475	-	flagellar M-ring protein FliF
1455	 64.47	0	1640186..1640641	-	151	148260476	-	Acry_1476	-	CMP/dCMP deaminase, zinc-binding
1456	 66.11	0	1640696..1641409	+	237	148260477	-	Acry_1477	-	peptidase C26
1457	 65.32	0	1641406..1642149	+	247	148260478	-	Acry_1478	-	RNA-binding S4 domain-containing protein
1458	 70.97	0	1642146..1642703	+	185	148260479	-	Acry_1479	-	putative methyltransferase
1459	 62.52	-1	1642710..1643408	-	232	148260480	-	Acry_1480	-	hypothetical protein
1460	 63.72	0	1643411..1644769	-	452	148260481	-	Acry_1481	-	hypothetical protein
1461	 66.23	0	1644786..1646633	-	615	148260482	-	Acry_1482	-	pepF/M3 family oligoendopeptidase
1462	 66.42	0	1646732..1647553	+	273	148260483	-	Acry_1483	-	hypothetical protein
1463	 70.08	0	1647550..1648515	+	321	148260484	-	Acry_1484	-	NAD-dependent glycerol-3-phosphate dehydrogenase domain-containing protein
1464	 66.38	0	1648523..1649230	-	235	148260485	-	Acry_1485	-	haloacid dehalogenase, type II
1465	 66.13	0	1649236..1649421	-	61	148260486	-	Acry_1486	-	hypothetical protein
1466	 65.83	0	1649474..1651864	+	796	148260487	-	Acry_1487	-	MscS mechanosensitive ion channel
1467	 62.53	-1	1651917..1652642	+	241	148260488	-	Acry_1488	-	hypothetical protein
1468	 63.59	0	1652650..1653657	-	335	148260489	-	Acry_1489	-	cysteine synthase A
1469	 62.04	-1	1653751..1654161	+	136	148260490	-	Acry_1490	-	rhodanese domain-containing protein
1470	 64.31	0	1654243..1655472	+	409	148260491	-	Acry_1491	-	major facilitator transporter
1471	 61.58	-1	1655516..1656301	+	261	148260492	-	Acry_1492	-	methionine aminopeptidase, type I
1472	 63.15	0	1656346..1657113	+	255	148260493	-	Acry_1493	-	DNA repair protein RadC
1473	 66.28	0	1657108..1657881	-	257	148260494	-	Acry_1494	-	methyltransferase type 11
1474	 65.75	0	1657999..1658652	+	217	148260495	-	Acry_1495	-	phosphoribosyltransferase
1475	 62.02	-1	1658715..1658972	+	85	148260496	-	Acry_1496	-	glutaredoxin 3
1476	 63.60	0	1658969..1659424	+	151	148260497	-	Acry_1497	-	hypothetical protein
1477	 62.25	-1	1659441..1659983	+	180	148260498	-	Acry_1498	-	carbonic anhydrase
1478	 62.93	-1	1660013..1660600	+	195	148260499	-	Acry_1499	-	hypothetical protein
1479	 65.39	0	1660660..1662069	-	469	148260500	-	Acry_1500	-	hypothetical protein
1480	 64.36	0	1662261..1663646	+	461	148260501	-	Acry_1501	-	isocitrate lyase
1481	 67.72	0	1663732..1664775	-	347	148260502	-	Acry_1502	-	HhH-GPD family protein
1482	 69.51	0	1664772..1665263	-	163	148260503	-	Acry_1503	-	hypothetical protein
1483	 64.12	0	1665269..1668016	-	915	148260504	-	Acry_1504	-	DNA polymerase I
1484	 59.65	-1	1668013..1668240	-	75	148260505	-	Acry_1505	-	hypothetical protein
1485	 66.67	0	1668781..1669056	+	91	148260506	-	Acry_1506	-	hypothetical protein
1486	 59.46	-1	1669047..1669601	+	184	148260507	dcd	Acry_1507	-	deoxycytidine triphosphate deaminase
1487	 69.29	0	1669608..1670864	+	418	148260508	-	Acry_1508	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1488	 65.80	0	1670801..1672075	-	424	148260509	-	Acry_1509	-	cyclopropane-fatty-acyl-phospholipid synthase
1489	 68.27	0	1672239..1672799	-	186	148260510	-	Acry_1510	-	ribosomal protein L9
1490	 69.79	0	1672812..1673099	-	95	148260511	rpsR	Acry_1511	-	30S ribosomal protein S18
1491	 66.67	0	1673103..1673579	-	158	148260512	-	Acry_1512	-	ribosomal protein S6
1492	 70.33	0	1673725..1674024	-	99	148260513	-	Acry_1513	-	antibiotic biosynthesis monooxygenase
1493	 71.79	0	1674040..1676028	-	662	148260514	-	Acry_1514	-	carbamoyl-phosphate synthase L chain, ATP-binding
1494	 71.74	0	1676034..1676822	-	262	148260515	-	Acry_1515	-	enoyl-CoA hydratase/isomerase
1495	 68.84	0	1676827..1678434	-	535	148260516	-	Acry_1516	-	propionyl-CoA carboxylase
1496	 71.97	0	1678331..1679254	-	307	148260517	-	Acry_1517	-	glycosyl transferase WecB/TagA/CpsF
1497	 73.10	0	1679251..1680510	-	419	148260518	-	Acry_1518	-	hypothetical protein
1498	 72.56	0	1680590..1681522	+	310	148260519	-	Acry_1519	-	glycosyl transferase family protein
1499	 68.17	0	1681519..1682514	+	331	148260520	-	Acry_1520	-	acyltransferase 3
1500	 69.37	0	1682522..1682743	+	73	148260521	-	Acry_1521	-	hypothetical protein
1501	 69.67	0	1682701..1684065	-	454	148260522	-	Acry_1522	-	hypothetical protein
1502	 72.55	0	1684073..1686229	-	718	148260523	-	Acry_1523	-	non-specific protein-tyrosine kinase
1503	 71.74	0	1686368..1686958	+	196	148260524	-	Acry_1524	-	polysaccharide export protein
1504	 70.42	0	1687107..1688066	+	319	148260525	-	Acry_1525	-	malonyl CoA-acyl carrier protein transacylase
1505	 69.73	0	1688056..1688805	+	249	148260526	-	Acry_1526	-	3-oxoacyl-(acyl-carrier-protein) reductase
1506	 56.67	-2	1688985..1689224	+	79	148260527	-	Acry_1527	-	acyl carrier protein
1507	 67.38	0	1689244..1690512	+	422	148260528	-	Acry_1528	-	3-oxoacyl-(acyl carrier protein) synthase II
1508	 67.07	0	1690530..1691525	+	331	148260529	-	Acry_1529	-	aminodeoxychorismate lyase
1509	 67.60	0	1691636..1693570	+	644	148260530	-	Acry_1530	-	2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase
1510	 70.79	0	1693567..1694682	+	371	148260531	-	Acry_1531	-	succinyl-diaminopimelate desuccinylase
1511	 67.82	0	1694679..1695284	+	201	148260532	-	Acry_1532	-	hypothetical protein
1512	 71.22	0	1695259..1696158	-	299	148260533	-	Acry_1533	-	uroporphyrin-III C/tetrapyrrole methyltransferase
1513	 72.87	0	1696221..1697429	+	402	148260534	-	Acry_1534	-	putative lipoprotein-like protein
1514	 72.54	0	1697440..1698819	+	459	148260535	-	Acry_1535	-	integral membrane sensor signal transduction histidine kinase
1515	 70.05	0	1698972..1699859	+	295	148260536	-	Acry_1536	-	cation diffusion facilitator family transporter
1516	 72.94	0	1699870..1700427	+	185	148260537	-	Acry_1537	-	ATP--cobalamin adenosyltransferase
1517	 64.38	0	1700447..1700839	-	130	148260538	-	Acry_1538	-	hypothetical protein
1518	 71.58	0	1701085..1701756	+	223	148260539	-	Acry_1539	-	short-chain dehydrogenase/reductase SDR
1519	 72.46	0	1701753..1702649	+	298	148260540	-	Acry_1540	-	hypothetical protein
1520	 70.85	0	1702750..1703730	+	326	148260541	-	Acry_1541	-	quinolinate synthetase complex, A subunit
68.17	MEAN

5.03	STD DEV
