IslandPath Analysis: Acidiphilium cryptum JF-5

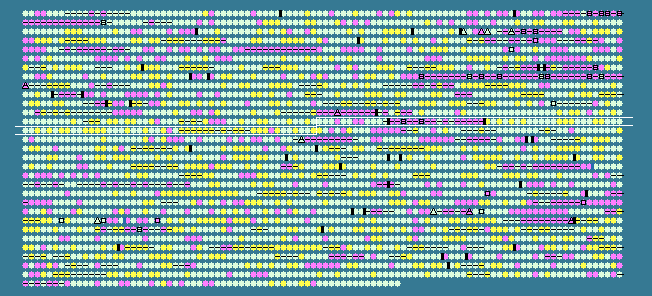

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1250	 69.59	0	1414124..1415491	+	455	148260271	-	Acry_1268	-	MmgE/PrpD family protein
1251	 65.45	0	1415552..1416952	+	466	148260272	-	Acry_1269	-	major facilitator transporter
1252	 65.63	0	1416984..1418045	+	353	148260273	-	Acry_1270	-	3-isopropylmalate dehydrogenase
1253	 63.14	0	1418070..1419854	-	594	148260274	-	Acry_1271	-	glycoside hydrolase 15-related protein
1254	 66.67	0	1419870..1421144	-	424	148260275	-	Acry_1272	-	ribose 5-phosphate isomerase
1255	 67.21	0	1421159..1421896	-	245	148260276	-	Acry_1273	-	6-phosphogluconolactonase
1256	 64.47	0	1421896..1422714	-	272	148260277	-	Acry_1274	-	Cof-like hydrolase
1257	 64.30	0	1422711..1424315	-	534	148260278	-	Acry_1275	-	glucose-6-phosphate 1-dehydrogenase
1258	 65.67	0	1424312..1425316	-	334	148260279	-	Acry_1276	-	6-phosphogluconate dehydrogenase-like protein
1259	 68.50	0	1425436..1428267	-	943	148260280	-	Acry_1277	-	bifunctional transaldolase/phosoglucose isomerase
1260	 65.95	0	1428533..1430338	+	601	148260281	-	Acry_1278	-	GTP-binding protein LepA
1261	 70.43	0	1430344..1431699	+	451	148260282	-	Acry_1279	-	hypothetical protein
1262	 63.77	0	1431994..1432338	+	114	148260283	-	Acry_1280	-	hypothetical protein
1263	 57.01	-2	1432340..1432981	-	213	148260284	-	Acry_1281	-	hypothetical protein
1264	 62.91	-1	1433134..1433745	-	203	148260285	-	Acry_1282	-	transposase, IS4 family protein
1265	 54.40	-2	1434193..1434624	-	143	148260286	-	Acry_1283	-	DoxX family protein
1266	 62.24	-1	1434753..1435700	+	315	148260287	-	Acry_1284	-	LysR family transcriptional regulator
1267	 63.23	0	1435888..1436265	+	125	148260288	-	Acry_1285	-	transposase IS3/IS911 family protein
1268	 63.98	0	1436262..1436819	+	185	148260289	-	Acry_1286	-	hypothetical protein
1269	 59.79	-1	1437024..1437212	+	62	148260290	-	Acry_1287	-	hypothetical protein
1270	 67.91	0	1437294..1439069	-	591	148260291	-	Acry_1288	-	methyl-accepting chemotaxis sensory transducer
1271	 54.32	-2	1439139..1439381	+	80	148260292	-	Acry_1289	-	hypothetical protein
1272	 65.09	0	1439579..1441486	+	635	148260293	-	Acry_1290	-	hypothetical protein
1273	 63.60	0	1441483..1442298	+	271	148260294	-	Acry_1291	-	hypothetical protein
1274	 60.91	-1	1442302..1444230	+	642	148260295	-	Acry_1292	-	glycosyl transferase family protein
1275	 61.22	-1	1444647..1445399	+	250	148260296	-	Acry_1293	-	hypothetical protein
1276	 56.44	-2	1445553..1447712	-	719	148260297	-	Acry_1294	-	glycosyl transferase family protein
1277	 62.62	-1	1448043..1448363	+	106	148260298	-	Acry_1295	-	hypothetical protein
1278	 73.28	+1	1448420..1450204	-	594	148260299	-	Acry_1296	-	single-stranded-DNA-specific exonuclease RecJ
1279	 69.91	0	1450189..1451175	-	328	148260300	glpX	Acry_1297	-	fructose 1,6-bisphosphatase II
1280	 71.78	0	1451206..1452495	-	429	148260301	-	Acry_1298	-	homoserine dehydrogenase
1281	 66.91	0	1452492..1453703	-	403	148260302	-	Acry_1299	-	aminotransferase
1282	 74.31	+1	1453700..1454353	-	217	148260303	-	Acry_1300	-	hypothetical protein
1283	 66.50	0	1454416..1456215	+	599	148260304	-	Acry_1301	-	poly(R)-hydroxyalkanoic acid synthase, class I
1284	 76.55	+1	1456212..1457294	+	360	148260305	-	Acry_1302	-	glycosyl transferase, group 1
1285	 70.52	0	1457308..1458603	+	431	148260306	-	Acry_1303	-	hypothetical protein
1286	 65.32	0	1458600..1459562	+	320	148260307	-	Acry_1304	-	cobalamin synthesis protein, P47K
1287	 70.11	0	1459559..1460605	+	348	148260308	-	Acry_1305	-	WD-40 repeat-containing protein
1288	 68.97	0	1460607..1461431	+	274	148260309	-	Acry_1306	-	aldo/keto reductase
1289	 68.69	0	1461498..1463330	-	610	148260310	-	Acry_1307	-	GTP-binding protein TypA
1290	 74.51	+1	1463474..1463983	-	169	148260311	-	Acry_1308	-	hypothetical protein
1291	 72.34	0	1464003..1465430	+	475	148260312	-	Acry_1309	-	major facilitator transporter
1292	 72.77	0	1465441..1467309	-	622	148260313	-	Acry_1310	-	ABC transporter related
1293	 67.38	0	1467404..1467826	+	140	148260314	-	Acry_1311	-	nucleoside-diphosphate kinase
1294	 67.49	0	1467892..1468254	-	120	148260315	-	Acry_1312	-	hypothetical protein
1295	 68.68	0	1468422..1469462	+	346	148260316	-	Acry_1313	-	cell shape determining protein MreB
1296	 71.90	0	1469509..1470387	+	292	148260317	-	Acry_1314	-	UspA domain-containing protein
1297	 73.56	+1	1470400..1470849	+	149	148260318	-	Acry_1315	-	MarR family transcriptional regulator
1298	 70.48	0	1470930..1471637	+	235	148260319	-	Acry_1316	-	pirin domain-containing protein
1299	 68.70	0	1471857..1473383	+	508	148260320	-	Acry_1317	-	protease Do
1300	 66.45	0	1473540..1474466	+	308	148260321	-	Acry_1318	-	sulfate adenylyltransferase subunit 2
1301	 69.72	0	1474466..1476331	+	621	148260322	-	Acry_1319	-	sulfate adenylyltransferase, large subunit
1302	 71.53	0	1476406..1477515	+	369	148260323	-	Acry_1320	-	chorismate synthase
1303	 73.15	0	1477688..1478782	-	364	148260324	-	Acry_1321	-	hypothetical protein
1304	 65.87	0	1478850..1480106	+	418	148260325	-	Acry_1322	-	extracellular ligand-binding receptor
1305	 75.69	+1	1480246..1480677	+	143	148260326	-	Acry_1323	-	hypothetical protein
1306	 70.57	0	1480764..1482173	-	469	148260327	-	Acry_1324	-	2-alkenal reductase
1307	 73.88	+1	1482178..1483023	-	281	148260328	-	Acry_1325	-	glutamyl-tRNA synthetase, class Ic
1308	 75.78	+1	1483073..1483741	+	222	148260329	-	Acry_1326	-	phospholipase/carboxylesterase
1309	 65.95	0	1483889..1484449	+	186	148260330	-	Acry_1327	-	HNH endonuclease
1310	 67.98	0	1484503..1485717	+	404	148260331	-	Acry_1328	-	tryptophan synthase subunit beta
1311	 73.41	+1	1485714..1486544	+	276	148260332	trpA	Acry_1329	-	tryptophan synthase subunit alpha
1312	 73.85	+1	1486669..1487934	-	421	148260333	-	Acry_1330	-	phosphoribosylamine--glycine ligase
1313	 74.15	+1	1487989..1489377	+	462	148260334	-	Acry_1331	-	exodeoxyribonuclease VII, large subunit
1314	 78.16	+1	1489390..1490094	-	234	148260335	-	Acry_1332	-	hypothetical protein
1315	 70.31	0	1490091..1490666	-	191	148260336	-	Acry_1333	-	ECF subfamily RNA polymerase sigma-24 factor
1316	 69.98	0	1491134..1491586	+	150	148260337	-	Acry_1334	-	ferric uptake regulator family protein
1317	 68.51	0	1491583..1492395	+	270	148260338	-	Acry_1335	-	putative hemolysin-like protein
1318	 72.16	0	1492456..1492965	+	169	148260339	-	Acry_1336	-	hypothetical protein
1319	 66.48	0	1492981..1494627	+	548	148260340	-	Acry_1337	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
1320	 67.93	0	1494635..1495030	+	131	148260341	-	Acry_1338	-	glyoxalase/bleomycin resistance protein/dioxygenase
1321	 74.08	+1	1495027..1496064	+	345	148260342	-	Acry_1339	-	queuosine biosynthesis protein
1322	 71.62	0	1496061..1497191	+	376	148260343	-	Acry_1340	-	queuine tRNA-ribosyltransferase
1323	 68.82	0	1497172..1497636	+	154	148260344	-	Acry_1341	-	7-cyano-7-deazaguanine reductase
1324	 72.98	0	1497629..1498690	+	353	148260345	-	Acry_1342	-	hypothetical protein
1325	 63.40	0	1498776..1499234	+	152	148260346	-	Acry_1343	-	large conductance mechanosensitive channel protein
1326	 66.97	0	1499429..1500082	+	217	148260347	-	Acry_1344	-	hypothetical protein
1327	 77.73	+1	1500222..1500926	-	234	148260348	-	Acry_1345	-	LrgB family protein
1328	 77.85	+1	1500919..1501356	-	145	148260349	-	Acry_1346	-	LrgA family protein
1329	 75.38	+1	1501461..1502390	+	309	148260350	-	Acry_1347	-	LysR family transcriptional regulator
1330	 71.73	0	1502467..1503849	+	460	148260351	-	Acry_1348	-	UDP-glucose 6-dehydrogenase
1331	 72.97	0	1503842..1505587	+	581	148260352	-	Acry_1349	-	methyltransferase type 11
1332	 77.91	+1	1505612..1508752	+	1046	148260353	-	Acry_1350	-	methyltransferase type 12
1333	 71.15	0	1508815..1509795	+	326	148260354	-	Acry_1351	-	lipopolysaccharide biosynthesis protein-like protein
1334	 73.92	+1	1509792..1510604	+	270	148260355	-	Acry_1352	-	phospholipid/glycerol acyltransferase
1335	 70.95	0	1510745..1512097	+	450	148260356	-	Acry_1353	-	RNA modification protein
1336	 71.76	0	1512094..1513095	+	333	148260357	-	Acry_1354	-	PhoH family protein
1337	 75.50	+1	1513092..1513544	+	150	148260358	-	Acry_1355	-	hypothetical protein
1338	 69.54	0	1513526..1514395	+	289	148260359	-	Acry_1356	-	CBS domain-containing protein
1339	 77.78	+1	1514520..1514735	+	71	148260360	-	Acry_1357	-	hypothetical protein
1340	 77.82	+1	1514858..1515682	-	274	148260361	-	Acry_1358	-	hypothetical protein
1341	 71.79	0	1515654..1515965	-	103	148260362	-	Acry_1359	-	hypothetical protein
1342	 62.46	-1	1516009..1516626	-	205	148260363	-	Acry_1360	-	hypothetical protein
1343	 78.26	+2	1516818..1517438	+	206	148260364	-	Acry_1361	-	hypothetical protein
1344	 70.98	0	1517445..1519298	-	617	148260365	-	Acry_1362	-	ABC transporter related
1345	 66.67	0	1519521..1520570	+	349	148260366	-	Acry_1363	-	glycosyl transferase, group 1
1346	 72.04	0	1520849..1521685	+	278	148260367	-	Acry_1364	-	ABC transporter related
1347	 70.19	0	1521682..1522731	+	349	148260368	-	Acry_1365	-	monosaccharide-transporting ATPase
1348	 66.97	0	1522776..1523765	+	329	148260369	-	Acry_1366	-	periplasmic binding protein/LacI transcriptional regulator
1349	 76.98	+1	1523874..1525385	+	503	148260370	-	Acry_1367	-	Ada metal-binding domain-containing protein
68.17	MEAN

5.03	STD DEV
