IslandPath Analysis: Acidiphilium cryptum JF-5

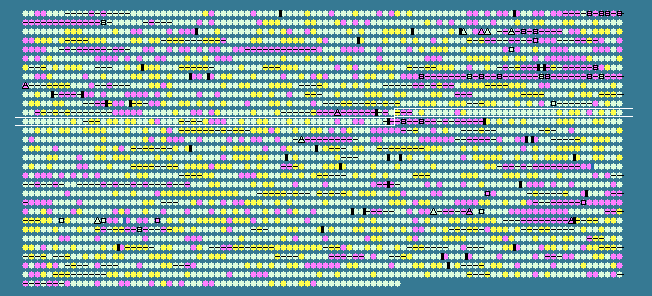

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1163	 74.12	+1	1316583..1317293	-	236	148260184	-	Acry_1180	-	phytoene/squalene synthetase-like protein
1164	 64.69	0	1317411..1318016	+	201	148260185	-	Acry_1181	-	superoxide dismutase
1165	 64.44	0	1318086..1318445	-	119	148260186	-	Acry_1182	-	preprotein translocase, YajC subunit
1166	 68.39	0	1318556..1319425	+	289	148260187	-	Acry_1183	-	hypothetical protein
1167	 73.73	+1	1319492..1320241	+	249	148260188	-	Acry_1184	-	TonB family protein
1168	 66.04	0	1320320..1321918	+	532	148260189	-	Acry_1185	-	extracellular solute-binding protein
1169	 66.46	0	1321924..1322868	+	314	148260190	-	Acry_1186	-	binding-protein-dependent transport systems inner membrane component
1170	 71.18	0	1322865..1323728	+	287	148260191	-	Acry_1187	-	binding-protein-dependent transport systems inner membrane component
1171	 70.59	0	1323725..1325557	+	610	148260192	-	Acry_1188	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1172	 66.22	0	1325554..1326225	+	223	148260193	-	Acry_1189	-	MotA/TolQ/ExbB proton channel
1173	 62.56	-1	1326229..1326642	+	137	148260194	-	Acry_1190	-	biopolymer transport protein ExbD/TolR
1174	 71.76	0	1326608..1327549	+	313	148260195	xerC	Acry_1191	-	site-specific tyrosine recombinase XerC
1175	 70.79	0	1327552..1328085	-	177	148260196	-	Acry_1192	-	GCN5-related N-acetyltransferase
1176	 71.27	0	1328082..1329362	-	426	148260197	-	Acry_1193	-	Fmu (Sun) domain-containing protein
1177	 68.67	0	1329366..1330865	-	499	148260198	-	Acry_1194	-	inosine-5'-monophosphate dehydrogenase
1178	 66.97	0	1331421..1333379	+	652	148260199	-	Acry_1195	-	AMP-dependent synthetase and ligase
1179	 65.05	0	1333387..1334004	-	205	148260200	-	Acry_1196	-	hypothetical protein
1180	 69.78	0	1334037..1334999	-	320	148260201	-	Acry_1197	-	hypothetical protein
1181	 70.42	0	1335010..1335915	-	301	148260202	-	Acry_1198	-	polyprenyl synthetase
1182	 70.04	0	1335912..1336178	-	88	148260203	-	Acry_1199	-	exodeoxyribonuclease VII, small subunit
1183	 69.68	0	1336217..1337146	-	309	148260204	-	Acry_1200	-	histone deacetylase superfamily protein
1184	 68.82	0	1337175..1337453	-	92	148260205	-	Acry_1201	-	SirA family protein
1185	 70.01	0	1337539..1338435	+	298	148260206	-	Acry_1202	-	ROK family protein
1186	 70.56	0	1338445..1339215	-	256	148260207	-	Acry_1203	-	3'(2'),5'-bisphosphate nucleotidase
1187	 71.52	0	1339308..1340852	+	514	148260208	-	Acry_1204	-	leucyl aminopeptidase
1188	 70.11	0	1340917..1341933	+	338	148260209	-	Acry_1205	-	capsular polysaccharide biosynthesis protein-like protein
1189	 64.96	0	1341924..1342451	-	175	148260210	-	Acry_1206	-	hypothetical protein
1190	 72.81	0	1342448..1344514	-	688	148260211	-	Acry_1207	-	protein of unknown function DUF893, YccS/YhfK
1191	 68.41	0	1344501..1346735	-	744	148260212	-	Acry_1208	-	DNA topoisomerase IV subunit A
1192	 73.28	+1	1346725..1347480	-	251	148260213	-	Acry_1209	-	DNA repair protein RecO
1193	 72.30	0	1347493..1348716	-	407	148260214	-	Acry_1210	-	hypothetical protein
1194	 67.53	0	1348720..1349874	-	384	148260215	-	Acry_1211	-	amidohydrolase
1195	 57.36	-2	1350433..1350690	-	85	148260216	-	Acry_1213	-	hypothetical protein
1196	 70.83	0	1350916..1351971	+	351	148260217	-	Acry_1214	-	dTDP-glucose 4,6-dehydratase
1197	 72.11	0	1351968..1352849	+	293	148260218	-	Acry_1215	-	glucose-1-phosphate thymidylyltransferase
1198	 70.27	0	1352846..1353400	+	184	148260219	-	Acry_1216	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1199	 74.17	+1	1353402..1354307	+	301	148260220	-	Acry_1217	-	dTDP-4-dehydrorhamnose reductase
1200	 71.52	0	1354304..1355209	+	301	148260221	-	Acry_1218	-	glycosyl transferase family protein
1201	 67.28	0	1355222..1357009	-	595	148260222	-	Acry_1219	-	ABC transporter
1202	 71.34	0	1357253..1359286	+	677	148260223	-	Acry_1220	-	transketolase
1203	 67.06	0	1359351..1360364	+	337	148260224	-	Acry_1221	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1204	 71.27	0	1360364..1361557	+	397	148260225	pgk	Acry_1222	-	phosphoglycerate kinase
1205	 71.63	0	1361619..1363070	-	483	148260226	-	Acry_1223	-	peptidase U62, modulator of DNA gyrase
1206	 69.08	0	1363067..1364143	-	358	148260227	-	Acry_1224	-	cytochrome oxidase assembly
1207	 68.66	0	1364140..1365243	-	367	148260228	-	Acry_1225	-	cytochrome oxidase assembly
1208	 66.04	0	1365487..1366761	+	424	148260229	rho	Acry_1226	-	transcription termination factor Rho
1209	 72.92	0	1366764..1367387	+	207	148260230	-	Acry_1227	-	lysine exporter protein LysE/YggA
1210	 66.44	0	1367464..1368771	+	435	148260231	-	Acry_1228	-	S-adenosyl-L-homocysteine hydrolase
1211	 68.42	0	1368782..1369180	+	132	148260232	-	Acry_1229	-	hypothetical protein
1212	 76.37	+1	1369270..1370475	-	401	148260233	-	Acry_1230	-	molybdenum cofactor synthesis domain-containing protein
1213	 71.70	0	1370479..1370955	-	158	148260234	-	Acry_1231	-	molybdenum cofactor biosynthesis protein C
1214	 69.13	0	1370952..1371764	-	270	148260235	-	Acry_1232	-	indole-3-glycerol-phosphate synthase
1215	 73.88	+1	1371769..1373403	-	544	148260236	-	Acry_1233	-	anthranilate phosphoribosyltransferase
1216	 72.28	0	1373400..1374914	-	504	148260237	-	Acry_1234	-	anthranilate synthase component I
1217	 70.85	0	1374925..1376811	-	628	148260238	-	Acry_1235	-	hypothetical protein
1218	 75.72	+1	1376923..1377684	+	253	148260239	-	Acry_1236	-	Triose-phosphate isomerase
1219	 74.12	+1	1377794..1378276	+	160	148260240	-	Acry_1237	-	preprotein translocase, SecG subunit
1220	 68.87	0	1378344..1379975	+	543	148260241	-	Acry_1238	-	CTP synthetase
1221	 70.53	0	1379972..1380799	+	275	148260242	-	Acry_1239	-	2-dehydro-3-deoxyphosphooctonate aldolase
1222	 73.95	+1	1380833..1381450	-	205	148260243	-	Acry_1240	-	hypothetical protein
1223	 64.58	0	1381443..1381778	-	111	148260244	-	Acry_1241	-	hypothetical protein
1224	 65.37	0	1381844..1382617	-	257	148260245	-	Acry_1242	-	oxidoreductase FAD/NAD(P)-binding subunit
1225	 70.59	0	1382808..1384976	+	722	148260246	-	Acry_1243	-	malate synthase G
1226	 67.46	0	1385053..1387455	+	800	148260247	-	Acry_1244	-	diguanylate phosphodiesterase
1227	 78.50	+2	1387537..1388136	+	199	148260248	-	Acry_1245	-	hypothetical protein
1228	 68.52	0	1388273..1388596	+	107	148260249	-	Acry_1246	-	hypothetical protein
1229	 72.22	0	1388729..1388926	+	65	148260250	-	Acry_1247	-	hypothetical protein
1230	 70.29	0	1388995..1390677	-	560	148260251	-	Acry_1248	-	polypeptide-transport-associated domain-containing protein
1231	 74.22	+1	1390773..1391990	-	405	148260252	-	Acry_1249	-	hypothetical protein
1232	 62.43	-1	1392509..1393075	+	188	148260253	-	Acry_1250	-	hypothetical protein
1233	 51.44	-2	1393256..1393498	-	80	148260254	-	Acry_1251	-	hypothetical protein
1234	 64.50	0	1393498..1394838	+	446	148260255	-	Acry_1252	-	membrane protein involved in aromatic hydrocarbon degradation
1235	 70.11	0	1394953..1396578	+	541	148260256	-	Acry_1253	-	glucose-methanol-choline oxidoreductase
1236	 70.27	0	1396604..1398019	+	471	148260257	-	Acry_1254	-	aldehyde dehydrogenase
1237	 72.22	0	1398035..1398574	-	179	148260258	-	Acry_1255	-	hypothetical protein
1238	 67.77	0	1398567..1400285	-	572	148260259	-	Acry_1256	-	AMP-dependent synthetase and ligase
1239	 71.17	0	1400297..1401583	-	428	148260260	-	Acry_1257	-	acetyl-CoA acetyltransferase
1240	 75.21	+1	1401595..1402437	-	280	148260261	-	Acry_1258	-	dehydratase
1241	 74.58	+1	1402443..1403933	-	496	148260262	fabG	Acry_1259	-	3-ketoacyl-(acyl-carrier-protein) reductase
1242	 71.28	0	1403930..1406506	-	858	148260263	fadE	Acry_1260	-	acyl-CoA dehydrogenase
1243	 71.62	0	1406539..1407609	-	356	148260264	-	Acry_1261	-	ferredoxin
1244	 66.17	0	1407613..1408815	-	400	148260265	-	Acry_1262	-	alkane 1-monooxygenase
1245	 73.06	0	1409168..1410481	-	437	148260266	-	Acry_1263	-	hypothetical protein
1246	 65.94	0	1410831..1411517	+	228	148260267	-	Acry_1264	-	hypothetical protein
1247	 69.91	0	1411510..1412157	+	215	148260268	-	Acry_1265	-	hypothetical protein
1248	 73.33	+1	1412161..1413315	-	384	148260269	-	Acry_1266	-	hypothetical protein
1249	 69.49	0	1413320..1414027	-	235	148260270	-	Acry_1267	-	GntR family transcriptional regulator
1250	 69.59	0	1414124..1415491	+	455	148260271	-	Acry_1268	-	MmgE/PrpD family protein
1251	 65.45	0	1415552..1416952	+	466	148260272	-	Acry_1269	-	major facilitator transporter
1252	 65.63	0	1416984..1418045	+	353	148260273	-	Acry_1270	-	3-isopropylmalate dehydrogenase
1253	 63.14	0	1418070..1419854	-	594	148260274	-	Acry_1271	-	glycoside hydrolase 15-related protein
1254	 66.67	0	1419870..1421144	-	424	148260275	-	Acry_1272	-	ribose 5-phosphate isomerase
1255	 67.21	0	1421159..1421896	-	245	148260276	-	Acry_1273	-	6-phosphogluconolactonase
1256	 64.47	0	1421896..1422714	-	272	148260277	-	Acry_1274	-	Cof-like hydrolase
1257	 64.30	0	1422711..1424315	-	534	148260278	-	Acry_1275	-	glucose-6-phosphate 1-dehydrogenase
1258	 65.67	0	1424312..1425316	-	334	148260279	-	Acry_1276	-	6-phosphogluconate dehydrogenase-like protein
1259	 68.50	0	1425436..1428267	-	943	148260280	-	Acry_1277	-	bifunctional transaldolase/phosoglucose isomerase
1260	 65.95	0	1428533..1430338	+	601	148260281	-	Acry_1278	-	GTP-binding protein LepA
1261	 70.43	0	1430344..1431699	+	451	148260282	-	Acry_1279	-	hypothetical protein
1262	 63.77	0	1431994..1432338	+	114	148260283	-	Acry_1280	-	hypothetical protein
68.17	MEAN

5.03	STD DEV
