IslandPath Analysis: Acidiphilium cryptum JF-5

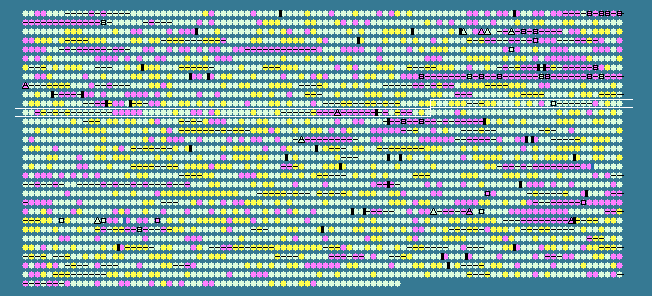

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 68.17 STD DEV: 5.03
Acidiphilium cryptum JF-5, complete genome - 1..3389227
3063 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1069	 78.20	+1	1207440..1208072	-	210	148260090	-	Acry_1083	-	hypothetical protein
1070	 71.43	0	1208098..1208664	-	188	148260091	-	Acry_1084	-	hypothetical protein
1071	 69.52	0	1208787..1210400	+	537	148260092	-	Acry_1085	-	hypothetical protein
1072	 73.75	+1	1210422..1211339	-	305	148260093	-	Acry_1086	-	alpha/beta hydrolase domain-containing protein
1073	 72.82	0	1211351..1212211	-	286	148260094	-	Acry_1087	-	short-chain dehydrogenase/reductase SDR
1074	 71.67	0	1212236..1213735	-	499	148260095	-	Acry_1088	-	flavoprotein involved in K+ transport-like protein
1075	 70.61	0	1213871..1214554	+	227	148260096	-	Acry_1089	-	TetR family transcriptional regulator
1076	 66.04	0	1214603..1216198	-	531	148260097	-	Acry_1090	-	isocitrate lyase
1077	 77.33	+1	1216395..1217069	-	224	148260098	-	Acry_1091	-	hypothetical protein
1078	 75.71	+1	1217059..1217622	-	187	148260099	-	Acry_1092	-	ECF subfamily RNA polymerase sigma-24 factor
1079	 71.82	0	1217696..1218064	-	122	148260100	-	Acry_1093	-	hypothetical protein
1080	 68.13	0	1218064..1218678	-	204	148260101	-	Acry_1094	-	Heme/copper-type cytochrome/quinol oxidase subunit 3-like protein
1081	 65.07	0	1218675..1220744	-	689	148260102	-	Acry_1095	-	cytochrome-c oxidase
1082	 67.46	0	1220770..1221774	-	334	148260103	-	Acry_1096	-	cytochrome c oxidase, subunit II
1083	 73.68	+1	1222151..1222963	+	270	148260104	-	Acry_1097	-	hypothetical protein
1084	 70.52	0	1222977..1223987	-	336	148260105	-	Acry_1098	-	bile acid:sodium symporter
1085	 74.10	+1	1224048..1224962	+	304	148260106	-	Acry_1099	-	LysR family transcriptional regulator
1086	 70.81	0	1224990..1225931	-	313	148260107	-	Acry_1100	-	methyltransferase type 11
1087	 56.41	-2	1226267..1226578	-	103	148260108	-	Acry_1101	-	hypothetical protein
1088	 65.61	0	1229056..1229715	+	219	148260109	-	Acry_1104	-	resolvase domain-containing protein
1089	 65.06	0	1229654..1232644	+	996	148260110	-	Acry_1105	-	transposase Tn3 family protein
1090	 67.13	0	1233013..1233444	-	143	148260111	-	Acry_1107	-	signal-transduction protein
1091	 70.50	0	1233728..1235188	-	486	148260112	-	Acry_1108	-	proton-translocating NADH-quinone oxidoreductase, chain N
1092	 67.98	0	1235185..1236702	-	505	148260113	-	Acry_1109	-	proton-translocating NADH-quinone oxidoreductase, chain M
1093	 70.22	0	1236699..1238555	-	618	148260114	-	Acry_1110	-	proton-translocating NADH-quinone oxidoreductase, chain L
1094	 69.58	0	1238560..1238868	-	102	148260115	-	Acry_1111	-	NADH-ubiquinone oxidoreductase, chain 4L
1095	 69.06	0	1238873..1239373	-	166	148260116	-	Acry_1112	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 6
1096	 62.57	-1	1239405..1239917	-	170	148260117	-	Acry_1113	-	NADH-quinone oxidoreductase, chain I
1097	 65.02	0	1239931..1240902	-	323	148260118	-	Acry_1114	-	NADH dehydrogenase subunit H
1098	 72.09	0	1240899..1243607	-	902	148260119	-	Acry_1115	-	NADH-quinone oxidoreductase, chain G
1099	 70.11	0	1243604..1244908	-	434	148260120	-	Acry_1116	-	NADH dehydrogenase (quinone)
1100	 70.68	0	1244908..1245405	-	165	148260121	-	Acry_1117	-	NADH-quinone oxidoreductase, E subunit
1101	 65.26	0	1245392..1247170	-	592	148260122	-	Acry_1118	-	bifunctional NADH:ubiquinone oxidoreductase subunit C/D
1102	 66.24	0	1247181..1247876	-	231	148260123	-	Acry_1119	-	NADH-quinone oxidoreductase, B subunit
1103	 62.91	-1	1247881..1248279	-	132	148260124	-	Acry_1120	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 3
1104	 71.78	0	1248465..1251122	-	885	148260125	-	Acry_1121	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
1105	 67.35	0	1251109..1252125	-	338	148260126	-	Acry_1122	-	sodium/calcium exchanger membrane region
1106	 71.71	0	1252318..1253367	-	349	148260127	-	Acry_1123	-	oxidoreductase domain-containing protein
1107	 71.29	0	1253445..1254461	-	338	148260128	-	Acry_1124	-	molybdopterin dehydrogenase, FAD-binding
1108	 73.02	0	1254458..1256722	-	754	148260129	-	Acry_1125	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
1109	 71.13	0	1256785..1257591	+	268	148260130	-	Acry_1126	-	hypothetical protein
1110	 69.53	0	1257588..1257866	+	92	148260131	-	Acry_1127	-	hypothetical protein
1111	 68.82	0	1257875..1259173	+	432	148260132	-	Acry_1128	-	cation diffusion facilitator family transporter
1112	 68.43	0	1259205..1259600	-	131	148260133	-	Acry_1129	-	MerR family transcriptional regulator
1113	 71.61	0	1259679..1260386	+	235	148260134	-	Acry_1130	-	Co/Zn/Cd cation transporter-like protein
1114	 68.21	0	1260419..1261393	+	324	148260135	-	Acry_1131	-	cation diffusion facilitator family transporter
1115	 68.32	0	1261415..1262929	-	504	148260136	-	Acry_1132	-	multicopper oxidase, type 2
1116	 51.85	-2	1262999..1263322	-	107	148260137	-	Acry_1133	-	hypothetical protein
1117	 59.27	-1	1263582..1264757	+	391	148260138	-	Acry_1134	-	acyltransferase 3
1118	 60.85	-1	1265131..1265955	+	274	148260139	-	Acry_1135	-	extracellular solute-binding protein
1119	 62.28	-1	1265971..1266723	+	250	148260140	-	Acry_1136	-	polar amino acid ABC transporter, inner membrane subunit
1120	 64.05	0	1266723..1267487	+	254	148260141	-	Acry_1137	-	ABC transporter related
1121	 68.29	0	1267534..1268520	-	328	148260142	-	Acry_1138	-	inner-membrane translocator
1122	 69.75	0	1268517..1269521	-	334	148260143	-	Acry_1139	-	monosaccharide-transporting ATPase
1123	 70.16	0	1269508..1271082	-	524	148260144	-	Acry_1140	-	ABC transporter related
1124	 65.20	0	1271108..1272199	-	363	148260145	-	Acry_1141	-	ABC-type sugar transport system periplasmic component-like protein
1125	 68.67	0	1272301..1273350	-	349	148260146	-	Acry_1142	-	4-hydroxythreonine-4-phosphate dehydrogenase
1126	 72.80	0	1273484..1274608	-	374	148260147	-	Acry_1143	-	hypothetical protein
1127	 70.74	0	1274605..1275438	-	277	148260148	-	Acry_1144	-	DeoR family transcriptional regulator
1128	 70.64	0	1275490..1276470	-	326	148260149	-	Acry_1145	-	AraC family transcriptional regulator
1129	 61.37	-1	1276580..1277221	+	213	148260150	-	Acry_1146	-	metal-dependent phosphohydrolase
1130	 63.19	0	1277263..1278702	+	479	148260151	-	Acry_1147	-	catalase
1131	 69.68	0	1278571..1280031	-	486	148260152	-	Acry_1148	-	amidohydrolase
1132	 63.21	0	1280041..1281429	-	462	148260153	-	Acry_1149	-	permease for cytosine/purines, uracil, thiamine, allantoin
1133	 73.66	+1	1281469..1282011	-	180	148260154	-	Acry_1150	-	hypothetical protein
1134	 66.17	0	1282008..1283207	-	399	148260155	-	Acry_1151	-	hypothetical protein
1135	 66.95	0	1283213..1283563	-	116	148260156	-	Acry_1152	-	transthyretin
1136	 70.22	0	1283652..1284524	-	290	148260157	-	Acry_1153	-	hypothetical protein
1137	 68.84	0	1284521..1286959	-	812	148260158	-	Acry_1154	-	xanthine dehydrogenase
1138	 70.52	0	1286956..1288512	-	518	148260159	-	Acry_1155	-	molybdopterin dehydrogenase, FAD-binding
1139	 72.20	0	1288607..1289527	-	306	148260160	-	Acry_1156	-	LysR family transcriptional regulator
1140	 67.73	0	1289682..1291466	+	594	148260161	-	Acry_1157	-	glyoxylate carboligase
1141	 68.03	0	1291486..1292292	+	268	148260162	-	Acry_1158	-	hydroxypyruvate isomerase
1142	 69.62	0	1292289..1293167	+	292	148260163	-	Acry_1159	-	2-hydroxy-3-oxopropionate reductase
1143	 73.71	+1	1293167..1294486	+	439	148260164	-	Acry_1160	-	hydroxypyruvate reductase
1144	 71.53	0	1294492..1295787	+	431	148260165	-	Acry_1161	-	amidase
1145	 69.32	0	1295790..1297034	+	414	148260166	-	Acry_1162	-	peptidase M20
1146	 67.10	0	1297072..1297995	+	307	148260167	-	Acry_1163	-	chitin deacetylase
1147	 65.15	0	1298015..1298938	+	307	148260168	-	Acry_1164	-	LysR family transcriptional regulator
1148	 65.78	0	1298942..1299280	-	112	148260169	-	Acry_1165	-	hypothetical protein
1149	 72.34	0	1299633..1302785	-	1050	148260170	-	Acry_1166	-	triple helix repeat-containing collagen
1150	 53.33	-2	1302857..1303126	-	89	148260171	-	Acry_1167	-	hypothetical protein
1151	 52.27	-2	1303307..1303813	+	168	148260172	-	Acry_1168	-	hypothetical protein
1152	 59.00	-1	1304227..1304487	+	86	148260173	-	Acry_1169	-	hypothetical protein
1153	 62.79	-1	1304664..1305902	+	412	148260174	-	Acry_1170	-	phage integrase family protein
1154	 58.36	-1	1306311..1308464	+	717	148260175	-	Acry_1171	-	hypothetical protein
1155	 58.14	-1	1308565..1309326	+	253	148260176	-	Acry_1172	-	hypothetical protein
1156	 56.06	-2	1309319..1309714	+	131	148260177	-	Acry_1173	-	hypothetical protein
1157	 45.12	-2	1309852..1310742	+	296	148260178	-	Acry_1174	-	hypothetical protein
1158	 44.18	-2	1310946..1311572	+	208	148260179	-	Acry_1175	-	hypothetical protein
1159	 52.78	-2	1311716..1312183	+	155	148260180	-	Acry_1176	-	hypothetical protein
1160	 64.86	0	1312752..1313306	-	184	148260181	-	Acry_1177	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
1161	 62.75	-1	1313303..1313812	-	169	148260182	-	Acry_1178	-	pantetheine-phosphate adenylyltransferase
1162	 68.42	0	1313805..1316537	-	910	148260183	-	Acry_1179	-	DNA gyrase subunit A
1163	 74.12	+1	1316583..1317293	-	236	148260184	-	Acry_1180	-	phytoene/squalene synthetase-like protein
1164	 64.69	0	1317411..1318016	+	201	148260185	-	Acry_1181	-	superoxide dismutase
1165	 64.44	0	1318086..1318445	-	119	148260186	-	Acry_1182	-	preprotein translocase, YajC subunit
1166	 68.39	0	1318556..1319425	+	289	148260187	-	Acry_1183	-	hypothetical protein
1167	 73.73	+1	1319492..1320241	+	249	148260188	-	Acry_1184	-	TonB family protein
1168	 66.04	0	1320320..1321918	+	532	148260189	-	Acry_1185	-	extracellular solute-binding protein
68.17	MEAN

5.03	STD DEV
