IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

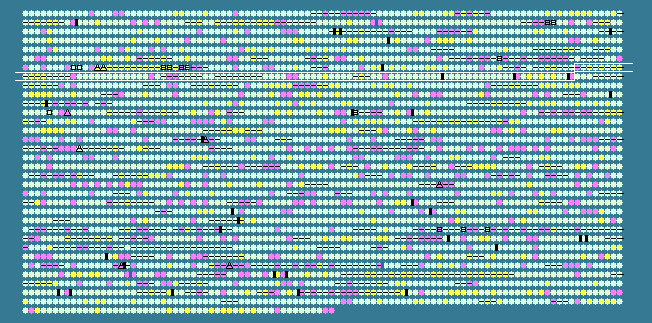

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
693	 36.33	-1	890641..890940	-	99	126640808	-	A1S_0750	-	hypothetical protein
694	 38.68	0	891087..892058	-	323	126640809	-	A1S_0751	-	diguanylate cyclase
695	 46.01	+1	892935..893486	+	183	126640810	-	A1S_0752	-	NADH dehydrogenase I chain A
696	 43.33	0	893601..894170	+	189	126640811	-	A1S_0753	-	NADH dehydrogenase I chain B
697	 44.46	+1	894254..896041	+	595	162286749	-	A1S_0754	-	bifunctional NADH:ubiquinone oxidoreductase subunit C/D
698	 41.89	0	896226..896564	+	112	126640813	-	A1S_0755	-	NADH dehydrogenase I chain E
699	 45.45	+1	896708..897895	+	395	126640814	-	A1S_0756	-	NADH dehydrogenase I chain F
700	 43.76	+1	898099..900591	+	830	126640815	-	A1S_0757	-	NADH dehydrogenase subunit G
701	 43.19	0	900709..901611	+	300	126640816	-	A1S_0758	-	NADH dehydrogenase subunit H
702	 44.04	+1	901678..902172	+	164	126640817	-	A1S_0759	-	NADH dehydrogenase subunit I
703	 44.27	+1	902298..902690	+	130	126640818	-	A1S_0760	-	NADH dehydrogenase I chain J
704	 47.26	+2	902762..902998	+	78	126640819	-	A1S_0761	-	NADH dehydrogenase I chain K
705	 41.59	0	903142..904884	+	580	126640820	-	A1S_0762	-	NADH dehydrogenase subunit L
706	 41.63	0	905003..906484	+	493	126640821	-	A1S_0763	-	NADH dehydrogenase subunit M
707	 39.61	0	906565..907983	+	472	126640822	-	A1S_0764	-	NADH dehydrogenase I chain N
708	 39.96	0	908192..908719	+	175	126640823	-	A1S_0765	-	uracil phosphoribosyltransferase
709	 35.03	-1	908836..909129	+	97	126640824	-	A1S_0766	-	putative cold shock protein
710	 42.24	0	909395..909742	+	115	126640825	-	A1S_0767	-	Excalibur
711	 40.87	0	909754..910536	-	260	126640826	-	A1S_0768	-	LysR family transcriptional regulator
712	 43.09	0	910803..911489	+	228	126640827	-	A1S_0769	-	ferredoxin--NADP+ reductase
713	 40.28	0	911540..911899	-	119	126640828	-	A1S_0770	-	hypothetical protein
714	 39.96	0	912830..914383	+	517	126640829	-	A1S_0771	-	hypothetical protein
715	 39.83	0	914695..915894	-	399	126640830	-	A1S_0772	-	putative oxidoreductase
716	 39.39	0	916012..916572	-	186	126640831	-	A1S_0773	-	putative D-cysteine desulfhydrase (DcyD)
717	 41.82	0	916957..917958	-	333	126640832	-	A1S_0774	-	RND efflux transporter
718	 41.29	0	918125..919519	-	464	126640833	-	A1S_0775	-	MFS family transporter
719	 39.74	0	919765..920232	-	155	126640834	-	A1S_0776	-	TetR family transcriptional regulator
720	 37.31	0	920558..921136	+	192	126640835	-	A1S_0777	-	putative threonine efflux protein (RhtC)
721	 40.85	0	921615..923624	-	669	126640836	metG	A1S_0778	-	methionyl-tRNA synthetase
722	 36.60	-1	924036..924464	+	142	126640837	-	A1S_0779	-	hypothetical protein
723	 42.22	0	924748..925839	+	363	126640838	-	A1S_0780	-	putative ATP-binding protein
724	 40.00	0	926153..926857	+	234	126640839	-	A1S_0781	-	putative MTA/SAH nucleosidase
725	 36.09	-1	926888..927394	-	168	126640840	-	A1S_0782	-	hypothetical protein
726	 34.03	-1	927976..928404	+	142	126640841	-	A1S_0783	-	hypothetical protein
727	 38.92	0	928552..929088	+	178	126640842	dcd	A1S_0784	-	deoxycytidine triphosphate deaminase
728	 36.77	0	929475..930725	+	416	126640843	-	A1S_0785	-	hypothetical protein
729	 38.58	0	931106..932974	+	622	126640844	-	A1S_0786	-	putative signal peptide
730	 38.31	0	933113..933715	+	200	126640845	-	A1S_0787	-	putative signal peptide
731	 39.12	0	933808..936159	+	783	126640846	-	A1S_0788	-	hypothetical protein
732	 42.08	0	937354..938073	-	239	126640847	-	A1S_0789	-	hypothetical protein
733	 37.59	0	938383..939111	-	242	126640848	-	A1S_0790	-	hypothetical protein
734	 40.53	0	940794..941279	-	161	126640849	-	A1S_0793	-	putative transcriptional regulator
735	 41.27	0	941544..942236	-	230	126640850	-	A1S_0794	-	hypothetical protein
736	 42.64	0	942465..943130	+	221	126640851	-	A1S_0795	-	hypothetical protein
737	 38.36	0	943599..944075	+	158	126640852	-	A1S_0796	-	GntR family transcriptional regulator
738	 40.44	0	944227..947535	+	1102	126640853	-	A1S_0797	-	putative chromosome segregation ATPases
739	 41.95	0	947600..948574	+	324	126640854	-	A1S_0798	-	putative cell division protein (ZipA-like)
740	 43.23	0	948696..950705	+	669	126640855	-	A1S_0799	-	DNA ligase
741	 37.63	0	950958..951422	+	154	126640856	-	A1S_0800	-	bacterioferritin
742	 43.15	0	951717..952307	+	196	126640857	-	A1S_0801	-	putative transport protein (permease)
743	 42.97	0	952393..952911	+	172	126640858	-	A1S_0802	-	putative transport protein (permease)
744	 38.57	0	952979..954142	-	387	126640859	-	A1S_0803	-	trehalose-6-phosphate synthase
745	 27.52	-2	954397..955032	-	211	126640860	-	A1S_0804	-	trehalose-6-phosphate phophatase
746	 36.01	-1	955779..956339	+	186	126640861	-	A1S_0805	-	putative hydrolase biotin biosynthesis (BioH)
747	 41.27	0	956565..957710	+	381	126640862	-	A1S_0806	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
748	 38.62	0	957829..958869	+	346	126640863	-	A1S_0807	-	8-amino-7-oxononanoate synthase
749	 38.67	0	958998..959615	+	205	126640864	-	A1S_0808	-	putative biotin biosynthesis protein (BioC)
750	 38.10	0	959790..960272	+	160	126640865	-	A1S_0809	-	dethiobiotin synthetase x
751	 43.69	+1	960325..961164	-	279	126640866	-	A1S_0810	-	putative ribosomal large subunit pseudouridine synthase B
752	 41.21	0	961290..961886	-	198	126640867	-	A1S_0811	-	hypothetical protein
753	 38.65	0	961883..962446	-	187	126640868	-	A1S_0812	-	hypothetical protein
754	 39.66	0	962903..963376	-	157	126640869	-	A1S_0813	-	hypothetical protein
755	 39.93	0	963610..964185	-	191	126640870	-	A1S_0814	-	hypothetical protein
756	 40.35	0	964531..964929	+	132	126640871	-	A1S_0815	-	hypothetical protein
757	 48.39	+2	965004..965189	+	61	126640872	-	A1S_0816	-	50S ribosomal protein L32
758	 41.75	0	965426..966328	+	300	126640873	-	A1S_0817	-	hypothetical protein
759	 41.04	0	966502..967059	+	185	126640874	-	A1S_0818	-	hypothetical protein
760	 37.30	0	967129..967380	+	83	126640875	-	A1S_0819	-	acyl carrier protein (ACP)
761	 35.47	-1	967718..968044	+	108	126640876	-	A1S_0820	-	putative peptidoglycan-binding LysM
762	 39.70	0	968090..968623	-	177	126640877	-	A1S_0821	-	hypothetical protein
763	 37.39	0	969039..969629	+	196	126640878	-	A1S_0822	-	putative hydrolase
764	 41.85	0	969695..970246	-	183	126640879	-	A1S_0823	-	34 dihydroxy-2-butanone-4-phosphate synthase
765	 36.75	0	972615..973112	+	165	126640880	-	A1S_0824	-	hypothetical protein
766	 42.81	0	973168..973452	-	94	126640881	-	A1S_0825	-	aspartate 1-decarboxylase precursor
767	 43.40	0	973680..973967	-	95	126640882	-	A1S_0826	-	peptidyl-tRNA hydrolase
768	 41.48	0	974101..974235	-	44	126640883	-	A1S_0827	-	peptidyl-tRNA hydrolase
769	 43.59	0	974283..974594	-	103	126640884	-	A1S_0828	-	50S ribosomal protein L25
770	 43.22	0	974679..975629	-	316	126640885	-	A1S_0829	-	ribose-phosphate pyrophosphokinase
771	 37.80	0	976104..976820	-	238	126640886	-	A1S_0834	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
772	 39.21	0	976956..977534	-	192	126640887	-	A1S_0835	-	outer-membrane lipoprotein precursor
773	 38.22	0	977539..979176	-	545	126640888	-	A1S_0836	-	putative signal peptide
774	 42.41	0	979508..980620	+	370	126640889	-	A1S_0837	-	glutamyl tRNA reductase
775	 39.01	0	980617..981972	-	451	126640890	-	A1S_0838	-	DNA primase
776	 38.15	0	981914..982411	-	165	126640891	-	A1S_0839	-	DNA primase
777	 41.64	0	982642..983736	-	364	126640892	-	A1S_0840	-	putative competence protein (ComL)
778	 40.82	0	984042..984923	+	293	126640893	-	A1S_0841	-	ribosomal large subunit pseudouridine synthase D
779	 41.87	0	984934..985671	+	245	126640894	-	A1S_0842	-	hypothetical protein
780	 39.91	0	985988..986443	+	151	126640895	-	A1S_0843	-	putative flavodoxin or tryptophan repressor binding protein
781	 39.20	0	986485..986859	-	124	126640896	smpB	A1S_0844	-	SsrA-binding protein
782	 37.25	0	987181..987588	+	135	126640897	-	A1S_0845	-	phosphopantetheine adenylyltransferase
783	 36.53	-1	988679..989710	+	343	126640898	-	A1S_0847	-	putative signal peptide
784	 39.83	0	989760..990452	-	230	126640899	-	A1S_0848	-	transcriptional regulator
785	 44.34	+1	991012..991956	+	314	126640900	-	A1S_0849	-	tartrate dehydrogenase
786	 41.63	0	992112..993629	+	505	126640901	-	A1S_0850	-	putative transporter
787	 43.66	+1	993764..994615	+	283	126640902	-	A1S_0851	-	putative lipase
788	 42.13	0	994910..995773	+	287	126640903	-	A1S_0852	-	dioxygenase alpha subunit
789	 44.90	+1	995973..996629	+	218	126640904	-	A1S_0853	-	succinate-semialdehyde dehydrogenase
790	 40.95	0	996596..997291	+	231	126640905	-	A1S_0854	-	NAD-dependent succinate aldehyde dehydrogenases
791	 39.58	0	997480..998295	+	271	126640906	-	A1S_0855	-	dioxygenase beta subunit
792	 34.00	-1	998573..999466	-	297	126640907	-	A1S_0857	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
