IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

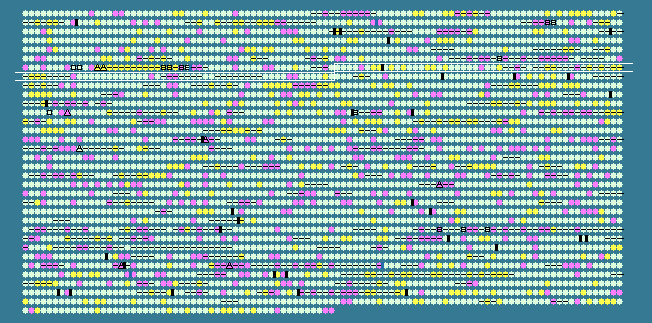

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
653	 37.23	0	836673..837494	+	273	126640768	-	A1S_0706	-	putative hydrolase
654	 41.46	0	838304..839965	+	553	126640769	-	A1S_0707	-	copper resistance protein A precursor
655	 39.42	0	839952..840707	+	251	126640770	-	A1S_0708	-	copper resistance protein B precursor
656	 39.90	0	840940..841731	+	263	126640771	-	A1S_0709	-	putative cation efflux system protein
657	 36.36	-1	841938..842201	+	87	126640772	-	A1S_0710	-	SMR family drug transporter
658	 41.18	0	842285..842692	+	135	126640773	-	A1S_0711	-	methylated-DNA-(protein)-cysteine S- methyltransferase
659	 43.94	+1	843051..844049	+	332	126640774	argJ	A1S_0712	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
660	 45.65	+1	844433..845260	+	275	126640775	-	A1S_0713	-	quinolinate synthetase
661	 39.51	0	845958..846977	-	339	126640776	-	A1S_0718	-	adenosine deaminase
662	 45.77	+1	847478..848530	+	350	126640777	-	A1S_0719	-	zinc-binding dehydrogenase
663	 38.70	0	848624..849313	-	229	126640778	-	A1S_0720	-	LysR family transcriptional regulator
664	 45.92	+1	849910..851037	+	375	126640779	-	A1S_0721	-	glutaryl-CoA dehydrogenase
665	 42.08	0	851382..852581	+	399	126640780	-	A1S_0722	-	major facilitator superfamily cis,cis-muconate transporter
666	 42.28	0	852769..853863	+	364	126640781	-	A1S_0723	-	L-carnitine dehydrogenase
667	 41.03	0	853968..855137	-	389	126640782	-	A1S_0724	-	citrate utilization protein B
668	 44.39	+1	855091..856347	-	418	126640783	-	A1S_0725	-	tricarballylate dehydrogenase
669	 44.06	+1	856601..857374	-	257	126640784	-	A1S_0726	-	LysR family transcriptional regulator
670	 41.41	0	857662..858342	-	226	126640785	-	A1S_0727	-	putative substrate-binding protein
671	 44.50	+1	858550..859704	-	384	126640786	-	A1S_0728	-	major facilitator superfamily citrate-proton symporter
672	 42.72	0	860139..860990	-	283	126640787	-	A1S_0729	-	LysR family transcriptional regulator
673	 40.78	0	861626..862753	+	375	126640788	-	A1S_0730	-	putative long-chain fatty acid transport protein
674	 42.91	0	862985..864154	+	389	126640789	-	A1S_0731	-	amidohydrolase
675	 38.87	0	864213..865187	-	324	126640790	-	A1S_0732	-	AraC family transcriptional regulator
676	 40.63	0	865571..866461	+	296	126640791	-	A1S_0733	-	hypothetical protein
677	 36.64	-1	866563..866985	-	140	126640792	-	A1S_0734	-	transporter
678	 39.25	0	867607..868299	+	230	126640793	-	A1S_0735	-	LysR family transcriptional regulator
679	 40.02	0	868666..869652	+	328	126640794	-	A1S_0736	-	hypothetical protein
680	 44.32	+1	869881..870717	+	278	126640795	-	A1S_0737	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
681	 42.93	0	870978..871394	+	138	126640796	-	A1S_0738	-	putative flavoprotein oxidoreductase
682	 39.31	0	872488..873039	+	183	126640797	-	A1S_0739	-	putative transcriptional regulator
683	 29.56	-2	873036..874253	-	405	126640798	-	A1S_0740	-	putative phage related protein
684	 39.56	0	874446..874718	-	90	126640799	-	A1S_0741	-	hypothetical protein
685	 37.09	0	875602..878292	+	896	126640800	-	A1S_0742	-	iron-regulated protein
686	 39.86	0	878374..878664	-	96	126640801	-	A1S_0743	-	hypothetical protein
687	 41.03	0	878957..879424	+	155	126640802	-	A1S_0744	-	TetR family transcriptional regulator
688	 44.55	+1	879534..882155	-	873	126640803	-	A1S_0745	-	hypothetical protein
689	 44.11	+1	883242..884327	-	361	126640804	-	A1S_0746	-	ribonucleotide-diphosphate reductase subunit beta
690	 42.89	0	884853..887510	-	885	126640805	-	A1S_0747	-	ribonucleotide-diphosphate reductase subunit alpha
691	 42.22	0	888397..888936	+	179	126640806	-	A1S_0748	-	NarL family two-component response regulator
692	 41.46	0	889191..890618	+	475	126640807	-	A1S_0749	-	BfmS
693	 36.33	-1	890641..890940	-	99	126640808	-	A1S_0750	-	hypothetical protein
694	 38.68	0	891087..892058	-	323	126640809	-	A1S_0751	-	diguanylate cyclase
695	 46.01	+1	892935..893486	+	183	126640810	-	A1S_0752	-	NADH dehydrogenase I chain A
696	 43.33	0	893601..894170	+	189	126640811	-	A1S_0753	-	NADH dehydrogenase I chain B
697	 44.46	+1	894254..896041	+	595	162286749	-	A1S_0754	-	bifunctional NADH:ubiquinone oxidoreductase subunit C/D
698	 41.89	0	896226..896564	+	112	126640813	-	A1S_0755	-	NADH dehydrogenase I chain E
699	 45.45	+1	896708..897895	+	395	126640814	-	A1S_0756	-	NADH dehydrogenase I chain F
700	 43.76	+1	898099..900591	+	830	126640815	-	A1S_0757	-	NADH dehydrogenase subunit G
701	 43.19	0	900709..901611	+	300	126640816	-	A1S_0758	-	NADH dehydrogenase subunit H
702	 44.04	+1	901678..902172	+	164	126640817	-	A1S_0759	-	NADH dehydrogenase subunit I
703	 44.27	+1	902298..902690	+	130	126640818	-	A1S_0760	-	NADH dehydrogenase I chain J
704	 47.26	+2	902762..902998	+	78	126640819	-	A1S_0761	-	NADH dehydrogenase I chain K
705	 41.59	0	903142..904884	+	580	126640820	-	A1S_0762	-	NADH dehydrogenase subunit L
706	 41.63	0	905003..906484	+	493	126640821	-	A1S_0763	-	NADH dehydrogenase subunit M
707	 39.61	0	906565..907983	+	472	126640822	-	A1S_0764	-	NADH dehydrogenase I chain N
708	 39.96	0	908192..908719	+	175	126640823	-	A1S_0765	-	uracil phosphoribosyltransferase
709	 35.03	-1	908836..909129	+	97	126640824	-	A1S_0766	-	putative cold shock protein
710	 42.24	0	909395..909742	+	115	126640825	-	A1S_0767	-	Excalibur
711	 40.87	0	909754..910536	-	260	126640826	-	A1S_0768	-	LysR family transcriptional regulator
712	 43.09	0	910803..911489	+	228	126640827	-	A1S_0769	-	ferredoxin--NADP+ reductase
713	 40.28	0	911540..911899	-	119	126640828	-	A1S_0770	-	hypothetical protein
714	 39.96	0	912830..914383	+	517	126640829	-	A1S_0771	-	hypothetical protein
715	 39.83	0	914695..915894	-	399	126640830	-	A1S_0772	-	putative oxidoreductase
716	 39.39	0	916012..916572	-	186	126640831	-	A1S_0773	-	putative D-cysteine desulfhydrase (DcyD)
717	 41.82	0	916957..917958	-	333	126640832	-	A1S_0774	-	RND efflux transporter
718	 41.29	0	918125..919519	-	464	126640833	-	A1S_0775	-	MFS family transporter
719	 39.74	0	919765..920232	-	155	126640834	-	A1S_0776	-	TetR family transcriptional regulator
720	 37.31	0	920558..921136	+	192	126640835	-	A1S_0777	-	putative threonine efflux protein (RhtC)
721	 40.85	0	921615..923624	-	669	126640836	metG	A1S_0778	-	methionyl-tRNA synthetase
722	 36.60	-1	924036..924464	+	142	126640837	-	A1S_0779	-	hypothetical protein
723	 42.22	0	924748..925839	+	363	126640838	-	A1S_0780	-	putative ATP-binding protein
724	 40.00	0	926153..926857	+	234	126640839	-	A1S_0781	-	putative MTA/SAH nucleosidase
725	 36.09	-1	926888..927394	-	168	126640840	-	A1S_0782	-	hypothetical protein
726	 34.03	-1	927976..928404	+	142	126640841	-	A1S_0783	-	hypothetical protein
727	 38.92	0	928552..929088	+	178	126640842	dcd	A1S_0784	-	deoxycytidine triphosphate deaminase
728	 36.77	0	929475..930725	+	416	126640843	-	A1S_0785	-	hypothetical protein
729	 38.58	0	931106..932974	+	622	126640844	-	A1S_0786	-	putative signal peptide
730	 38.31	0	933113..933715	+	200	126640845	-	A1S_0787	-	putative signal peptide
731	 39.12	0	933808..936159	+	783	126640846	-	A1S_0788	-	hypothetical protein
732	 42.08	0	937354..938073	-	239	126640847	-	A1S_0789	-	hypothetical protein
733	 37.59	0	938383..939111	-	242	126640848	-	A1S_0790	-	hypothetical protein
734	 40.53	0	940794..941279	-	161	126640849	-	A1S_0793	-	putative transcriptional regulator
735	 41.27	0	941544..942236	-	230	126640850	-	A1S_0794	-	hypothetical protein
736	 42.64	0	942465..943130	+	221	126640851	-	A1S_0795	-	hypothetical protein
737	 38.36	0	943599..944075	+	158	126640852	-	A1S_0796	-	GntR family transcriptional regulator
738	 40.44	0	944227..947535	+	1102	126640853	-	A1S_0797	-	putative chromosome segregation ATPases
739	 41.95	0	947600..948574	+	324	126640854	-	A1S_0798	-	putative cell division protein (ZipA-like)
740	 43.23	0	948696..950705	+	669	126640855	-	A1S_0799	-	DNA ligase
741	 37.63	0	950958..951422	+	154	126640856	-	A1S_0800	-	bacterioferritin
742	 43.15	0	951717..952307	+	196	126640857	-	A1S_0801	-	putative transport protein (permease)
743	 42.97	0	952393..952911	+	172	126640858	-	A1S_0802	-	putative transport protein (permease)
744	 38.57	0	952979..954142	-	387	126640859	-	A1S_0803	-	trehalose-6-phosphate synthase
745	 27.52	-2	954397..955032	-	211	126640860	-	A1S_0804	-	trehalose-6-phosphate phophatase
746	 36.01	-1	955779..956339	+	186	126640861	-	A1S_0805	-	putative hydrolase biotin biosynthesis (BioH)
747	 41.27	0	956565..957710	+	381	126640862	-	A1S_0806	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
748	 38.62	0	957829..958869	+	346	126640863	-	A1S_0807	-	8-amino-7-oxononanoate synthase
749	 38.67	0	958998..959615	+	205	126640864	-	A1S_0808	-	putative biotin biosynthesis protein (BioC)
750	 38.10	0	959790..960272	+	160	126640865	-	A1S_0809	-	dethiobiotin synthetase x
751	 43.69	+1	960325..961164	-	279	126640866	-	A1S_0810	-	putative ribosomal large subunit pseudouridine synthase B
752	 41.21	0	961290..961886	-	198	126640867	-	A1S_0811	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
