IslandPath Analysis: Acinetobacter baumannii ATCC 17978

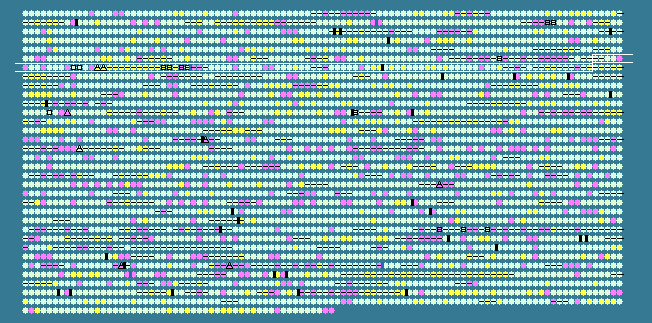

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
596	 39.15	0	737245..737829	-	194	126640711	-	A1S_0644	-	hypothetical protein
597	 41.35	0	744831..745841	+	336	126640712	-	A1S_0645	-	hypothetical protein
598	 39.14	0	751516..754647	+	1043	126640713	-	A1S_0646	-	IcmB protein
599	 40.38	0	755246..756706	+	486	126640714	-	A1S_0647	-	IcmO protein
600	 35.06	-1	760150..760611	-	153	126640715	-	A1S_0648	-	hypothetical protein
601	 36.47	-1	762204..763862	-	552	126640716	-	A1S_0649	-	putative phage primase
602	 39.04	0	766275..767063	+	262	126640717	-	A1S_0650	-	conjugal transfer protein
603	 37.87	0	770711..772804	+	697	126640718	-	A1S_0651	-	TraB protein
604	 33.76	-1	775999..776232	+	77	126640719	-	A1S_0652	-	putative ferrous iron transport protein A
605	 41.13	0	776229..778076	+	615	126640720	-	A1S_0653	-	putative ferrous iron transport protein B
606	 43.12	0	778352..778627	+	91	126640721	-	A1S_0654	-	regulatory protein ArsR
607	 38.55	0	778803..779627	+	274	126640722	-	A1S_0655	-	putative efflux protein
608	 35.81	-1	779873..780802	-	309	126640723	-	A1S_0656	-	hypothetical protein
609	 41.57	0	781145..781411	+	88	126640724	-	A1S_0657	-	transposase
610	 40.28	0	781681..782313	+	210	126640725	-	A1S_0658	-	transposase
611	 37.98	0	782608..783618	-	336	126640726	-	A1S_0659	-	hypothetical protein
612	 36.24	-1	783750..784472	-	240	126640727	-	A1S_0660	-	transposition helper
613	 58.02	+2	784871..786073	+	400	126640728	-	A1S_0661	-	phage integrase family protein
614	 54.70	+2	785564..785680	-	38	126640729	-	A1S_0662	-	phage integrase family protein
615	 56.43	+2	786513..787274	+	253	126640730	-	A1S_0663	-	putative DNA helicase
616	 58.94	+2	787405..788142	+	245	126640731	-	A1S_0664	-	replication C family protein
617	 59.87	+2	789504..790283	+	259	126640732	-	A1S_0665	-	putative mating pair formation protein
618	 55.74	+2	790522..791967	+	481	126640733	-	A1S_0666	-	TrbL/VirB6 plasmid conjugal transfer protein
619	 53.97	+2	792320..792508	+	62	126640734	-	A1S_0667	-	hypothetical protein
620	 61.69	+2	793093..793614	-	173	126640735	-	A1S_0669	-	bile acid:sodium symporter
621	 61.54	+2	793984..794373	-	129	126640737	-	A1S_0671	-	protein tyrosine phosphatase
622	 60.68	+2	794032..794532	+	166	126640736	-	A1S_0670	-	protein tyrosine phosphatase
623	 66.85	+2	795863..796411	+	182	126640738	-	A1S_0672	-	resolvase
624	 60.06	+2	796969..797619	+	216	126640739	-	A1S_0673	-	putative transposase
625	 61.47	+2	797682..798335	+	217	126640740	-	A1S_0674	-	putative transposase
626	 61.84	+2	798900..799604	-	234	126640741	-	A1S_0675	-	dihydropteroate synthase
627	 36.42	-1	799892..800377	+	161	126640742	-	A1S_0676	-	putative transposase
628	 38.69	0	800464..800631	+	55	126640743	-	A1S_0677	-	transposase
629	 35.56	-1	812720..814114	+	464	126640744	-	A1S_0682	-	RNA polymerase factor sigma-54
630	 33.33	-1	814382..814621	+	79	126640745	-	A1S_0683	-	putative sigma(54) modulation protein RpoX
631	 43.25	0	814760..815011	+	83	126640746	-	A1S_0684	-	putative toluene tolerance protein Ttg2F
632	 41.41	0	815111..816274	+	387	126640747	-	A1S_0685	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
633	 39.14	0	816493..816957	+	154	126640748	-	A1S_0686	-	ATP-phosphoribosyltransferase
634	 42.61	0	817264..818352	+	362	126640749	-	A1S_0687	-	histidinol dehydrogenase
635	 39.20	0	818485..819507	+	340	126640750	-	A1S_0688	-	histidinol-phosphate aminotransferase
636	 30.49	-2	819511..820740	-	409	126640751	-	A1S_0689	-	p-aminobenzoate synthetase
637	 39.21	0	821275..822057	+	260	126640752	-	A1S_0690	-	FilA
638	 37.50	0	822636..823187	+	183	126640753	-	A1S_0691	-	FilB
639	 37.50	0	823656..824423	+	255	126640754	-	A1S_0692	-	FilC
640	 38.30	0	824550..826100	+	516	126640755	-	A1S_0693	-	FilD
641	 36.25	-1	826223..827320	+	365	126640756	-	A1S_0694	-	FilE
642	 34.17	-1	827484..829271	+	595	126640757	-	A1S_0695	-	FilF
643	 40.68	0	829327..829884	-	185	126640758	-	A1S_0696	-	putative MutT/nudix family protein
644	 40.88	0	830140..830616	+	158	126640759	-	A1S_0697	-	putative MutT/nudix family protein
645	 38.85	0	830768..831166	+	132	126640760	-	A1S_0698	-	putative anhydratase
646	 43.65	0	831422..831964	+	180	126640761	-	A1S_0699	-	putative glycoprotein endopeptidase metalloprotease
647	 42.04	0	832159..832767	+	202	126640762	-	A1S_0700	-	putative methyltransferase
648	 41.00	0	832967..834010	+	347	126640763	-	A1S_0701	-	hypothetical protein
649	 38.16	0	834129..834356	+	75	126640764	-	A1S_0702	-	hypothetical protein
650	 41.20	0	834529..835176	+	215	126640765	-	A1S_0703	-	putative esterase
651	 35.84	-1	835173..835451	-	92	126640766	-	A1S_0704	-	hypothetical protein
652	 39.27	0	835744..836316	+	190	126640767	-	A1S_0705	-	D-ribulose-5-phosphate 3-epimerase
653	 37.23	0	836673..837494	+	273	126640768	-	A1S_0706	-	putative hydrolase
654	 41.46	0	838304..839965	+	553	126640769	-	A1S_0707	-	copper resistance protein A precursor
655	 39.42	0	839952..840707	+	251	126640770	-	A1S_0708	-	copper resistance protein B precursor
656	 39.90	0	840940..841731	+	263	126640771	-	A1S_0709	-	putative cation efflux system protein
657	 36.36	-1	841938..842201	+	87	126640772	-	A1S_0710	-	SMR family drug transporter
658	 41.18	0	842285..842692	+	135	126640773	-	A1S_0711	-	methylated-DNA-(protein)-cysteine S- methyltransferase
659	 43.94	+1	843051..844049	+	332	126640774	argJ	A1S_0712	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
660	 45.65	+1	844433..845260	+	275	126640775	-	A1S_0713	-	quinolinate synthetase
661	 39.51	0	845958..846977	-	339	126640776	-	A1S_0718	-	adenosine deaminase
662	 45.77	+1	847478..848530	+	350	126640777	-	A1S_0719	-	zinc-binding dehydrogenase
663	 38.70	0	848624..849313	-	229	126640778	-	A1S_0720	-	LysR family transcriptional regulator
664	 45.92	+1	849910..851037	+	375	126640779	-	A1S_0721	-	glutaryl-CoA dehydrogenase
665	 42.08	0	851382..852581	+	399	126640780	-	A1S_0722	-	major facilitator superfamily cis,cis-muconate transporter
666	 42.28	0	852769..853863	+	364	126640781	-	A1S_0723	-	L-carnitine dehydrogenase
667	 41.03	0	853968..855137	-	389	126640782	-	A1S_0724	-	citrate utilization protein B
668	 44.39	+1	855091..856347	-	418	126640783	-	A1S_0725	-	tricarballylate dehydrogenase
669	 44.06	+1	856601..857374	-	257	126640784	-	A1S_0726	-	LysR family transcriptional regulator
670	 41.41	0	857662..858342	-	226	126640785	-	A1S_0727	-	putative substrate-binding protein
671	 44.50	+1	858550..859704	-	384	126640786	-	A1S_0728	-	major facilitator superfamily citrate-proton symporter
672	 42.72	0	860139..860990	-	283	126640787	-	A1S_0729	-	LysR family transcriptional regulator
673	 40.78	0	861626..862753	+	375	126640788	-	A1S_0730	-	putative long-chain fatty acid transport protein
674	 42.91	0	862985..864154	+	389	126640789	-	A1S_0731	-	amidohydrolase
675	 38.87	0	864213..865187	-	324	126640790	-	A1S_0732	-	AraC family transcriptional regulator
676	 40.63	0	865571..866461	+	296	126640791	-	A1S_0733	-	hypothetical protein
677	 36.64	-1	866563..866985	-	140	126640792	-	A1S_0734	-	transporter
678	 39.25	0	867607..868299	+	230	126640793	-	A1S_0735	-	LysR family transcriptional regulator
679	 40.02	0	868666..869652	+	328	126640794	-	A1S_0736	-	hypothetical protein
680	 44.32	+1	869881..870717	+	278	126640795	-	A1S_0737	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
681	 42.93	0	870978..871394	+	138	126640796	-	A1S_0738	-	putative flavoprotein oxidoreductase
682	 39.31	0	872488..873039	+	183	126640797	-	A1S_0739	-	putative transcriptional regulator
683	 29.56	-2	873036..874253	-	405	126640798	-	A1S_0740	-	putative phage related protein
684	 39.56	0	874446..874718	-	90	126640799	-	A1S_0741	-	hypothetical protein
685	 37.09	0	875602..878292	+	896	126640800	-	A1S_0742	-	iron-regulated protein
686	 39.86	0	878374..878664	-	96	126640801	-	A1S_0743	-	hypothetical protein
687	 41.03	0	878957..879424	+	155	126640802	-	A1S_0744	-	TetR family transcriptional regulator
688	 44.55	+1	879534..882155	-	873	126640803	-	A1S_0745	-	hypothetical protein
689	 44.11	+1	883242..884327	-	361	126640804	-	A1S_0746	-	ribonucleotide-diphosphate reductase subunit beta
690	 42.89	0	884853..887510	-	885	126640805	-	A1S_0747	-	ribonucleotide-diphosphate reductase subunit alpha
691	 42.22	0	888397..888936	+	179	126640806	-	A1S_0748	-	NarL family two-component response regulator
692	 41.46	0	889191..890618	+	475	126640807	-	A1S_0749	-	BfmS
693	 36.33	-1	890641..890940	-	99	126640808	-	A1S_0750	-	hypothetical protein
694	 38.68	0	891087..892058	-	323	126640809	-	A1S_0751	-	diguanylate cyclase
695	 46.01	+1	892935..893486	+	183	126640810	-	A1S_0752	-	NADH dehydrogenase I chain A
40.16	MEAN

3.49	STD DEV
