IslandPath Analysis: Acinetobacter baumannii ATCC 17978

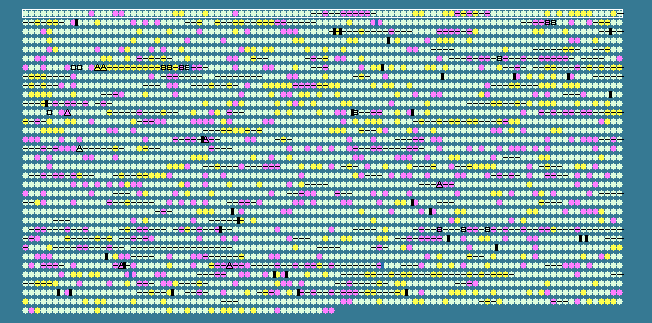

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 39.10	0	296..1492	+	398	126640116	-	A1S_0001	-	DNA replication initiator protein
2	 38.24	0	1821..2738	+	305	126640117	-	A1S_0002	-	DNA polymerase III
3	 39.62	0	2993..3835	+	280	126640118	-	A1S_0003	-	DNA replication recombination and repair protein
4	 41.66	0	4002..6356	+	784	126640119	-	A1S_0004	-	DNA gyrase
5	 36.96	0	6484..6786	+	100	126640120	-	A1S_0005	-	putative cytochrome b precursor
6	 38.16	0	6872..7306	-	144	126640121	-	A1S_0006	-	putative DedA family protein
7	 42.38	0	7680..9548	-	622	126640122	-	A1S_0007	-	putative transport protein
8	 40.32	0	9985..10872	+	295	126640123	-	A1S_0008	-	putative RND type efflux pump
9	 40.53	0	11149..12135	+	328	126640124	-	A1S_0009	-	putative RND type efflux pump
10	 41.85	0	12508..13482	+	324	126640125	-	A1S_0010	-	RND type efflux pump
11	 42.86	0	13691..13942	+	83	126640126	-	A1S_0011	-	hypothetical protein
12	 35.57	-1	13998..14756	-	252	126640127	-	A1S_0012	-	hydrolase
13	 41.69	0	14971..15963	-	330	126640128	anmK	A1S_0013	-	anhydro-N-acetylmuramic acid kinase
14	 39.79	0	16418..17392	+	324	126640129	-	A1S_0014	-	tyrosyl-tRNA synthetase
15	 37.01	0	20391..21806	-	471	126640130	-	A1S_0015	-	hypothetical protein
16	 28.94	-2	22222..23154	+	310	126640131	-	A1S_0016	-	site-specific tyrosine recombinase
17	 36.10	-1	25014..25556	-	180	126640132	-	A1S_0017	-	putative flavoprotein
18	 37.45	0	25674..26183	-	169	126640133	-	A1S_0018	-	FKBP-type peptidyl-prolyl cis-trans isomerase
19	 37.81	0	26176..26622	-	148	126640134	-	A1S_0019	-	Signal peptidase II
20	 42.16	0	26699..29461	-	920	126640135	ileS	A1S_0020	-	isoleucyl-tRNA synthetase
21	 41.19	0	30885..31940	+	351	126640136	-	A1S_0023	-	putative malic acid transport protein
22	 39.15	0	32021..32587	+	188	126640137	-	A1S_0024	-	putative MTA/SAH nucleosidase
23	 39.39	0	32622..33116	-	164	126640138	-	A1S_0025	-	putative transcriptional repressor
24	 40.80	0	33503..34225	-	240	126640139	-	A1S_0026	-	alkanesulfonate transport protein
25	 42.27	0	34317..34853	-	178	126640140	-	A1S_0027	-	alkanesulfonate transport protein
26	 45.91	+1	35111..36199	-	362	126640141	-	A1S_0028	-	alkanesulfonate monooxygenase
27	 44.87	+1	36313..37179	-	288	126640142	-	A1S_0029	-	ABC-type nitrate/sulfonate/bicarbonate transport systems
28	 41.75	0	37368..38270	-	300	126640143	-	A1S_0030	-	alkanesulfonate transport protein
29	 40.88	0	38670..39914	-	414	126640144	-	A1S_0031	-	N-acetylglutamate synthase
30	 39.58	0	40146..40433	-	95	126640145	-	A1S_0032	-	putative signal peptide
31	 45.05	+1	40689..41132	-	147	126640146	-	A1S_0033	-	putative signal peptide
32	 42.72	0	41317..41934	-	205	126640147	-	A1S_0034	-	short chain dehydrogenase
33	 42.63	0	42129..42752	-	207	126640148	-	A1S_0035	-	putative phosphoglycolate phosphatase 2 (PGP 2)
34	 42.50	0	42827..43339	-	170	126640149	-	A1S_0036	-	3-demethylubiquinone-9 3-methyltransferase and 2-octaprenyl-6-hydroxy phenol methylase
35	 40.86	0	43779..44336	+	185	126640150	-	A1S_0037	-	alkali-inducible disulfide interchange protein
36	 33.33	-1	44414..44953	-	179	126640151	-	A1S_0038	-	putative transcriptional regulator
37	 39.20	0	45198..45674	-	158	126640152	-	A1S_0039	-	TetR family transcriptional regulator
38	 42.91	0	46148..47035	+	295	126640153	-	A1S_0040	-	putative oxidoreductase
39	 38.66	0	47165..48235	+	356	126640154	-	A1S_0041	-	putative linoleoyl-CoA desaturase
40	 41.90	0	48560..49084	+	174	126640155	-	A1S_0042	-	ribonuclease PH
41	 42.58	0	49608..51542	+	644	126640156	-	A1S_0043	-	hypothetical protein
42	 43.43	0	52111..52863	-	250	126640157	-	A1S_0044	-	nicotinate-nucleotide pyrophosphorylase
43	 39.78	0	53233..53697	+	154	126640158	-	A1S_0045	-	N-acetyl-anhydromuranmyl-L-alanine amidase
44	 41.03	0	54061..55320	+	419	126640159	-	A1S_0046	-	MviN family virulence factor
45	 38.02	0	55366..55941	-	191	126640160	-	A1S_0047	-	FKBP-type 22KD peptidyl-prolyl cis-trans isomerase (rotamase)
46	 41.90	0	56112..56846	-	244	126640161	-	A1S_0048	-	FKBP-type peptidyl-prolyl cis-trans isomerase (rotamase)
47	 36.90	0	57027..58991	-	654	126640162	-	A1S_0049	-	protein tyrosine kinase
48	 40.53	0	59233..59607	-	124	126640163	-	A1S_0050	-	putative protein tyrosine phosphatase
49	 39.33	0	59666..60766	-	366	126640164	-	A1S_0051	-	putative outer membrane protein
50	 40.08	0	61385..62422	+	345	126640165	-	A1S_0052	-	WecC protein
51	 36.36	-1	62546..63403	+	285	126640166	-	A1S_0053	-	MviM protein
52	 42.83	0	63400..63978	+	192	126640167	-	A1S_0054	-	WbbJ protein
53	 38.91	0	64181..65059	+	292	126640168	-	A1S_0055	-	WecE protein
54	 32.95	-2	65130..66446	+	438	126640169	-	A1S_0056	-	O-antigen translocase
55	 33.33	-1	66590..67009	+	139	126640170	-	A1S_0057	-	capsular polysaccharide synthesis enzyme
56	 26.93	-2	67429..68349	+	306	126640171	-	A1S_0058	-	glycosyltransferase
57	 31.24	-2	70737..71693	+	318	126640172	-	A1S_0059	-	putative glycosyltransferase
58	 31.64	-2	71760..72527	+	255	126640173	-	A1S_0060	-	hypothetical protein
59	 38.25	0	72693..73160	+	155	126640174	-	A1S_0061	-	putative UDP-galactose phosphate transferase
60	 38.97	0	73263..74060	+	265	126640175	-	A1S_0062	-	putative UTP-glucose-1-phosphate uridylyltransferase
61	 40.86	0	74761..75438	+	225	126640176	-	A1S_0063	-	putative UDP-glucose 6-dehydrogenase
62	 38.21	0	75732..77105	+	457	126640177	-	A1S_0064	-	putative phosphoglucose isomerase
63	 40.14	0	77263..78114	+	283	126640178	-	A1S_0065	-	putative UDP-glucose 4-epimerase
64	 40.62	0	78158..79309	-	383	126640179	-	A1S_0066	-	hypothetical protein
65	 42.45	0	79903..81570	+	555	126640180	-	A1S_0067	-	L-lactate permease
66	 45.83	+1	81647..82342	+	231	126640181	-	A1S_0068	-	DNA-binding transcriptional repressor LldR
67	 46.87	+1	82501..83490	+	329	126640182	-	A1S_0069	-	L-lactate dehydrogenase FMN linked
68	 43.22	0	83992..85488	+	498	126640183	-	A1S_0070	-	D-lactate dehydrogenase
69	 42.55	0	85537..86751	-	404	126640184	-	A1S_0071	-	aromatic amino acid aminotransferase
70	 42.18	0	87492..87977	+	161	126640185	-	A1S_0072	-	GntR family transcriptional regulator
71	 44.89	+1	88033..88854	+	273	126640186	prpB	A1S_0073	-	2-methylisocitrate lyase
72	 47.41	+2	90283..92889	+	868	162286758	-	A1S_0076	-	aconitate hydratase
73	 30.74	-2	92999..95467	+	822	126640188	-	A1S_0077	-	hypothetical protein
74	 49.78	+2	96053..96277	+	74	126640189	-	A1S_0078	-	hypothetical protein
75	 35.00	-1	97117..97536	+	139	126640190	-	A1S_0079	-	hypothetical protein
76	 46.80	+1	98880..100082	+	400	126640191	-	A1S_0080	-	beta-ketoacyl-ACP synthase I
77	 43.30	0	100092..100643	-	183	126640192	-	A1S_0081	-	putative signal peptide
78	 32.66	-2	103903..104649	+	248	126640193	-	A1S_0086	-	hypothetical protein
79	 39.74	0	106539..107147	-	202	126640194	-	A1S_0087	-	Short-chain dehydrogenase/reductase SDR
80	 37.46	0	108043..108744	+	233	126640195	-	A1S_0088	-	hypothetical protein
81	 41.44	0	108966..109520	+	184	126640196	-	A1S_0089	-	dual specificity pseudouridine synthase
82	 38.05	0	109688..110005	+	105	126640197	-	A1S_0090	-	hypothetical protein
83	 39.90	0	110034..110414	+	126	126640198	-	A1S_0091	-	hypothetical protein
84	 42.49	0	110459..112348	-	629	126640199	-	A1S_0092	-	putative ferric siderophore receptor protein
85	 39.28	0	112703..113779	+	358	126640200	-	A1S_0093	-	hypothetical protein
86	 40.88	0	113820..114137	-	105	126640201	-	A1S_0094	-	lrp regulon transcriptional regulator (AsnC family)
87	 43.10	0	114625..115689	+	354	126640202	-	A1S_0095	-	D-amino acid dehydrogenase small subunit
88	 44.28	+1	115782..116813	+	343	126640203	-	A1S_0096	-	alanine racemase 2 PLP-binding, catabolic
89	 41.11	0	116824..117183	+	119	126640204	-	A1S_0097	-	hypothetical protein
90	 43.69	+1	117462..118784	+	440	126640205	-	A1S_0098	-	D-serine/D-alanine/glycine transport protein
91	 41.78	0	119272..120585	+	437	126640206	-	A1S_0099	-	D-serine/D-alanine/glycine transport protein
92	 45.35	+1	120643..121524	-	293	126640207	-	A1S_0100	-	LysR family transcriptional regulator
93	 45.25	+1	123404..124108	+	234	126640208	-	A1S_0103	-	3-hydroxyisobutyrate dehydrogenase
94	 45.48	+1	124424..125839	+	471	126640209	-	A1S_0104	-	putative acetyl-CoA synthetase/AMP-(fatty) acid ligase
95	 45.51	+1	125977..126978	+	333	126640210	-	A1S_0105	-	putative acyl-CoA dehydrogenase
96	 42.33	0	127207..127773	+	188	126640211	-	A1S_0106	-	putative enoyl-CoA hydratase/isomerase
97	 42.37	0	127882..128811	+	309	126640212	-	A1S_0107	-	putative enoyl-CoA hydratase/isomerase family protein
98	 43.61	0	129000..130283	+	427	126640213	-	A1S_0108	-	major facilitator superfamily metabolite/H(+) symporter
99	 44.36	+1	130376..130765	-	129	126640214	-	A1S_0109	-	homoserine lactone synthase
100	 36.89	0	131006..131371	-	121	126640215	-	A1S_0110	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
