IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

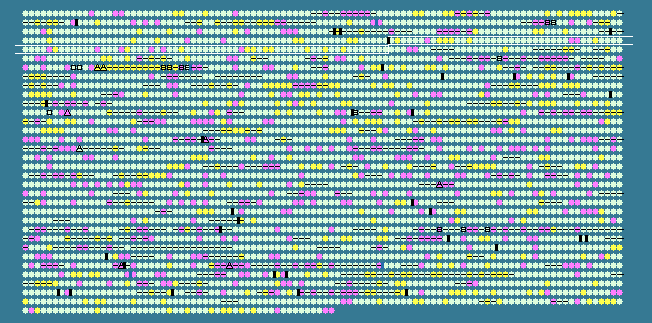

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
362	 41.97	0	433311..435152	-	613	126640477	-	A1S_0402	-	acyl-CoA synthetase
363	 44.18	+1	435345..438470	-	1041	126640478	-	A1S_0403	-	ribonuclease E
364	 41.33	0	440490..441002	+	170	126640479	-	A1S_0406	-	putative phosphoglycolate phosphatase protein
365	 39.45	0	441151..441771	+	206	126640480	-	A1S_0407	-	putative transcriptional regulator
366	 40.40	0	441932..442426	+	164	126640481	-	A1S_0408	-	putative glutathione S-transferase
367	 39.43	0	442486..442977	-	163	126640482	-	A1S_0409	-	hypothetical protein
368	 35.45	-1	443427..444086	-	219	126640483	-	A1S_0410	-	hca cluster transcriptional activator
369	 43.43	0	445225..446115	+	296	126640484	-	A1S_0411	-	putative Zn-dependent hydrolases
370	 44.04	+1	446182..448227	-	681	126640485	-	A1S_0412	-	catalase
371	 43.74	+1	448854..451064	-	736	126640486	-	A1S_0413	-	phosphoenolpyruvate-protein phosphotransferase
372	 46.17	+1	451234..451677	-	147	126640487	-	A1S_0414	-	dinucleoside polyphosphate hydrolase
373	 39.29	0	452016..452552	+	178	126640488	-	A1S_0415	-	haloacid dehalogenase-like hydrolase
374	 41.00	0	452557..453417	-	286	126640489	-	A1S_0416	-	LysR family transcriptional regulator
375	 43.79	+1	454012..455445	+	477	126640490	-	A1S_0417	-	isopropylmalate isomerase large subunit
376	 38.27	0	455464..456111	+	215	126640491	leuD	A1S_0418	-	isopropylmalate isomerase small subunit
377	 40.20	0	456305..456814	+	169	126640492	-	A1S_0419	-	hypothetical protein
378	 42.92	0	456945..457925	+	326	126640493	-	A1S_0420	-	3-isopropylmalate dehydrogenase
379	 42.34	0	458975..459196	-	73	126640494	-	A1S_0421	-	protein chain initiation factor IF-1
380	 42.15	0	459701..460471	+	256	126640495	-	A1S_0422	-	AraC family transcriptional regulator
381	 43.04	0	460491..461108	-	205	126640496	truA	A1S_0423	-	tRNA pseudouridine synthase A
382	 40.40	0	461303..462208	-	301	126640497	-	A1S_0424	-	putative L-asparaginase I (AnsA)
383	 37.10	0	462333..463367	-	344	126640498	-	A1S_0425	-	hypothetical protein
384	 39.53	0	463652..464893	-	413	126640499	-	A1S_0426	-	hypothetical protein
385	 42.72	0	465165..466283	-	372	126640500	-	A1S_0427	-	aspartate-semialdehyde dehydrogenase
386	 38.84	0	466614..467594	+	326	126640501	-	A1S_0428	-	hypothetical protein
387	 37.77	0	468443..469570	+	375	126640502	-	A1S_0429	-	DAACS family glutamate:aspartate symporter
388	 42.27	0	469633..470628	-	331	126640503	-	A1S_0430	-	putative glycosyltransferase
389	 40.81	0	470999..471841	-	280	126640504	-	A1S_0431	-	lipid A biosynthesis lauroyl acyltransferase
390	 40.68	0	472054..472638	-	194	126640505	-	A1S_0432	-	putative transporter protein
391	 42.37	0	472832..474535	-	567	126640506	-	A1S_0433	-	transport protein Uup
392	 34.96	-1	474775..475020	+	81	126640507	-	A1S_0434	-	hypothetical protein
393	 35.50	-1	474779..475009	-	76	126640508	-	A1S_0435	-	hypothetical protein
394	 38.76	0	475068..475823	-	251	126640509	-	A1S_0436	-	putative Zn-dependent oxidoreductase
395	 38.78	0	476244..476555	+	103	126640510	-	A1S_0437	-	hypothetical protein
396	 45.98	+1	476805..477152	+	115	126640511	-	A1S_0438	-	hypothetical protein
397	 42.37	0	477458..479824	+	788	126640512	-	A1S_0439	-	DNA topoisomerase I
398	 40.15	0	480011..480670	+	219	126640513	-	A1S_0440	-	hypothetical protein
399	 38.85	0	480964..481380	+	138	126640514	-	A1S_0441	-	hypothetical protein
400	 41.26	0	481497..483476	+	659	126640515	-	A1S_0442	-	putative ATP-dependent DNA helicase (PcrA)
401	 37.55	0	483529..483789	+	86	126640516	-	A1S_0443	-	putative RNA-binding protein
402	 39.22	0	484228..484584	+	118	126640517	-	A1S_0444	-	hypothetical protein
403	 39.78	0	484697..484975	+	92	126640518	-	A1S_0445	-	hypothetical protein
404	 41.39	0	485012..486526	-	504	126640519	-	A1S_0446	-	CPA2 family Na+/H+ antiporter
405	 35.26	-1	486869..487024	-	51	126640520	rpmG	A1S_0447	-	50S ribosomal protein L33
406	 45.99	+1	487037..487273	-	78	126640521	rpmB	A1S_0448	-	50S ribosomal protein L28
407	 40.81	0	487441..488670	-	409	126640522	-	A1S_0449	-	coniferyl aldehyde dehydrogenase (CALDH)
408	 40.31	0	489179..489694	+	171	126640523	-	A1S_0450	-	TetR family transcriptional regulator
409	 38.14	0	489925..490632	+	235	126640524	-	A1S_0451	-	formyltetrahydrofolate deformylase
410	 43.53	0	491270..491779	+	169	126640525	-	A1S_0452	-	hypothetical protein
411	 42.75	0	491893..492444	+	183	126640526	-	A1S_0453	-	putative biopolymer transport protein (ExbB)
412	 42.01	0	492480..492848	+	122	126640527	-	A1S_0454	-	putative biopolymer transport protein (ExbD)
413	 36.09	-1	492909..493271	-	120	126640528	-	A1S_0455	-	peptide methionine sulfoxide reductase
414	 37.46	0	493531..494403	-	290	126640529	-	A1S_0456	-	hypothetical protein
415	 40.34	0	494601..495071	-	156	126640530	-	A1S_0457	-	dihydrofolate reductase
416	 40.86	0	495155..495898	-	247	126640531	thyA	A1S_0458	-	thymidylate synthase
417	 36.43	-1	496493..496750	-	85	126640532	-	A1S_0459	-	hypothetical protein
418	 44.98	+1	496926..497672	-	248	126640533	-	A1S_0460	-	prolipoprotein diacylglyceryl transferase
419	 43.59	0	497876..498616	+	246	126640534	-	A1S_0461	-	hypothetical protein
420	 42.30	0	498660..500711	-	683	126640535	-	A1S_0462	-	putative phosphatase
421	 39.95	0	501201..503300	-	699	126640536	-	A1S_0463	-	putative alkaline phosphatase
422	 36.29	-1	503555..504265	-	236	126640537	-	A1S_0464	-	Sec-independent protein translocase protein
423	 39.73	0	504322..504759	-	145	126640538	-	A1S_0465	-	Sec-independent protein translocase protein
424	 36.07	-1	504771..504989	-	72	126640539	-	A1S_0466	-	Sec-independent protein translocase protein
425	 40.49	0	505377..506117	+	246	126640540	-	A1S_0467	-	putative permease
426	 41.52	0	506310..506834	-	174	126640541	-	A1S_0468	-	hypothetical protein
427	 44.94	+1	507102..507644	-	180	126640542	-	A1S_0469	-	hypothetical protein
428	 40.72	0	507686..508186	-	166	126640543	-	A1S_0470	-	methionine biosynthesis protein
429	 43.18	0	508279..509334	-	351	126640544	metX	A1S_0471	-	homoserine O-acetyltransferase
430	 40.43	0	509522..511183	-	553	126640545	-	A1S_0472	-	2-isopropylmalate synthase
431	 39.10	0	511678..512301	-	207	126640546	-	A1S_0473	-	putative hydroxylase
432	 39.35	0	512467..514677	-	736	126640547	-	A1S_0474	-	putative ferric siderophore receptor protein
433	 40.24	0	515434..516504	+	356	126640548	tig	A1S_0475	-	trigger factor
434	 41.03	0	516835..517302	+	155	126640549	-	A1S_0476	-	ATP-dependent Clp protease proteolytic subunit
435	 39.27	0	517623..518717	+	364	126640550	clpX	A1S_0477	-	ATP-dependent protease ATP-binding subunit
436	 37.80	0	519000..519581	+	193	126640551	-	A1S_0478	-	putative signal peptide
437	 34.44	-1	519606..519785	-	59	126640552	-	A1S_0479	-	putative signal peptide
438	 43.68	+1	520304..521734	-	476	126640553	-	A1S_0480	-	fumarate hydratase
439	 44.09	+1	522059..524140	-	693	126640554	-	A1S_0481	-	phosphate acetyltransferase
440	 42.99	0	524247..525509	-	420	126640555	-	A1S_0482	-	acetate kinase (propionate kinase)
441	 46.57	+1	526374..528065	+	563	126640556	-	A1S_0483	-	phosphogluconate dehydratase
442	 46.18	+1	528131..528706	+	191	126640557	-	A1S_0484	-	hypothetical protein
443	 41.71	0	528968..530245	+	425	126640558	-	A1S_0485	-	GntP family high-affinity gluconate permease
444	 41.34	0	530402..530788	+	128	126640559	-	A1S_0486	-	thermoresistant gluconokinase
445	 42.53	0	532692..533789	-	365	126640560	proA	A1S_0489	-	gamma-glutamyl phosphate reductase
446	 41.31	0	534392..535570	+	392	126640561	-	A1S_0490	-	putative hydrolase
447	 37.87	0	535624..536394	-	256	126640562	-	A1S_0491	-	hypothetical protein
448	 45.23	+1	536791..537723	-	310	126640563	-	A1S_0492	-	beta-hexosaminidase
449	 42.21	0	538069..540186	+	705	126640564	-	A1S_0493	-	carboxy-terminal protease
450	 42.20	0	540487..541095	+	202	126640565	-	A1S_0494	-	putative glycosyl transferase
451	 43.67	+1	541149..541622	+	157	126640566	-	A1S_0495	-	putative glycosyl transferase
452	 43.63	0	541791..542198	+	135	126640567	-	A1S_0496	-	putative phosphatidylglycerophosphatase B
453	 39.91	0	542340..542552	+	70	126640568	-	A1S_0497	-	hypothetical protein
454	 45.60	+1	542725..543042	+	105	126640569	-	A1S_0498	-	nucleoside diphosphate kinase
455	 40.94	0	543267..544397	+	376	126640570	-	A1S_0499	-	putative Fe-S-cluster redox enzyme
456	 39.03	0	544635..545213	+	192	126640571	-	A1S_0500	-	type 4 fimbrial biogenesis protein
457	 39.69	0	545351..545995	+	214	126640572	-	A1S_0501	-	hypothetical protein
458	 42.82	0	546110..547132	+	340	126640573	-	A1S_0502	-	1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate synthase
459	 41.42	0	547222..548421	+	399	126640574	hisS	A1S_0503	-	histidyl-tRNA synthetase
460	 37.91	0	548516..549148	+	210	126640575	-	A1S_0504	-	hypothetical protein
461	 41.81	0	549280..550293	+	337	126640576	-	A1S_0505	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
