IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

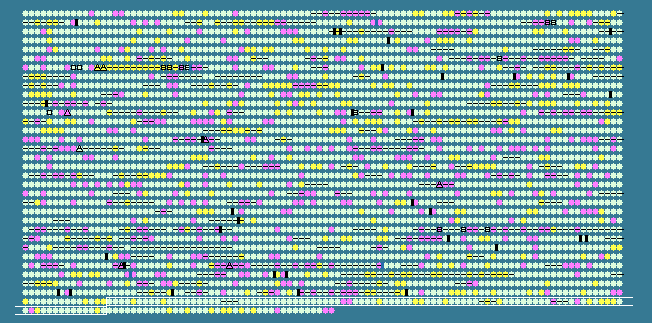

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3215	 37.84	0	3820542..3821162	-	206	126643330	-	A1S_3323	-	putative flavoprotein
3216	 38.73	0	3821631..3823262	+	543	126643331	-	A1S_3324	-	putative ferric siderophore receptor protein
3217	 40.78	0	3823441..3823722	+	93	126643332	-	A1S_3325	-	putative ferric siderophore receptor protein
3218	 39.36	0	3823781..3824311	-	176	126643333	-	A1S_3326	-	hypothetical protein
3219	 45.34	+1	3825026..3826915	-	629	126643334	-	A1S_3327	-	dihydrolipoamide S-acetyltransferase E2 component of the pyruvate dehydrogenase complex
3220	 42.94	0	3827017..3829659	-	880	126643335	aceE	A1S_3328	-	pyruvate dehydrogenase subunit E1
3221	 42.66	0	3829985..3830488	-	167	126643336	-	A1S_3329	-	EsvJ
3222	 37.55	0	3831323..3832153	-	276	126643337	lpxC	A1S_3330	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
3223	 42.67	0	3832336..3833406	-	356	126643338	-	A1S_3331	-	cell division protein FtsZ
3224	 44.30	+1	3833676..3834833	-	385	126643339	-	A1S_3332	-	cell division protein
3225	 41.38	0	3834999..3835619	-	206	126643340	-	A1S_3333	-	cell division protein
3226	 43.44	0	3835856..3836716	-	286	126643341	-	A1S_3334	-	D-alanine-D-alanine ligase B
3227	 41.87	0	3836820..3838166	-	448	126643342	-	A1S_3335	-	UDP-N-acetylmuramate--alanine ligase
3228	 42.35	0	3838280..3839233	-	317	126643343	-	A1S_3336	-	UDP-N-acetylglucosamine:N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
3229	 41.21	0	3839615..3840541	-	308	126643344	-	A1S_3337	-	glutathione synthetase
3230	 37.09	0	3840720..3840932	+	70	126643345	-	A1S_3338	-	hypothetical protein
3231	 41.01	0	3841228..3843351	+	707	126643346	-	A1S_3339	-	putative ferric siderophore receptor protein
3232	 40.86	0	3844030..3844680	-	216	126643347	pyrE	A1S_3340	-	orotate phosphoribosyltransferase
3233	 42.17	0	3844854..3845543	+	229	126643348	-	A1S_3341	-	catabolite repression control protein
3234	 36.75	0	3845999..3846349	+	116	126643349	-	A1S_3342	-	putative arsenate reductase
3235	 40.44	0	3846338..3846787	-	149	126643350	-	A1S_3343	-	hypothetical protein
3236	 39.65	0	3847078..3847884	+	268	126643351	-	A1S_3344	-	esterase
3237	 36.84	0	3848171..3849253	+	360	126643352	-	A1S_3345	-	GGDEF domain-containing protein
3238	 42.15	0	3849245..3850117	-	290	126643353	-	A1S_3346	-	thiol:disulfide interchange protein precursor
3239	 40.15	0	3850345..3851004	-	219	126643354	-	A1S_3347	-	thiol:disulfide interchange protein precursor
3240	 38.22	0	3851090..3851641	-	183	126643355	-	A1S_3348	-	putative signal peptide
3241	 41.37	0	3851870..3852292	-	140	126643356	-	A1S_3349	-	hypothetical protein
3242	 38.06	0	3852574..3852933	-	119	126643357	-	A1S_3350	-	hypothetical protein
3243	 41.94	0	3853423..3854142	+	239	126643358	-	A1S_3351	-	putative deacetylase
3244	 40.87	0	3854242..3854745	+	167	126643359	-	A1S_3352	-	putative OHCU decarboxylase
3245	 38.31	0	3854805..3855065	+	86	126643360	-	A1S_3353	-	putative transthyretin-like protein precursor
3246	 42.98	0	3855183..3856457	+	424	126643361	-	A1S_3354	-	xanthine/uracil permease family protein
3247	 38.58	0	3856771..3857304	+	177	126643362	-	A1S_3355	-	hypothetical protein
3248	 43.57	0	3857357..3858313	-	318	126643363	-	A1S_3356	-	putative flavoprotein monooxygenase
3249	 43.03	0	3858714..3859724	+	336	162286717	-	A1S_3357	-	allantoicase
3250	 39.43	0	3859700..3860224	+	174	126643365	-	A1S_3358	-	ureidoglycolate hydrolase
3251	 42.74	0	3860346..3862163	-	605	126643366	-	A1S_3359	-	DNA topoisomerase IV subunit B
3252	 40.29	0	3862247..3862735	-	162	126643367	-	A1S_3360	-	putative esterase
3253	 41.22	0	3863040..3864383	+	447	126643368	-	A1S_3361	-	hypothetical protein
3254	 29.46	-2	3865087..3865602	+	171	126643369	-	A1S_3362	-	hypothetical protein
3255	 29.49	-2	3869916..3870539	-	207	126643370	-	A1S_3363	-	membrane metalloendopeptidases proteins
3256	 41.76	0	3870878..3873679	-	933	126643371	-	A1S_3364	-	putative VGR-related protein
3257	 42.05	0	3873991..3874449	-	152	126643372	-	A1S_3365	-	disulfide bond formation protein
3258	 41.27	0	3874847..3876031	-	394	126643373	-	A1S_3366	-	gamma-glutamate-cysteine ligase
3259	 37.82	0	3876452..3876808	+	118	126643374	-	A1S_3367	-	hypothetical protein
3260	 43.90	+1	3877063..3877431	+	122	126643375	-	A1S_3368	-	hypothetical protein
3261	 43.19	0	3877508..3878755	+	415	126643376	-	A1S_3369	-	hypothetical protein
3262	 42.40	0	3878846..3879937	+	363	126643377	-	A1S_3370	-	putative aminotransferase
3263	 41.59	0	3880176..3881411	+	411	126643378	-	A1S_3371	-	MATE family drug transporter
3264	 40.66	0	3881468..3882340	-	290	126643379	-	A1S_3372	-	putative short-chain dehydrogenase
3265	 39.92	0	3882654..3883169	+	171	126643380	-	A1S_3373	-	TetR family transcriptional regulator
3266	 44.24	+1	3883425..3883589	+	54	126643381	-	A1S_3374	-	positive pho regulon response regulator
3267	 44.30	+1	3883670..3884134	+	154	126643382	-	A1S_3375	-	positive pho regulon response regulator
3268	 41.35	0	3884318..3885502	+	394	126643383	-	A1S_3376	-	two-component sensor
3269	 41.67	0	3885572..3886699	-	375	126643384	-	A1S_3377	-	hypothetical protein
3270	 39.69	0	3886990..3887760	-	256	126643385	-	A1S_3378	-	phosphatidylserine decarboxylase
3271	 45.73	+1	3887838..3888434	-	198	126643386	-	A1S_3379	-	thiosulfate sulfurtransferase
3272	 38.87	0	3888837..3889991	-	384	126643387	-	A1S_3380	-	nicotinate phosphoribosyltransferase
3273	 40.63	0	3890192..3890602	-	136	126643388	-	A1S_3381	-	AnkB protein
3274	 39.51	0	3890860..3892122	-	420	126643389	-	A1S_3382	-	catalase
3275	 42.42	0	3892611..3892973	+	120	126643390	-	A1S_3383	-	D-tyrosyl-tRNA deacylase
3276	 39.02	0	3893012..3893398	-	128	126643391	-	A1S_3384	-	hypothetical protein
3277	 42.56	0	3893746..3894081	-	111	126643392	-	A1S_3385	-	hypothetical protein
3278	 43.93	+1	3894492..3895652	-	386	126643393	-	A1S_3386	-	phosphoserine phosphatase
3279	 40.81	0	3895919..3897082	+	387	126643394	-	A1S_3387	-	hypothetical protein
3280	 44.29	+1	3897385..3898443	+	352	126643395	-	A1S_3388	-	hypothetical protein
3281	 41.91	0	3898518..3898925	+	135	126643396	-	A1S_3389	-	67-dimethyl-8-ribityllumazine synthase
3282	 42.28	0	3899010..3899378	+	122	126643397	-	A1S_3390	-	transcription termination L factor
3283	 42.53	0	3899616..3900311	+	231	126643398	-	A1S_3391	-	thiamin-monophosphate kinase
3284	 38.64	0	3900334..3900804	+	156	126643399	-	A1S_3392	-	phosphatidylglycerophosphatase A
3285	 41.13	0	3901073..3901585	+	170	126643400	-	A1S_3393	-	hypothetical protein
3286	 41.87	0	3901827..3902189	+	120	126643401	-	A1S_3394	-	hypothetical protein
3287	 38.58	0	3902466..3903170	+	234	126643402	-	A1S_3395	-	glucosamine--fructose-6-phosphate aminotransferase
3288	 41.01	0	3903352..3904041	+	229	126643403	-	A1S_3396	-	glucosamine--fructose-6-phosphate aminotransferase
3289	 35.33	-1	3907084..3907635	+	183	126643404	-	A1S_3397	-	hypothetical protein
3290	 40.04	0	3907622..3908188	-	188	126643405	-	A1S_3398	-	glutamate racemase
3291	 38.18	0	3908446..3909084	-	212	126643406	-	A1S_3399	-	VirP protein
3292	 41.79	0	3909183..3910163	-	326	126643407	-	A1S_3400	-	hypothetical protein
3293	 33.96	-1	3910325..3910960	-	211	126643408	-	A1S_3401	-	hypothetical protein
3294	 41.72	0	3911262..3912215	-	317	126643409	-	A1S_3402	-	arginase/agmatinase/formimionoglutamate hydrolase
3295	 45.74	+1	3912193..3913143	-	316	126643410	-	A1S_3403	-	imidazolonepropionase
3296	 43.19	0	3913450..3914748	-	432	126643411	-	A1S_3404	-	amino acid APC transporter
3297	 43.99	+1	3914927..3916183	-	418	126643412	-	A1S_3405	-	histidine ammonia-lyase
3298	 47.47	+2	3916553..3916849	-	98	126643413	-	A1S_3406	-	urocanate hydratase
3299	 44.20	+1	3916899..3918131	-	410	126643414	-	A1S_3407	-	urocanase
3300	 39.65	0	3918482..3918940	-	152	126643415	-	A1S_3408	-	hypothetical protein
3301	 41.49	0	3919054..3919629	-	191	126643416	-	A1S_3409	-	histidine utilization repressor
3302	 35.95	-1	3920324..3921277	+	317	126643417	-	A1S_3410	-	putative acyltransferase
3303	 44.72	+1	3921304..3922392	-	362	126643418	-	A1S_3411	-	G3E family GTPase
3304	 42.58	0	3922712..3923284	-	190	126643419	-	A1S_3412	-	hypothetical protein
3305	 40.84	0	3923559..3924770	-	403	126643420	-	A1S_3413	-	APC family aromatic amino acid transporter
3306	 41.59	0	3925306..3926613	+	435	126643421	-	A1S_3414	-	fumarylacetoacetase
3307	 39.32	0	3926765..3927232	+	155	126643422	-	A1S_3415	-	maleylacetoacetate isomerase
3308	 38.25	0	3927331..3927798	+	155	126643423	-	A1S_3416	-	glyoxalase/bleomycin resistance protein/dioxygenase
3309	 40.30	0	3928217..3928876	+	219	126643424	-	A1S_3417	-	regulatory proteins IclR
3310	 39.05	0	3928942..3929763	-	273	126643425	-	A1S_3418	-	4-hydroxyphenylpyruvate dioxygenase
3311	 40.78	0	3930681..3930989	+	102	126643426	-	A1S_3419	-	hypothetical protein
3312	 40.69	0	3931010..3932191	-	393	126643427	-	A1S_3420	-	MATE family drug transporter
3313	 43.86	+1	3932532..3933329	-	265	126643428	-	A1S_3421	-	putative transporter; putative sodium/bile acid transporter family protein
3314	 41.88	0	3933525..3934121	-	198	126643429	-	A1S_3422	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
