IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

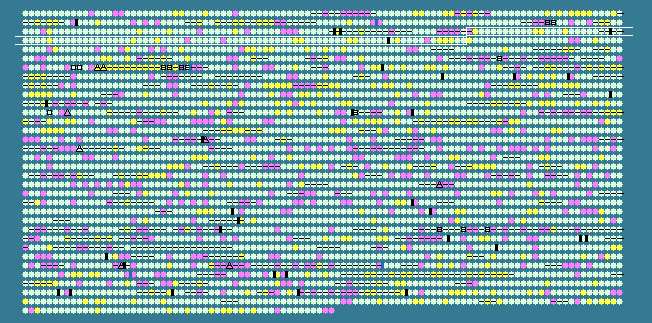

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
275	 29.17	-2	328558..331536	+	992	126640390	-	A1S_0304	-	hypothetical protein
276	 45.17	+1	331587..332684	-	365	126640391	fadA	A1S_0305	-	3-ketoacyl-CoA thiolase
277	 38.95	0	335630..336412	+	260	126640392	-	A1S_0308	-	beta-hydroxylase
278	 40.18	0	336678..337115	+	145	126640393	-	A1S_0309	-	hypothetical protein
279	 42.59	0	337321..339048	+	575	126640394	-	A1S_0310	-	EsvL
280	 40.79	0	339280..339963	+	227	126640395	-	A1S_0311	-	putative acyl-CoA thioesterase II
281	 42.69	0	340082..340669	+	195	126640396	-	A1S_0312	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
282	 39.60	0	341759..342253	+	164	126640397	-	A1S_0315	-	DNA repair system
283	 38.43	0	342448..342957	-	169	126640398	-	A1S_0316	-	putative transcriptional regulator
284	 40.41	0	343795..345816	+	673	126640399	-	A1S_0317	-	putative fusaric acid resistance protein
285	 41.80	0	346112..347056	+	314	126640400	-	A1S_0318	-	putative FusE-MFP/HlyD membrane fusion protein
286	 43.67	+1	347113..347499	-	128	126640401	-	A1S_0319	-	hypothetical protein
287	 44.77	+1	347553..348059	-	168	126640402	-	A1S_0320	-	hypothetical protein
288	 41.07	0	348234..349913	-	559	126640403	-	A1S_0321	-	recombination and DNA repair protein
289	 38.03	0	350091..351326	+	411	126640404	-	A1S_0322	-	hypothetical protein
290	 38.21	0	351484..351729	+	81	126640405	-	A1S_0323	-	hypothetical protein
291	 45.96	+1	351900..352580	+	226	126640406	-	A1S_0324	-	putative tRNA/rRNA methyltransferase
292	 39.06	0	352766..353533	+	255	126640407	-	A1S_0325	-	hypothetical protein
293	 41.31	0	353530..353955	-	141	126640408	-	A1S_0326	-	dephosphocoenzyme A kinase
294	 40.73	0	354128..354871	-	247	126640409	-	A1S_0327	-	type 4 prepilin-like proteins leader peptide processing enzyme
295	 40.23	0	354988..356118	-	376	126640410	-	A1S_0328	-	type 4 fimbrial assembly protein
296	 40.81	0	356244..357875	-	543	126640411	-	A1S_0329	-	type 4 fimbrial biogenesis protein
297	 42.11	0	358301..359041	+	246	126640412	-	A1S_0330	-	triosephosphate isomerase
298	 42.73	0	359054..359383	+	109	162286751	secG	A1S_0331	-	preprotein translocase subunit SecG
299	 41.98	0	359910..360383	+	157	126640414	-	A1S_0334	-	hypothetical protein
300	 41.77	0	360649..361905	+	418	126640415	nusA	A1S_0335	-	transcription elongation factor NusA
301	 42.67	0	364716..365015	+	99	126640416	-	A1S_0338	-	ribosome-binding factor A
302	 41.67	0	365072..365419	-	115	126640417	-	A1S_0339	-	putative monovalent cation/H+ antiporter subunit G
303	 42.38	0	365761..366213	-	150	126640418	-	A1S_0340	-	pH adaptation potassium efflux system E transmembrane protein
304	 40.51	0	366291..367808	-	505	126640419	-	A1S_0341	-	putative monovalent cation/H+ antiporter subunit D
305	 46.74	+1	368102..368377	-	91	126640420	-	A1S_0342	-	putative monovalent cation/H+ antiporter subunit C
306	 42.55	0	368467..371157	-	896	126640421	-	A1S_0343	-	putative monovalent cation/H+ antiporter subunit A
307	 40.86	0	371631..372893	-	420	126640422	-	A1S_0344	-	putative ATP binding site
308	 43.26	0	373037..374416	-	459	126640423	-	A1S_0345	-	putative DNA helicase
309	 41.56	0	374549..375229	-	226	126640424	-	A1S_0346	-	hypothetical protein
310	 42.04	0	375476..376612	-	378	126640425	-	A1S_0347	-	putative oxidoreductase; putative flavoprotein monooxygenase
311	 42.95	0	376914..378410	-	498	126640426	-	A1S_0348	-	2-octaprenylphenol hydroxylase of ubiquinone biosynthetic pathway
312	 40.21	0	378546..379112	-	188	126640427	-	A1S_0349	-	hypothetical protein
313	 42.72	0	379226..380173	-	315	126640428	-	A1S_0350	-	S-adenosylmethionine: 2-DMK methyltransferase and 2-octaprenyl-6-methoxy-14-benzoquinone methylase
314	 38.75	0	380322..380912	-	196	126640429	-	A1S_0351	-	hypothetical protein
315	 41.30	0	381362..382654	+	430	126640430	-	A1S_0352	-	polyphosphate-AMP phosphotransferase
316	 38.75	0	382677..383045	-	122	126640431	-	A1S_0353	-	hypothetical protein
317	 42.73	0	383529..386264	+	911	126640432	-	A1S_0354	-	exonuclease V gamma chain
318	 40.88	0	386422..386991	+	189	126640433	-	A1S_0355	-	exonuclease V gamma chain
319	 44.70	+1	387109..387504	+	131	126640434	-	A1S_0356	-	exonuclease V beta chain
320	 41.55	0	387699..390692	+	997	126640435	-	A1S_0357	-	exonuclease V beta chain
321	 42.42	0	391002..392552	+	516	126640436	-	A1S_0358	-	exonuclease V alpha subunit
322	 42.21	0	393269..394474	-	401	126640437	-	A1S_0359	-	putative beta-lactamase
323	 44.07	+1	394780..395049	+	89	126640438	rpsO	A1S_0360	-	30S ribosomal protein S15
324	 42.03	0	395406..397394	+	662	126640439	-	A1S_0361	-	polynucleotide phosphorylase/polyadenylase
325	 38.60	0	397665..398690	+	341	126640440	-	A1S_0362	-	putative magnesium Mg(2+)/cobalt Co(2+) transport protein
326	 42.28	0	398937..399182	-	81	126640441	-	A1S_0363	-	hypothetical protein
327	 41.82	0	399278..400102	-	274	126640442	-	A1S_0364	-	curved DNA-binding protein
328	 35.27	-1	400385..400951	-	188	126640443	-	A1S_0365	-	putative amino-acid efflux transmembrane protein
329	 41.63	0	401134..401904	-	256	126640444	-	A1S_0366	-	heat shock protein Hsp33
330	 42.36	0	402175..403857	-	560	126640445	-	A1S_0367	-	glutathione-regulated potassium-efflux system protein (K(+)/H(+) antiporter)
331	 43.54	0	404093..406042	-	649	126640446	-	A1S_0368	-	ATP-dependent primosomal protein N'
332	 43.21	0	406674..407675	+	333	126640447	-	A1S_0369	-	general secretion pathway protein F
333	 42.81	0	407732..408280	+	182	126640448	-	A1S_0370	-	general secretion pathway protein G
334	 33.67	-1	408595..408891	+	98	126640449	-	A1S_0371	-	hypothetical protein
335	 37.97	0	409138..409374	+	78	126640450	-	A1S_0372	-	protein secretion chaperone
336	 42.19	0	409376..410629	-	417	126640451	-	A1S_0373	-	apolipoprotein N-acyltransferase copper homeostasis protein
337	 41.25	0	410695..410934	-	79	126640452	-	A1S_0374	-	apolipoprotein N-acyltransferase copper homeostasis protein
338	 40.71	0	410931..411635	-	234	126640453	-	A1S_0375	-	magnesium and cobalt efflux protein
339	 41.09	0	411955..412212	+	85	126640454	-	A1S_0376	-	hypothetical protein
340	 43.35	0	413439..414536	-	365	126640455	-	A1S_0378	-	EsvG
341	 39.74	0	414789..415334	+	181	126640456	-	A1S_0379	-	hypothetical protein
342	 41.50	0	415479..416249	+	256	126640457	-	A1S_0380	-	glutamate racemase
343	 39.28	0	416433..417374	+	313	126640458	-	A1S_0381	-	hypothetical protein
344	 40.97	0	417679..418464	+	261	126640459	-	A1S_0382	-	ferrochelatase
345	 43.49	0	418572..419132	+	186	126640460	-	A1S_0383	-	hypothetical protein
346	 45.13	+1	419129..419323	-	64	126640462	-	A1S_0385	-	putative Zinc-binding protein
347	 46.46	+1	419235..419333	+	32	126640461	-	A1S_0384	-	putative Zinc-binding protein
348	 40.00	0	419600..420049	+	149	126640463	-	A1S_0386	-	putative methyltransferase
349	 41.80	0	420087..421244	+	385	126640464	-	A1S_0387	-	putative flavoprotein
350	 41.61	0	421322..421732	+	136	126640465	-	A1S_0388	-	hypothetical protein
351	 39.70	0	422019..422348	+	109	126640466	-	A1S_0389	-	hypothetical protein
352	 40.54	0	422851..423183	-	110	126640467	-	A1S_0390	-	putative type III effector
353	 37.65	0	423436..423690	-	84	126640468	-	A1S_0391	-	50S ribosomal protein L31 type B
354	 39.35	0	423792..424904	-	370	126640469	-	A1S_0392	-	putative ABC1 protein
355	 43.93	+1	425624..426595	+	323	126640470	-	A1S_0393	-	putative acyl-CoA dehydrogenase
356	 43.93	+1	426898..427878	+	326	126640471	-	A1S_0394	-	putative acyl-CoA dehydrogenase
357	 42.39	0	427913..429148	-	411	126640472	-	A1S_0395	-	Na+-driven multidrug efflux pump
358	 41.73	0	429293..429709	-	138	126640473	-	A1S_0396	-	hypothetical protein
359	 40.21	0	430052..431026	+	324	126640474	-	A1S_0397	-	putative oxidase; putative coproporphyrinogen III oxidase
360	 41.88	0	431078..431662	-	194	126640475	-	A1S_0398	-	putative short-chain dehydrogenase
361	 38.61	0	432237..432842	+	201	126640476	-	A1S_0399	-	LysR family transcriptional regulator
362	 41.97	0	433311..435152	-	613	126640477	-	A1S_0402	-	acyl-CoA synthetase
363	 44.18	+1	435345..438470	-	1041	126640478	-	A1S_0403	-	ribonuclease E
364	 41.33	0	440490..441002	+	170	126640479	-	A1S_0406	-	putative phosphoglycolate phosphatase protein
365	 39.45	0	441151..441771	+	206	126640480	-	A1S_0407	-	putative transcriptional regulator
366	 40.40	0	441932..442426	+	164	126640481	-	A1S_0408	-	putative glutathione S-transferase
367	 39.43	0	442486..442977	-	163	126640482	-	A1S_0409	-	hypothetical protein
368	 35.45	-1	443427..444086	-	219	126640483	-	A1S_0410	-	hca cluster transcriptional activator
369	 43.43	0	445225..446115	+	296	126640484	-	A1S_0411	-	putative Zn-dependent hydrolases
370	 44.04	+1	446182..448227	-	681	126640485	-	A1S_0412	-	catalase
371	 43.74	+1	448854..451064	-	736	126640486	-	A1S_0413	-	phosphoenolpyruvate-protein phosphotransferase
372	 46.17	+1	451234..451677	-	147	126640487	-	A1S_0414	-	dinucleoside polyphosphate hydrolase
373	 39.29	0	452016..452552	+	178	126640488	-	A1S_0415	-	haloacid dehalogenase-like hydrolase
374	 41.00	0	452557..453417	-	286	126640489	-	A1S_0416	-	LysR family transcriptional regulator
40.16	MEAN

3.49	STD DEV
