IslandPath Analysis: Acinetobacter baumannii ATCC 17978

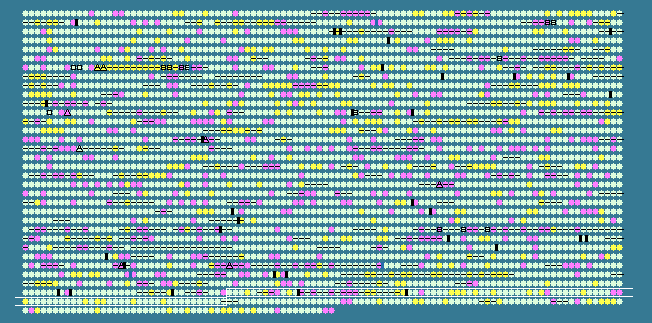

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3135	 38.48	0	3733727..3734134	-	135	126643250	-	A1S_3242	-	putative transmembrane protein
3136	 40.00	0	3734156..3734695	-	179	126643251	-	A1S_3243	-	putative cold shock protein
3137	 42.82	0	3734798..3735682	-	294	126643252	-	A1S_3244	-	homoserine kinase
3138	 44.86	+1	3736065..3736619	+	184	126643253	-	A1S_3245	-	imidazole glycerol phosphate synthase cyclase subunit
3139	 43.60	0	3736661..3737176	-	171	126643254	-	A1S_3246	-	hypothetical protein
3140	 41.61	0	3737544..3738413	+	289	126643255	-	A1S_3247	-	AraC family transcriptional regulator
3141	 45.65	+1	3738546..3739235	+	229	126643256	-	A1S_3248	-	glycerol uptake facilitator
3142	 34.57	-1	3739413..3739655	-	80	126643257	-	A1S_3250	-	hypothetical protein
3143	 36.49	-1	3739701..3740144	-	147	126643258	-	A1S_3251	-	amino acid transporter LysE
3144	 40.31	0	3740397..3741500	-	367	126643259	-	A1S_3252	-	putative DNA/RNA non-specific endonuclease G protein
3145	 51.35	+2	3741732..3742175	+	147	126643260	-	A1S_3253	-	putative signal peptide
3146	 43.13	0	3742231..3743925	-	564	126643261	-	A1S_3254	-	KUP family potassium transport system low affinity
3147	 35.56	-1	3744681..3745265	+	194	126643262	-	A1S_3255	-	putative transcriptional regulator AraC/XylS family protein
3148	 38.21	0	3745526..3746017	+	163	126643263	-	A1S_3256	-	isoprenoid biosynthesis protein
3149	 32.21	-2	3746951..3747664	-	237	126643264	-	A1S_3257	-	hypothetical protein
3150	 39.25	0	3748080..3748637	-	185	126643265	-	A1S_3258	-	putative NAD(P)H oxidoreductase
3151	 38.10	0	3748839..3749090	+	83	126643266	-	A1S_3259	-	putative transcriptional regulator YdzF
3152	 35.27	-1	3749118..3749324	+	68	126643267	-	A1S_3260	-	hypothetical protein
3153	 36.81	0	3750265..3751155	-	296	126643268	-	A1S_3261	-	hypothetical protein
3154	 34.42	-1	3752597..3752872	-	91	126643269	-	A1S_3262	-	putative transcriptional regulator
3155	 35.49	-1	3753023..3753439	+	138	126643270	-	A1S_3263	-	putative cytoplasmic protein
3156	 35.17	-1	3753512..3753892	-	126	126643271	-	A1S_3264	-	putative transcriptional regulator
3157	 38.74	0	3755913..3756578	+	221	126643272	-	A1S_3265	-	hypothetical protein
3158	 45.49	+1	3756750..3757037	+	95	126643273	-	A1S_3266	-	aldo/keto reductase
3159	 45.79	+1	3757122..3757691	+	189	126643274	-	A1S_3267	-	hypothetical protein
3160	 43.23	0	3757737..3758039	-	100	126643275	-	A1S_3268	-	hypothetical protein
3161	 40.78	0	3758307..3758843	-	178	126643276	-	A1S_3269	-	hypothetical protein
3162	 38.31	0	3759210..3760013	+	267	126643277	-	A1S_3270	-	putative permease
3163	 44.48	+1	3760010..3760852	-	280	126643278	-	A1S_3271	-	LysR family transcriptional regulator
3164	 44.18	+1	3761069..3762313	+	414	126643279	-	A1S_3272	-	MFS family transporter
3165	 37.76	0	3762824..3763207	+	127	126643280	-	A1S_3273	-	putative peptide signal
3166	 40.57	0	3763436..3763822	-	128	126643281	-	A1S_3274	-	glutathione-dependent formaldehyde-activating GFA
3167	 36.36	-1	3763870..3764628	-	252	126643282	-	A1S_3275	-	putative methyltransferase
3168	 41.35	0	3764702..3765973	-	423	126643283	-	A1S_3276	-	hypothetical protein
3169	 42.84	0	3766440..3767312	-	290	126643284	-	A1S_3277	-	putative pirin-like protein
3170	 40.03	0	3767590..3768216	+	208	126643285	-	A1S_3278	-	isochorismatase superfamily hydrolase
3171	 40.09	0	3768324..3769211	+	295	126643286	-	A1S_3279	-	putative transcription regulator protein
3172	 45.99	+1	3769316..3770524	-	402	126643287	-	A1S_3280	-	NADP+-dependent succinate semialdehyde dehydrogenase
3173	 44.66	+1	3770761..3771987	-	408	126643288	-	A1S_3281	-	4-aminobutyrate aminotransferase PLP-dependent
3174	 45.98	+1	3772318..3773709	+	463	126643289	-	A1S_3282	-	GntR family transcriptional regulator
3175	 42.48	0	3773774..3775216	-	480	126643290	-	A1S_3283	-	gamma-aminobutyrate permease
3176	 45.34	+1	3775522..3776004	-	160	126643291	-	A1S_3284	-	putative transcriptional regulator
3177	 42.00	0	3776166..3776834	+	222	126643292	-	A1S_3285	-	hypothetical protein
3178	 43.21	0	3776831..3777154	+	107	126643293	-	A1S_3286	-	putative inner membrane protein
3179	 45.11	+1	3777195..3777695	-	166	126643294	-	A1S_3287	-	RecBCD nuclease ssDNA-binding protein
3180	 43.15	0	3777828..3779192	-	454	126643295	-	A1S_3288	-	MFS family transporter
3181	 41.46	0	3779339..3780322	-	327	126643296	-	A1S_3289	-	putative integral membrane protein
3182	 41.61	0	3780888..3781358	+	156	126643297	-	A1S_3290	-	EsvF2
3183	 42.14	0	3781408..3781725	-	105	126643298	-	A1S_3291	-	alginate biosynthetic membrane
3184	 37.46	0	3781802..3782092	-	96	126643299	-	A1S_3292	-	hypothetical protein
3185	 44.94	+1	3782220..3783089	-	289	126643300	-	A1S_3293	-	putative NADPH:quinone reductase and related Zn-dependent oxidoreductase
3186	 42.58	0	3783201..3783611	-	136	126643301	-	A1S_3294	-	TetR/AcrR family transcriptional regulator
3187	 43.87	+1	3784307..3786934	+	875	126643302	-	A1S_3295	-	excinuclease ABC subunit A
3188	 36.09	-1	3786968..3788674	-	568	126643303	-	A1S_3296	-	putative GGDEF family protein
3189	 40.76	0	3789880..3790566	+	228	126643304	-	A1S_3297	-	putative outer membrane protein
3190	 40.85	0	3790633..3792309	-	558	126643305	-	A1S_3298	-	putative high affinity choline transport protein (Bet-like)
3191	 39.80	0	3792766..3793368	-	200	126643306	-	A1S_3299	-	hypothetical protein
3192	 42.91	0	3793628..3795277	-	549	126643307	actP	A1S_3300	-	acetate permease
3193	 39.04	0	3795345..3795677	-	110	126643308	-	A1S_3301	-	hypothetical protein
3194	 44.13	+1	3795969..3799358	+	1129	126643309	-	A1S_3302	-	putative two-component sensor
3195	 40.59	0	3799734..3800519	+	261	126643310	-	A1S_3303	-	hypothetical protein
3196	 39.96	0	3800562..3801089	-	175	126643311	-	A1S_3304	-	putative two-component response regulator
3197	 42.14	0	3801589..3802326	+	245	126643312	-	A1S_3305	-	NADH-dependent FMN reductase
3198	 41.64	0	3802581..3803483	+	300	126643313	-	A1S_3306	-	putative sulfonate monooxygenase (MsuD)
3199	 33.69	-1	3803575..3803853	-	92	126643314	-	A1S_3307	-	putative transcriptional regulator (Lrp-like)
3200	 35.91	-1	3804094..3804636	+	180	126643315	-	A1S_3308	-	putative isochorismatase
3201	 46.02	+1	3804683..3806416	-	577	126643316	-	A1S_3309	-	acetyl-CoA synthetase
3202	 36.99	0	3807011..3807502	+	163	126643317	-	A1S_3310	-	hypothetical protein
3203	 38.33	0	3807615..3808595	+	326	126643318	-	A1S_3311	-	hypothetical protein
3204	 40.15	0	3808575..3809117	-	180	126643319	-	A1S_3312	-	hypothetical protein
3205	 41.69	0	3809279..3810331	-	350	126643320	-	A1S_3313	-	3-deoxy-D-manno-2-octulosonate transferase
3206	 42.65	0	3810740..3811684	-	314	126643321	-	A1S_3314	-	xenobiotic reductase
3207	 40.26	0	3811827..3812129	-	100	126643322	-	A1S_3315	-	ArsR family transcriptional regulator
3208	 42.29	0	3812343..3813179	-	278	126643323	-	A1S_3316	-	peptide chain release factor 2
3209	 41.54	0	3813816..3814583	+	255	126643324	-	A1S_3317	-	putative outer membrane protein
3210	 42.38	0	3814631..3816145	-	504	126643325	-	A1S_3318	-	ssDNA exonuclease
3211	 45.17	+1	3816329..3816835	-	168	126643326	-	A1S_3319	-	pyridoxamine 5'-phosphate oxidase
3212	 40.69	0	3816996..3818150	-	384	126643327	-	A1S_3320	-	phosphoglucosamine mutase
3213	 44.29	+1	3818483..3819805	-	440	126643328	-	A1S_3321	-	IMP dehydrogenase
3214	 45.93	+1	3820085..3820354	-	89	126643329	-	A1S_3322	-	ferredoxin (putative)
3215	 37.84	0	3820542..3821162	-	206	126643330	-	A1S_3323	-	putative flavoprotein
3216	 38.73	0	3821631..3823262	+	543	126643331	-	A1S_3324	-	putative ferric siderophore receptor protein
3217	 40.78	0	3823441..3823722	+	93	126643332	-	A1S_3325	-	putative ferric siderophore receptor protein
3218	 39.36	0	3823781..3824311	-	176	126643333	-	A1S_3326	-	hypothetical protein
3219	 45.34	+1	3825026..3826915	-	629	126643334	-	A1S_3327	-	dihydrolipoamide S-acetyltransferase E2 component of the pyruvate dehydrogenase complex
3220	 42.94	0	3827017..3829659	-	880	126643335	aceE	A1S_3328	-	pyruvate dehydrogenase subunit E1
3221	 42.66	0	3829985..3830488	-	167	126643336	-	A1S_3329	-	EsvJ
3222	 37.55	0	3831323..3832153	-	276	126643337	lpxC	A1S_3330	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
3223	 42.67	0	3832336..3833406	-	356	126643338	-	A1S_3331	-	cell division protein FtsZ
3224	 44.30	+1	3833676..3834833	-	385	126643339	-	A1S_3332	-	cell division protein
3225	 41.38	0	3834999..3835619	-	206	126643340	-	A1S_3333	-	cell division protein
3226	 43.44	0	3835856..3836716	-	286	126643341	-	A1S_3334	-	D-alanine-D-alanine ligase B
3227	 41.87	0	3836820..3838166	-	448	126643342	-	A1S_3335	-	UDP-N-acetylmuramate--alanine ligase
3228	 42.35	0	3838280..3839233	-	317	126643343	-	A1S_3336	-	UDP-N-acetylglucosamine:N-acetylmuramyl- (pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
3229	 41.21	0	3839615..3840541	-	308	126643344	-	A1S_3337	-	glutathione synthetase
3230	 37.09	0	3840720..3840932	+	70	126643345	-	A1S_3338	-	hypothetical protein
3231	 41.01	0	3841228..3843351	+	707	126643346	-	A1S_3339	-	putative ferric siderophore receptor protein
3232	 40.86	0	3844030..3844680	-	216	126643347	pyrE	A1S_3340	-	orotate phosphoribosyltransferase
3233	 42.17	0	3844854..3845543	+	229	126643348	-	A1S_3341	-	catabolite repression control protein
3234	 36.75	0	3845999..3846349	+	116	126643349	-	A1S_3342	-	putative arsenate reductase
40.16	MEAN

3.49	STD DEV
