IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

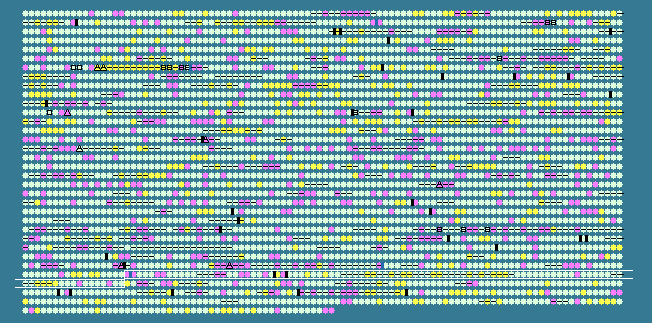

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2918	 34.76	-1	3499840..3500190	-	116	126643033	-	A1S_3014	-	hypothetical protein
2919	 36.25	-1	3506119..3506976	-	285	126643034	-	A1S_3016	-	hypothetical protein
2920	 38.32	0	3507205..3507846	-	213	126643035	-	A1S_3017	-	phosphatidylserine synthase
2921	 42.68	0	3508080..3508721	-	213	126643036	-	A1S_3021	-	hypothetical protein
2922	 38.83	0	3509133..3509660	+	175	126643037	-	A1S_3022	-	hypothetical protein
2923	 36.64	-1	3509833..3510255	+	140	126643038	-	A1S_3023	-	hypothetical protein
2924	 34.55	-1	3510304..3510549	-	81	126643039	-	A1S_3024	-	hypothetical protein
2925	 43.30	0	3510712..3511614	-	300	126643040	-	A1S_3025	-	malate dehydrogenase
2926	 41.67	0	3511910..3512449	-	179	126643041	-	A1S_3026	-	hypothetical protein
2927	 42.36	0	3512630..3514423	-	597	126643042	-	A1S_3027	-	putative lytic murein transglycosylase soluble
2928	 38.89	0	3514985..3515398	+	137	126643043	-	A1S_3028	-	putative tRNA-i(6)A37 modification enzyme
2929	 38.19	0	3515572..3516312	+	246	126643044	-	A1S_3029	-	putative tRNA-i(6)A37 modification enzyme
2930	 43.21	0	3516416..3517438	+	340	126643045	-	A1S_3030	-	phosphate starvation-inducible protein (PhoH-like)
2931	 37.54	0	3517592..3517924	+	110	126643046	-	A1S_3031	-	hypothetical protein
2932	 41.21	0	3518014..3518775	-	253	126643047	-	A1S_3032	-	TonB-like protein
2933	 33.97	-1	3519333..3519800	+	155	126643048	-	A1S_3033	-	hypothetical protein
2934	 36.54	-1	3520048..3520671	+	207	126643049	-	A1S_3034	-	hypothetical protein
2935	 39.45	0	3520846..3521319	+	157	126643050	-	A1S_3035	-	xanthine phosphoribosyltransferase
2936	 39.72	0	3521372..3521872	-	166	126643051	-	A1S_3036	-	tryptophan repressor binding protein
2937	 35.79	-1	3522400..3523500	+	366	126643052	-	A1S_3037	-	putative ribonuclease (Rbn)
2938	 35.84	-1	3523521..3524318	-	265	126643053	-	A1S_3038	-	hypothetical protein
2939	 39.79	0	3524562..3525335	+	257	126643054	-	A1S_3039	-	AraC family transcriptional regulator
2940	 39.33	0	3525412..3525978	-	188	126643055	-	A1S_3040	-	putative fumarylacetoacetate hydrolase family protein
2941	 36.64	-1	3526093..3526515	-	140	126643056	-	A1S_3041	-	hypothetical protein
2942	 36.79	0	3526872..3527507	+	211	126643057	-	A1S_3042	-	putative oxidoreductase
2943	 44.85	+1	3528457..3530661	+	734	126643058	-	A1S_3043	-	hypothetical protein
2944	 31.14	-2	3530721..3531131	-	136	126643059	-	A1S_3044	-	hypothetical protein
2945	 40.16	0	3532169..3534394	+	741	126643060	-	A1S_3045	-	exoribonuclease R
2946	 41.21	0	3534528..3534908	+	126	126643061	-	A1S_3046	-	oligopeptidase A
2947	 41.75	0	3535310..3536581	+	423	126643062	-	A1S_3047	-	oligopeptidase A
2948	 43.81	+1	3536622..3536831	+	69	126643063	-	A1S_3048	-	hypothetical protein
2949	 40.76	0	3537423..3539522	-	699	126643064	-	A1S_3049	-	putative integral membrane protein transporter
2950	 39.28	0	3539806..3540192	-	128	126643065	-	A1S_3050	-	hypothetical protein
2951	 44.62	+1	3540451..3541389	-	312	126643066	-	A1S_3051	-	hypothetical protein
2952	 36.99	0	3542702..3542947	-	81	126643067	-	A1S_3052	-	hypothetical protein
2953	 39.81	0	3543348..3544319	+	323	126643068	-	A1S_3053	-	acyl coenzyme A dehydrogenase
2954	 38.12	0	3544369..3545685	-	438	126643069	-	A1S_3054	-	monooxygenase
2955	 41.74	0	3546041..3546361	-	106	126643070	-	A1S_3055	-	50S ribosomal protein L17
2956	 42.12	0	3546437..3547369	-	310	126643071	-	A1S_3056	-	DNA-directed RNA polymerase subunit alpha
2957	 40.43	0	3547462..3547884	-	140	126643072	-	A1S_3057	-	30S ribosomal protein S4
2958	 49.44	+2	3548101..3548367	-	88	126643073	-	A1S_3058	-	30S ribosomal protein S11
2959	 46.78	+1	3548507..3548863	-	118	126643074	rpsM	A1S_3059	-	30S ribosomal protein S13
2960	 41.03	0	3548971..3549087	-	38	126643075	rpmJ	A1S_3060	-	50S ribosomal protein L36
2961	 39.15	0	3549108..3550466	-	452	162286719	secY	A1S_3061	-	preprotein translocase subunit SecY
2962	 46.26	+1	3550473..3550913	-	146	126643077	rplO	A1S_3062	-	50S ribosomal protein L15
2963	 37.85	0	3550917..3551093	-	58	126643078	-	A1S_3063	-	50S ribosomal protein L30
2964	 45.99	+1	3551100..3551486	-	128	126643079	-	A1S_3064	-	30S ribosomal protein S5
2965	 45.54	+1	3551601..3551903	-	100	126643080	-	A1S_3065	-	50S ribosomal protein L18
2966	 42.70	0	3551966..3552424	-	152	126643081	rplF	A1S_3066	-	50S ribosomal protein L6
2967	 40.35	0	3552513..3552854	-	113	126643082	rpsH	A1S_3067	-	30S ribosomal protein S8
2968	 42.75	0	3552920..3553195	-	91	126643083	rpsN	A1S_3068	-	30S ribosomal protein S14
2969	 43.94	+1	3553235..3553696	-	153	126643084	-	A1S_3069	-	50S ribosomal protein L5
2970	 44.91	+1	3553787..3554071	-	94	126643085	rplX	A1S_3070	-	50S ribosomal protein L24
2971	 42.55	0	3554114..3554482	-	122	126643086	rplN	A1S_3071	-	50S ribosomal protein L14
2972	 41.86	0	3554575..3554832	-	85	126643087	rpsQ	A1S_3072	-	30S ribosomal protein S17
2973	 42.42	0	3554829..3555026	-	65	126643088	-	A1S_3073	-	50S ribosomal protein L29
2974	 43.30	0	3555026..3555316	-	96	126643089	rplP	A1S_3074	-	50S ribosomal protein L16
2975	 47.26	+2	3555443..3556045	-	200	126643090	-	A1S_3075	-	30S ribosomal protein S3
2976	 40.94	0	3556197..3556472	-	91	126643091	-	A1S_3076	-	50S ribosomal protein L22
2977	 45.54	+1	3556827..3557555	-	242	126643092	rplB	A1S_3077	-	50S ribosomal protein L2
2978	 38.94	0	3557663..3557983	-	106	126643093	rplW	A1S_3078	-	50S ribosomal protein L23
2979	 43.95	+1	3557980..3558582	-	200	126643094	rplD	A1S_3079	-	50S ribosomal protein L4
2980	 44.96	+1	3558594..3559238	-	214	126643095	rplC	A1S_3080	-	50S ribosomal protein L3
2981	 44.87	+1	3559290..3559601	-	103	126643096	rpsJ	A1S_3081	-	30S ribosomal protein S10
2982	 38.55	0	3559853..3560581	-	242	126643097	-	A1S_3082	-	putative glutamine amidotransferase
2983	 39.95	0	3560821..3561939	+	372	126643098	-	A1S_3083	-	putative cystathionine beta-lyase PLP-dependent
2984	 42.09	0	3562115..3563530	+	471	126643099	-	A1S_3084	-	hypothetical protein
2985	 38.96	0	3563766..3564440	+	224	126643100	-	A1S_3085	-	putative flavohemoprotein
2986	 37.70	0	3564568..3565002	+	144	126643101	-	A1S_3086	-	hypothetical protein
2987	 41.19	0	3565212..3565847	+	211	126643102	-	A1S_3087	-	GTPase EngB
2988	 40.97	0	3566241..3566921	+	226	126643103	-	A1S_3088	-	hypothetical protein
2989	 40.27	0	3566963..3568201	-	412	126643104	-	A1S_3089	-	putative proton/sodium-glutamate symport protein
2990	 43.36	0	3568335..3569222	-	295	126643105	-	A1S_3090	-	acyl-CoA thioesterase II
2991	 39.69	0	3569632..3572055	+	807	126643106	-	A1S_3091	-	glycerol-3-phosphate acyltransferase
2992	 38.49	0	3572099..3572815	-	238	126643107	-	A1S_3092	-	putative RND type efflux pump involved in aminoglycoside resistance (adeT)
2993	 33.73	-1	3573165..3573416	-	83	126643108	-	A1S_3093	-	putative nucleoside-diphosphate-sugar epimerase
2994	 39.17	0	3573394..3573804	-	136	126643109	-	A1S_3094	-	putative nucleoside-diphosphate-sugar epimerase
2995	 41.81	0	3574137..3576047	+	636	126643110	-	A1S_3095	-	ATP-dependent DNA helicase
2996	 37.53	0	3576199..3576675	+	158	126643111	-	A1S_3096	-	putative DNA transformation protein (ComF)
2997	 42.06	0	3577094..3577540	-	148	126643112	-	A1S_3097	-	putative signal peptide
2998	 40.41	0	3577833..3578708	+	291	126643113	-	A1S_3098	-	magnesium and cobalt transport protein
2999	 36.81	0	3578915..3579202	-	95	126643114	-	A1S_3099	-	putative toluene-tolerance protein (Ttg2E)
3000	 39.96	0	3579279..3579806	-	175	126643115	-	A1S_3100	-	putative toluene tolerance protein (Ttg2D)
3001	 40.92	0	3579881..3580486	-	201	126643116	-	A1S_3101	-	toluene tolerance efflux transporter
3002	 41.95	0	3580561..3581268	-	235	126643117	-	A1S_3102	-	toluene tolerance efflux transporter
3003	 44.06	+1	3581334..3582023	-	229	126643118	-	A1S_3103	-	toluene tolerance efflux transporter
3004	 46.92	+1	3582556..3584403	-	615	126643119	-	A1S_3104	-	putative ATP-dependent RNA helicase
3005	 44.40	+1	3584813..3585643	-	276	126643120	-	A1S_3105	-	inositol-1-monophosphatase
3006	 44.28	+1	3585764..3587563	-	599	126643121	-	A1S_3106	-	1-deoxy-D-xylulose-5-phosphate synthase
3007	 40.37	0	3588035..3588574	+	179	126643122	-	A1S_3107	-	GTP cyclohydrolase II
3008	 41.53	0	3588909..3589652	+	247	126643123	-	A1S_3108	-	coproporphyrinogen III oxidase
3009	 39.66	0	3589967..3590614	+	215	126643124	-	A1S_3109	-	shikimate 5-dehydrogenase
3010	 35.90	-1	3590662..3592839	-	725	126643125	-	A1S_3110	-	hypothetical protein
3011	 42.02	0	3593343..3595046	+	567	126643126	-	A1S_3111	-	putative acyl-CoA dehydrogenase
3012	 37.59	0	3595118..3595705	-	195	126643127	-	A1S_3112	-	hypothetical protein
3013	 38.43	0	3596058..3596273	+	71	126643128	-	A1S_3113	-	hypothetical protein
3014	 40.41	0	3596343..3597275	-	310	126643129	-	A1S_3114	-	hypothetical protein
3015	 35.06	-1	3597576..3598268	-	230	126643130	-	A1S_3115	-	hypothetical protein
3016	 39.62	0	3598376..3599377	-	333	126643131	-	A1S_3116	-	hypothetical protein
3017	 40.40	0	3599812..3600900	-	362	126643132	-	A1S_3117	-	putative tetA efflux pump
40.16	MEAN

3.49	STD DEV
