IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

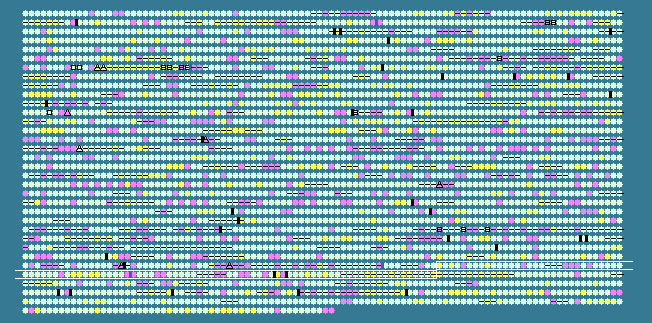

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2870	 44.87	+1	3455440..3455907	-	155	126642985	-	A1S_2964	-	phosphoribosylaminoimidazole carboxylase mutase subunit
2871	 40.40	0	3456136..3456432	-	98	126642986	-	A1S_2965	-	hypothetical protein
2872	 44.26	+1	3456851..3458113	+	420	126642987	-	A1S_2966	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl- meso-diaminopimelate ligase
2873	 41.99	0	3458744..3459367	-	207	126642988	-	A1S_2967	-	hypothetical protein
2874	 35.68	-1	3459569..3460165	+	198	126642989	-	A1S_2968	-	hypothetical protein
2875	 40.56	0	3460541..3461440	+	299	126642990	-	A1S_2969	-	hypothetical protein
2876	 43.02	0	3462196..3463176	+	326	126642991	-	A1S_2970	-	hypothetical protein
2877	 41.00	0	3463622..3464521	+	299	126642992	-	A1S_2971	-	putative vanillate O-demethylase oxygenase subunit
2878	 43.72	+1	3464842..3465534	+	230	126642993	-	A1S_2972	-	guanine deaminase
2879	 40.32	0	3465531..3465902	+	123	126642994	-	A1S_2973	-	guanine deaminase
2880	 38.02	0	3466260..3466643	+	127	126642995	-	A1S_2974	-	hypoxanthine phosphoribosyltransferase
2881	 41.23	0	3466840..3467067	+	75	126642996	-	A1S_2975	-	hypothetical protein
2882	 37.41	0	3467120..3467683	-	187	126642997	-	A1S_2976	-	putative thiol:disulfide interchange protein
2883	 38.50	0	3467914..3468900	-	328	126642998	-	A1S_2977	-	cation diffusion facilitator family transporter
2884	 35.23	-1	3468958..3469221	+	87	126642999	-	A1S_2978	-	hypothetical protein
2885	 41.93	0	3469268..3470488	-	406	126643000	trmE	A1S_2979	-	tRNA modification GTPase TrmE
2886	 42.63	0	3470714..3471208	-	164	126643001	-	A1S_2980	-	hypothetical protein
2887	 39.78	0	3471199..3472299	-	366	126643002	-	A1S_2981	-	inner membrane protein (IMP) integration factor
2888	 42.06	0	3472479..3472799	-	106	126643003	-	A1S_2982	-	hypothetical protein
2889	 38.83	0	3472810..3473118	-	102	126643004	-	A1S_2983	-	RNase P
2890	 40.74	0	3473232..3473420	-	62	126643005	-	A1S_2984	-	50S ribosomal protein L34
2891	 33.12	-2	3474084..3474545	+	153	126643006	-	A1S_2985	-	hypothetical protein
2892	 33.79	-1	3474674..3475774	+	366	126643007	-	A1S_2986	-	hypothetical protein
2893	 35.43	-1	3475888..3476268	+	126	126643008	-	A1S_2987	-	putative lipoprotein precursor
2894	 39.51	0	3476316..3477044	-	242	126643009	-	A1S_2988	-	hypothetical protein
2895	 36.04	-1	3477951..3479057	+	368	126643010	-	A1S_2989	-	putative phospholipase D protein
2896	 40.18	0	3479058..3479612	-	184	126643011	-	A1S_2990	-	putative acyltransferase
2897	 41.05	0	3480071..3481405	+	444	126643012	-	A1S_2991	-	GTP-binding protein
2898	 37.37	0	3481448..3481819	+	123	126643013	-	A1S_2994	-	hypothetical protein
2899	 41.01	0	3481932..3482504	+	190	126643014	-	A1S_2995	-	hypothetical protein
2900	 40.15	0	3482622..3483032	+	136	126643015	-	A1S_2996	-	signal peptide protein
2901	 40.00	0	3483075..3483794	-	239	126643016	apaH	A1S_2997	-	diadenosine tetraphosphatase
2902	 41.67	0	3483915..3484478	-	187	126643017	-	A1S_2998	-	S-adenosylmethionine-6-N'N'-adenosyl
2903	 40.98	0	3484751..3485626	-	291	126643018	-	A1S_2999	-	4-hydroxythreonine-4-phosphate dehydrogenase
2904	 42.42	0	3485907..3486335	+	142	126643019	rplM	A1S_3000	-	50S ribosomal protein L13
2905	 42.25	0	3486477..3486734	+	85	126643020	-	A1S_3001	-	30S ribosomal protein S9
2906	 37.29	0	3487079..3487558	+	159	126643021	-	A1S_3002	-	stringent starvation protein A
2907	 36.46	-1	3487706..3487993	+	95	126643022	-	A1S_3003	-	stringent starvation protein B
2908	 36.96	0	3488116..3488667	+	183	126643023	-	A1S_3004	-	hypothetical protein
2909	 43.82	+1	3488772..3490640	-	622	126643024	-	A1S_3005	-	putative geranyl-CoA carboxylase alpha subunit
2910	 45.04	+1	3490731..3491456	-	241	126643025	-	A1S_3006	-	enoyl-CoA hydratase
2911	 43.44	0	3491578..3492606	-	342	126643026	-	A1S_3007	-	acyl-CoA dehydrogenase
2912	 44.95	+1	3492778..3494154	-	458	126643027	-	A1S_3008	-	Acetyl-CoA carboxylase
2913	 44.79	+1	3494402..3495073	-	223	126643028	-	A1S_3009	-	short chain dehydrogenase/reductase family oxidoreductase
2914	 42.37	0	3495334..3496992	-	552	126643029	-	A1S_3010	-	hypothetical protein
2915	 38.17	0	3497533..3497925	+	130	126643030	-	A1S_3011	-	putative transcriptional regulator
2916	 41.44	0	3497957..3499042	-	361	126643031	-	A1S_3012	-	acyl-CoA dehydrogenase
2917	 39.04	0	3499257..3499817	-	186	126643032	-	A1S_3013	-	hypothetical protein
2918	 34.76	-1	3499840..3500190	-	116	126643033	-	A1S_3014	-	hypothetical protein
2919	 36.25	-1	3506119..3506976	-	285	126643034	-	A1S_3016	-	hypothetical protein
2920	 38.32	0	3507205..3507846	-	213	126643035	-	A1S_3017	-	phosphatidylserine synthase
2921	 42.68	0	3508080..3508721	-	213	126643036	-	A1S_3021	-	hypothetical protein
2922	 38.83	0	3509133..3509660	+	175	126643037	-	A1S_3022	-	hypothetical protein
2923	 36.64	-1	3509833..3510255	+	140	126643038	-	A1S_3023	-	hypothetical protein
2924	 34.55	-1	3510304..3510549	-	81	126643039	-	A1S_3024	-	hypothetical protein
2925	 43.30	0	3510712..3511614	-	300	126643040	-	A1S_3025	-	malate dehydrogenase
2926	 41.67	0	3511910..3512449	-	179	126643041	-	A1S_3026	-	hypothetical protein
2927	 42.36	0	3512630..3514423	-	597	126643042	-	A1S_3027	-	putative lytic murein transglycosylase soluble
2928	 38.89	0	3514985..3515398	+	137	126643043	-	A1S_3028	-	putative tRNA-i(6)A37 modification enzyme
2929	 38.19	0	3515572..3516312	+	246	126643044	-	A1S_3029	-	putative tRNA-i(6)A37 modification enzyme
2930	 43.21	0	3516416..3517438	+	340	126643045	-	A1S_3030	-	phosphate starvation-inducible protein (PhoH-like)
2931	 37.54	0	3517592..3517924	+	110	126643046	-	A1S_3031	-	hypothetical protein
2932	 41.21	0	3518014..3518775	-	253	126643047	-	A1S_3032	-	TonB-like protein
2933	 33.97	-1	3519333..3519800	+	155	126643048	-	A1S_3033	-	hypothetical protein
2934	 36.54	-1	3520048..3520671	+	207	126643049	-	A1S_3034	-	hypothetical protein
2935	 39.45	0	3520846..3521319	+	157	126643050	-	A1S_3035	-	xanthine phosphoribosyltransferase
2936	 39.72	0	3521372..3521872	-	166	126643051	-	A1S_3036	-	tryptophan repressor binding protein
2937	 35.79	-1	3522400..3523500	+	366	126643052	-	A1S_3037	-	putative ribonuclease (Rbn)
2938	 35.84	-1	3523521..3524318	-	265	126643053	-	A1S_3038	-	hypothetical protein
2939	 39.79	0	3524562..3525335	+	257	126643054	-	A1S_3039	-	AraC family transcriptional regulator
2940	 39.33	0	3525412..3525978	-	188	126643055	-	A1S_3040	-	putative fumarylacetoacetate hydrolase family protein
2941	 36.64	-1	3526093..3526515	-	140	126643056	-	A1S_3041	-	hypothetical protein
2942	 36.79	0	3526872..3527507	+	211	126643057	-	A1S_3042	-	putative oxidoreductase
2943	 44.85	+1	3528457..3530661	+	734	126643058	-	A1S_3043	-	hypothetical protein
2944	 31.14	-2	3530721..3531131	-	136	126643059	-	A1S_3044	-	hypothetical protein
2945	 40.16	0	3532169..3534394	+	741	126643060	-	A1S_3045	-	exoribonuclease R
2946	 41.21	0	3534528..3534908	+	126	126643061	-	A1S_3046	-	oligopeptidase A
2947	 41.75	0	3535310..3536581	+	423	126643062	-	A1S_3047	-	oligopeptidase A
2948	 43.81	+1	3536622..3536831	+	69	126643063	-	A1S_3048	-	hypothetical protein
2949	 40.76	0	3537423..3539522	-	699	126643064	-	A1S_3049	-	putative integral membrane protein transporter
2950	 39.28	0	3539806..3540192	-	128	126643065	-	A1S_3050	-	hypothetical protein
2951	 44.62	+1	3540451..3541389	-	312	126643066	-	A1S_3051	-	hypothetical protein
2952	 36.99	0	3542702..3542947	-	81	126643067	-	A1S_3052	-	hypothetical protein
2953	 39.81	0	3543348..3544319	+	323	126643068	-	A1S_3053	-	acyl coenzyme A dehydrogenase
2954	 38.12	0	3544369..3545685	-	438	126643069	-	A1S_3054	-	monooxygenase
2955	 41.74	0	3546041..3546361	-	106	126643070	-	A1S_3055	-	50S ribosomal protein L17
2956	 42.12	0	3546437..3547369	-	310	126643071	-	A1S_3056	-	DNA-directed RNA polymerase subunit alpha
2957	 40.43	0	3547462..3547884	-	140	126643072	-	A1S_3057	-	30S ribosomal protein S4
2958	 49.44	+2	3548101..3548367	-	88	126643073	-	A1S_3058	-	30S ribosomal protein S11
2959	 46.78	+1	3548507..3548863	-	118	126643074	rpsM	A1S_3059	-	30S ribosomal protein S13
2960	 41.03	0	3548971..3549087	-	38	126643075	rpmJ	A1S_3060	-	50S ribosomal protein L36
2961	 39.15	0	3549108..3550466	-	452	162286719	secY	A1S_3061	-	preprotein translocase subunit SecY
2962	 46.26	+1	3550473..3550913	-	146	126643077	rplO	A1S_3062	-	50S ribosomal protein L15
2963	 37.85	0	3550917..3551093	-	58	126643078	-	A1S_3063	-	50S ribosomal protein L30
2964	 45.99	+1	3551100..3551486	-	128	126643079	-	A1S_3064	-	30S ribosomal protein S5
2965	 45.54	+1	3551601..3551903	-	100	126643080	-	A1S_3065	-	50S ribosomal protein L18
2966	 42.70	0	3551966..3552424	-	152	126643081	rplF	A1S_3066	-	50S ribosomal protein L6
2967	 40.35	0	3552513..3552854	-	113	126643082	rpsH	A1S_3067	-	30S ribosomal protein S8
2968	 42.75	0	3552920..3553195	-	91	126643083	rpsN	A1S_3068	-	30S ribosomal protein S14
2969	 43.94	+1	3553235..3553696	-	153	126643084	-	A1S_3069	-	50S ribosomal protein L5
40.16	MEAN

3.49	STD DEV
