IslandPath Analysis: Acinetobacter baumannii ATCC 17978

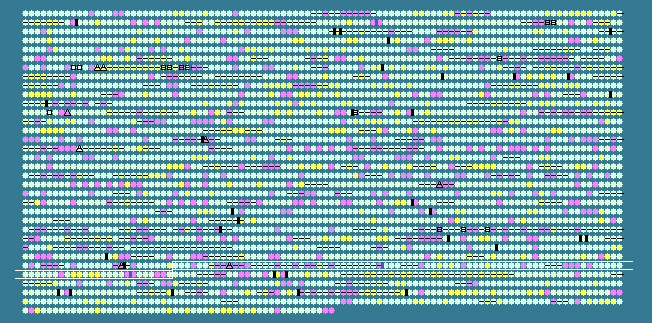

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2826	 39.58	0	3380618..3381370	+	250	126642941	-	A1S_2918	-	DNA repair protein
2827	 40.29	0	3381525..3382343	+	272	126642942	-	A1S_2919	-	hypothetical protein
2828	 39.37	0	3382351..3383079	-	242	126642943	-	A1S_2920	-	phosphoesterase
2829	 36.26	-1	3383247..3383861	+	204	126642944	-	A1S_2921	-	putative intracellular septation protein (IspZ)
2830	 39.27	0	3383896..3384198	+	100	126642945	-	A1S_2922	-	YciI-like protein
2831	 40.27	0	3384676..3386577	+	633	126642946	-	A1S_2923	-	hypothetical protein
2832	 46.67	+1	3386629..3386943	-	104	126642947	-	A1S_2924	-	putative rhodanese-related sulfurtransferase
2833	 32.12	-2	3387035..3387364	+	109	126642948	-	A1S_2925	-	hypothetical protein
2834	 31.75	-2	3387336..3387524	+	62	126642949	-	A1S_2926	-	hypothetical protein
2835	 35.52	-1	3387684..3388961	+	425	126642950	-	A1S_2927	-	Phage integrase
2836	 31.76	-2	3390745..3393354	+	869	126642951	-	A1S_2928	-	hypothetical protein
2837	 36.30	-1	3394231..3395544	+	437	126642952	-	A1S_2929	-	putative cation efflux system protein
2838	 36.43	-1	3396085..3397635	+	516	126642953	-	A1S_2930	-	putative ferrous iron transport protein B
2839	 38.31	0	3397707..3397967	-	86	126642954	-	A1S_2931	-	hypothetical protein
2840	 41.69	0	3398103..3401033	-	976	126642955	-	A1S_2932	-	heavy metal efflux pump CzcA
2841	 40.51	0	3401263..3402600	-	445	126642956	-	A1S_2933	-	heavy metal RND efflux membrane fusion protein CzcB family protein
2842	 42.45	0	3402762..3403781	-	339	126642957	-	A1S_2934	-	CzcC family heavy metal RND efflux outer membrane protein
2843	 36.10	-1	3404654..3405448	-	264	126642958	-	A1S_2935	-	copper resistance protein B precursor
2844	 37.68	0	3405561..3407468	-	635	126642959	-	A1S_2936	-	copper resistance protein A precursor
2845	 39.02	0	3408268..3408795	+	175	126642960	-	A1S_2937	-	heavy metal response regulator
2846	 36.58	-1	3408866..3410158	+	430	126642961	-	A1S_2938	-	heavy metal sensor kinase
2847	 40.86	0	3410236..3412386	-	716	126642962	-	A1S_2939	-	ATPase E1-E2 type:copper-translocating P-type ATPase:heavy metal translocating P-type ATPase
2848	 36.42	-1	3412929..3413252	+	107	126642963	-	A1S_2940	-	copper resistance protein CopC
2849	 33.89	-1	3413308..3414201	+	297	126642964	-	A1S_2941	-	copper resistance D
2850	 44.09	+1	3414467..3415405	-	312	126642965	-	A1S_2942	-	hypothetical protein
2851	 41.84	0	3420579..3421754	+	391	126642966	-	A1S_2943	-	hypothetical protein
2852	 33.92	-1	3422376..3423224	-	282	126642967	-	A1S_2944	-	hypothetical protein
2853	 38.61	0	3427462..3428484	+	340	126642968	-	A1S_2945	-	hypothetical protein
2854	 38.46	0	3430012..3430401	+	129	126642969	-	A1S_2946	-	hypothetical protein
2855	 43.09	0	3430442..3430810	-	122	126642970	-	A1S_2947	-	hypothetical protein
2856	 42.78	0	3430866..3431045	-	59	126642971	-	A1S_2948	-	thioredoxin C-3
2857	 40.07	0	3431009..3431305	-	98	126642972	-	A1S_2949	-	hypothetical protein
2858	 38.89	0	3431306..3432097	-	263	126642973	-	A1S_2950	-	hypothetical protein
2859	 40.51	0	3432494..3432730	+	78	126642974	-	A1S_2951	-	putative sulfide dehydrogenase
2860	 35.75	-1	3434499..3435740	+	413	126642975	-	A1S_2952	-	dihydrolipoamide dehydrogenase
2861	 37.45	0	3441671..3442156	-	161	126642976	-	A1S_2955	-	peptidyl prolyl-cis-trans-isomerase rotamase
2862	 37.06	0	3442372..3443283	-	303	126642977	-	A1S_2956	-	esterase
2863	 38.87	0	3444774..3445640	-	288	126642978	-	A1S_2957	-	putative signal peptide
2864	 38.58	0	3445841..3446641	+	266	126642979	-	A1S_2958	-	putative transcriptional regulator
2865	 39.97	0	3446772..3447359	+	195	126642980	-	A1S_2959	-	Hsp 24 nucleotide exchange factor
2866	 40.68	0	3447657..3449453	+	598	126642981	-	A1S_2960	-	chaperone Hsp70
2867	 31.01	-2	3451893..3452279	+	128	126642982	-	A1S_2961	-	hypothetical protein
2868	 43.08	0	3452329..3453375	-	348	126642983	-	A1S_2962	-	putative membrane-bound lytic murein transglycosylase
2869	 42.54	0	3454309..3455199	-	296	126642984	-	A1S_2963	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
2870	 44.87	+1	3455440..3455907	-	155	126642985	-	A1S_2964	-	phosphoribosylaminoimidazole carboxylase mutase subunit
2871	 40.40	0	3456136..3456432	-	98	126642986	-	A1S_2965	-	hypothetical protein
2872	 44.26	+1	3456851..3458113	+	420	126642987	-	A1S_2966	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl- meso-diaminopimelate ligase
2873	 41.99	0	3458744..3459367	-	207	126642988	-	A1S_2967	-	hypothetical protein
2874	 35.68	-1	3459569..3460165	+	198	126642989	-	A1S_2968	-	hypothetical protein
2875	 40.56	0	3460541..3461440	+	299	126642990	-	A1S_2969	-	hypothetical protein
2876	 43.02	0	3462196..3463176	+	326	126642991	-	A1S_2970	-	hypothetical protein
2877	 41.00	0	3463622..3464521	+	299	126642992	-	A1S_2971	-	putative vanillate O-demethylase oxygenase subunit
2878	 43.72	+1	3464842..3465534	+	230	126642993	-	A1S_2972	-	guanine deaminase
2879	 40.32	0	3465531..3465902	+	123	126642994	-	A1S_2973	-	guanine deaminase
2880	 38.02	0	3466260..3466643	+	127	126642995	-	A1S_2974	-	hypoxanthine phosphoribosyltransferase
2881	 41.23	0	3466840..3467067	+	75	126642996	-	A1S_2975	-	hypothetical protein
2882	 37.41	0	3467120..3467683	-	187	126642997	-	A1S_2976	-	putative thiol:disulfide interchange protein
2883	 38.50	0	3467914..3468900	-	328	126642998	-	A1S_2977	-	cation diffusion facilitator family transporter
2884	 35.23	-1	3468958..3469221	+	87	126642999	-	A1S_2978	-	hypothetical protein
2885	 41.93	0	3469268..3470488	-	406	126643000	trmE	A1S_2979	-	tRNA modification GTPase TrmE
2886	 42.63	0	3470714..3471208	-	164	126643001	-	A1S_2980	-	hypothetical protein
2887	 39.78	0	3471199..3472299	-	366	126643002	-	A1S_2981	-	inner membrane protein (IMP) integration factor
2888	 42.06	0	3472479..3472799	-	106	126643003	-	A1S_2982	-	hypothetical protein
2889	 38.83	0	3472810..3473118	-	102	126643004	-	A1S_2983	-	RNase P
2890	 40.74	0	3473232..3473420	-	62	126643005	-	A1S_2984	-	50S ribosomal protein L34
2891	 33.12	-2	3474084..3474545	+	153	126643006	-	A1S_2985	-	hypothetical protein
2892	 33.79	-1	3474674..3475774	+	366	126643007	-	A1S_2986	-	hypothetical protein
2893	 35.43	-1	3475888..3476268	+	126	126643008	-	A1S_2987	-	putative lipoprotein precursor
2894	 39.51	0	3476316..3477044	-	242	126643009	-	A1S_2988	-	hypothetical protein
2895	 36.04	-1	3477951..3479057	+	368	126643010	-	A1S_2989	-	putative phospholipase D protein
2896	 40.18	0	3479058..3479612	-	184	126643011	-	A1S_2990	-	putative acyltransferase
2897	 41.05	0	3480071..3481405	+	444	126643012	-	A1S_2991	-	GTP-binding protein
2898	 37.37	0	3481448..3481819	+	123	126643013	-	A1S_2994	-	hypothetical protein
2899	 41.01	0	3481932..3482504	+	190	126643014	-	A1S_2995	-	hypothetical protein
2900	 40.15	0	3482622..3483032	+	136	126643015	-	A1S_2996	-	signal peptide protein
2901	 40.00	0	3483075..3483794	-	239	126643016	apaH	A1S_2997	-	diadenosine tetraphosphatase
2902	 41.67	0	3483915..3484478	-	187	126643017	-	A1S_2998	-	S-adenosylmethionine-6-N'N'-adenosyl
2903	 40.98	0	3484751..3485626	-	291	126643018	-	A1S_2999	-	4-hydroxythreonine-4-phosphate dehydrogenase
2904	 42.42	0	3485907..3486335	+	142	126643019	rplM	A1S_3000	-	50S ribosomal protein L13
2905	 42.25	0	3486477..3486734	+	85	126643020	-	A1S_3001	-	30S ribosomal protein S9
2906	 37.29	0	3487079..3487558	+	159	126643021	-	A1S_3002	-	stringent starvation protein A
2907	 36.46	-1	3487706..3487993	+	95	126643022	-	A1S_3003	-	stringent starvation protein B
2908	 36.96	0	3488116..3488667	+	183	126643023	-	A1S_3004	-	hypothetical protein
2909	 43.82	+1	3488772..3490640	-	622	126643024	-	A1S_3005	-	putative geranyl-CoA carboxylase alpha subunit
2910	 45.04	+1	3490731..3491456	-	241	126643025	-	A1S_3006	-	enoyl-CoA hydratase
2911	 43.44	0	3491578..3492606	-	342	126643026	-	A1S_3007	-	acyl-CoA dehydrogenase
2912	 44.95	+1	3492778..3494154	-	458	126643027	-	A1S_3008	-	Acetyl-CoA carboxylase
2913	 44.79	+1	3494402..3495073	-	223	126643028	-	A1S_3009	-	short chain dehydrogenase/reductase family oxidoreductase
2914	 42.37	0	3495334..3496992	-	552	126643029	-	A1S_3010	-	hypothetical protein
2915	 38.17	0	3497533..3497925	+	130	126643030	-	A1S_3011	-	putative transcriptional regulator
2916	 41.44	0	3497957..3499042	-	361	126643031	-	A1S_3012	-	acyl-CoA dehydrogenase
2917	 39.04	0	3499257..3499817	-	186	126643032	-	A1S_3013	-	hypothetical protein
2918	 34.76	-1	3499840..3500190	-	116	126643033	-	A1S_3014	-	hypothetical protein
2919	 36.25	-1	3506119..3506976	-	285	126643034	-	A1S_3016	-	hypothetical protein
2920	 38.32	0	3507205..3507846	-	213	126643035	-	A1S_3017	-	phosphatidylserine synthase
2921	 42.68	0	3508080..3508721	-	213	126643036	-	A1S_3021	-	hypothetical protein
2922	 38.83	0	3509133..3509660	+	175	126643037	-	A1S_3022	-	hypothetical protein
2923	 36.64	-1	3509833..3510255	+	140	126643038	-	A1S_3023	-	hypothetical protein
2924	 34.55	-1	3510304..3510549	-	81	126643039	-	A1S_3024	-	hypothetical protein
2925	 43.30	0	3510712..3511614	-	300	126643040	-	A1S_3025	-	malate dehydrogenase
40.16	MEAN

3.49	STD DEV
