IslandPath Analysis: Acinetobacter baumannii ATCC 17978

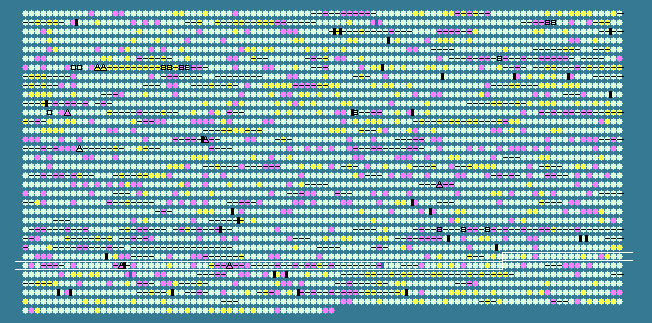

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2781	 39.87	0	3320875..3321639	+	254	126642896	-	A1S_2872	-	hypothetical protein
2782	 38.05	0	3321648..3322643	-	331	126642897	-	A1S_2873	-	hypothetical protein
2783	 38.78	0	3322681..3323121	-	146	126642898	-	A1S_2874	-	hypothetical protein
2784	 44.44	+1	3323203..3324336	-	377	126642899	-	A1S_2875	-	tryptophan synthase subunit beta
2785	 43.04	0	3324416..3324889	-	157	126642900	-	A1S_2876	-	N-(5'-phosphoribosyl)anthranilate isomerase
2786	 35.14	-1	3325495..3327318	+	607	126642901	-	A1S_2877	-	vitamin B12 receptor precursor
2787	 40.20	0	3327586..3327993	+	135	126642902	-	A1S_2878	-	hypothetical protein
2788	 38.97	0	3328195..3328779	+	194	126642903	-	A1S_2879	-	putative glycerophosphodiester phosphodiesterase
2789	 39.34	0	3328807..3329322	-	171	126642904	-	A1S_2880	-	putative signal peptide
2790	 39.56	0	3329546..3330718	+	390	126642905	-	A1S_2881	-	putative fatty acid desaturase
2791	 42.33	0	3331030..3332274	+	414	126642906	-	A1S_2882	-	hypothetical protein
2792	 40.00	0	3332338..3332937	-	199	126642907	-	A1S_2883	-	OmpR family transcriptional regulator
2793	 38.46	0	3333044..3334525	-	493	126642908	-	A1S_2884	-	two component signal transduction system kinase sensor component
2794	 45.65	+1	3334883..3335215	+	110	126642909	-	A1S_2885	-	putative signal peptide
2795	 42.16	0	3335619..3337307	+	562	126642910	-	A1S_2886	-	acyl-CoA dehydrogenase
2796	 42.44	0	3337610..3339256	+	548	126642911	-	A1S_2887	-	acyl-CoA dehydrogenase A
2797	 36.18	-1	3339471..3339857	+	128	126642912	-	A1S_2888	-	hypothetical protein
2798	 45.40	+1	3339896..3340243	-	115	126642913	-	A1S_2889	-	putative signal peptide
2799	 42.67	0	3340516..3340890	+	124	126642914	-	A1S_2890	-	hypothetical protein
2800	 39.69	0	3341085..3342296	-	403	126642915	-	A1S_2891	-	phospholipase D endonuclease domain-containing protein
2801	 41.37	0	3342624..3344477	-	617	126642916	-	A1S_2892	-	putative TonB-dependent receptor protein
2802	 36.46	-1	3344928..3345599	+	223	126642917	-	A1S_2893	-	hypothetical protein
2803	 41.98	0	3345884..3347548	+	554	126642918	aspS	A1S_2894	-	aspartyl-tRNA synthetase
2804	 35.59	-1	3347727..3347903	+	58	126642919	-	A1S_2895	-	hypothetical protein
2805	 27.94	-2	3348033..3348737	+	234	126642920	-	A1S_2896	-	hypothetical protein
2806	 30.56	-2	3348739..3349818	-	359	126642921	-	A1S_2897	-	UDP-N-acetylglucosamine 2-epimerase
2807	 39.26	0	3350964..3351773	+	269	126642922	-	A1S_2898	-	hypothetical protein
2808	 40.84	0	3351770..3352702	-	310	126642923	-	A1S_2899	-	putative glycosyltransferase
2809	 34.83	-1	3352812..3353345	-	177	126642924	-	A1S_2900	-	putative lipopolysaccharide core biosynthesis glycosyl transferase LpsC
2810	 37.72	0	3353576..3354214	-	212	126642925	-	A1S_2901	-	putative polysaccharide deacetylase
2811	 38.00	0	3354328..3355227	-	299	126642926	-	A1S_2902	-	hypothetical protein
2812	 37.96	0	3355379..3356200	-	273	126642927	-	A1S_2903	-	hypothetical protein
2813	 41.58	0	3356337..3357161	-	274	126642928	-	A1S_2904	-	branched-chain amino acid aminotransferase
2814	 42.30	0	3357288..3359852	-	854	126642929	-	A1S_2905	-	glutamine synthetase adenylyltransferase
2815	 37.90	0	3360107..3361375	-	422	126642930	-	A1S_2906	-	putative sensory transduction histidine kinase
2816	 24.87	-2	3363320..3366970	+	1216	126642931	-	A1S_2907	-	hypothetical protein
2817	 35.69	-1	3369967..3371028	-	353	126642932	-	A1S_2908	-	putative integrase
2818	 41.50	0	3371811..3372728	+	305	126642933	-	A1S_2910	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2819	 35.76	-1	3374071..3374565	+	164	126642934	-	A1S_2911	-	hypothetical protein
2820	 41.83	0	3374828..3375874	+	348	126642935	tgt	A1S_2912	-	queuine tRNA-ribosyltransferase
2821	 39.61	0	3376048..3376302	+	84	126642936	-	A1S_2913	-	IISP family preprotein translocase
2822	 42.11	0	3376354..3378255	+	633	162286720	secD	A1S_2914	-	preprotein translocase subunit SecD
2823	 39.94	0	3378336..3378698	+	120	126642938	-	A1S_2915	-	IISP family preprotein translocase  membrane subunit
2824	 42.22	0	3378782..3379231	+	149	126642939	-	A1S_2916	-	IISP family preprotein translocase  membrane subunit
2825	 44.62	+1	3379297..3380421	-	374	126642940	-	A1S_2917	-	hypothetical protein
2826	 39.58	0	3380618..3381370	+	250	126642941	-	A1S_2918	-	DNA repair protein
2827	 40.29	0	3381525..3382343	+	272	126642942	-	A1S_2919	-	hypothetical protein
2828	 39.37	0	3382351..3383079	-	242	126642943	-	A1S_2920	-	phosphoesterase
2829	 36.26	-1	3383247..3383861	+	204	126642944	-	A1S_2921	-	putative intracellular septation protein (IspZ)
2830	 39.27	0	3383896..3384198	+	100	126642945	-	A1S_2922	-	YciI-like protein
2831	 40.27	0	3384676..3386577	+	633	126642946	-	A1S_2923	-	hypothetical protein
2832	 46.67	+1	3386629..3386943	-	104	126642947	-	A1S_2924	-	putative rhodanese-related sulfurtransferase
2833	 32.12	-2	3387035..3387364	+	109	126642948	-	A1S_2925	-	hypothetical protein
2834	 31.75	-2	3387336..3387524	+	62	126642949	-	A1S_2926	-	hypothetical protein
2835	 35.52	-1	3387684..3388961	+	425	126642950	-	A1S_2927	-	Phage integrase
2836	 31.76	-2	3390745..3393354	+	869	126642951	-	A1S_2928	-	hypothetical protein
2837	 36.30	-1	3394231..3395544	+	437	126642952	-	A1S_2929	-	putative cation efflux system protein
2838	 36.43	-1	3396085..3397635	+	516	126642953	-	A1S_2930	-	putative ferrous iron transport protein B
2839	 38.31	0	3397707..3397967	-	86	126642954	-	A1S_2931	-	hypothetical protein
2840	 41.69	0	3398103..3401033	-	976	126642955	-	A1S_2932	-	heavy metal efflux pump CzcA
2841	 40.51	0	3401263..3402600	-	445	126642956	-	A1S_2933	-	heavy metal RND efflux membrane fusion protein CzcB family protein
2842	 42.45	0	3402762..3403781	-	339	126642957	-	A1S_2934	-	CzcC family heavy metal RND efflux outer membrane protein
2843	 36.10	-1	3404654..3405448	-	264	126642958	-	A1S_2935	-	copper resistance protein B precursor
2844	 37.68	0	3405561..3407468	-	635	126642959	-	A1S_2936	-	copper resistance protein A precursor
2845	 39.02	0	3408268..3408795	+	175	126642960	-	A1S_2937	-	heavy metal response regulator
2846	 36.58	-1	3408866..3410158	+	430	126642961	-	A1S_2938	-	heavy metal sensor kinase
2847	 40.86	0	3410236..3412386	-	716	126642962	-	A1S_2939	-	ATPase E1-E2 type:copper-translocating P-type ATPase:heavy metal translocating P-type ATPase
2848	 36.42	-1	3412929..3413252	+	107	126642963	-	A1S_2940	-	copper resistance protein CopC
2849	 33.89	-1	3413308..3414201	+	297	126642964	-	A1S_2941	-	copper resistance D
2850	 44.09	+1	3414467..3415405	-	312	126642965	-	A1S_2942	-	hypothetical protein
2851	 41.84	0	3420579..3421754	+	391	126642966	-	A1S_2943	-	hypothetical protein
2852	 33.92	-1	3422376..3423224	-	282	126642967	-	A1S_2944	-	hypothetical protein
2853	 38.61	0	3427462..3428484	+	340	126642968	-	A1S_2945	-	hypothetical protein
2854	 38.46	0	3430012..3430401	+	129	126642969	-	A1S_2946	-	hypothetical protein
2855	 43.09	0	3430442..3430810	-	122	126642970	-	A1S_2947	-	hypothetical protein
2856	 42.78	0	3430866..3431045	-	59	126642971	-	A1S_2948	-	thioredoxin C-3
2857	 40.07	0	3431009..3431305	-	98	126642972	-	A1S_2949	-	hypothetical protein
2858	 38.89	0	3431306..3432097	-	263	126642973	-	A1S_2950	-	hypothetical protein
2859	 40.51	0	3432494..3432730	+	78	126642974	-	A1S_2951	-	putative sulfide dehydrogenase
2860	 35.75	-1	3434499..3435740	+	413	126642975	-	A1S_2952	-	dihydrolipoamide dehydrogenase
2861	 37.45	0	3441671..3442156	-	161	126642976	-	A1S_2955	-	peptidyl prolyl-cis-trans-isomerase rotamase
2862	 37.06	0	3442372..3443283	-	303	126642977	-	A1S_2956	-	esterase
2863	 38.87	0	3444774..3445640	-	288	126642978	-	A1S_2957	-	putative signal peptide
2864	 38.58	0	3445841..3446641	+	266	126642979	-	A1S_2958	-	putative transcriptional regulator
2865	 39.97	0	3446772..3447359	+	195	126642980	-	A1S_2959	-	Hsp 24 nucleotide exchange factor
2866	 40.68	0	3447657..3449453	+	598	126642981	-	A1S_2960	-	chaperone Hsp70
2867	 31.01	-2	3451893..3452279	+	128	126642982	-	A1S_2961	-	hypothetical protein
2868	 43.08	0	3452329..3453375	-	348	126642983	-	A1S_2962	-	putative membrane-bound lytic murein transglycosylase
2869	 42.54	0	3454309..3455199	-	296	126642984	-	A1S_2963	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
2870	 44.87	+1	3455440..3455907	-	155	126642985	-	A1S_2964	-	phosphoribosylaminoimidazole carboxylase mutase subunit
2871	 40.40	0	3456136..3456432	-	98	126642986	-	A1S_2965	-	hypothetical protein
2872	 44.26	+1	3456851..3458113	+	420	126642987	-	A1S_2966	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl- meso-diaminopimelate ligase
2873	 41.99	0	3458744..3459367	-	207	126642988	-	A1S_2967	-	hypothetical protein
2874	 35.68	-1	3459569..3460165	+	198	126642989	-	A1S_2968	-	hypothetical protein
2875	 40.56	0	3460541..3461440	+	299	126642990	-	A1S_2969	-	hypothetical protein
2876	 43.02	0	3462196..3463176	+	326	126642991	-	A1S_2970	-	hypothetical protein
2877	 41.00	0	3463622..3464521	+	299	126642992	-	A1S_2971	-	putative vanillate O-demethylase oxygenase subunit
2878	 43.72	+1	3464842..3465534	+	230	126642993	-	A1S_2972	-	guanine deaminase
2879	 40.32	0	3465531..3465902	+	123	126642994	-	A1S_2973	-	guanine deaminase
2880	 38.02	0	3466260..3466643	+	127	126642995	-	A1S_2974	-	hypoxanthine phosphoribosyltransferase
40.16	MEAN

3.49	STD DEV
