IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

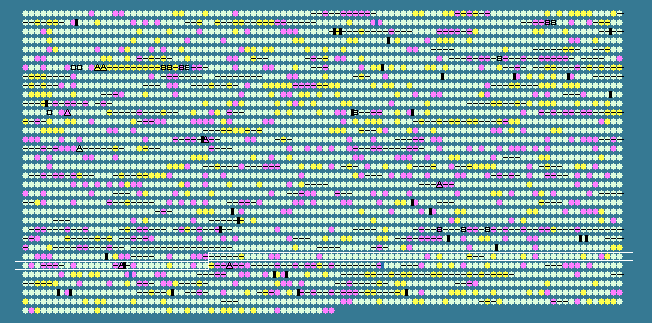

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2732	 40.68	0	3269163..3269516	-	117	126642847	-	A1S_2823	-	hypothetical protein
2733	 40.67	0	3269898..3270551	+	217	126642848	-	A1S_2824	-	hypothetical protein
2734	 37.82	0	3270940..3271407	+	155	126642849	-	A1S_2825	-	putative thiol:disulphide interchange protein (DsbC-like)
2735	 39.77	0	3271794..3272414	+	206	126642850	-	A1S_2826	-	putative signal peptide
2736	 39.02	0	3272448..3273080	-	210	126642851	-	A1S_2827	-	putative transporter
2737	 43.90	+1	3273437..3274477	-	346	126642852	-	A1S_2828	-	putative FMN oxidoreductase
2738	 40.99	0	3274556..3276463	-	635	126642853	-	A1S_2829	-	putative tonB-dependent receptor protein
2739	 42.66	0	3276893..3277321	-	142	126642854	-	A1S_2830	-	DNA-3-methyladenine glycosylase
2740	 41.15	0	3277733..3278359	+	208	126642855	-	A1S_2831	-	formamidopyrimidine-DNA glycosylase
2741	 41.18	0	3278364..3278669	+	101	126642856	-	A1S_2832	-	peptidyl-prolyl cis-trans isomerase precursor
2742	 36.51	-1	3278680..3278931	-	83	126642857	-	A1S_2833	-	hypothetical protein
2743	 36.43	-1	3279176..3279562	-	128	126642858	-	A1S_2834	-	mechanosensitive channel
2744	 41.73	0	3279862..3281565	-	567	126642859	-	A1S_2835	-	GTP-binding elongation factor family protein
2745	 39.85	0	3282053..3283234	+	393	126642860	-	A1S_2836	-	putative transporter
2746	 39.95	0	3283570..3284310	+	246	126642861	-	A1S_2837	-	ribosomal RNA small subunit methyltransferase C
2747	 39.22	0	3284503..3285792	+	429	126642862	-	A1S_2838	-	lysine-specific permease
2748	 40.40	0	3286170..3287273	+	367	126642863	-	A1S_2839	-	hypothetical protein
2749	 42.65	0	3287560..3288600	-	346	126642864	-	A1S_2840	-	outer membrane protein A
2750	 32.89	-2	3289075..3289527	+	150	126642865	-	A1S_2841	-	putative type 4 fimbrial biogenesis protein FimT
2751	 43.14	0	3289792..3290811	+	339	126642866	-	A1S_2842	-	putative acetyl-CoA acetyltransferase
2752	 38.10	0	3291025..3291381	+	118	126642867	-	A1S_2843	-	hypothetical protein
2753	 38.01	0	3291438..3291779	-	113	126642868	-	A1S_2844	-	quaternary ammonium compound-resistance protein
2754	 40.00	0	3291862..3292266	-	134	126642869	-	A1S_2845	-	hypothetical protein
2755	 40.12	0	3292340..3293827	-	495	126642870	-	A1S_2846	-	CysI-like sulfite reductase protein
2756	 41.97	0	3294150..3295376	-	408	126642871	-	A1S_2847	-	glucose dehydrogenase
2757	 40.52	0	3295583..3296347	-	254	126642872	-	A1S_2848	-	glucose dehydrogenase
2758	 40.75	0	3296728..3297873	-	381	126642873	-	A1S_2849	-	putative glucose-sensitive porin (OprB-like )
2759	 42.95	0	3298116..3299165	-	349	126642874	-	A1S_2850	-	putative acyl-CoA transferase/carnitine dehydratase
2760	 42.73	0	3299445..3300455	+	336	126642875	-	A1S_2851	-	AraC family transcriptional regulator
2761	 43.56	0	3300924..3301832	+	302	126642876	-	A1S_2852	-	putative thiolase; putative acyl-CoA thiolase
2762	 42.42	0	3301934..3302362	+	142	126642877	-	A1S_2853	-	putative 3-hydroxybutyryl-CoA epimerase
2763	 42.95	0	3302566..3303990	+	474	126642878	-	A1S_2854	-	putative 3-hydroxybutyryl-CoA epimerase
2764	 40.00	0	3304155..3304409	+	84	126642879	-	A1S_2855	-	hypothetical protein
2765	 43.15	0	3304695..3305285	+	196	126642880	-	A1S_2856	-	putative esterase
2766	 41.13	0	3305315..3305596	-	93	126642881	-	A1S_2857	-	putative acetyl transferase
2767	 38.26	0	3305747..3306904	-	385	126642882	-	A1S_2858	-	putative methyltransferase
2768	 35.64	-1	3307163..3307726	+	187	126642883	-	A1S_2859	-	putative hemolysin III (HLY-III)
2769	 39.27	0	3308161..3309171	+	336	126642884	-	A1S_2860	-	MFS family transporter
2770	 45.27	+1	3309253..3309654	-	133	126642885	-	A1S_2861	-	putative signal peptide
2771	 41.48	0	3309827..3312550	-	907	162286722	-	A1S_2862	-	preprotein translocase subunit SecA
2772	 36.95	0	3313102..3313599	+	165	126642887	-	A1S_2863	-	putative antioxidant protein
2773	 36.84	0	3314260..3314715	+	151	126642888	-	A1S_2864	-	hypothetical protein
2774	 36.95	0	3314766..3315290	+	174	126642889	-	A1S_2865	-	protein tyrosine/serine phosphatase
2775	 46.58	+1	3315310..3316200	-	296	126642890	-	A1S_2866	-	hypothetical protein
2776	 38.89	0	3316371..3316640	-	89	126642891	-	A1S_2867	-	hypothetical protein
2777	 41.55	0	3316703..3317530	-	275	126642892	-	A1S_2868	-	hypothetical protein
2778	 42.29	0	3317653..3318333	-	226	126642893	-	A1S_2869	-	acetylCoA carboxylase beta subunit
2779	 45.02	+1	3318546..3319349	-	267	162286721	trpA	A1S_2870	-	tryptophan synthase subunit alpha
2780	 40.94	0	3319594..3320421	-	275	126642895	-	A1S_2871	-	putative transcriptional regulator
2781	 39.87	0	3320875..3321639	+	254	126642896	-	A1S_2872	-	hypothetical protein
2782	 38.05	0	3321648..3322643	-	331	126642897	-	A1S_2873	-	hypothetical protein
2783	 38.78	0	3322681..3323121	-	146	126642898	-	A1S_2874	-	hypothetical protein
2784	 44.44	+1	3323203..3324336	-	377	126642899	-	A1S_2875	-	tryptophan synthase subunit beta
2785	 43.04	0	3324416..3324889	-	157	126642900	-	A1S_2876	-	N-(5'-phosphoribosyl)anthranilate isomerase
2786	 35.14	-1	3325495..3327318	+	607	126642901	-	A1S_2877	-	vitamin B12 receptor precursor
2787	 40.20	0	3327586..3327993	+	135	126642902	-	A1S_2878	-	hypothetical protein
2788	 38.97	0	3328195..3328779	+	194	126642903	-	A1S_2879	-	putative glycerophosphodiester phosphodiesterase
2789	 39.34	0	3328807..3329322	-	171	126642904	-	A1S_2880	-	putative signal peptide
2790	 39.56	0	3329546..3330718	+	390	126642905	-	A1S_2881	-	putative fatty acid desaturase
2791	 42.33	0	3331030..3332274	+	414	126642906	-	A1S_2882	-	hypothetical protein
2792	 40.00	0	3332338..3332937	-	199	126642907	-	A1S_2883	-	OmpR family transcriptional regulator
2793	 38.46	0	3333044..3334525	-	493	126642908	-	A1S_2884	-	two component signal transduction system kinase sensor component
2794	 45.65	+1	3334883..3335215	+	110	126642909	-	A1S_2885	-	putative signal peptide
2795	 42.16	0	3335619..3337307	+	562	126642910	-	A1S_2886	-	acyl-CoA dehydrogenase
2796	 42.44	0	3337610..3339256	+	548	126642911	-	A1S_2887	-	acyl-CoA dehydrogenase A
2797	 36.18	-1	3339471..3339857	+	128	126642912	-	A1S_2888	-	hypothetical protein
2798	 45.40	+1	3339896..3340243	-	115	126642913	-	A1S_2889	-	putative signal peptide
2799	 42.67	0	3340516..3340890	+	124	126642914	-	A1S_2890	-	hypothetical protein
2800	 39.69	0	3341085..3342296	-	403	126642915	-	A1S_2891	-	phospholipase D endonuclease domain-containing protein
2801	 41.37	0	3342624..3344477	-	617	126642916	-	A1S_2892	-	putative TonB-dependent receptor protein
2802	 36.46	-1	3344928..3345599	+	223	126642917	-	A1S_2893	-	hypothetical protein
2803	 41.98	0	3345884..3347548	+	554	126642918	aspS	A1S_2894	-	aspartyl-tRNA synthetase
2804	 35.59	-1	3347727..3347903	+	58	126642919	-	A1S_2895	-	hypothetical protein
2805	 27.94	-2	3348033..3348737	+	234	126642920	-	A1S_2896	-	hypothetical protein
2806	 30.56	-2	3348739..3349818	-	359	126642921	-	A1S_2897	-	UDP-N-acetylglucosamine 2-epimerase
2807	 39.26	0	3350964..3351773	+	269	126642922	-	A1S_2898	-	hypothetical protein
2808	 40.84	0	3351770..3352702	-	310	126642923	-	A1S_2899	-	putative glycosyltransferase
2809	 34.83	-1	3352812..3353345	-	177	126642924	-	A1S_2900	-	putative lipopolysaccharide core biosynthesis glycosyl transferase LpsC
2810	 37.72	0	3353576..3354214	-	212	126642925	-	A1S_2901	-	putative polysaccharide deacetylase
2811	 38.00	0	3354328..3355227	-	299	126642926	-	A1S_2902	-	hypothetical protein
2812	 37.96	0	3355379..3356200	-	273	126642927	-	A1S_2903	-	hypothetical protein
2813	 41.58	0	3356337..3357161	-	274	126642928	-	A1S_2904	-	branched-chain amino acid aminotransferase
2814	 42.30	0	3357288..3359852	-	854	126642929	-	A1S_2905	-	glutamine synthetase adenylyltransferase
2815	 37.90	0	3360107..3361375	-	422	126642930	-	A1S_2906	-	putative sensory transduction histidine kinase
2816	 24.87	-2	3363320..3366970	+	1216	126642931	-	A1S_2907	-	hypothetical protein
2817	 35.69	-1	3369967..3371028	-	353	126642932	-	A1S_2908	-	putative integrase
2818	 41.50	0	3371811..3372728	+	305	126642933	-	A1S_2910	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2819	 35.76	-1	3374071..3374565	+	164	126642934	-	A1S_2911	-	hypothetical protein
2820	 41.83	0	3374828..3375874	+	348	126642935	tgt	A1S_2912	-	queuine tRNA-ribosyltransferase
2821	 39.61	0	3376048..3376302	+	84	126642936	-	A1S_2913	-	IISP family preprotein translocase
2822	 42.11	0	3376354..3378255	+	633	162286720	secD	A1S_2914	-	preprotein translocase subunit SecD
2823	 39.94	0	3378336..3378698	+	120	126642938	-	A1S_2915	-	IISP family preprotein translocase  membrane subunit
2824	 42.22	0	3378782..3379231	+	149	126642939	-	A1S_2916	-	IISP family preprotein translocase  membrane subunit
2825	 44.62	+1	3379297..3380421	-	374	126642940	-	A1S_2917	-	hypothetical protein
2826	 39.58	0	3380618..3381370	+	250	126642941	-	A1S_2918	-	DNA repair protein
2827	 40.29	0	3381525..3382343	+	272	126642942	-	A1S_2919	-	hypothetical protein
2828	 39.37	0	3382351..3383079	-	242	126642943	-	A1S_2920	-	phosphoesterase
2829	 36.26	-1	3383247..3383861	+	204	126642944	-	A1S_2921	-	putative intracellular septation protein (IspZ)
2830	 39.27	0	3383896..3384198	+	100	126642945	-	A1S_2922	-	YciI-like protein
2831	 40.27	0	3384676..3386577	+	633	126642946	-	A1S_2923	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
