IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

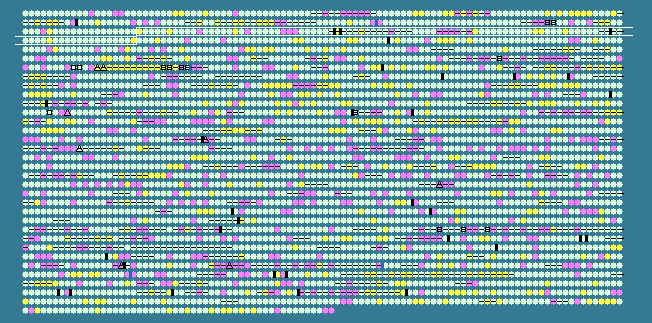

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
220	 45.45	+1	268296..268559	+	87	126640335	-	A1S_0242	-	putative ferrous iron transport protein A
221	 42.63	0	268721..270409	+	562	126640336	-	A1S_0243	-	putative ferrous iron transport protein B
222	 38.74	0	270460..270681	+	73	126640337	-	A1S_0244	-	hypothetical protein
223	 42.58	0	270881..272188	+	435	126640338	murD	A1S_0245	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
224	 42.30	0	272351..273409	+	352	126640339	-	A1S_0246	-	cell division protein
225	 47.19	+2	273619..274383	-	254	126640340	-	A1S_0247	-	putative glutamyl t-RNA synthetase
226	 38.70	0	274446..274892	-	148	126640341	-	A1S_0248	-	DnaK suppressor protein
227	 39.36	0	275193..275906	-	237	126640342	-	A1S_0249	-	cyclic 3'5'-adenosine monophosphate phosphodiesterase
228	 42.89	0	276010..276480	-	156	126640343	-	A1S_0250	-	adenosine diphosphate sugar pyrophosphatase
229	 43.09	0	276712..278454	-	580	126640344	-	A1S_0251	-	thiamine biosynthesis protein ThiC
230	 36.45	-1	278848..279777	-	309	126640345	-	A1S_0252	-	hypothetical protein
231	 39.14	0	280155..280619	+	154	126640346	-	A1S_0253	-	transcriptional regulator
232	 39.82	0	280747..281517	+	256	126640347	-	A1S_0254	-	permease
233	 40.64	0	281754..282944	+	396	126640348	-	A1S_0255	-	RND efflux transporter
234	 42.37	0	283134..283775	+	213	126640349	-	A1S_0256	-	high affinity phosphate uptake transcriptional repressor
235	 39.83	0	284091..284321	-	76	126640350	-	A1S_0257	-	hypothetical protein
236	 43.86	+1	284370..284483	-	37	126640351	-	A1S_0258	-	argininosuccinate lyase
237	 42.61	0	284594..285628	-	344	126640352	-	A1S_0259	-	argininosuccinate lyase
238	 34.35	-1	286048..286932	+	294	126640353	-	A1S_0260	-	alginate biosynthesis protein
239	 42.37	0	287059..287733	+	224	126640354	-	A1S_0261	-	alginate biosynthesis regulatory protein
240	 43.47	0	288071..288751	+	226	126640355	-	A1S_0262	-	porphobilinogen deaminase
241	 38.80	0	288957..289523	+	188	126640356	-	A1S_0263	-	uroporphyrinogen-III synthase
242	 38.24	0	289598..290107	+	169	126640357	-	A1S_0264	-	hypothetical protein
243	 37.44	0	290151..290369	+	72	126640358	-	A1S_0265	-	hypothetical protein
244	 35.67	-1	290460..291572	+	370	126640359	-	A1S_0266	-	hypothetical protein
245	 31.77	-2	291637..292020	+	127	126640360	-	A1S_0267	-	putative thioesterase
246	 35.17	-1	292215..292541	+	108	126640361	-	A1S_0268	-	putative DNA binding protein
247	 39.38	0	292872..293615	+	247	126640362	-	A1S_0269	-	putative general secretion pathway protein
248	 43.29	0	293759..294451	+	230	126640363	-	A1S_0270	-	putative general secretion pathway protein
249	 40.62	0	294766..296769	+	667	126640364	-	A1S_0271	-	putative general secretion pathway protein
250	 42.02	0	296876..297439	+	187	126640365	-	A1S_0272	-	hypothetical protein
251	 38.17	0	297595..298173	+	192	126640366	-	A1S_0273	-	phosphoglycolate phosphatase
252	 40.49	0	298462..299775	+	437	126640367	-	A1S_0274	-	anthranilate synthase component I; TrpE
253	 44.58	+1	300453..301643	+	396	162286753	-	A1S_0279	-	elongation factor Tu
254	 43.08	0	301855..302295	+	146	162286752	-	A1S_0281	-	IISP family preprotein translocase  membrane subunit
255	 42.44	0	302354..302836	+	160	126640370	-	A1S_0282	-	transcription antitermination protein
256	 42.28	0	303050..303373	+	107	126640371	-	A1S_0283	-	50S ribosomal protein
257	 44.29	+1	303443..304072	+	209	126640372	rplA	A1S_0284	-	50S ribosomal protein L1
258	 41.44	0	304566..304898	+	110	126640373	-	A1S_0285	-	50S ribosomal protein
259	 40.32	0	304941..305312	+	123	126640374	-	A1S_0286	-	50S ribosomal protein
260	 41.74	0	305681..309691	+	1336	126640375	rpoB	A1S_0287	-	DNA-directed RNA polymerase subunit beta
261	 43.37	0	309891..313985	+	1364	126640376	-	A1S_0288	-	DNA-directed RNA polymerase subunit beta'
262	 36.34	-1	315117..315515	-	132	126640377	-	A1S_0289	-	hypothetical protein
263	 38.69	0	316032..316610	+	192	126640378	-	A1S_0290	-	hypothetical protein
264	 41.11	0	316982..318139	+	385	126640379	-	A1S_0291	-	hypothetical protein
265	 37.50	0	318494..319045	+	183	126640380	-	A1S_0292	-	putative outer membrane protein W
266	 36.73	0	319289..319582	+	97	126640381	-	A1S_0293	-	putative signal peptide
267	 37.17	0	321686..322519	-	277	126640382	-	A1S_0296	-	hypothetical protein
268	 39.14	0	322710..323777	-	355	126640383	-	A1S_0297	-	hypothetical protein
269	 40.08	0	324208..324711	-	167	126640384	-	A1S_0298	-	putative polyketide biosynthetic dithiol-disulfide isomerase
270	 33.33	-1	325195..325848	+	217	126640385	-	A1S_0299	-	hypothetical protein
271	 34.70	-1	325870..326235	-	121	126640386	-	A1S_0300	-	MerR family transcriptional regulator
272	 35.48	-1	326395..326952	+	185	126640387	-	A1S_0301	-	hypothetical protein
273	 34.11	-1	327021..327665	-	214	126640388	-	A1S_0302	-	hypothetical protein
274	 39.60	0	328058..328504	+	148	126640389	-	A1S_0303	-	putative peptide signal
275	 29.17	-2	328558..331536	+	992	126640390	-	A1S_0304	-	hypothetical protein
276	 45.17	+1	331587..332684	-	365	126640391	fadA	A1S_0305	-	3-ketoacyl-CoA thiolase
277	 38.95	0	335630..336412	+	260	126640392	-	A1S_0308	-	beta-hydroxylase
278	 40.18	0	336678..337115	+	145	126640393	-	A1S_0309	-	hypothetical protein
279	 42.59	0	337321..339048	+	575	126640394	-	A1S_0310	-	EsvL
280	 40.79	0	339280..339963	+	227	126640395	-	A1S_0311	-	putative acyl-CoA thioesterase II
281	 42.69	0	340082..340669	+	195	126640396	-	A1S_0312	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
282	 39.60	0	341759..342253	+	164	126640397	-	A1S_0315	-	DNA repair system
283	 38.43	0	342448..342957	-	169	126640398	-	A1S_0316	-	putative transcriptional regulator
284	 40.41	0	343795..345816	+	673	126640399	-	A1S_0317	-	putative fusaric acid resistance protein
285	 41.80	0	346112..347056	+	314	126640400	-	A1S_0318	-	putative FusE-MFP/HlyD membrane fusion protein
286	 43.67	+1	347113..347499	-	128	126640401	-	A1S_0319	-	hypothetical protein
287	 44.77	+1	347553..348059	-	168	126640402	-	A1S_0320	-	hypothetical protein
288	 41.07	0	348234..349913	-	559	126640403	-	A1S_0321	-	recombination and DNA repair protein
289	 38.03	0	350091..351326	+	411	126640404	-	A1S_0322	-	hypothetical protein
290	 38.21	0	351484..351729	+	81	126640405	-	A1S_0323	-	hypothetical protein
291	 45.96	+1	351900..352580	+	226	126640406	-	A1S_0324	-	putative tRNA/rRNA methyltransferase
292	 39.06	0	352766..353533	+	255	126640407	-	A1S_0325	-	hypothetical protein
293	 41.31	0	353530..353955	-	141	126640408	-	A1S_0326	-	dephosphocoenzyme A kinase
294	 40.73	0	354128..354871	-	247	126640409	-	A1S_0327	-	type 4 prepilin-like proteins leader peptide processing enzyme
295	 40.23	0	354988..356118	-	376	126640410	-	A1S_0328	-	type 4 fimbrial assembly protein
296	 40.81	0	356244..357875	-	543	126640411	-	A1S_0329	-	type 4 fimbrial biogenesis protein
297	 42.11	0	358301..359041	+	246	126640412	-	A1S_0330	-	triosephosphate isomerase
298	 42.73	0	359054..359383	+	109	162286751	secG	A1S_0331	-	preprotein translocase subunit SecG
299	 41.98	0	359910..360383	+	157	126640414	-	A1S_0334	-	hypothetical protein
300	 41.77	0	360649..361905	+	418	126640415	nusA	A1S_0335	-	transcription elongation factor NusA
301	 42.67	0	364716..365015	+	99	126640416	-	A1S_0338	-	ribosome-binding factor A
302	 41.67	0	365072..365419	-	115	126640417	-	A1S_0339	-	putative monovalent cation/H+ antiporter subunit G
303	 42.38	0	365761..366213	-	150	126640418	-	A1S_0340	-	pH adaptation potassium efflux system E transmembrane protein
304	 40.51	0	366291..367808	-	505	126640419	-	A1S_0341	-	putative monovalent cation/H+ antiporter subunit D
305	 46.74	+1	368102..368377	-	91	126640420	-	A1S_0342	-	putative monovalent cation/H+ antiporter subunit C
306	 42.55	0	368467..371157	-	896	126640421	-	A1S_0343	-	putative monovalent cation/H+ antiporter subunit A
307	 40.86	0	371631..372893	-	420	126640422	-	A1S_0344	-	putative ATP binding site
308	 43.26	0	373037..374416	-	459	126640423	-	A1S_0345	-	putative DNA helicase
309	 41.56	0	374549..375229	-	226	126640424	-	A1S_0346	-	hypothetical protein
310	 42.04	0	375476..376612	-	378	126640425	-	A1S_0347	-	putative oxidoreductase; putative flavoprotein monooxygenase
311	 42.95	0	376914..378410	-	498	126640426	-	A1S_0348	-	2-octaprenylphenol hydroxylase of ubiquinone biosynthetic pathway
312	 40.21	0	378546..379112	-	188	126640427	-	A1S_0349	-	hypothetical protein
313	 42.72	0	379226..380173	-	315	126640428	-	A1S_0350	-	S-adenosylmethionine: 2-DMK methyltransferase and 2-octaprenyl-6-methoxy-14-benzoquinone methylase
314	 38.75	0	380322..380912	-	196	126640429	-	A1S_0351	-	hypothetical protein
315	 41.30	0	381362..382654	+	430	126640430	-	A1S_0352	-	polyphosphate-AMP phosphotransferase
316	 38.75	0	382677..383045	-	122	126640431	-	A1S_0353	-	hypothetical protein
317	 42.73	0	383529..386264	+	911	126640432	-	A1S_0354	-	exonuclease V gamma chain
318	 40.88	0	386422..386991	+	189	126640433	-	A1S_0355	-	exonuclease V gamma chain
319	 44.70	+1	387109..387504	+	131	126640434	-	A1S_0356	-	exonuclease V beta chain
40.16	MEAN

3.49	STD DEV
