IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

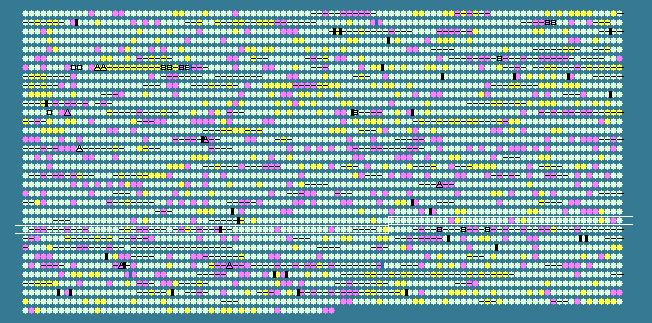

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2362	 39.11	0	2824121..2825401	+	426	126642477	-	A1S_2441	-	adenylosuccinate lyase
2363	 37.43	0	2825613..2826125	+	170	126642478	-	A1S_2442	-	hypothetical protein
2364	 36.92	0	2826173..2828236	-	687	126642479	-	A1S_2443	-	surface adhesion protein putative
2365	 40.23	0	2828638..2829318	-	226	126642480	-	A1S_2444	-	putative periplasmic protease
2366	 40.09	0	2829747..2830649	-	300	126642481	-	A1S_2445	-	high-affinity phosphate transport protein
2367	 42.29	0	2830663..2831823	-	386	126642482	-	A1S_2446	-	high-affinity phosphate transport protein
2368	 43.30	0	2832057..2833190	-	377	126642483	-	A1S_2447	-	EsvD
2369	 39.45	0	2833537..2834583	-	348	126642484	-	A1S_2448	-	putative phosphate transporter
2370	 40.13	0	2835024..2836142	-	372	126642485	-	A1S_2449	-	aromatic amino acid APC transporter
2371	 39.79	0	2836543..2838060	-	505	126642486	-	A1S_2450	-	putative pyruvate decarboxylase
2372	 35.90	-1	2838534..2838884	+	116	126642487	-	A1S_2451	-	AsnC family transcriptional regulator
2373	 43.73	+1	2838956..2840128	-	390	126642488	-	A1S_2452	-	NAD-dependent aldehyde dehydrogenases
2374	 42.25	0	2840663..2842120	-	485	126642489	-	A1S_2453	-	L-24-diaminobutyrate decarboxylase
2375	 42.53	0	2842198..2843502	-	434	126642490	-	A1S_2454	-	diaminobutyrate--2-oxoglutarate aminotransferase
2376	 38.40	0	2844090..2844740	+	216	126642491	-	A1S_2455	-	putative signal peptide
2377	 39.41	0	2844859..2845533	-	224	126642492	-	A1S_2456	-	LysR family transcriptional regulator
2378	 37.01	0	2846016..2846450	+	144	126642493	-	A1S_2457	-	NAD(P)H oxidoreductase
2379	 38.99	0	2846517..2847347	-	276	126642494	-	A1S_2458	-	putative fatty acid desaturase
2380	 38.81	0	2847624..2848628	-	334	126642495	-	A1S_2459	-	putative oxidoreductase
2381	 39.43	0	2848826..2849530	+	234	126642496	-	A1S_2460	-	TetR family transcriptional regulator
2382	 32.91	-2	2849775..2850713	+	312	126642497	-	A1S_2461	-	hypothetical protein
2383	 42.15	0	2850769..2853342	-	857	126642498	-	A1S_2462	-	ATP-dependent helicase HepA
2384	 43.65	+1	2853751..2854341	-	196	126642499	-	A1S_2463	-	putative ribosomal large subunit pseudouridine synthase A(RluA-like)
2385	 41.55	0	2855288..2856394	-	368	126642500	-	A1S_2464	-	glutamate-1-semialdehyde aminotransferase
2386	 41.83	0	2856629..2857240	-	203	126642501	-	A1S_2465	-	putative thiamin-phosphate pyrophosphorylase
2387	 38.89	0	2857356..2857625	-	89	126642502	-	A1S_2466	-	hypothetical protein
2388	 40.15	0	2858048..2859367	+	439	126642503	-	A1S_2467	-	hypothetical protein
2389	 38.78	0	2859403..2859843	-	146	126642504	-	A1S_2468	-	hypothetical protein
2390	 39.32	0	2860139..2860522	+	127	126642505	-	A1S_2469	-	hypothetical protein
2391	 37.90	0	2860580..2863207	-	875	126642506	-	A1S_2470	-	putative protease
2392	 37.64	0	2863465..2864184	-	239	126642507	-	A1S_2471	-	putative epimerase
2393	 43.04	0	2864429..2865592	-	387	126642508	-	A1S_2472	-	putative transport protein
2394	 40.00	0	2866021..2866830	-	269	126642509	-	A1S_2473	-	LysR family transcriptional regulator
2395	 40.74	0	2867017..2868177	+	386	126642510	-	A1S_2474	-	major facilitator family transporter
2396	 41.55	0	2869529..2870647	-	372	126642511	-	A1S_2475	-	isocitrate dehydrogenase
2397	 44.54	+1	2871052..2871774	+	240	126642512	-	A1S_2476	-	putative pseudouridine synthase
2398	 42.99	0	2871892..2873982	-	696	126642513	-	A1S_2477	-	isocitrate dehydrogenase
2399	 36.55	-1	2874531..2876054	-	507	126642514	-	A1S_2478	-	putative trypsin-like serine protease
2400	 38.64	0	2876596..2877726	+	376	126642515	-	A1S_2479	-	putative D-ala-D-ala-carboxypeptidase penicillin-binding protein
2401	 39.81	0	2878063..2879112	+	349	126642516	-	A1S_2480	-	NADH dehydrogenase II
2402	 42.27	0	2879272..2879730	+	152	126642517	-	A1S_2481	-	FKBP-type peptidyl-prolyl cis-trans isomerase
2403	 35.95	-1	2880131..2881276	+	381	126642518	-	A1S_2482	-	deoxyribodipyrimidine photolyase (photoreactivation) FAD-binding
2404	 35.39	-1	2881530..2882210	+	226	126642519	-	A1S_2483	-	hypothetical protein
2405	 37.48	0	2882360..2883106	+	248	126642520	-	A1S_2484	-	hypothetical protein
2406	 39.17	0	2883282..2884343	+	353	126642521	-	A1S_2485	-	putative glycosyltransferase
2407	 39.67	0	2884413..2885249	+	278	126642522	-	A1S_2486	-	hypothetical protein
2408	 36.61	-1	2885639..2886187	+	182	126642523	-	A1S_2487	-	hypothetical protein
2409	 38.75	0	2886240..2887070	+	276	126642524	-	A1S_2488	-	hypothetical protein
2410	 39.33	0	2887078..2887878	-	266	126642525	-	A1S_2489	-	UDP-N-acetyl glucosamine-2-epimerase
2411	 34.04	-1	2888022..2888162	-	46	126642526	-	A1S_2490	-	UDP-N-acetyl glucosamine-2-epimerase
2412	 37.35	0	2888219..2889364	-	381	126642527	-	A1S_2491	-	putative signal peptide
2413	 39.06	0	2889800..2890393	+	197	126642528	-	A1S_2492	-	putative nodulin 21-related protein
2414	 41.48	0	2890496..2891551	+	351	126642529	-	A1S_2493	-	putative 2-nitropropane dioxygenase
2415	 39.74	0	2891595..2892500	-	301	126642530	-	A1S_2494	-	NifR3 family protein
2416	 38.30	0	2892704..2893912	+	402	126642531	-	A1S_2495	-	hypothetical protein
2417	 38.96	0	2894074..2894535	+	153	126642532	-	A1S_2496	-	putative phosphoserine phosphatase
2418	 43.65	+1	2894562..2895695	-	377	162286725	-	A1S_2497	-	gamma-glutamyl kinase
2419	 42.75	0	2895711..2896676	-	321	126642534	-	A1S_2498	-	putative GTP-binding protein (Obg)
2420	 32.81	-2	2897148..2897723	-	191	126642535	-	A1S_2499	-	hypothetical protein
2421	 34.86	-1	2897834..2898487	-	217	126642536	-	A1S_2500	-	hypothetical protein
2422	 39.06	0	2898718..2900097	-	459	126642537	-	A1S_2501	-	glyceraldehyde-3-phosphate dehydrogenase
2423	 37.83	0	2900392..2901192	-	266	126642538	-	A1S_2502	-	chloramphenicol-sensitive protein
2424	 36.83	0	2901448..2901876	-	142	126642539	-	A1S_2503	-	putative outer membrane lipoprotein
2425	 41.77	0	2902129..2904000	-	623	126642540	-	A1S_2504	-	excinuclease ABC subunit B
2426	 39.19	0	2904405..2905121	+	238	126642541	-	A1S_2505	-	hypothetical protein
2427	 36.67	-1	2905557..2906726	+	389	126642542	-	A1S_2506	-	putative GGDEF family protein
2428	 46.94	+1	2906762..2906908	-	48	126642543	-	A1S_2507	-	hypothetical protein
2429	 41.29	0	2907248..2908378	+	376	126642544	-	A1S_2508	-	aspartate aminotransferase A
2430	 27.88	-2	2908784..2910562	+	592	126642545	-	A1S_2509	-	putative chaperone
2431	 37.78	0	2910614..2912209	-	531	126642546	-	A1S_2510	-	chaperone protein
2432	 38.93	0	2913320..2913712	+	130	126642547	-	A1S_2511	-	phenylacetic acid degradation-related protein
2433	 33.57	-1	2913727..2914155	-	142	126642548	-	A1S_2512	-	hypothetical protein
2434	 37.02	0	2914649..2915245	-	198	126642549	-	A1S_2514	-	Short-chain alcohol dehydrogenase of unknown specificity
2435	 41.71	0	2915700..2916236	-	178	126642550	-	A1S_2515	-	putative tRNA hydroxylase
2436	 40.26	0	2916351..2916899	-	182	126642551	-	A1S_2516	-	pyridoxal phosphate biosynthetic protein PdxJ
2437	 39.84	0	2917090..2917734	-	214	126642552	-	A1S_2517	-	DNA repair protein
2438	 37.62	0	2918032..2918895	-	287	126642553	era	A1S_2518	-	GTP-binding protein Era
2439	 41.05	0	2919066..2919596	-	176	126642554	-	A1S_2519	-	ribonuclease III
2440	 37.92	0	2919730..2920056	-	108	126642555	-	A1S_2520	-	putative signal peptide
2441	 37.75	0	2920128..2920739	-	203	126642556	-	A1S_2521	-	leader peptidase
2442	 41.51	0	2921026..2922738	-	570	126642557	-	A1S_2522	-	GTP-binding protein LepA
2443	 32.58	-2	2923176..2923574	-	132	126642558	-	A1S_2523	-	ribosomal-protein-alanine acetyltransferase
2444	 39.90	0	2923588..2923968	-	126	126642559	-	A1S_2524	-	putative thioesterase
2445	 41.04	0	2924164..2925513	-	449	126642560	-	A1S_2525	-	putative serine protease
2446	 42.25	0	2925990..2927414	+	474	126642561	-	A1S_2526	-	L-aspartate oxidase
2447	 41.94	0	2927468..2927827	-	119	126642562	-	A1S_2527	-	putative thioesterase protein
2448	 40.35	0	2928023..2928478	-	151	126642563	-	A1S_2528	-	thymidylate kinase
2449	 38.70	0	2928632..2929525	-	297	126642564	-	A1S_2529	-	hypothetical protein
2450	 39.29	0	2929704..2930291	-	195	126642565	-	A1S_2530	-	4-amino-4-deoxychorismate lyase
2451	 41.30	0	2930746..2931498	+	250	126642566	-	A1S_2531	-	sulfate transport protein
2452	 35.90	-1	2931669..2931785	+	38	126642567	-	A1S_2532	-	sulfate transport protein
2453	 41.43	0	2931894..2932424	+	176	126642568	-	A1S_2533	-	putative esterase
2454	 42.29	0	2932580..2933338	+	252	126642569	-	A1S_2534	-	sulfate transport protein
2455	 42.03	0	2933461..2934219	+	252	126642570	-	A1S_2535	-	putative sulfate permease
2456	 43.23	0	2934495..2935292	+	265	126642571	-	A1S_2536	-	putative ATPase
2457	 37.71	0	2935580..2936287	+	235	126642572	-	A1S_2537	-	putative LysR-type transcriptional regulator
2458	 38.84	0	2936379..2937050	-	223	126642573	-	A1S_2538	-	outer membrane protein CarO precursor
2459	 40.88	0	2937402..2938223	+	273	126642574	dapD	A1S_2539	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
2460	 42.67	0	2938380..2938754	+	124	126642575	-	A1S_2540	-	putative organic radical activating enzyme
2461	 44.44	+1	2938778..2939011	+	77	126642576	-	A1S_2541	-	putative organic radical activating enzyme
40.16	MEAN

3.49	STD DEV
