IslandPath Analysis: Acinetobacter baumannii ATCC 17978

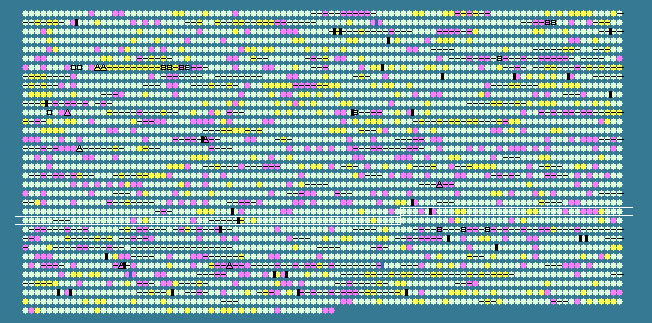

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2264	 42.13	0	2711398..2712636	+	412	162286726	cca	A1S_2339	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
2265	 40.03	0	2712684..2713385	-	233	126642380	-	A1S_2340	-	HtrA-like serine protease
2266	 41.56	0	2713598..2713828	-	76	126642381	-	A1S_2341	-	HtrA-like serine protease
2267	 35.05	-1	2714287..2714811	+	174	126642382	-	A1S_2342	-	hypothetical protein
2268	 39.09	0	2714924..2715583	+	219	126642383	-	A1S_2343	-	superoxide dismutase
2269	 36.63	-1	2716340..2716642	+	100	126642384	-	A1S_2347	-	hypothetical protein
2270	 41.80	0	2716964..2718250	-	428	126642385	-	A1S_2348	-	hypothetical protein
2271	 37.21	0	2718532..2719305	-	257	126642386	ubiA	A1S_2349	-	4-hydroxybenzoate octaprenyltransferase
2272	 40.09	0	2719407..2719865	-	152	126642387	-	A1S_2350	-	chorismate pyruvate lyase
2273	 43.88	+1	2720042..2720458	-	138	126642388	-	A1S_2351	-	glutamine synthetase
2274	 43.77	+1	2720524..2721309	-	261	126642389	-	A1S_2352	-	glutamine synthetase
2275	 38.78	0	2722322..2723734	+	470	126642390	-	A1S_2353	-	dipeptide/tripeptide permease
2276	 40.82	0	2723812..2725533	+	573	126642391	-	A1S_2354	-	peptidase M24
2277	 40.77	0	2725970..2726413	+	147	126642392	-	A1S_2355	-	anthranilate synthase component II
2278	 40.63	0	2726510..2729209	-	899	126642393	-	A1S_2356	-	aminopeptidase N precursor
2279	 39.42	0	2729289..2729699	-	136	126642394	-	A1S_2357	-	putative TonB-dependent receptor
2280	 40.41	0	2729668..2731815	-	715	126642395	-	A1S_2358	-	putative TonB-dependent receptor
2281	 42.29	0	2732501..2733427	+	308	126642396	trpD	A1S_2359	-	anthranilate phosphoribosyltransferase
2282	 39.91	0	2733560..2734243	+	227	126642397	-	A1S_2360	-	indole-3-glycerol-phosphate synthase
2283	 42.47	0	2734391..2734948	+	185	126642398	-	A1S_2361	-	hypothetical protein
2284	 42.56	0	2734959..2735825	-	288	126642399	-	A1S_2362	-	putative xanthine dehydrogenase protein
2285	 47.27	+2	2735949..2736314	-	121	126642400	-	A1S_2363	-	xanthine dehydrogenase large subunit
2286	 43.88	+1	2736131..2738188	-	685	126642401	-	A1S_2364	-	xanthine dehydrogenase large subunit
2287	 41.02	0	2738325..2739755	-	476	126642402	-	A1S_2365	-	xanthine dehydrogenase small subunit
2288	 42.67	0	2740261..2740635	+	124	126642403	-	A1S_2366	-	GTP cyclohydrolase I
2289	 36.84	0	2740950..2741948	+	332	126642404	ampC	A1S_2367	-	beta-lactamase
2290	 40.09	0	2742016..2743761	-	581	126642405	-	A1S_2368	-	hypothetical protein
2291	 33.19	-1	2744590..2745285	-	231	126642406	-	A1S_2369	-	hypothetical protein
2292	 43.41	0	2745391..2746392	-	333	126642407	-	A1S_2370	-	uroporphyrinogen decarboxylase
2293	 40.55	0	2746821..2748011	+	396	126642408	-	A1S_2371	-	hypothetical protein
2294	 34.19	-1	2748132..2749301	-	389	126642409	-	A1S_2372	-	putative acinetobactin biosynthesis protein
2295	 30.19	-2	2749426..2749965	-	179	126642410	-	A1S_2373	-	putative acinetobactin biosynthesis protein
2296	 34.58	-1	2750192..2750752	-	186	126642411	-	A1S_2374	-	putative acinetobactin biosynthesis protein
2297	 43.66	+1	2750999..2752393	-	464	126642412	-	A1S_2375	-	putative ABC transporter
2298	 42.22	0	2752591..2752860	-	89	126642413	-	A1S_2376	-	putative ABC transporter
2299	 39.77	0	2752829..2753356	-	175	126642414	-	A1S_2377	-	putative ABC transporter
2300	 42.63	0	2753367..2754065	-	232	126642415	-	A1S_2378	-	putative ABC transporter
2301	 41.19	0	2754449..2755390	-	313	126642416	-	A1S_2379	-	histidine decarboxylase
2302	 42.16	0	2755718..2756476	-	252	126642417	-	A1S_2380	-	putative acinetobactin biosynthesis protein
2303	 40.86	0	2756605..2758146	-	513	126642418	entE	A1S_2381	-	enterobactin synthase subunit E
2304	 39.09	0	2758470..2759441	+	323	126642419	-	A1S_2382	-	BasD
2305	 37.63	0	2759567..2761336	+	589	126642420	-	A1S_2383	-	putative acinetobactin biosynthesis protein
2306	 40.36	0	2761570..2762694	+	374	126642421	-	A1S_2384	-	BasC
2307	 40.05	0	2762765..2764969	-	734	126642422	-	A1S_2385	-	putative ferric acinetobactin receptor
2308	 39.74	0	2765178..2765957	-	259	126642423	-	A1S_2386	-	putative ferric acinetobactin binding protein
2309	 41.47	0	2766153..2766791	-	212	126642424	-	A1S_2387	-	BauE
2310	 41.33	0	2766920..2767657	-	245	126642425	-	A1S_2388	-	putative ferric acinetobactin transport system permease protein
2311	 42.84	0	2767867..2768655	-	262	126642426	-	A1S_2389	-	putative ferric acinetobactin transport system permease protein
2312	 38.07	0	2769439..2771466	+	675	126642427	-	A1S_2390	-	putative acinetobactin biosynthesis protein
2313	 39.32	0	2771537..2773207	-	556	126642428	-	A1S_2391	-	putative acinetobactin biosynthesis protein
2314	 42.08	0	2773849..2774637	+	262	126642429	-	A1S_2392	-	putative acinetobactin utilization protein
2315	 38.93	0	2774634..2775062	-	142	126642430	-	A1S_2393	-	hypothetical protein
2316	 41.19	0	2775691..2776479	+	262	126642431	-	A1S_2394	-	putative threonine ammonia-lyase
2317	 42.10	0	2776829..2777410	+	193	126642432	-	A1S_2395	-	hypothetical protein
2318	 38.30	0	2777846..2778409	-	187	126642433	-	A1S_2396	-	putative transcriptional regulator
2319	 33.78	-1	2781100..2782428	-	442	126642434	-	A1S_2397	-	hypothetical protein
2320	 36.83	0	2782942..2783742	-	266	126642435	-	A1S_2398	-	AraC family transcriptional regulator
2321	 47.05	+1	2784297..2785025	+	242	126642436	-	A1S_2399	-	dihydroflavonol 4-reductase putative
2322	 41.18	0	2785200..2785352	-	50	126642438	-	A1S_2401	-	hypothetical protein
2323	 42.93	0	2785304..2786137	+	277	126642437	-	A1S_2400	-	hypothetical protein
2324	 43.33	0	2786227..2787066	+	279	126642439	-	A1S_2402	-	epoxide hydrolase
2325	 41.12	0	2787254..2788627	+	457	126642440	-	A1S_2403	-	flavin-containing monooxygenase FMO
2326	 42.07	0	2788697..2789554	-	285	126642441	-	A1S_2404	-	hypothetical protein
2327	 40.00	0	2789868..2790617	-	249	126642442	-	A1S_2405	-	LysR family transcriptional regulator
2328	 40.42	0	2791031..2791651	+	206	126642443	-	A1S_2406	-	hypothetical protein
2329	 36.62	-1	2791713..2792108	-	131	126642444	-	A1S_2407	-	hypothetical protein
2330	 39.80	0	2792194..2792487	-	97	126642445	-	A1S_2408	-	hypothetical protein
2331	 42.81	0	2792584..2793438	-	284	126642446	-	A1S_2409	-	hypothetical protein
2332	 40.46	0	2793576..2794361	-	261	126642447	-	A1S_2410	-	fatty acid desaturase
2333	 39.28	0	2794833..2795723	-	296	126642448	-	A1S_2411	-	short chain dehydrogenase/reductase family oxidoreductase
2334	 37.42	0	2795747..2796529	-	260	126642449	-	A1S_2412	-	hypothetical protein
2335	 39.20	0	2796847..2798175	-	442	126642450	-	A1S_2413	-	putative hemolysin-type calcium-binding region
2336	 40.28	0	2798186..2799970	-	594	126642451	-	A1S_2414	-	putative calcium binding hemolysin protein
2337	 45.38	+1	2800642..2800890	-	82	126642452	-	A1S_2416	-	hypothetical protein
2338	 42.49	0	2800947..2801372	-	141	126642453	-	A1S_2417	-	starvation-induced peptide utilization protein
2339	 44.44	+1	2801589..2802695	-	368	126642454	-	A1S_2418	-	starvation-induced peptide utilization protein
2340	 40.95	0	2803210..2803734	-	174	126642455	-	A1S_2419	-	elongation factor P
2341	 39.03	0	2804027..2804869	+	280	126642456	-	A1S_2420	-	putative aminomutase
2342	 37.55	0	2805005..2806498	+	497	126642457	-	A1S_2421	-	hypothetical protein
2343	 38.70	0	2806837..2808735	+	632	126642458	-	A1S_2422	-	hypothetical protein
2344	 39.56	0	2808798..2809022	-	74	126642459	-	A1S_2423	-	50S ribosomal protein L31
2345	 41.14	0	2809229..2809561	-	110	126642460	-	A1S_2424	-	putative Na+-dependent transporter
2346	 37.00	0	2809588..2810133	-	181	126642461	-	A1S_2425	-	putative Na+-dependent transporter
2347	 40.67	0	2810321..2810647	-	108	126642462	-	A1S_2426	-	lactoylglutathione lyase
2348	 38.98	0	2810725..2812830	-	701	126642463	-	A1S_2427	-	putative transporter
2349	 41.67	0	2813195..2813674	+	159	126642464	-	A1S_2428	-	putative ATP-dependent protease
2350	 41.64	0	2813839..2814765	+	308	126642465	-	A1S_2429	-	putative ATP-dependent protease
2351	 41.80	0	2814767..2815699	+	310	126642466	-	A1S_2430	-	putative ATP-dependent protease
2352	 39.97	0	2815756..2816553	-	265	126642467	-	A1S_2431	-	putative transcriptional regulator
2353	 43.32	0	2816787..2817557	-	256	126642468	-	A1S_2432	-	lipoprotein precursor
2354	 43.59	0	2817732..2818277	-	181	126642469	-	A1S_2433	-	survival protein (acid phosphatase)
2355	 37.33	0	2819169..2819543	+	124	126642470	-	A1S_2434	-	putative signal peptide
2356	 37.66	0	2819778..2820818	+	346	126642471	-	A1S_2435	-	D-ala-D-ala-carboxypeptidase; penicillin-binding protein 5 (precursor)
2357	 37.36	0	2820918..2821463	+	181	126642472	-	A1S_2436	-	putative transferase
2358	 42.56	0	2821682..2822071	+	129	126642473	-	A1S_2437	-	putative Nudix hydrolase
2359	 46.15	+1	2822076..2822270	+	64	126642474	-	A1S_2438	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2360	 41.85	0	2822413..2823210	+	265	126642475	-	A1S_2439	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2361	 39.18	0	2823224..2823958	+	244	126642476	-	A1S_2440	-	hypothetical protein
2362	 39.11	0	2824121..2825401	+	426	126642477	-	A1S_2441	-	adenylosuccinate lyase
2363	 37.43	0	2825613..2826125	+	170	126642478	-	A1S_2442	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
