IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

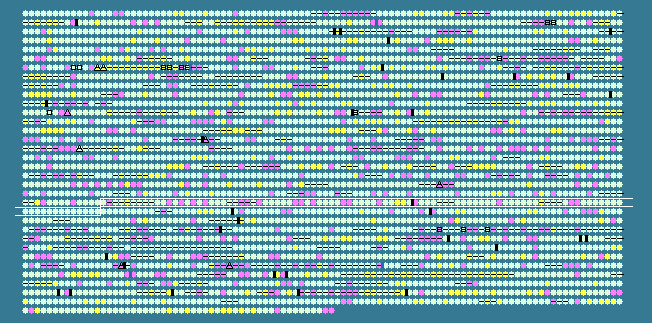

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2114	 39.76	0	2546303..2547142	+	279	126642229	-	A1S_2184	-	ribosomal protein L11 methyltransferase
2115	 33.86	-1	2547237..2547998	+	253	126642230	-	A1S_2185	-	hypothetical protein
2116	 41.11	0	2548375..2548644	+	89	126642231	-	A1S_2186	-	DNA-binding protein
2117	 41.18	0	2548908..2549621	+	237	126642232	-	A1S_2187	-	hypothetical protein
2118	 44.09	+1	2549929..2550309	+	126	126642233	-	A1S_2188	-	hypothetical protein
2119	 42.89	0	2550435..2551721	+	428	126642234	-	A1S_2189	-	phosphoribosylamine--glycine ligase
2120	 39.50	0	2552000..2552518	+	172	126642235	-	A1S_2190	-	putative lipoprotein
2121	 38.67	0	2552535..2552834	+	99	126642236	-	A1S_2191	-	putative lipoprotein
2122	 37.35	0	2553165..2553935	+	256	126642237	-	A1S_2192	-	D-and L-methionine transport protein
2123	 39.09	0	2554037..2554627	+	196	126642238	-	A1S_2193	-	putative permease protein
2124	 39.05	0	2555010..2555516	+	168	126642239	-	A1S_2194	-	putative hydroxyacylglutathione hydrolase
2125	 33.33	-1	2555873..2556076	+	67	126642240	-	A1S_2195	-	hypothetical protein
2126	 40.53	0	2556312..2557436	-	374	126642241	-	A1S_2196	-	membrane-associated dicarboxylate transport protein
2127	 35.35	-1	2558039..2558485	-	148	126642242	-	A1S_2197	-	TetR family transcriptional regulator
2128	 41.93	0	2558828..2559793	+	321	126642243	-	A1S_2198	-	putative mutlidrug resistance protein
2129	 36.01	-1	2560006..2560416	-	136	126642244	-	A1S_2199	-	GCN5-related N-acetyltransferase
2130	 43.52	0	2560486..2561673	-	395	126642245	-	A1S_2200	-	L-sorbosone dehydrogenase
2131	 35.86	-1	2562363..2563115	+	250	126642246	-	A1S_2201	-	hypothetical protein
2132	 38.36	0	2563130..2563786	-	218	126642247	-	A1S_2202	-	aspartate racemase
2133	 41.03	0	2564572..2565195	-	207	126642248	-	A1S_2203	-	hypothetical protein
2134	 42.36	0	2565272..2566867	-	531	126642249	-	A1S_2204	-	paraquat-inducible protein
2135	 39.58	0	2566947..2567474	-	175	126642250	-	A1S_2205	-	paraquat-inducible protein A
2136	 39.54	0	2567741..2568223	-	160	126642251	-	A1S_2206	-	paraquat-inducible protein A
2137	 36.68	0	2568591..2569427	-	278	126642252	-	A1S_2207	-	membrane protein putative
2138	 33.33	-1	2569716..2570099	-	127	126642253	-	A1S_2208	-	putative transcriptional regulator
2139	 39.10	0	2571111..2571509	+	132	126642254	-	A1S_2209	-	acetyltransferase
2140	 32.28	-2	2571715..2572380	+	221	126642255	-	A1S_2210	-	hypothetical protein
2141	 39.31	0	2572702..2573136	+	144	126642256	-	A1S_2211	-	ADP-ribose pyrophosphatase
2142	 39.60	0	2573722..2575014	+	430	126642257	-	A1S_2212	-	proline/glycine betaine transporter
2143	 42.75	0	2575731..2576696	-	321	126642258	-	A1S_2213	-	CsuE
2144	 39.78	0	2576747..2579164	-	805	126642259	-	A1S_2214	-	CsuD
2145	 39.14	0	2579242..2579982	-	246	126642260	-	A1S_2215	-	CsuC
2146	 29.57	-2	2580160..2580558	-	132	126642261	-	A1S_2216	-	CsuB
2147	 28.19	-2	2580594..2581040	-	148	126642262	-	A1S_2217	-	CsuA
2148	 40.51	0	2581217..2581606	-	129	126642263	-	A1S_2218	-	CsuA/B
2149	 36.51	-1	2583263..2583829	-	188	126642264	-	A1S_2219	-	GntR family transcriptional regulator
2150	 37.98	0	2584337..2584960	+	207	126642265	-	A1S_2220	-	hypothetical protein
2151	 41.64	0	2585013..2586035	-	340	126642266	-	A1S_2221	-	sodium/glutamate symport carrier protein
2152	 40.53	0	2586702..2587757	+	351	126642267	-	A1S_2222	-	putative poly(R)-hydroxyalkanoic acid synthase
2153	 37.28	0	2587915..2588751	+	278	126642268	-	A1S_2223	-	AraC family transcriptional regulator
2154	 34.90	-1	2588961..2589407	+	148	126642269	-	A1S_2224	-	threonine efflux protein
2155	 33.90	-1	2590296..2590646	-	116	126642270	-	A1S_2225	-	hypothetical protein
2156	 41.57	0	2591578..2592111	-	177	126642271	-	A1S_2226	-	putative glycosyl transferase related protein
2157	 39.00	0	2592219..2592818	-	199	126642272	-	A1S_2227	-	putative methyltransferase
2158	 40.47	0	2592793..2593521	-	242	126642273	-	A1S_2228	-	hypothetical protein
2159	 43.49	0	2593575..2594480	-	301	126642274	-	A1S_2229	-	putative acyl-CoA dehydrogenase-related protein
2160	 32.05	-2	2594848..2595081	+	77	126642275	-	A1S_2230	-	hypothetical protein
2161	 40.06	0	2595230..2596462	-	410	126642276	-	A1S_2231	-	gamma-aminobutyrate permease
2162	 42.98	0	2596730..2598025	-	431	126642277	-	A1S_2232	-	methylmalonate-semialdehyde dehydrogenase
2163	 44.00	+1	2598409..2599242	-	277	126642278	-	A1S_2233	-	hypothetical protein
2164	 43.68	+1	2599370..2599717	-	115	126642279	-	A1S_2234	-	hypothetical protein
2165	 37.95	0	2600025..2600804	+	259	126642280	-	A1S_2235	-	regulatory protein LysR:LysR, substrate-binding
2166	 34.37	-1	2601433..2602107	-	224	126642281	-	A1S_2240	-	putative protein kinase
2167	 38.98	0	2602223..2603656	-	477	126642282	-	A1S_2241	-	hypothetical protein
2168	 37.04	0	2603982..2604791	+	269	126642283	-	A1S_2242	-	ATPase
2169	 37.53	0	2605523..2605999	+	158	126642284	-	A1S_2243	-	hypothetical protein
2170	 41.34	0	2606002..2606838	-	278	126642285	-	A1S_2244	-	putative O-sialoglycoprotein endopeptidase gcp
2171	 43.28	0	2607173..2607373	+	66	126642286	rpsU	A1S_2245	-	30S ribosomal protein S21
2172	 43.28	0	2607445..2607846	+	133	126642287	-	A1S_2246	-	hypothetical protein
2173	 41.65	0	2607937..2609187	-	416	126642288	-	A1S_2247	-	putative signal peptide
2174	 38.18	0	2609512..2610336	-	274	126642289	-	A1S_2248	-	2-keto-D-gluconate reductase
2175	 37.61	0	2610489..2611073	-	194	126642290	-	A1S_2249	-	hypothetical protein
2176	 36.93	0	2611240..2613072	-	610	126642291	-	A1S_2250	-	hypothetical protein
2177	 40.45	0	2613208..2614683	-	491	126642292	-	A1S_2251	-	amidophosphoribosyltransferase
2178	 41.61	0	2614775..2615245	-	156	126642293	-	A1S_2252	-	putative colicin V producing membrane protein
2179	 38.80	0	2615369..2616301	-	310	126642294	-	A1S_2253	-	dihydroorotate dehydrogenase 2
2180	 36.43	-1	2616463..2616849	-	128	126642295	-	A1S_2254	-	hypothetical protein
2181	 39.33	0	2616942..2617925	-	327	126642296	-	A1S_2255	-	general secretion pathway protein L
2182	 37.00	0	2618104..2618403	-	99	126642297	-	A1S_2256	-	putative phosphohistidine phosphatase
2183	 39.81	0	2618616..2619587	-	323	126642298	gpsA	A1S_2257	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
2184	 43.55	0	2619725..2620135	-	136	126642299	-	A1S_2258	-	putative nitroreductase
2185	 36.72	0	2620531..2620884	+	117	126642300	-	A1S_2259	-	putative signal peptide
2186	 39.46	0	2620921..2621997	-	358	126642301	-	A1S_2260	-	ATP-dependent RNA helicase RhlB
2187	 43.66	+1	2622176..2622388	-	70	126642302	-	A1S_2261	-	putative cold shock protein
2188	 41.45	0	2623306..2624007	+	233	126642303	-	A1S_2262	-	EsvH
2189	 42.28	0	2624161..2624484	+	107	126642304	-	A1S_2263	-	hypothetical protein
2190	 41.41	0	2624498..2624695	+	65	126642305	-	A1S_2264	-	ThiF/ThiS complex component
2191	 41.43	0	2624853..2625494	+	213	126642306	-	A1S_2265	-	thiamine biosynthesis protein thiazole moiety
2192	 35.91	-1	2625631..2626095	-	154	126642307	-	A1S_2266	-	hypothetical protein
2193	 33.33	-1	2626274..2626900	-	208	126642308	-	A1S_2267	-	hypothetical protein
2194	 40.67	0	2627153..2627806	+	217	126642309	-	A1S_2268	-	putative hydrolase
2195	 36.81	0	2627864..2629357	-	497	126642310	-	A1S_2269	-	RtcR
2196	 37.82	0	2629773..2630507	+	244	126642311	-	A1S_2270	-	beta-lactamase superfamily hydrolase
2197	 41.98	0	2630853..2632031	+	392	126642312	-	A1S_2271	-	rtcb protein
2198	 36.79	0	2632484..2632888	+	134	126642313	-	A1S_2272	-	hypothetical protein
2199	 37.06	0	2633247..2634158	+	303	126642314	-	A1S_2273	-	3'-terminal phosphate cyclase
2200	 41.93	0	2634229..2635449	-	406	126642315	-	A1S_2274	-	aminoacyl-histidine dipeptidase
2201	 38.54	0	2635860..2636243	-	127	126642316	-	A1S_2275	-	hypothetical protein
2202	 42.89	0	2636371..2638515	-	714	126642317	-	A1S_2276	-	hypothetical protein
2203	 40.40	0	2638726..2639631	-	301	126642318	-	A1S_2277	-	hypothetical protein
2204	 38.84	0	2640276..2640965	+	229	126642319	-	A1S_2278	-	alpha/beta family hydrolase
2205	 40.57	0	2641009..2642100	-	363	126642320	-	A1S_2279	-	putative acyl coenzyme A dehydrogenase (HcaD-like)
2206	 39.88	0	2642318..2643493	-	391	126642321	-	A1S_2280	-	C4-dicarboxylate transporter DctA
2207	 39.86	0	2644301..2645188	+	295	126642322	-	A1S_2281	-	hypothetical protein
2208	 38.37	0	2645389..2645646	-	85	126642323	-	A1S_2282	-	hypothetical protein
2209	 41.21	0	2645658..2646419	-	253	126642324	ppnK	A1S_2283	-	inorganic polyphosphate/ATP-NAD kinase
2210	 41.16	0	2647040..2649148	+	702	126642325	-	A1S_2284	-	hypothetical protein
2211	 41.72	0	2649208..2649720	+	170	126642326	-	A1S_2285	-	hypothetical protein
2212	 38.81	0	2649742..2650581	-	279	126642327	-	A1S_2286	-	hypothetical protein
2213	 37.60	0	2651014..2652255	-	413	126642328	-	A1S_2287	-	putative two-component system sensor protein
40.16	MEAN

3.49	STD DEV
