IslandPath Analysis: Acinetobacter baumannii ATCC 17978

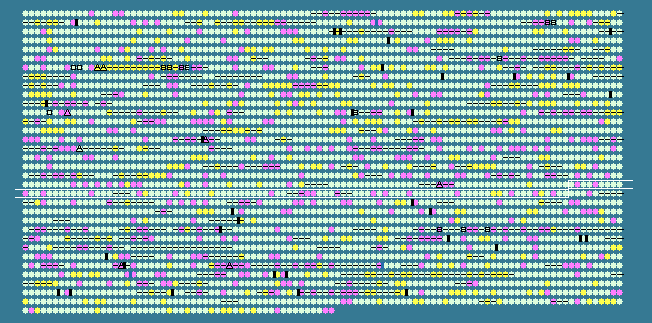

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.16   STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1992	 43.10	0	2404681..2405970	+	429	126642107	-	A1S_2062	-	acetyl-CoA acetyltransferase
1993	 34.18	-1	2406038..2406508	-	156	126642108	-	A1S_2063	-	hypothetical protein
1994	 40.81	0	2406668..2407456	+	262	126642109	-	A1S_2064	-	LysR family transcriptional regulator
1995	 39.60	0	2407587..2408576	+	329	126642110	-	A1S_2065	-	transaldolase B
1996	 35.27	-1	2408733..2409299	+	188	126642111	-	A1S_2066	-	leucine export protein LeuE
1997	 41.03	0	2409336..2409764	-	142	126642112	-	A1S_2067	-	transcriptional regulatory protein
1998	 40.80	0	2410245..2411168	+	307	126642113	-	A1S_2068	-	putative benzoate membrane transport protein
1999	 40.28	0	2411242..2411874	-	210	126642114	-	A1S_2069	-	putative magesium transporter transmembrane protein
2000	 38.80	0	2411977..2414682	-	901	126642115	-	A1S_2070	-	magnesium-transporting ATPase MgtA
2001	 34.85	-1	2415297..2415692	-	131	126642116	-	A1S_2071	-	hypothetical protein
2002	 37.38	0	2416999..2417319	+	106	126642117	-	A1S_2072	-	universal stress family protein
2003	 37.35	0	2417720..2419162	+	480	126642118	-	A1S_2073	-	ABC transporter ATPase
2004	 29.23	-2	2419236..2419625	-	129	126642119	-	A1S_2074	-	hypothetical protein
2005	 39.14	0	2420396..2421394	-	332	126642120	-	A1S_2075	-	putative outer membrane protein
2006	 37.11	0	2421814..2422872	-	352	126642121	-	A1S_2076	-	putative outer membrane porin receptor for Fe(III)-coprogen, Fe(III)-ferrioxamine B and Fe(III)-rhodotrulic acid uptake (fhuE)
2007	 42.92	0	2423196..2423915	-	239	126642122	-	A1S_2077	-	putative outer membrane porin receptor for Fe(III)-coprogen, Fe(III)-ferrioxamine B and Fe(III)-rhodotrulic acid uptake (fhuE)
2008	 37.09	0	2424216..2424668	+	150	126642123	-	A1S_2078	-	acetyltransferase
2009	 38.02	0	2427162..2428334	-	390	126642124	-	A1S_2079	-	putative mechanosensitive ion channel
2010	 39.96	0	2429068..2430576	+	502	126642125	-	A1S_2080	-	putative siderophore receptor
2011	 39.35	0	2430687..2431118	+	143	126642126	-	A1S_2081	-	TonB-dependent siderophore receptor
2012	 34.64	-1	2431181..2431564	-	127	126642127	-	A1S_2082	-	putative transcriptional regulator
2013	 40.96	0	2433610..2434107	+	165	126642128	-	A1S_2083	-	AsnC family transcriptional regulator
2014	 40.36	0	2434136..2434633	-	165	126642129	-	A1S_2084	-	chorismate mutase
2015	 41.19	0	2434771..2435241	-	156	126642130	-	A1S_2085	-	oxidoreductase
2016	 41.47	0	2435464..2436225	-	253	126642131	-	A1S_2086	-	putative short chain dehydrogenase
2017	 40.11	0	2436233..2436778	-	181	126642132	-	A1S_2087	-	putative glutathione S-transferase
2018	 41.60	0	2437146..2437907	-	253	126642133	-	A1S_2088	-	hypothetical protein
2019	 40.62	0	2438156..2440474	-	772	126642134	-	A1S_2089	-	fimbrial usher protein
2020	 33.50	-1	2440625..2441239	-	204	126642135	-	A1S_2090	-	hypothetical protein
2021	 43.92	+1	2441402..2441845	-	147	126642136	-	A1S_2091	-	hypothetical protein
2022	 41.90	0	2442484..2444946	-	820	126642137	-	A1S_2092	-	aminopeptidase N
2023	 39.15	0	2445409..2445666	+	85	126642138	-	A1S_2093	-	hypothetical protein
2024	 37.64	0	2445884..2446975	+	363	126642139	-	A1S_2094	-	hypothetical protein
2025	 40.09	0	2447156..2447836	+	226	126642140	-	A1S_2095	-	hydoxyethylthiazole kinase
2026	 36.56	-1	2447958..2448236	-	92	126642141	-	A1S_2096	-	putative 5-carboxymethyl-2-hydroxymuconate delta isomerase
2027	 38.96	0	2448361..2449905	-	514	126642142	-	A1S_2097	-	putative helicase
2028	 44.83	+1	2450433..2451476	+	347	126642143	-	A1S_2098	-	putative alcohol dehydrogenase
2029	 38.20	0	2451672..2452226	+	184	126642144	-	A1S_2099	-	hypothetical protein
2030	 42.11	0	2452414..2452641	+	75	126642145	-	A1S_2100	-	hypothetical protein
2031	 41.91	0	2452638..2453570	-	310	126642146	-	A1S_2101	-	putative transcriptional regulator
2032	 43.87	+1	2454260..2455483	+	407	126642147	-	A1S_2102	-	aldehyde dehydrogenase 1
2033	 42.09	0	2455897..2457141	+	414	126642148	-	A1S_2103	-	putative transport protein
2034	 42.11	0	2457302..2458543	+	413	126642149	-	A1S_2104	-	ethanolamine ammonia-lyase heavy chain
2035	 41.67	0	2458554..2458877	+	107	126642150	-	A1S_2105	-	ethanolamine ammonia-lyase
2036	 40.04	0	2458922..2459368	+	148	126642151	-	A1S_2106	-	ethanolamine ammonia-lyase light chain
2037	 37.19	0	2459659..2460255	+	198	126642152	-	A1S_2107	-	glutamine amidotransferase
2038	 41.78	0	2460657..2462384	-	575	126642153	-	A1S_2108	-	glutaminyl-tRNA synthetase
2039	 40.68	0	2462709..2463062	+	117	126642154	-	A1S_2109	-	peptidyl-prolyl cis-trans isomerase precursor
2040	 37.20	0	2463306..2463797	+	163	126642155	-	A1S_2110	-	UDP-23-diacylglucosamine hydrolase
2041	 38.20	0	2464283..2464816	+	177	126642156	-	A1S_2111	-	dihydropteridine reductase
2042	 35.05	-1	2464986..2465627	-	213	126642157	-	A1S_2112	-	putative integral membrane protein
2043	 38.62	0	2466444..2467256	-	270	126642158	-	A1S_2113	-	delta(2)-isopentenylpyrophosphate tRNA-adenosine transferase
2044	 38.92	0	2467394..2468503	-	369	126642159	-	A1S_2114	-	methyl-directed mismatch repair enzyme
2045	 41.82	0	2468785..2469267	-	160	126642160	-	A1S_2115	-	methyl-directed mismatch repair enzyme
2046	 39.25	0	2469338..2469793	-	151	126642161	-	A1S_2116	-	hypothetical protein
2047	 35.91	-1	2470102..2470839	+	245	126642162	-	A1S_2117	-	putative pseudouridylate synthase
2048	 33.76	-1	2471026..2471259	+	77	126642163	-	A1S_2118	-	hypothetical protein
2049	 35.59	-1	2471357..2471800	+	147	126642164	-	A1S_2119	-	putative acetyltransferase
2050	 38.94	0	2471793..2472398	-	201	126642165	-	A1S_2120	-	16S rRNA pseudouridylate 516 synthase
2051	 40.08	0	2473049..2473522	+	157	126642166	-	A1S_2121	-	hypothetical protein
2052	 39.87	0	2473573..2474352	-	259	126642167	-	A1S_2122	-	transcriptional regulator
2053	 34.84	-1	2474719..2475513	-	264	126642168	-	A1S_2123	-	putative signal peptide
2054	 43.34	0	2476439..2477527	+	362	126642169	-	A1S_2124	-	major facilitator superfamily permease
2055	 36.94	0	2477553..2478578	-	341	126642170	-	A1S_2125	-	VIC family potassium channel protein
2056	 41.84	0	2479337..2480077	-	246	126642171	-	A1S_2126	-	aconitate hydratase 2
2057	 42.84	0	2480062..2480808	-	248	126642172	-	A1S_2127	-	aconitate hydratase 2
2058	 41.33	0	2480961..2481698	-	245	126642173	-	A1S_2128	-	aconitate hydratase 2
2059	 35.42	-1	2482233..2482568	-	111	126642174	-	A1S_2129	-	hypothetical protein
2060	 39.55	0	2482751..2486194	-	1147	126642175	-	A1S_2130	-	hypothetical protein
2061	 36.42	-1	2486278..2487120	-	280	126642176	-	A1S_2131	-	hypothetical protein
2062	 39.65	0	2487270..2489927	-	885	126642177	-	A1S_2132	-	putative outer membrane protein
2063	 39.39	0	2490444..2491367	+	307	126642178	-	A1S_2133	-	hypothetical protein
2064	 40.62	0	2491639..2492118	+	159	126642179	-	A1S_2134	-	putative ubiquinone biosynthesis protein
2065	 36.16	-1	2492166..2492660	-	164	126642180	-	A1S_2135	-	putative signal peptide
2066	 38.73	0	2493398..2494546	+	382	126642181	-	A1S_2136	-	glutamine synthetase
2067	 41.39	0	2494624..2495169	-	181	126642182	-	A1S_2137	-	hypothetical protein
2068	 39.87	0	2495352..2497889	-	845	126642183	-	A1S_2138	-	hypothetical protein
2069	 41.54	0	2498045..2498617	-	190	126642184	-	A1S_2139	-	hypothetical protein
2070	 42.31	0	2498664..2500580	-	638	126642185	-	A1S_2140	-	potassium-transporting ATPase subunit B
2071	 40.68	0	2500712..2501296	-	194	126642186	-	A1S_2141	-	potassium-transporting ATPase A chain
2072	 41.28	0	2501365..2502345	-	326	126642187	-	A1S_2142	-	hypothetical protein
2073	 36.59	-1	2502665..2503033	-	122	126642188	-	A1S_2143	-	putative 2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
2074	 42.42	0	2503074..2503370	-	98	126642189	-	A1S_2144	-	dihydroneopterin aldolase
2075	 39.19	0	2503470..2504648	-	392	126642190	-	A1S_2145	-	putative kinase
2076	 38.48	0	2504826..2505602	-	258	126642191	-	A1S_2146	-	molybdopterin biosynthesis protein
2077	 42.04	0	2505880..2506350	+	156	126642192	-	A1S_2147	-	flavin reductase-like protein
2078	 39.96	0	2506395..2508053	-	552	126642193	-	A1S_2148	-	putative acetyl-CoA synthetase/AMP-(fatty) acid ligase
2079	 45.22	+1	2508259..2509251	-	330	126642194	-	A1S_2149	-	putative acyl CoA dehydrogenase oxidoreductase protein
2080	 44.34	+1	2509414..2510076	-	220	126642195	-	A1S_2150	-	oxidoreductase
2081	 38.53	0	2510350..2510580	+	76	126642196	-	A1S_2151	-	AraC family transcriptional regulator
2082	 35.78	-1	2510768..2511379	+	203	126642197	-	A1S_2152	-	AraC family transcriptional regulator
2083	 41.22	0	2511387..2512007	-	206	126642198	-	A1S_2153	-	methyl transferase
2084	 43.21	0	2512208..2513098	-	296	126642199	-	A1S_2154	-	peptide chain release factor 1
2085	 37.87	0	2513487..2514170	-	227	126642200	-	A1S_2155	-	ThiJ/PfpI
2086	 35.52	-1	2514662..2515348	+	228	126642201	-	A1S_2156	-	regulatory protein LysR:LysR, substrate-binding
2087	 47.09	+1	2515592..2515969	+	125	126642202	-	A1S_2157	-	putative signal peptide
2088	 41.39	0	2516841..2517845	+	334	126642203	-	A1S_2158	-	putative monooxygenase
2089	 35.46	-1	2517992..2518555	+	187	126642204	-	A1S_2159	-	hypothetical protein
2090	 39.19	0	2519057..2520235	-	392	126642205	-	A1S_2160	-	haemin storage system HmsR protein
2091	 37.38	0	2520304..2521836	-	510	126642206	-	A1S_2161	-	putative hemin storage signal peptide protein
40.16	MEAN

3.49	STD DEV
