IslandPath Analysis: Acinetobacter baumannii ATCC 17978

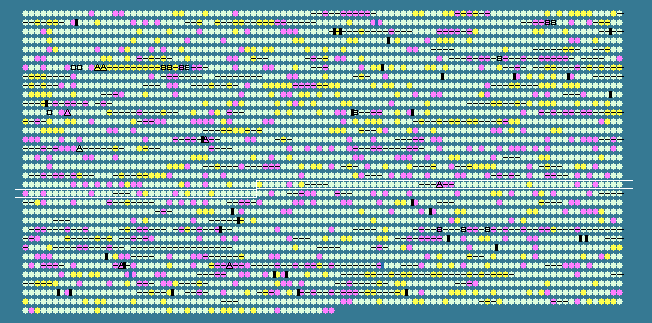

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1940	 45.05	+1	2325940..2326323	+	127	126642055	-	A1S_2010	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase (BCCP)
1941	 41.31	0	2326457..2327710	+	417	126642056	-	A1S_2011	-	biotin carboxylase (A subunit of acetyl-CoA carboxylase)
1942	 38.31	0	2327765..2328226	-	153	126642057	-	A1S_2012	-	putative signal peptide
1943	 36.81	0	2328416..2329507	-	363	126642058	-	A1S_2013	-	MFS superfamily metabolite transporter
1944	 37.63	0	2331032..2331682	+	216	126642059	-	A1S_2014	-	hypothetical protein
1945	 35.90	-1	2331816..2332946	+	376	126642060	-	A1S_2015	-	DNA-directed DNA polymerase
1946	 43.05	0	2333929..2334381	-	150	126642061	-	A1S_2016	-	Phage-related lysozyme
1947	 44.13	+1	2334764..2337958	-	1064	126642062	-	A1S_2017	-	hypothetical protein
1948	 39.72	0	2339515..2344290	-	1591	126642063	-	A1S_2018	-	tail tape meausure protein
1949	 38.85	0	2345534..2345968	-	144	126642064	-	A1S_2019	-	hypothetical protein
1950	 38.36	0	2346031..2346189	-	52	126642065	-	A1S_2020	-	hypothetical protein
1951	 41.83	0	2347124..2347900	-	258	126642066	-	A1S_2021	-	hypothetical protein
1952	 42.78	0	2348094..2349194	-	366	126642067	-	A1S_2022	-	putative tail fiber
1953	 40.88	0	2350572..2350982	-	136	126642068	-	A1S_2023	-	hypothetical protein
1954	 40.11	0	2351728..2352096	-	122	126642069	-	A1S_2024	-	glutamate 5-kinase
1955	 41.76	0	2353223..2353744	-	173	126642070	-	A1S_2025	-	hypothetical protein
1956	 37.28	0	2353927..2354154	-	75	126642071	-	A1S_2026	-	hypothetical protein
1957	 43.07	0	2354206..2354883	-	225	126642072	-	A1S_2027	-	hypothetical protein
1958	 40.75	0	2356274..2357257	-	327	126642073	-	A1S_2028	-	phage putative head morphogenesis protein
1959	 40.69	0	2357379..2358710	-	443	126642074	-	A1S_2029	-	hypothetical protein
1960	 43.53	0	2358827..2360179	-	450	126642075	-	A1S_2030	-	putative phage associated protein
1961	 38.35	0	2360244..2360642	-	132	126642076	-	A1S_2031	-	hypothetical protein
1962	 42.96	0	2360773..2361312	-	179	126642077	-	A1S_2032	-	hypothetical protein
1963	 37.22	0	2361383..2361742	-	119	126642078	-	A1S_2033	-	hypothetical protein
1964	 38.61	0	2364153..2364815	-	220	126642079	-	A1S_2034	-	hypothetical protein
1965	 42.95	0	2366469..2366780	-	103	126642080	-	A1S_2035	-	hypothetical protein
1966	 39.97	0	2368931..2370391	-	486	126642081	-	A1S_2036	-	DNA cytosine methyltransferase
1967	 36.77	0	2371894..2372358	+	154	126642082	-	A1S_2037	-	EsvI
1968	 41.16	0	2374436..2374831	+	131	126642083	-	A1S_2038	-	hypothetical protein
1969	 41.71	0	2375168..2376289	+	373	126642084	-	A1S_2039	-	hypothetical protein
1970	 35.24	-1	2378973..2380022	-	349	126642085	-	A1S_2040	-	putative phage integrase
1971	 36.42	-1	2380734..2381543	-	269	126642086	-	A1S_2041	-	hypothetical protein
1972	 28.60	-2	2382029..2382493	+	154	126642087	-	A1S_2042	-	TetR family transcriptional regulator
1973	 37.53	0	2383324..2384442	+	372	126642088	-	A1S_2043	-	putative iron-regulated membrane protein
1974	 37.52	0	2384679..2385275	+	198	126642089	-	A1S_2044	-	putative ferredoxin-dependent glutamate synthase
1975	 41.37	0	2385392..2385640	+	82	126642090	-	A1S_2045	-	putative ferredoxin-dependent glutamate synthase
1976	 38.79	0	2385637..2386278	+	213	126642091	-	A1S_2046	-	putative ferredoxin-dependent glutamate synthase
1977	 40.19	0	2386320..2387150	-	276	126642092	-	A1S_2047	-	putative lysophospholipase
1978	 41.16	0	2387348..2387692	-	114	126642093	-	A1S_2048	-	hypothetical protein
1979	 39.00	0	2387808..2388407	-	199	126642094	-	A1S_2049	-	hypothetical protein
1980	 37.24	0	2388484..2389353	-	289	126642095	-	A1S_2050	-	UDP-N-acetylenolpyruvoylglucosamine reductase FAD-binding
1981	 38.60	0	2389538..2389936	-	132	126642096	-	A1S_2051	-	putative phosphotyrosine protein phosphatase
1982	 39.71	0	2390342..2391376	-	344	126642097	-	A1S_2052	-	hypothetical protein
1983	 40.77	0	2391935..2392969	+	344	126642098	-	A1S_2053	-	putative iron-containing alcohol dehydrogenase
1984	 37.10	0	2393059..2393403	+	114	126642099	-	A1S_2054	-	putative thioesterase
1985	 43.85	+1	2393452..2395524	-	690	126642100	-	A1S_2055	-	phospholipase C
1986	 40.66	0	2396004..2397914	-	636	126642101	-	A1S_2056	-	DNA polymerase III tau and gamma subunits (DNA elongation factor III)
1987	 40.87	0	2398286..2399692	-	468	126642102	-	A1S_2057	-	major facilitator superfamily methyl viologen resistance protein
1988	 37.69	0	2399940..2400467	+	175	126642103	-	A1S_2058	-	putative transcriptional regulator
1989	 42.19	0	2400515..2401564	-	349	126642104	-	A1S_2059	-	putative esterase
1990	 39.32	0	2401846..2402463	-	205	126642105	-	A1S_2060	-	putative dehydratase
1991	 41.86	0	2402775..2404052	-	425	126642106	fabG	A1S_2061	-	3-ketoacyl-(acyl-carrier-protein) reductase
1992	 43.10	0	2404681..2405970	+	429	126642107	-	A1S_2062	-	acetyl-CoA acetyltransferase
1993	 34.18	-1	2406038..2406508	-	156	126642108	-	A1S_2063	-	hypothetical protein
1994	 40.81	0	2406668..2407456	+	262	126642109	-	A1S_2064	-	LysR family transcriptional regulator
1995	 39.60	0	2407587..2408576	+	329	126642110	-	A1S_2065	-	transaldolase B
1996	 35.27	-1	2408733..2409299	+	188	126642111	-	A1S_2066	-	leucine export protein LeuE
1997	 41.03	0	2409336..2409764	-	142	126642112	-	A1S_2067	-	transcriptional regulatory protein
1998	 40.80	0	2410245..2411168	+	307	126642113	-	A1S_2068	-	putative benzoate membrane transport protein
1999	 40.28	0	2411242..2411874	-	210	126642114	-	A1S_2069	-	putative magesium transporter transmembrane protein
2000	 38.80	0	2411977..2414682	-	901	126642115	-	A1S_2070	-	magnesium-transporting ATPase MgtA
2001	 34.85	-1	2415297..2415692	-	131	126642116	-	A1S_2071	-	hypothetical protein
2002	 37.38	0	2416999..2417319	+	106	126642117	-	A1S_2072	-	universal stress family protein
2003	 37.35	0	2417720..2419162	+	480	126642118	-	A1S_2073	-	ABC transporter ATPase
2004	 29.23	-2	2419236..2419625	-	129	126642119	-	A1S_2074	-	hypothetical protein
2005	 39.14	0	2420396..2421394	-	332	126642120	-	A1S_2075	-	putative outer membrane protein
2006	 37.11	0	2421814..2422872	-	352	126642121	-	A1S_2076	-	putative outer membrane porin receptor for Fe(III)-coprogen, Fe(III)-ferrioxamine B and Fe(III)-rhodotrulic acid uptake (fhuE)
2007	 42.92	0	2423196..2423915	-	239	126642122	-	A1S_2077	-	putative outer membrane porin receptor for Fe(III)-coprogen, Fe(III)-ferrioxamine B and Fe(III)-rhodotrulic acid uptake (fhuE)
2008	 37.09	0	2424216..2424668	+	150	126642123	-	A1S_2078	-	acetyltransferase
2009	 38.02	0	2427162..2428334	-	390	126642124	-	A1S_2079	-	putative mechanosensitive ion channel
2010	 39.96	0	2429068..2430576	+	502	126642125	-	A1S_2080	-	putative siderophore receptor
2011	 39.35	0	2430687..2431118	+	143	126642126	-	A1S_2081	-	TonB-dependent siderophore receptor
2012	 34.64	-1	2431181..2431564	-	127	126642127	-	A1S_2082	-	putative transcriptional regulator
2013	 40.96	0	2433610..2434107	+	165	126642128	-	A1S_2083	-	AsnC family transcriptional regulator
2014	 40.36	0	2434136..2434633	-	165	126642129	-	A1S_2084	-	chorismate mutase
2015	 41.19	0	2434771..2435241	-	156	126642130	-	A1S_2085	-	oxidoreductase
2016	 41.47	0	2435464..2436225	-	253	126642131	-	A1S_2086	-	putative short chain dehydrogenase
2017	 40.11	0	2436233..2436778	-	181	126642132	-	A1S_2087	-	putative glutathione S-transferase
2018	 41.60	0	2437146..2437907	-	253	126642133	-	A1S_2088	-	hypothetical protein
2019	 40.62	0	2438156..2440474	-	772	126642134	-	A1S_2089	-	fimbrial usher protein
2020	 33.50	-1	2440625..2441239	-	204	126642135	-	A1S_2090	-	hypothetical protein
2021	 43.92	+1	2441402..2441845	-	147	126642136	-	A1S_2091	-	hypothetical protein
2022	 41.90	0	2442484..2444946	-	820	126642137	-	A1S_2092	-	aminopeptidase N
2023	 39.15	0	2445409..2445666	+	85	126642138	-	A1S_2093	-	hypothetical protein
2024	 37.64	0	2445884..2446975	+	363	126642139	-	A1S_2094	-	hypothetical protein
2025	 40.09	0	2447156..2447836	+	226	126642140	-	A1S_2095	-	hydoxyethylthiazole kinase
2026	 36.56	-1	2447958..2448236	-	92	126642141	-	A1S_2096	-	putative 5-carboxymethyl-2-hydroxymuconate delta isomerase
2027	 38.96	0	2448361..2449905	-	514	126642142	-	A1S_2097	-	putative helicase
2028	 44.83	+1	2450433..2451476	+	347	126642143	-	A1S_2098	-	putative alcohol dehydrogenase
2029	 38.20	0	2451672..2452226	+	184	126642144	-	A1S_2099	-	hypothetical protein
2030	 42.11	0	2452414..2452641	+	75	126642145	-	A1S_2100	-	hypothetical protein
2031	 41.91	0	2452638..2453570	-	310	126642146	-	A1S_2101	-	putative transcriptional regulator
2032	 43.87	+1	2454260..2455483	+	407	126642147	-	A1S_2102	-	aldehyde dehydrogenase 1
2033	 42.09	0	2455897..2457141	+	414	126642148	-	A1S_2103	-	putative transport protein
2034	 42.11	0	2457302..2458543	+	413	126642149	-	A1S_2104	-	ethanolamine ammonia-lyase heavy chain
2035	 41.67	0	2458554..2458877	+	107	126642150	-	A1S_2105	-	ethanolamine ammonia-lyase
2036	 40.04	0	2458922..2459368	+	148	126642151	-	A1S_2106	-	ethanolamine ammonia-lyase light chain
2037	 37.19	0	2459659..2460255	+	198	126642152	-	A1S_2107	-	glutamine amidotransferase
2038	 41.78	0	2460657..2462384	-	575	126642153	-	A1S_2108	-	glutaminyl-tRNA synthetase
2039	 40.68	0	2462709..2463062	+	117	126642154	-	A1S_2109	-	peptidyl-prolyl cis-trans isomerase precursor
40.16	MEAN

3.49	STD DEV
