IslandPath Analysis: Acinetobacter baumannii ATCC 17978

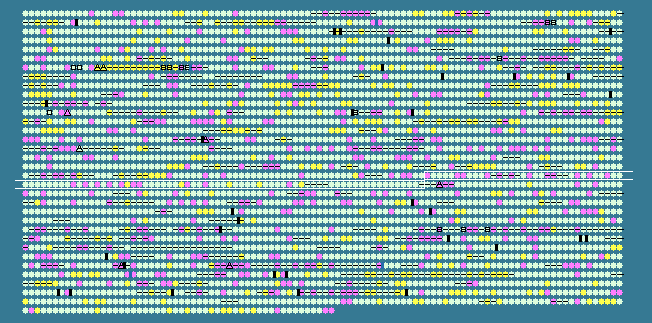

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1868	 33.95	-1	2243216..2243539	-	107	126641983	-	A1S_1938	-	hypothetical protein
1869	 37.39	0	2243972..2244685	+	237	126641984	-	A1S_1939	-	putative transcriptional regulator
1870	 37.57	0	2244738..2245445	-	235	126641985	-	A1S_1940	-	methionine aminopeptidase
1871	 37.51	0	2246062..2247186	+	374	126641986	-	A1S_1941	-	branched chain amino acid transporter
1872	 37.60	0	2247423..2247797	+	124	126641987	-	A1S_1942	-	hypothetical protein
1873	 34.35	-1	2248336..2248728	-	130	126641988	-	A1S_1943	-	hypothetical protein
1874	 35.05	-1	2249031..2249789	+	252	126641989	-	A1S_1944	-	Alpha/beta hydrolase
1875	 41.62	0	2250266..2252872	+	868	126641990	-	A1S_1945	-	phosphotransferase system fructose-specific EI/HPr/EIIA components
1876	 39.54	0	2252965..2253834	+	289	126641991	-	A1S_1946	-	1-phosphofructokinase
1877	 39.50	0	2253887..2255539	+	550	126641992	-	A1S_1947	-	phosphotransferase system fructose-specific IIBC component
1878	 33.55	-1	2256207..2256671	+	154	126641993	-	A1S_1948	-	MarR family multidrug resistance pump transcriptional regulator
1879	 37.95	0	2257848..2259776	+	642	126641994	-	A1S_1949	-	putative diguanylate cyclase/phosphodiesterase
1880	 33.92	-1	2260007..2260345	+	112	126641995	-	A1S_1950	-	putative universal stress protein
1881	 38.38	0	2260400..2261707	-	435	126641996	-	A1S_1951	-	hypothetical protein
1882	 34.39	-1	2262356..2262826	+	156	126641997	-	A1S_1952	-	hypothetical protein
1883	 37.61	0	2263265..2264527	+	420	126641998	-	A1S_1953	-	putative sulfate transporter
1884	 39.98	0	2264565..2265467	-	300	126641999	-	A1S_1954	-	serine proteinase
1885	 34.81	-1	2266983..2267657	-	224	126642000	-	A1S_1955	-	hypothetical protein
1886	 39.08	0	2267737..2269077	-	446	126642001	-	A1S_1956	-	putative amino acid permease
1887	 38.76	0	2269184..2270362	-	392	126642002	-	A1S_1957	-	putative L-kynurenine hydrolase
1888	 30.22	-2	2270581..2271030	+	149	126642003	-	A1S_1958	-	putative transcriptional regulator
1889	 35.67	-1	2271143..2271613	+	156	126642004	-	A1S_1959	-	acetyltransferase
1890	 37.11	0	2273150..2273626	+	158	126642005	-	A1S_1960	-	HAD superfamily hydrolase
1891	 40.66	0	2273779..2274051	+	90	126642006	-	A1S_1961	-	heat shock protein 15
1892	 39.59	0	2274272..2275246	+	324	126642007	recA	A1S_1962	-	recombinase A
1893	 34.78	-1	2275300..2275782	+	160	126642008	-	A1S_1963	-	regulatory protein
1894	 37.22	0	2276374..2277093	+	239	126642009	-	A1S_1964	-	putative signal peptide
1895	 36.54	-1	2277148..2277834	-	228	126642010	-	A1S_1965	-	UDP-N-acetylglucosamine acyltransferase
1896	 38.10	0	2277933..2278373	-	146	126642011	-	A1S_1966	-	hypothetical protein
1897	 37.79	0	2278425..2279366	-	313	126642012	-	A1S_1967	-	hypothetical protein
1898	 34.37	-1	2279500..2279982	-	160	126642013	-	A1S_1968	-	putative outer membrane protein (OmpH)
1899	 36.95	0	2280045..2282534	-	829	126642014	-	A1S_1969	-	putative outer membrane protein
1900	 37.80	0	2282593..2283735	-	380	126642015	-	A1S_1970	-	putative membrane-associated Zn-dependent proteases 1
1901	 38.85	0	2283950..2285146	-	398	162286729	-	A1S_1971	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1902	 39.52	0	2285147..2285890	-	247	126642017	-	A1S_1972	-	phosphatidate cytidylyltransferase
1903	 40.66	0	2285971..2286639	-	222	126642018	-	A1S_1973	-	undecaprenyl pyrophosphate synthetase
1904	 39.08	0	2286729..2287163	-	144	126642019	-	A1S_1974	-	ribosome releasing factor
1905	 40.71	0	2287369..2288019	-	216	126642020	-	A1S_1975	-	uridylate kinase
1906	 40.55	0	2288149..2289492	-	447	126642021	-	A1S_1976	-	hypothetical protein
1907	 39.86	0	2290114..2290941	+	275	126642022	-	A1S_1977	-	two-component regulatory system sensory kinase
1908	 42.36	0	2290970..2292421	+	483	126642023	-	A1S_1978	-	response regulator protein
1909	 34.39	-1	2292781..2293350	+	189	126642024	-	A1S_1979	-	putative transcriptional regulator
1910	 39.09	0	2293550..2294383	+	277	126642025	-	A1S_1980	-	ornithine carbamoyltransferase
1911	 33.71	-1	2294578..2295102	+	174	126642026	-	A1S_1981	-	hypothetical protein
1912	 38.93	0	2295099..2295545	-	148	126642027	-	A1S_1982	-	2C-methyl-D-erythritol 24-cyclodiphosphate synthase
1913	 36.52	-1	2295733..2296329	+	198	126642028	-	A1S_1983	-	putative signal peptide
1914	 39.33	0	2296376..2297509	-	377	126642029	-	A1S_1984	-	D-amino acid dehydrogenase small subunit
1915	 34.65	-1	2298031..2298486	-	151	126642030	-	A1S_1985	-	hypothetical protein
1916	 42.00	0	2299907..2301175	-	422	126642031	fumC	A1S_1986	-	fumarate hydratase
1917	 36.34	-1	2301416..2302279	-	287	126642032	-	A1S_1987	-	putative UDP-galactose 4-epimerase (GalE-like)
1918	 45.26	+1	2302489..2302857	+	122	126642033	-	A1S_1988	-	putative intracellular sulfur oxidation protein (DsrE-like)
1919	 36.59	-1	2302977..2303252	+	91	126642034	-	A1S_1989	-	hypothetical protein
1920	 34.74	-1	2303270..2303554	+	94	126642035	-	A1S_1990	-	hypothetical protein
1921	 38.14	0	2303574..2303885	+	103	126642036	-	A1S_1991	-	putative sulfite reductase
1922	 40.07	0	2303890..2304483	-	197	126642037	-	A1S_1992	-	DMT family permease
1923	 41.29	0	2305086..2306279	+	397	126642038	-	A1S_1993	-	regulatory protein GntR HTH
1924	 39.73	0	2306276..2306713	-	145	126642039	-	A1S_1994	-	hypothetical protein
1925	 40.86	0	2306967..2307989	-	340	126642040	-	A1S_1995	-	molybdopterin biosynthesis protein
1926	 43.55	0	2308202..2308837	-	211	126642041	moaC	A1S_1996	-	bifunctional molybdenum cofactor biosynthesis protein C/molybdopterin-binding protein
1927	 44.02	+1	2309149..2309541	-	130	126642042	-	A1S_1997	-	molybdopterin converting factor large subunit
1928	 36.47	-1	2309641..2309895	-	84	126642043	-	A1S_1998	-	hypothetical protein
1929	 37.38	0	2309896..2310735	-	279	126642044	-	A1S_1999	-	molybdopterin biosynthesis protein A
1930	 40.29	0	2311162..2313402	-	746	126642045	-	A1S_2000	-	hypothetical protein
1931	 34.74	-1	2313586..2314155	-	189	126642046	-	A1S_2001	-	molybdopterin-guanine dinucleotide synthase
1932	 42.27	0	2314212..2316752	-	846	126642047	-	A1S_2002	-	nitrate reductase large subunit
1933	 41.72	0	2317011..2317439	-	142	126642048	-	A1S_2003	-	putative nitrate reductase
1934	 42.22	0	2317591..2318445	-	284	126642049	-	A1S_2004	-	putative nitrate reductase
1935	 43.67	+1	2318650..2320962	-	770	126642050	-	A1S_2005	-	nitrite reductase
1936	 38.50	0	2322099..2322524	+	141	126642051	-	A1S_2006	-	response regulator protein
1937	 38.13	0	2322723..2323535	+	270	126642052	-	A1S_2007	-	putative nitrate transport protein (NasF)
1938	 37.75	0	2324041..2325195	+	384	126642053	-	A1S_2008	-	DNA repair protein
1939	 41.19	0	2325467..2325886	+	139	126642054	-	A1S_2009	-	3-dehydroquinate dehydratase
1940	 45.05	+1	2325940..2326323	+	127	126642055	-	A1S_2010	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase (BCCP)
1941	 41.31	0	2326457..2327710	+	417	126642056	-	A1S_2011	-	biotin carboxylase (A subunit of acetyl-CoA carboxylase)
1942	 38.31	0	2327765..2328226	-	153	126642057	-	A1S_2012	-	putative signal peptide
1943	 36.81	0	2328416..2329507	-	363	126642058	-	A1S_2013	-	MFS superfamily metabolite transporter
1944	 37.63	0	2331032..2331682	+	216	126642059	-	A1S_2014	-	hypothetical protein
1945	 35.90	-1	2331816..2332946	+	376	126642060	-	A1S_2015	-	DNA-directed DNA polymerase
1946	 43.05	0	2333929..2334381	-	150	126642061	-	A1S_2016	-	Phage-related lysozyme
1947	 44.13	+1	2334764..2337958	-	1064	126642062	-	A1S_2017	-	hypothetical protein
1948	 39.72	0	2339515..2344290	-	1591	126642063	-	A1S_2018	-	tail tape meausure protein
1949	 38.85	0	2345534..2345968	-	144	126642064	-	A1S_2019	-	hypothetical protein
1950	 38.36	0	2346031..2346189	-	52	126642065	-	A1S_2020	-	hypothetical protein
1951	 41.83	0	2347124..2347900	-	258	126642066	-	A1S_2021	-	hypothetical protein
1952	 42.78	0	2348094..2349194	-	366	126642067	-	A1S_2022	-	putative tail fiber
1953	 40.88	0	2350572..2350982	-	136	126642068	-	A1S_2023	-	hypothetical protein
1954	 40.11	0	2351728..2352096	-	122	126642069	-	A1S_2024	-	glutamate 5-kinase
1955	 41.76	0	2353223..2353744	-	173	126642070	-	A1S_2025	-	hypothetical protein
1956	 37.28	0	2353927..2354154	-	75	126642071	-	A1S_2026	-	hypothetical protein
1957	 43.07	0	2354206..2354883	-	225	126642072	-	A1S_2027	-	hypothetical protein
1958	 40.75	0	2356274..2357257	-	327	126642073	-	A1S_2028	-	phage putative head morphogenesis protein
1959	 40.69	0	2357379..2358710	-	443	126642074	-	A1S_2029	-	hypothetical protein
1960	 43.53	0	2358827..2360179	-	450	126642075	-	A1S_2030	-	putative phage associated protein
1961	 38.35	0	2360244..2360642	-	132	126642076	-	A1S_2031	-	hypothetical protein
1962	 42.96	0	2360773..2361312	-	179	126642077	-	A1S_2032	-	hypothetical protein
1963	 37.22	0	2361383..2361742	-	119	126642078	-	A1S_2033	-	hypothetical protein
1964	 38.61	0	2364153..2364815	-	220	126642079	-	A1S_2034	-	hypothetical protein
1965	 42.95	0	2366469..2366780	-	103	126642080	-	A1S_2035	-	hypothetical protein
1966	 39.97	0	2368931..2370391	-	486	126642081	-	A1S_2036	-	DNA cytosine methyltransferase
1967	 36.77	0	2371894..2372358	+	154	126642082	-	A1S_2037	-	EsvI
40.16	MEAN

3.49	STD DEV
