IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

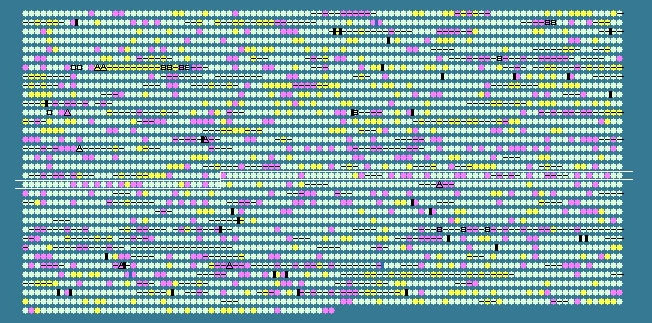

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1834	 34.71	-1	2205437..2205799	-	120	126641949	-	A1S_1904	-	hypothetical protein
1835	 41.31	0	2205915..2207870	-	651	126641950	-	A1S_1905	-	24-dienoyl-CoA reductase
1836	 37.53	0	2208159..2208635	+	158	126641951	-	A1S_1906	-	hypothetical protein
1837	 37.68	0	2208728..2209555	+	275	126641952	-	A1S_1907	-	putative peroxidase
1838	 38.63	0	2209599..2210486	-	295	126641953	-	A1S_1908	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1839	 41.36	0	2211082..2211405	-	107	126641954	-	A1S_1909	-	hypothetical protein
1840	 40.19	0	2211448..2213604	-	718	126641955	-	A1S_1910	-	ATP-binding protease component
1841	 40.58	0	2213734..2214147	-	137	126641956	-	A1S_1911	-	putative protease
1842	 40.98	0	2214157..2214810	-	217	126641957	-	A1S_1912	-	hypothetical protein
1843	 38.02	0	2214991..2215908	-	305	126641958	argC	A1S_1913	-	N-acetyl-gamma-glutamyl-phosphate reductase
1844	 38.78	0	2217745..2218332	-	195	126641959	-	A1S_1914	-	hypothetical protein
1845	 39.22	0	2218425..2218883	-	152	126641960	-	A1S_1915	-	ribose 5-phosphate isomerase
1846	 42.13	0	2219495..2220745	+	416	126641961	-	A1S_1916	-	threonine dehydratase
1847	 35.02	-1	2220890..2221540	+	216	126641962	-	A1S_1917	-	putative potassium uptake protein
1848	 37.75	0	2221697..2222896	+	399	126641963	-	A1S_1918	-	putative potassium uptake protein (TrkH)
1849	 40.95	0	2222938..2224014	-	358	126641964	-	A1S_1919	-	putative phospholipase A1 precursor (PldA)
1850	 39.63	0	2224110..2226857	-	915	126641965	-	A1S_1920	-	putative metalloprotease
1851	 38.32	0	2227301..2229226	-	641	126641966	-	A1S_1921	-	ferrichrome-iron receptor
1852	 40.42	0	2229740..2230642	+	300	126641967	-	A1S_1922	-	putative sugar kinase protein
1853	 37.57	0	2231083..2231601	+	172	126641968	-	A1S_1923	-	hypothetical protein
1854	 41.67	0	2232289..2233764	+	491	126641969	-	A1S_1924	-	cytochrome d terminal oxidase polypeptide subunit I
1855	 43.15	0	2233848..2234906	+	352	126641970	-	A1S_1925	-	cytochrome d terminal oxidase polypeptide subunit II
1856	 44.21	+1	2235037..2235321	+	94	126641971	-	A1S_1926	-	hypothetical protein
1857	 32.69	-2	2235334..2235801	-	155	126641972	-	A1S_1927	-	putative acetyltransferase
1858	 39.65	0	2235931..2236500	-	189	126641973	-	A1S_1928	-	putative signal peptide
1859	 37.35	0	2236828..2237424	-	198	126641974	-	A1S_1929	-	putative oxidoreductase
1860	 38.96	0	2237612..2238517	-	301	126641975	-	A1S_1930	-	cell division protein
1861	 36.84	0	2238826..2239053	-	75	126641976	-	A1S_1931	-	hypothetical protein
1862	 34.44	-1	2239253..2239612	-	119	126641977	-	A1S_1932	-	hypothetical protein
1863	 41.03	0	2239828..2240061	+	77	126641978	-	A1S_1933	-	hypothetical protein
1864	 36.53	-1	2240397..2240771	+	124	126641979	-	A1S_1934	-	hypothetical protein
1865	 36.58	-1	2241005..2241343	+	112	126641980	-	A1S_1935	-	hypothetical protein
1866	 40.44	0	2241392..2242306	-	304	126641981	-	A1S_1936	-	acetylornithine aminotransferase
1867	 42.11	0	2242828..2243169	+	113	126641982	-	A1S_1937	-	putative glutaredoxin-related protein
1868	 33.95	-1	2243216..2243539	-	107	126641983	-	A1S_1938	-	hypothetical protein
1869	 37.39	0	2243972..2244685	+	237	126641984	-	A1S_1939	-	putative transcriptional regulator
1870	 37.57	0	2244738..2245445	-	235	126641985	-	A1S_1940	-	methionine aminopeptidase
1871	 37.51	0	2246062..2247186	+	374	126641986	-	A1S_1941	-	branched chain amino acid transporter
1872	 37.60	0	2247423..2247797	+	124	126641987	-	A1S_1942	-	hypothetical protein
1873	 34.35	-1	2248336..2248728	-	130	126641988	-	A1S_1943	-	hypothetical protein
1874	 35.05	-1	2249031..2249789	+	252	126641989	-	A1S_1944	-	Alpha/beta hydrolase
1875	 41.62	0	2250266..2252872	+	868	126641990	-	A1S_1945	-	phosphotransferase system fructose-specific EI/HPr/EIIA components
1876	 39.54	0	2252965..2253834	+	289	126641991	-	A1S_1946	-	1-phosphofructokinase
1877	 39.50	0	2253887..2255539	+	550	126641992	-	A1S_1947	-	phosphotransferase system fructose-specific IIBC component
1878	 33.55	-1	2256207..2256671	+	154	126641993	-	A1S_1948	-	MarR family multidrug resistance pump transcriptional regulator
1879	 37.95	0	2257848..2259776	+	642	126641994	-	A1S_1949	-	putative diguanylate cyclase/phosphodiesterase
1880	 33.92	-1	2260007..2260345	+	112	126641995	-	A1S_1950	-	putative universal stress protein
1881	 38.38	0	2260400..2261707	-	435	126641996	-	A1S_1951	-	hypothetical protein
1882	 34.39	-1	2262356..2262826	+	156	126641997	-	A1S_1952	-	hypothetical protein
1883	 37.61	0	2263265..2264527	+	420	126641998	-	A1S_1953	-	putative sulfate transporter
1884	 39.98	0	2264565..2265467	-	300	126641999	-	A1S_1954	-	serine proteinase
1885	 34.81	-1	2266983..2267657	-	224	126642000	-	A1S_1955	-	hypothetical protein
1886	 39.08	0	2267737..2269077	-	446	126642001	-	A1S_1956	-	putative amino acid permease
1887	 38.76	0	2269184..2270362	-	392	126642002	-	A1S_1957	-	putative L-kynurenine hydrolase
1888	 30.22	-2	2270581..2271030	+	149	126642003	-	A1S_1958	-	putative transcriptional regulator
1889	 35.67	-1	2271143..2271613	+	156	126642004	-	A1S_1959	-	acetyltransferase
1890	 37.11	0	2273150..2273626	+	158	126642005	-	A1S_1960	-	HAD superfamily hydrolase
1891	 40.66	0	2273779..2274051	+	90	126642006	-	A1S_1961	-	heat shock protein 15
1892	 39.59	0	2274272..2275246	+	324	126642007	recA	A1S_1962	-	recombinase A
1893	 34.78	-1	2275300..2275782	+	160	126642008	-	A1S_1963	-	regulatory protein
1894	 37.22	0	2276374..2277093	+	239	126642009	-	A1S_1964	-	putative signal peptide
1895	 36.54	-1	2277148..2277834	-	228	126642010	-	A1S_1965	-	UDP-N-acetylglucosamine acyltransferase
1896	 38.10	0	2277933..2278373	-	146	126642011	-	A1S_1966	-	hypothetical protein
1897	 37.79	0	2278425..2279366	-	313	126642012	-	A1S_1967	-	hypothetical protein
1898	 34.37	-1	2279500..2279982	-	160	126642013	-	A1S_1968	-	putative outer membrane protein (OmpH)
1899	 36.95	0	2280045..2282534	-	829	126642014	-	A1S_1969	-	putative outer membrane protein
1900	 37.80	0	2282593..2283735	-	380	126642015	-	A1S_1970	-	putative membrane-associated Zn-dependent proteases 1
1901	 38.85	0	2283950..2285146	-	398	162286729	-	A1S_1971	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1902	 39.52	0	2285147..2285890	-	247	126642017	-	A1S_1972	-	phosphatidate cytidylyltransferase
1903	 40.66	0	2285971..2286639	-	222	126642018	-	A1S_1973	-	undecaprenyl pyrophosphate synthetase
1904	 39.08	0	2286729..2287163	-	144	126642019	-	A1S_1974	-	ribosome releasing factor
1905	 40.71	0	2287369..2288019	-	216	126642020	-	A1S_1975	-	uridylate kinase
1906	 40.55	0	2288149..2289492	-	447	126642021	-	A1S_1976	-	hypothetical protein
1907	 39.86	0	2290114..2290941	+	275	126642022	-	A1S_1977	-	two-component regulatory system sensory kinase
1908	 42.36	0	2290970..2292421	+	483	126642023	-	A1S_1978	-	response regulator protein
1909	 34.39	-1	2292781..2293350	+	189	126642024	-	A1S_1979	-	putative transcriptional regulator
1910	 39.09	0	2293550..2294383	+	277	126642025	-	A1S_1980	-	ornithine carbamoyltransferase
1911	 33.71	-1	2294578..2295102	+	174	126642026	-	A1S_1981	-	hypothetical protein
1912	 38.93	0	2295099..2295545	-	148	126642027	-	A1S_1982	-	2C-methyl-D-erythritol 24-cyclodiphosphate synthase
1913	 36.52	-1	2295733..2296329	+	198	126642028	-	A1S_1983	-	putative signal peptide
1914	 39.33	0	2296376..2297509	-	377	126642029	-	A1S_1984	-	D-amino acid dehydrogenase small subunit
1915	 34.65	-1	2298031..2298486	-	151	126642030	-	A1S_1985	-	hypothetical protein
1916	 42.00	0	2299907..2301175	-	422	126642031	fumC	A1S_1986	-	fumarate hydratase
1917	 36.34	-1	2301416..2302279	-	287	126642032	-	A1S_1987	-	putative UDP-galactose 4-epimerase (GalE-like)
1918	 45.26	+1	2302489..2302857	+	122	126642033	-	A1S_1988	-	putative intracellular sulfur oxidation protein (DsrE-like)
1919	 36.59	-1	2302977..2303252	+	91	126642034	-	A1S_1989	-	hypothetical protein
1920	 34.74	-1	2303270..2303554	+	94	126642035	-	A1S_1990	-	hypothetical protein
1921	 38.14	0	2303574..2303885	+	103	126642036	-	A1S_1991	-	putative sulfite reductase
1922	 40.07	0	2303890..2304483	-	197	126642037	-	A1S_1992	-	DMT family permease
1923	 41.29	0	2305086..2306279	+	397	126642038	-	A1S_1993	-	regulatory protein GntR HTH
1924	 39.73	0	2306276..2306713	-	145	126642039	-	A1S_1994	-	hypothetical protein
1925	 40.86	0	2306967..2307989	-	340	126642040	-	A1S_1995	-	molybdopterin biosynthesis protein
1926	 43.55	0	2308202..2308837	-	211	126642041	moaC	A1S_1996	-	bifunctional molybdenum cofactor biosynthesis protein C/molybdopterin-binding protein
1927	 44.02	+1	2309149..2309541	-	130	126642042	-	A1S_1997	-	molybdopterin converting factor large subunit
1928	 36.47	-1	2309641..2309895	-	84	126642043	-	A1S_1998	-	hypothetical protein
1929	 37.38	0	2309896..2310735	-	279	126642044	-	A1S_1999	-	molybdopterin biosynthesis protein A
1930	 40.29	0	2311162..2313402	-	746	126642045	-	A1S_2000	-	hypothetical protein
1931	 34.74	-1	2313586..2314155	-	189	126642046	-	A1S_2001	-	molybdopterin-guanine dinucleotide synthase
1932	 42.27	0	2314212..2316752	-	846	126642047	-	A1S_2002	-	nitrate reductase large subunit
1933	 41.72	0	2317011..2317439	-	142	126642048	-	A1S_2003	-	putative nitrate reductase
40.16	MEAN

3.49	STD DEV
